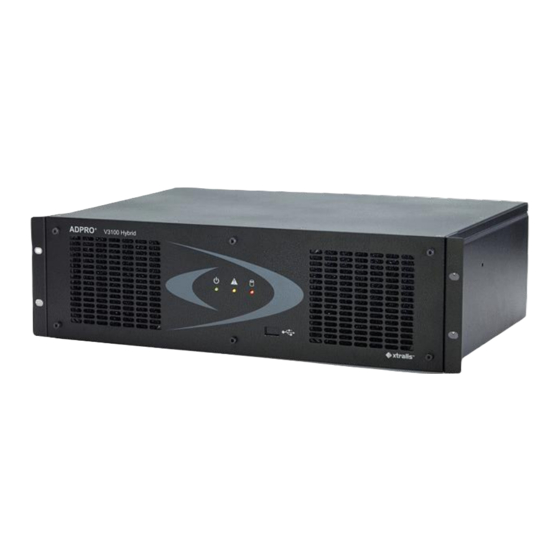

ADPRO V3100 Hybrid
Video Security System
ADPRO V3100 Hybrid
video security system
manual
until version 2.00.xxxx
Original Document V1.03
Art. nr. 19531902
Published September 2009
Latest Update February 2011
Xtralis. The sooner you know
SECURITY SOLUTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADPRO V3100 Hybrid and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xtralis ADPRO V3100 Hybrid

Summary of Contents for Xtralis ADPRO V3100 Hybrid

  • Page 1 ADPRO V3100 Hybrid Video Security System ADPRO V3100 Hybrid video security system manual until version 2.00.xxxx Original Document V1.03 Art. nr. 19531902 Published September 2009 Latest Update February 2011 Xtralis. The sooner you know SECURITY SOLUTIONS...
  • Page 2 This manual holds the description of the steps that should be followed to configure the ADPRO V3100 HYBRID system. All official partners of Xtralis are allowed to use this manual and to copy it according to their needs. Great efforts have been made to provide a complete and correct manual on the date of issue.

  • Page 3: Table Of Contents

    Table of contents. FEATURES ..................................6 ............................ 7 ECHNICAL SPECIFICATIONS ............................10 URRENT CONSUMPTION ............................11 AN SPEED SELECTION .............................. 11 XTENSION BOARDS DESKTOP MODEL ..............................13 ASUS M2A-VM V1.01 - V3100FT) ..13 MOTHERBOARD ONLY SUPPORTS SOFTWARE VERSIONS UP TO 2.1.1 Network/monitor/keyboard ...........................
  • Page 4 9.1.1.1 Serial PTZ ..............................42 9.1.1.2 List of available PTZ protocols ......................... 43 9.1.1.3 DTC PTZ..............................45 9.1.2 Video input termination (75 Ohms/High impedance) ................... 45 9.1.3 Audio in ................................. 46 9.1.3.1 Recommended microphones ........................47 9.1.4 Audio Out ..............................49 9.1.4.1 Connection of VM22A audio switch to V3100 system ................
  • Page 5 30 SEARCH A RECORDING ON THE VIDEO SYSTEM'S HARD DISK ................. 83 30.1 ............................83 YPES OF RECORDINGS 30.2 ................................84 IME LINE 30.3 ........................... 86 OOK UP RECORDINGS BY EVENT 30.4 ............................ 87 YNCHRONISED PLAYBACK 31 POST MOTION ................................88 31.1 ..................................
  • Page 6 41.3.1 Replace a video card ........................... 119 41.3.2 Add a video card ............................119 41.4 BIOS (ASUS M2A-VM ) ..................120 UPDATE PROCEDURE BOARD 42 APPLICATION NOTES V3100 ........................... 121 42.1 VSKW V3100 ..................121 RETRIEVE THE CONFIGURATION FILE 42.2 VSKW ......

  • Page 7: Safety Instructions

    Safety instructions CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN! CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

  • Page 8: Features

    ADPRO V3100 Hybrid video system Technical manual 1 Features V3100 Hybrid Accepts analogue cameras and IP cameras, up to 16 in total. For analogue cameras, one or two A/V cards have to be inserted. Two different A/V cards are available; one with 4 A/V inputs and one with 8 A/V inputs.

  • Page 9: Technical Specifications

    ADPRO V3100 Hybrid video system Technical manual Technical specifications Max number of cameras 16 (analogue and IP cameras all together) Analogue cameras 4, 8, 12 or 16 analogue A/V inputs Video PAL or NTSC BNC connectors (1.0 Vp-p; 75 Ohm) Max.
  • Page 10 ADPRO V3100 Hybrid video system Technical manual System PC platform - Linux OS Network protocols TCP, UDP, TELNET, HTTP, SMTP, RTSP, RTP, NTP... Application update Local and remote Web server Integrated COM ports 4 USB interfaces, used for: PTZ control (requires an USB to RS485 convertor)
  • Page 11 ADPRO V3100 Hybrid video system Technical manual Limitations on live video streaming There is one separate video processor for each group of 4 analogue cameras (video in 1-4, 5-8, 9-12, 13-16). If 4CIF resolution is applied to at least one camera within the same group, following limitations will apply to live...

  • Page 12: Current Consumption

    ADPRO V3100 Hybrid video system Technical manual Current consumption Estimated current consumption depends on which components have been installed and on the system load: Motherboard 12W (Asus) / 16W (Intel) Processor 25W (Asus: 45W max.) (Intel DG31 & DG41: 65W max.)(Intel DH55: 73W max) 4-channel video/audio card 3.5W...

  • Page 13: Fan Speed Selection

    ADPRO V3100 Hybrid video system Technical manual Fan speed selection Two large fans are provided to dissipate the heat. The fans have a switch to select the speed: low/medium/fast. To set the fan speed, consult the following table ambient temperature <30°C ambient temperature >30°C...
  • Page 14 ADPRO V3100 Hybrid video system Technical manual General rules The desktop model offers 4 extension slots: two PCI Express slots and two PCI slots. The 19" model offers 6 extension slots. For Asus M2A-VM, Intel DG31PR and Intel DG41TY motherboard: two PCI Express slots, two PCI slots and two physical slots.

  • Page 15: Desktop Model

    ADPRO V3100 Hybrid video system Technical manual 2 Desktop model With ASUS M2A-VM motherboard (only supports software versions up to V1.01 - V3100FT) 4 analogue 8 analogue 12 analogue cameras cameras cameras 2.1.1 Network/monitor/keyboard /dev/ttyU1 NOT USED MOUSE LINE IN...

  • Page 16: With Intel Dg31Pr Motherboard

    ADPRO V3100 Hybrid video system Technical manual With Intel DG31PR motherboard 8 analogue 4 analogue 12 analogue cameras cameras cameras KEYBOARD 2.2.1 Network/monitor/keyboard /dev/ttyU3 INTEL DG31PR /dev/ttyU2 KEYBOARD /dev/ttyU1 /dev/ttyU4 /dev/ttyU1 is reserved for an external modem 2.2.2 Extensions slots - model with Intel DG motherboard...

  • Page 17: With Intel Dg41Ty Motherboard

    ADPRO V3100 Hybrid video system Technical manual With Intel DG41TY motherboard LINE IN /dev/ttyU2 MOUSE SPEAKER KEYBOARD 8 analogue 4 analogue 12 analogue cameras cameras cameras /dev/ttyU3 VGA (MONITOR) /dev/ttyU1 /dev/ttyU4 MODEM 2.3.1 Network/monitor/keyboard LINE IN /dev/ttyU2 MOUSE SPEAKER KEYBOARD...

  • Page 18: Octopus Cable

    ADPRO V3100 Hybrid video system Technical manual Octopus cable On the desktop model, video and audio sources apply a specific cable. All inputs use BNC connectors. VID1 AUD1 8 Ch or 4 Ch VID2 AUD2 VID3 AUD3 VID4 AUD4 2.4.1 Ferrite Core The supplied ferrite cores are clipped onto the octopus cables in order to suppress high frequency noise - see figure.

  • Page 19: 19-Inch Model

    ADPRO V3100 Hybrid video system Technical manual 3 19-inch model With Asus M2A-VM motherboard (only supports software versions up to V1.01 - V3100FT) Video/Audio Inputs POWER SWITCH MAINS INLET ATX board ETHERNET THROUGH- CONNECTION (AVAILABLE ON FRONT) The installation of the 19" model in a rack requires safety precautions regarding the way of disconnection from the mains circuit.

  • Page 20: With Intel Dg31Pr Motherboard

    ADPRO V3100 Hybrid video system Technical manual With Intel DG31PR motherboard Video/Audio Inputs POWER SWITCH MAINS INLET ETHERNET THROUGH- CONNECTION (AVAILABLE ON KEYBOARD FRONT) 3.2.1 Network/monitor/keyboard /dev/ttyU3 INTEL DG31PR /dev/ttyU2 KEYBOARD /dev/ttyU1 /dev/ttyU4 /dev/ttyU1 is reserved for an external modem 3.2.2 Extensions slots - model with Intel DG motherboard...

  • Page 21: With Intel Dg41Ty Motherboard

    ADPRO V3100 Hybrid video system Technical manual With Intel DG41TY motherboard Video/Audio Inputs POWER SWITCH MAINS INLET LINE IN /dev/ttyU2 MOUSE SPEAKER ETHERNET THROUGH- KEYBOARD CONNECTION (AVAILABLE ON /dev/ttyU3 VGA (MONITOR) FRONT) /dev/ttyU1 MODEM /dev/ttyU4 3.3.1 Network/monitor/keyboard LINE IN /dev/ttyU2...

  • Page 22: With Intel Dh55Tc Motherboard

    ADPRO V3100 Hybrid video system Technical manual With Intel DH55TC motherboard 3.4.1 Network/monitor/keyboard 3.4.2 Extensions slots - model with Intel DH55TC motherboard Slots Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 (19" Slot 6 (19" only) only) Type...

  • Page 23: Video & Audio Connections

    ADPRO V3100 Hybrid video system Technical manual Video & Audio connections - 21 -...

  • Page 24: Front Led Indicators (19" Version Only)

    ADPRO V3100 Hybrid video system Technical manual Front LED indicators (19" version only) Red LED Storage media activity Yellow LED Fault Green LED Power on Remark When the 3 LED‟s are flashing simultaneously this means that the system is busy updating the recordings disc(„s).

  • Page 25: Available Configurations

    ADPRO V3100 Hybrid video system Technical manual 4 Available configurations V3100 HYBRID Desktop with Intel DG31PR Slot number (back view) Type PCI Express PCI Express Analogue cameras: 4/8/12/16 Ch EIO 1 / MIO 2 MIO 1 4 ch 1 / 8 ch 2...
  • Page 26 ADPRO V3100 Hybrid video system Technical manual V3100 HYBRID Desktop with Asus M2A-VM Slot number (back view) Type PCI Express PCI Express Analogue cameras 4/8/12/16 Ch EIO 1 / MIO 2 4 ch 1 / 8 ch 1 8 ch 2...

  • Page 27: Setup And Configuration Of A V3100 System

    ADPRO V3100 Hybrid video system Technical manual 5 Setup and configuration of a V3100 system When installing the V3100 client software on a Vista OS, configure IE as follows: either add the V3100 IP address as Trusted zone (IE > Tools > Internet Options >...

  • Page 28: Installation Of The Client Software On Your Computer

    ADPRO V3100 Hybrid video system Technical manual Installation of the client software on your computer The V3100 is by default on IP address 10.0.0.10; subnet mask 255.255.255.0. On the computer, change the IP address to a value within the range of the V3100's IP address (example: set computer on IP address 10.0.0.1, subnet mask 255.255.255.0) .
  • Page 29 ADPRO V3100 Hybrid video system Technical manual Click setup.exe Click Run. On the License Agreement window , click I Agree. Click Next Accept or modify the work directory. Select the appropriate language. Click Install. Upon completion of the installation, click Close Remark The V3100 Client version 2.xx.xxxx is compatible with the V3100 Hybrid (V2.xx.xxxx) , and...

  • Page 30: Launch Application In Ie

    ADPRO V3100 Hybrid video system Technical manual Launch application in IE Open Internet Explorer Type the IP address of the V3100 in the Address bar (initial address 10.0.0.10 / subnet mask 255.255.255.0) Type user name and password (initial values 0 and 666777). Change your language, if required. Also mind the work folder (this is the folder in which downloaded and local recordings are stored).

  • Page 31: Launch V3100 Client Software In Its Own Window

    ADPRO V3100 Hybrid video system Technical manual Launch V3100 client software in its own window On the desktop, double click the V3100 Client shortcut Click to modify your language, to change the skin (the appearance of the program) and the folder where stills and footages are stored.

  • Page 32: Users

    ADPRO V3100 Hybrid video system Technical manual 6 Users System ►GENERAL ►Users Open the Users menu The system allows to create 32 users. User 0, 1 and 15 are already defined. User 15 is reserved for the technician. A technician can only log on after authorization from another user.

  • Page 33: User Rights

    ADPRO V3100 Hybrid video system Technical manual User rights ◄ select the cameras that can be watched by the users ◄ select the video recordings that can be reviewed by the users ◄ select which menus/submenus are authorized for this users HINT Double-click the title bar to maximize the client window.

  • Page 34: Network Connections

    ADPRO V3100 Hybrid video system Technical manual 7 Network connections The V3100 video system can be connected to a local network or to a remote network (PPP dial-in network) applying an external modem. To set up the network connections, open System ►CONNECTIONS ► Ethernet/PPP Click Save to apply your new settings.
  • Page 35 ADPRO V3100 Hybrid video system Technical manual IP address filter Whitelist To limit access to the V3100 video system, you can either empty Blacklist enter a list of authorized clients (whitelist) or a list of non- authorized clients (blacklist option), whichever is the most convenient for your situation (eg if you want to allow all but one computer to connect to the V3100, use the Blacklist).
  • Page 36 ADPRO V3100 Hybrid video system Technical manual Dial timeout Sets the time in which a connection has to established with the remote client. If not successful, the video system will retry to make the connection, but the number of attempts is limited - see parameter Connection retries .

  • Page 37: Set Up An Ip Camera

    ADPRO V3100 Hybrid video system Technical manual 8 Set up an IP camera For V3100FT Hybrid only (V1.02 or higher) IP cameras are connected to the HIPI card. Each HIPI card can handle up to 8 cameras To set up an IP camera: First connect the camera to the network Open System ►CONNECTIONS ►Video inputs...
  • Page 38 ADPRO V3100 Hybrid video system Technical manual presets. Depending the supported camera quality preset can be modified: Quality settings include: fps (frames per second) resolution of the picture quality: VBR quality (Qlow, Qnormal or Qhigh) or CBR bit rate (20 to 2048 kbps).

  • Page 39: Configure And Update Hipi Card

    ADPRO V3100 Hybrid video system Technical manual Configure and update HIPI card The HIPI card offers an isolated LAN network (10/100/1000 Mbps on RJ45) to connect IP cameras. HIPI cards are automatically detected by the V3100 HYBRID system. Each HIPI card is assigned to an IP address and gateway.

  • Page 40: Supported Ip Cameras (H.264)

    ADPRO V3100 Hybrid video system Technical manual Supported IP cameras (H.264) Brand Model Protocol Number of H264 streams Axis M1011; M1011-W; M1031-W; M3011; M3014 VAPIX 3.0 Axis P1311; Q6032-E VAPIX 3.0 Axis P3301; P3301-V; P3343; P3343-V; P3343-VE; P3344; VAPIX 3.0 P3344-V;...
  • Page 41 ADPRO V3100 Hybrid video system Technical manual IMPORTANT The main Ethernet connection on the V3100 video system and the Ethernet connections of the HIPI cards have to be assigned to separate IP ranges. IP cameras can be connected to any of the available networks.

  • Page 42: Set Up An Analogue Camera

    ADPRO V3100 Hybrid video system Technical manual 9 Set up an analogue camera To set up an analogue camera, open System ►CONNECTIONS ► Video Inputs To add a new camera, choose a free camera number from the list. Tick the Analogue option, choose the BNC video input to which the camera has been connected, enable the camera and enter all parameters.
  • Page 43 ADPRO V3100 Hybrid video system Technical manual camera will be selected, has to be specified with this parameter You can choose between 10 preset qualities. If you choose Hard disk stream, live pictures will follow the same quality as recordings: so only one video codec is required.

  • Page 44: Ptz Settings

    ADPRO V3100 Hybrid video system Technical manual 9.1.1 PTZ settings 9.1.1.1 Serial PTZ System ► CONNECTIONS ► Pan-Tilt- Open the PTZ menu Zoom Select the appropriate serial interface (*) Edit click Edit. Select the PTZ protocol (**) that corresponds to the used cameras.

  • Page 45: List Of Available Ptz Protocols

    ADPRO V3100 Hybrid video system Technical manual 9.1.1.2 List of available PTZ protocols (**)The following PTZ protocols are supported (for V3100 Hybrid version only; on V3100FT, only the protocols marked *** are available): 360vision Dennard 2050 Mark Mercer Sensormatic Controller...
  • Page 46 ADPRO V3100 Hybrid video system Technical manual 9.1.1.2.2 Serial PTZ on MIO card - wiring RX + RX - CAMERA V3100 MAIN I/O CARD Note: Connecting PTZ-cams from the same RS485 on to multiple V3100 -> change the strap settings on the MIO to RS485 –...

  • Page 47: Dtc Ptz

    ADPRO V3100 Hybrid video system Technical manual 9.1.1.3 DTC PTZ System ► CONNECTIONS ► Pan-Tilt- Open the PTZ menu Zoom Check if DTC card is present. Remark The current software version loaded in the DTC card is shown in the list. To update the DTC card to a newer version, log on as technician, open System ►CONNECTIONS ►...

  • Page 48: Audio In

    ADPRO V3100 Hybrid video system Technical manual 9.1.3 Audio in System ► CONNECTIONS ►Audio Open the Audio menu All audio inputs that are connected have to be checked. Send Live audio stream (Available from version 1.02.0030). Gives the possibility to enable/disable live streaming of audio for the selected cameras.

  • Page 49: Recommended Microphones

    ADPRO V3100 Hybrid video system Technical manual 9.1.3.1 Recommended microphones Crown all-weather microphone PZM-11LLWR Specifications technology: electret condenser designed for outdoor use : -10 ~ +60°C power supply 12~24VAC or DC current consumption 4mA dimensions 11.5x7x4.4mm Wiring diagram Octopus Crown all-wheather microphone...
  • Page 50 ADPRO V3100 Hybrid video system Technical manual ADPRO Audio unit Specifications Audio module : microphone and speaker, for V3100 Can be connected directly to the V3100 system since it includes a built-in amplifier. The amplifier can be bypassed (switch S1) if an external amplifier is available (for instance if connected to the VM-22A) Separate volume setting for microphone and speaker.

  • Page 51: Audio Out

    ADPRO V3100 Hybrid video system Technical manual 9.1.4 Audio Out Audio outputs are available on one or two VM22A units, connected in cascade. Unit 0 is controlled by the Main IO card that is inserted in the video system and drives the loudspeakers 1 to 10. Unit 1 connects to the first unit through the Extension IO loop connecter, and drives loudspeakers 11 to 20.

  • Page 52: Connection Of Vm22A Audio Switch To V3100 System

    ADPRO V3100 Hybrid video system Technical manual Remark: If talk-back does not work, check following points: 1) routers may block UDP packets (use TCP or configure the router to allow UDP packets) 2) use the PC headphones plug instead of the PC microphone plug.

  • Page 53: Video Monitor

    ADPRO V3100 Hybrid video system Technical manual 10 Video monitor 10.1 Connection A monitor can be connected to the SVGA interface of the V3100 server. For a video monitor, an external VGA to PAL convertor can be used. 10.2 Configuration System ►...

  • Page 54: Configure Otb Io (Main Io & Extension Io Card)

    ADPRO V3100 Hybrid video system Technical manual 11 Configure OTB IO (Main IO & Extension IO card) All connected OTB IO cards are automatically detected by the V3100 server. To configure these inputs and outputs, click System ►CONNECTIONS ► I/O The illustrated list reveals the presence of a MIO card.

  • Page 55: Otb Io Address Range

    ADPRO V3100 Hybrid video system Technical manual 11.1.1 OTB IO address range Main IO and Extension IO: set 1 I2560 IO card absent C2560 green led (*) C2561 yellow led (*) C2562 red led (*) C2563 buzzer (*) I2576 / I2596...

  • Page 56: Network Io Modules

    ADPRO V3100 Hybrid video system Technical manual 12 Network IO modules For detailed information, consult datasheet 19531880. 12.1 Network IO modules: address range The V3100 can be linked to 8 network IO modules. These modules are connected to the local network, and powered by PoE or with a local adapter.

  • Page 57: Network Io Input / Output Addresses

    ADPRO V3100 Hybrid video system Technical manual 12.1.1 Network IO INPUT / OUTPUT ADDRESSES INPUTS address alarm MODULE POWER LOSS 2050 2114 2178 2242 2306 2370 2434 2498 2051 2115 2179 2243 2307 2371 2435 2499 MODULE PRESENCE FAULT digital inputs...

  • Page 58: Add A Network Io Module With Known Ip Address

    ADPRO V3100 Hybrid video system Technical manual 12.2 Add a network IO module with known IP address System ►CONNECTIONS ► I/O Open the I/O configuration menu. Click Add to add a network IO interface. Enter IP address, port number (the port to which the IO...

  • Page 59: Modify Settings Of A Network Io Module

    ADPRO V3100 Hybrid video system Technical manual 12.4 Modify settings of a network IO module System ►Connections ► I/O Open the IO configuration menu. Select a Network IO module from the list. Edit Click Edit to change the settings of the selected IO module Change IP address, port number, and order number (a number from 1 to 8).

  • Page 60: Program Network Inputs And Outputs

    ADPRO V3100 Hybrid video system Technical manual 12.5 Program network inputs and outputs System ►Connections ► I/O Open the IO configuration menu. Select a Network IO module from the list. Configuration Click Configuration to program: inputs : NO or NC...

  • Page 61: Alarm Transmission

    ADPRO V3100 Hybrid video system Technical manual 13 Alarm transmission To set up main and backup alarm transmission channels, open System ► BEHAVIOUR ► Alarm transmission Modify settings and click Save to apply your new settings. To store the new settings, open System ► MAINTENANCE ► Configuration, select the configuration to overwrite and click Save.
  • Page 62 ADPRO V3100 Hybrid video system Technical manual Auto-negotiate Only for a dial-up network: IP addresses are assigned by not selected IP address negotiation: the CMS will assign IP addresses to the V3100, during the time of the communication. This option is required if the CMS uses the Video Central Platinum software.

  • Page 63: Arm/Disarm Video System

    ADPRO V3100 Hybrid video system Technical manual 14 Arm/disarm video system Events on the V3100 can be classified in the following groups: system messages: these are internal events, eg hard disk error, power supply fault, communication errors camera messages: video signal missing, contrast level too low, motion detected, ...

  • Page 64: Arm/Disarm Switch

    ADPRO V3100 Hybrid video system Technical manual 14.2 Arm/disarm switch To define an arm/disarm switch , open System ►Behaviour ►Input/output behaviour: Select an input or network input from the list. Apply a filter to reduce the list. Check the Arm/disarm input option.
  • Page 65 ADPRO V3100 Hybrid video system Technical manual Parameter Description Name enter a name (20 characters) to describe the alarm Profile select an alarm profile. The alarm profile defines the behaviour of the input. Alarm Hold time Sets the minimum time of activation of the alarm (in seconds). End-of-alarm will only be detected after this delay.

  • Page 66: Alarm Profiles (Behaviour Of Alarm Transmission)

    ADPRO V3100 Hybrid video system Technical manual 16 Alarm profiles (behaviour of alarm transmission) To modify the alarm transmission of inputs, modify its associated alarm profile: open System ► BEHAVIOUR ► Alarm profiles. Select the alarm profile from the list and click Edit.

  • Page 67: Mode Of Operation (Behaviour Of Recordings)

    ADPRO V3100 Hybrid video system Technical manual 17 Mode of operation (behaviour of recordings) The video system can be switched to 4 different modes of operation. Each mode affects the behaviour of the video recorders. Mode selection is done: automatically on a time table...

  • Page 68: Activate Outputs

    ADPRO V3100 Hybrid video system Technical manual 18 Activate outputs To activate an output, open System ► Behaviour ► Input/Output behaviour Apply a filter for an easier selection of the desired output. Select an output from one of the following groups:...

  • Page 69: Video Ic (Interconnection With S3100 Systems)

    ADPRO V3100 Hybrid video system Technical manual 19 Video IC (interconnection with S3100 systems) System ► CONNECTIONS ► Video Open the Video IC menu. interconnection Set protocol timeout and retries. Timeout value can be increased on slower networks if you observe communication faults between interconnected devices.

  • Page 70: Email Server

    ADPRO V3100 Hybrid video system Technical manual 20 Email server If the video system will be used to send email to specific recipients on detection of an event, the email server and sender email address have to be specified. System ►CONNECTIONS ►Email Open the email server configuration menu.

  • Page 71: Set Time Zone, Time And Date

    ADPRO V3100 Hybrid video system Technical manual 21 Set time zone, time and date System ►General ►Date/Time Open Time menu Select time zone, automatic daylight saving time, NTP server address (if available). Select date. Enter time (hours, minutes, seconds). Save Click Save.

  • Page 72: Store/Activate A Configuration

    ADPRO V3100 Hybrid video system Technical manual 22 Store/Activate a configuration System ► Maintenance Open the list of configurations. The system can store 8 different configurations. ► Configuration Only 1 configuration is active. The active configuration is marked with an asterisk.

  • Page 73: Live

    ADPRO V3100 Hybrid video system Technical manual 23 Live Click Live Video to watch live images from one or several cameras. Function Description Click to open live video streaming. Select a video source. Click on a numbered button to view the video from the corresponding camera.
  • Page 74 ADPRO V3100 Hybrid video system Technical manual motion detection (green/grey) Right click on the camera picture to alter the video quality. Video quality presets are defined in System > Connections > Video inputs (click the button to open the list with presets).

  • Page 75: Ptz Shortcut Keys

    ADPRO V3100 Hybrid video system Technical manual Remark Recordings are stored in your work folder. File are named as follows: cam01_2008_03_13_13_49_17.hvc The file name contains the camera number and the moment at which the recording was launched (year- month-day-hour-minutes-seconds) Still pictures are stored in your work folder, and are named as follows: Cam01_2008_04_07_16_07_45.jpg...

  • Page 76: Create Continuous Recording

    ADPRO V3100 Hybrid video system Technical manual 24 Create continuous recording System ► BEHAVIOUR ► Recordings behaviour add a new recording select camera(s) Click on the camera number to: activate an output (the output is activated for the duration recording;...
  • Page 77 ADPRO V3100 Hybrid video system Technical manual Click OK. Save Activate the recorder - 75 -...

  • Page 78: Create Recording On Event

    ADPRO V3100 Hybrid video system Technical manual 25 Create recording on event System ► BEHAVIOUR ► Recordings behaviour Add a new recording Select camera(s). Click on the camera number to: activate an output (the output is activated for the duration of the alarm and post alarm...
  • Page 79 ADPRO V3100 Hybrid video system Technical manual Select Time based to activate the recorder in function of a time schedule Drag the mouse pointer over the Event time scale to mark the time zone during which the recording should be active. To correct for errors, right-click the drawn time zone and retry.

  • Page 80: Add Holidays

    ADPRO V3100 Hybrid video system Technical manual 25.1 Add holidays The calendar allows adjusting the behaviour of the video system during holidays. It affects: your video recorders the operational mode of the video system, if managed by a schedule the arm/disarm schedule System ►...

  • Page 81: Video Motion Detection (Vmd)

    ADPRO V3100 Hybrid video system Technical manual 26 Video Motion Detection (VMD) Each camera allows to define up to 4 areas in which motion can be detected. Motion detection triggers an alarm input, which can be sent to a monitoring station or start a video recording.

  • Page 82: Private Zones

    ADPRO V3100 Hybrid video system Technical manual To delete a detection zone, click it and click the Remove button. 27 Private zones Outdoor security cameras may unintentionally look into neighbourhood residences. To respect their privacy, these parts of the picture have to be masked.

  • Page 83: Detect The Obstruction Of The Camera Lens

    ADPRO V3100 Hybrid video system Technical manual 28 Detect the obstruction of the camera lens System ►BEHAVIOUR Click to open the motion detection configurator ►Analytics► Motion/Sabotage Select a camera Check the Covered camera option, and set the black level on which a tamper alarm should be generated.

  • Page 84: Loitering

    ADPRO V3100 Hybrid video system Technical manual 29 Loitering Loitering is a method to detect people hanging around in places like e.g. a hallway or a lobby. When being there for more than the threshold number of seconds, a loitering alarm is raised.

  • Page 85: Search A Recording On The Video System's Hard Disk

    ADPRO V3100 Hybrid video system Technical manual 30 Search a recording on the Video system's Hard disk Open Recorded Video to view your video recordings 30.1 Types of recordings Click these buttons to show only recordings of a specific type...

  • Page 86: Time Line

    ADPRO V3100 Hybrid video system Technical manual 30.2 Time line Look up recordings for a specific period. The time line will display a different colour for each kind of recording event. Orange is for continuous recordings Red is for recordings on motion events...
  • Page 87 ADPRO V3100 Hybrid video system Technical manual Click on a recording in the upper right list and click this button to unlock the selected recording. Unlock all recordings Click Backup V3100 to backup the selected video recording on a USB stick or external CD/DVD drive connected local on the V3100.

  • Page 88: Look Up Recordings By Event

    ADPRO V3100 Hybrid video system Technical manual 30.3 Look up recordings by event Recorded Video ►Advanced Search Select camera (s) Select event (s) Select search period Click to start searching within the selected period Select recording from the displayed list...

  • Page 89: Synchronised Playback

    ADPRO V3100 Hybrid video system Technical manual 30.4 Synchronised playback Look up recordings for multiple cameras. Follow the same steps as point 30.2. Click on the check box in front of each camera to select the multiple cameras you wish to have the footage.

  • Page 90: Post Motion

    ADPRO V3100 Hybrid video system Technical manual 31 Post motion The video recorder does not only store the video on the hard disk but also creates a metadata file that describes the video contents. This information allows to quickly retrieve all sequences in which an object was moving inside a specific area of the camera lens.

  • Page 91: Result

    ADPRO V3100 Hybrid video system Technical manual 31.1 Result Drag the mouse pointer on the time scale to zoom in. Click on a recording (red bar) to preview a still. Click right to zoom out. Click to jump to the next sequence...

  • Page 92: Management Of Local Video Recordings

    ADPRO V3100 Hybrid video system Technical manual 31.2 Management of local video recordings All downloaded video recordings are stored in the work folder of the V3100 client on your local hard disk. Recordings are arranged in subfolders, a subfolder for each video system. Video systems are recognised by their identification number (the identification number is a value from 1 to 9999 and is programmed under System ►...

  • Page 93: Logbook

    ADPRO V3100 Hybrid video system Technical manual 32 Logbook Local legal requirements (eg. Law Sarkozy/France) may stipulate that a video system should keep a logbook, in which user interventions and events are logged. System > Maintenance > Log Click to open the logbook...

  • Page 94: Example Of A Log Record

    ADPRO V3100 Hybrid video system Technical manual 32.1 Example of a Log record ▲ ▲ ▲ ▲ ▲ time of the intervention type of intervention user camera additional information: in this case the moment of the still 32.2 Example of a Event record ▲...

  • Page 95: Set The Maximum Days Of Video Recording

    ADPRO V3100 Hybrid video system Technical manual 33 Set the maximum days of video recording Local legal requirements may stipulate that a video system should only keep its recordings on the hard disk for a limited number of days, and that older recordings should be deleted automatically. To set this limit: System ►Recording Behaviour...

  • Page 96: Firmware, License, Configuration Files

    ADPRO V3100 Hybrid video system Technical manual 34 Firmware, License, configuration files System > Maintenance > Transfer Click to open the file management Send a file to the video system. The extension reveals what information it contains: .tar.gz = firmware (minor update) (V3100 FT version) .bin = software (linux + application) (V3100 Hybrid version)

  • Page 97: System License (From Version V3100Hyb V02.00.0000)

    ADPRO V3100 Hybrid video system Technical manual 34.1 System license (from version V3100HYB V02.00.0000) From version V02.00.0000 the system license has been introduced. There are three system licenses available: - V3100Hybrid Full Unlocked system, all features - V3100Hybrid Entry level (limited functionality)

  • Page 98: License Types

    ADPRO V3100 Hybrid video system Technical manual 34.2 License types There can be different licenses loaded in the V3100HYB. System license (only from V02.00.0000, see also chapter 34.1) Encoder license: This is a license for the analogue video cards in the system...

  • Page 99: Video Backup

    ADPRO V3100 Hybrid video system Technical manual 35 Video Backup A DVD/CD writer or USB stick can be used to backup important video information direct from the V3100HYB The backup medium connected on the V3100 system or the backup medium on your computer can be selected.

  • Page 100: Burn Footage Stored On Local Computer (See Also Chapter 31.2)

    ADPRO V3100 Hybrid video system Technical manual 35.1 Burn footage stored on local computer (see also chapter 31.2) Open the Recorded video menu and select the “Manage local recordings” Browse through the footage stored on your local hard disk. The list is arranged by video system (identification number).

  • Page 101: Status

    ADPRO V3100 Hybrid video system Technical manual 36 Status To display the status of the video system, cameras, inputs and outputs, click on Status. Move the mouse pointer over the status bar to obtain detailed information of a particular input or output (a pop- up text appears when the mouse pointer is kept stationary on an input or output).

  • Page 102: Activate An Output

    ADPRO V3100 Hybrid video system Technical manual 36.2 Activate an output To activate an output, right click on the desired output and click Activate Step 1. Move the mouse pointer over the output bar to see the description of the outputs.

  • Page 103: General Status Of The Video System

    ADPRO V3100 Hybrid video system Technical manual 36.3 General status of the video system Cam x past analytics Error during post motion analysis - contact your dealer Cam x sab analytics Error in camera tampering analysis - contact your dealer...

  • Page 104: Camera Recording Information

    ADPRO V3100 Hybrid video system Technical manual 37 Camera recording information Open System ► Maintenance ► Harddisks. Following information is disclosed: 1) current write speed: bitrate depends on video contents and vary continuously. The average value is indicated in red.

  • Page 105: About

    ADPRO V3100 Hybrid video system Technical manual 38 About The „About‟ section shows the version of the system and the client software contained in the V3100. This information is useful to define if a software update is needed. ◄ Version of the Client software (the...

  • Page 106: Presidium High Level Interface

    ADPRO V3100 Hybrid video system Technical manual 39 Presidium High Level Interface The PresidiumHLI menu allows to associate video outputs from a Presidium to the V3100 inputs. To setup the Presidium, open System ► CONNECTIONS ► PresidiumHLI. Check the Enabled option.

  • Page 107: Advanced Information

    ADPRO V3100 Hybrid video system Technical manual 40 Advanced information 40.1 Find the server's IP address Connect a keyboard and monitor to the V3100 Server. If the monitor is used for video monitoring, press <ctrl> <alt> <F1> to stop the video display.

  • Page 108: And

    ADPRO V3100 Hybrid video system Technical manual 40.2 Installation / major update procedure using an USB Installer stick (for version 1.00 and 1.01 only). WARNING: Don‟t forget to backup your license and configuration files before starting the procedure. IMPORTANT: The described procedure only applies to V3100 video systems version 1.01 or lower. For version 1.02 and later, read the next chapter.

  • Page 109: V3100 Hybrid Installation And V3100Ft To Hybrid Update Procedure: (Version 1.02 And Higher)

    ADPRO V3100 Hybrid video system Technical manual 40.3 V3100 Hybrid installation and V3100FT to HYBRID update procedure: (version 1.02 and higher) SCOPE This document describes the steps required to update a V3100FT to a V3100Hybrid version. the procedure to install a V3100 Hybrid.
  • Page 110 ADPRO V3100 Hybrid video system Technical manual Select the usb stick (check for REMOVABLE flag): Flash the usb stick! CONFIGURATION Place the hipi card(s) if you have to connect IP cameras (see V3100 hipi datasheet ) Insert the V3100Hybrid usb stick in the V3100 USB connector located on top of the hard disk cage.

  • Page 111: V3100 Hybrid Version 2 Installation And V3100Hybrid Update Procedure: (Version 1.02 And Higher To Version 2.Xx)

    ADPRO V3100 Hybrid video system Technical manual 40.4 V3100 Hybrid Version 2 installation and V3100HYBRID update procedure: (version 1.02 and higher to version 2.xx) 40.4.1 For Asus: not supported 40.4.2 For Intel DG31PR and DG41TY 40.4.2.1 Installation V3100HYB Version 2...
  • Page 112 ADPRO V3100 Hybrid video system Technical manual Start the application: Select the image file: V3100Hybrid_V02_xx_xxxx.img Select the usb stick (check for REMOVABLE flag): Flash the usb stick! CONFIGURATION Insert the V3100Hybrid usb stick in the V3100 USB connector located on top of the hard disk cage.

  • Page 113: Upgrade V3100Hyb Version 1 To V3100Hyb Version 2

    ADPRO V3100 Hybrid video system Technical manual 40.4.2.2 Upgrade V3100HYB Version 1 to V3100HYB Version 2 SCOPE This document describes the procedure to upgrade a V3100 Hybrid Version 1 to a V3100 Hybrid Version 2. PROCEDURE Note: Don't forget to backup your V3100FT license file, configuration file and user file.

  • Page 114: For Intel Dh55Tc

    ADPRO V3100 Hybrid video system Technical manual 40.4.3 For Intel DH55TC SCOPE This document describes the installation/recovery procedure for a V3100 Hybrid Version 2. REQUIREMENTS Windows PC V3100HYB Version 2 image (extension img) V3100ImageFlash application (V3100ImageFlash.exe version 1.0.3 or higher) 2.5”...
  • Page 115 ADPRO V3100 Hybrid video system Technical manual Start the flash tool application and select the new drive letter (in this case G:) Select the image file: V3100Hybrid_V02_xx_xxxx.img Flash the SSD The boot SSD is now ready. Remove the SSD from the computer in a proper way.

  • Page 116: Camera Urls

    ADPRO V3100 Hybrid video system Technical manual 40.5 Camera URLs To open a player menu or a camera in a web browser, type the following line in the address bar: http://ip address/index.php?parameter1&parameter2&... 40.5.1 Parameters Open a player (sub)menu: page= subpage=...

  • Page 117: Required Hard Disk Space

    ADPRO V3100 Hybrid video system Technical manual Download a recording: uid=0a0000f7a45a6500 => download the selected recording uid_save_filename= => the name of the file in which the downloaded recording has to be stored (optional) TCP or UDP mode By default the TCP will be applied, to force UDP , add the following parameter to the URL:...

  • Page 118: V3100 Bios Settings

    ADPRO V3100 Hybrid video system Technical manual 40.8 V3100 BIOS settings 40.8.1 Motherboard M2A-VM 1) Choose: Main Select: System Time: Allows you to set the system time. System Date: Allows you to set the system date. Legacy Diskette A: Disabled...

  • Page 119: Motherboard Dh55Tc

    In case of major troubles with the V3100HYB system, the system allows to generate a lot of traces. In some cases, after contacted the Xtralis Support Division, you will asked to activate and to capture some traces and files that can be helpful to resolve the trouble.

  • Page 120: Repair/Update Procedure

    ADPRO V3100 Hybrid video system Technical manual 41 Repair/update procedure 41.1 Replace motherboard Switch off power supply Replace motherboard The system reboots applying the MAC address of the new motherboard. 41.2 Replace/add hard disk When you have a hard disk error on the video system (see Client software - Status page), proceed as follows: P0: V3100 <STANDARD-E>...

  • Page 121: Replace/Add Video Card

    ADPRO V3100 Hybrid video system Technical manual 41.3 Replace/add video card 41.3.1 Replace a video card Faulty video card P0: V3100 <STANDARD-E> 14-11-08 11:19 V01.00.0011 [0049 VSK Electronics ] Check your license (open a telnet connection to ½kb,0.666777 KEYBOARD 0 OPEN AT 14/11/2008 11:19:11 execute the command line ta,license) ╗ta,license...

  • Page 122: Bios Update Procedure (Asus M2A-Vm Board)

    41.4 BIOS update procedure (ASUS M2A-VM board) Step 1 Attach an USB Flash drive containing the new bios. Note: The bios file can be retrieved from the Xtralis website. Step 2 Reboot the V3100 and enter the bios menu using the Delete key.

  • Page 123: Application Notes V3100

    ADPRO V3100 Hybrid video system Technical manual 42 Application notes V3100 42.1 VSKWin: retrieve the V3100 configuration file The V3100 sends events to the VSKwin software. To set up the V3100 for alarm transmission: connect to the V3100 using the V3100 client open System ►...

  • Page 124: Activate Timer Output On V3100

    ADPRO V3100 Hybrid video system Technical manual 42.3 Activate timer output on V3100 Purpose: execute a macro in VSKWin that activates an output on V3100 for x seconds. Requires: an unused NetIO or USBIO input, eg I2595 We will use C2576 as timer output.

  • Page 125: Labelling Of Products

    XTRALIS XTRALIS Security Solutions Security Solutions BELGIUM BELGIUM TYPE : ADPRO V3100 Hybrid 19” TYPE : ADPRO V3100 Hybrid 19” ASSY number 54VHHID0 - YYMM ASSY number 54VHHID0 - YYMM 100-240VAC ; 50/60Hz ; 6A 100-240VAC ; 50/60Hz ; 6A...

  • Page 126: Product Number Structure

    ADPRO V3100 Hybrid video system Technical manual 43.1 product number structure Each product version has an 8 digit product number which reflects the installed options. Product number layout: Free (0) DTC option I/O option Hard disk size Video channel type...

  • Page 127: Vbg (Germany): Installation Instructions

    ADPRO V3100 Hybrid video system Technical manual 44 VBG (Germany): Installation instructions Important: This is a summary VBG installation manual. Please read the complete manual for all programming and user possibilities. 44.1 V3100 Client software - minimum system requirements Hardware Pentium 4;...
  • Page 128 ADPRO V3100 Hybrid video system Technical manual Open Internet Explorer type the IP address of the V3100 in the Address bar (including the setup page: example http://10.0.0.10/setup.php) Click setup.exe Click Run. On the License Agreement window , click I Agree.

  • Page 129: Users

    ADPRO V3100 Hybrid video system Technical manual 44.3 Users The default configuration of a V3100 system contains 3 users, namely user 0 (Administrator), user 1 (Administrator) and user 15 (Technician). The default password of these users is 666777. Add a user with the following properties:...

  • Page 130: Video Inputs

    ADPRO V3100 Hybrid video system Technical manual 44.5 Video inputs Using analogue cameras: Set default live preset to „Harddisk stream‟. Recording parameters: the event quality must be set to 5fps, resolution 4cif and quality Qnormal. Recording parameters: the continuous/pre/post quality must be set to 5fps, resolution 4cif and quality Qnormal.

  • Page 131: Watching Live Cameras And Take A Snapshot

    ADPRO V3100 Hybrid video system Technical manual 44.7 Watching live cameras and take a snapshot Click Live Video to watch live images from one or several cameras. Function Description Click to open live video streaming. Select a video source. Click on a numbered button to view the video from the corresponding camera.
  • Page 132 ADPRO V3100 Hybrid video system Technical manual Right click on the camera picture to alter the video quality. Video quality presets are defined in System > Connections > Video inputs (click the button to open the list with presets). See also chapter 1.1 - Limitations on live streaming When clicking the Snapshot button, a Snapshot is taken from the selected camera.

  • Page 133: Video Backup

    ADPRO V3100 Hybrid video system Technical manual Remark Recordings are stored in your work folder. Files are named as follows: cam01_2008_03_13_13_49_17.hvc The file name contains the camera number and the moment at which the recording was launched (year- month-day-hour-minutes-seconds) Still pictures are stored in your work folder, and are named as follows: Cam01_2008_04_07_16_07_45.jpg...

  • Page 134: Burn Footage Stored On Local Computer (See Also Chapter 31.2)

    ADPRO V3100 Hybrid video system Technical manual 44.9 Burn footage stored on local computer (see also chapter 31.2) Open the Recorded video menu and select the “Manage local recordings” Browse through the footage stored on your local hard disk. The list is arranged by video system (identification number).

  • Page 135: Hinweise

    ADPRO V3100 Hybrid video system Technical manual 44.11 Hinweise Die Kameras sollen möglichst gegen Wegnahme oder Zerstörung geschützt angebracht werden. Um den Anreiz zu einem überfall zu reduzieren, sollen Kameras sichtbar installiert werden. Zusätzlich dürfen auch Kameras versteckt installiert werden.

Table of Contents
