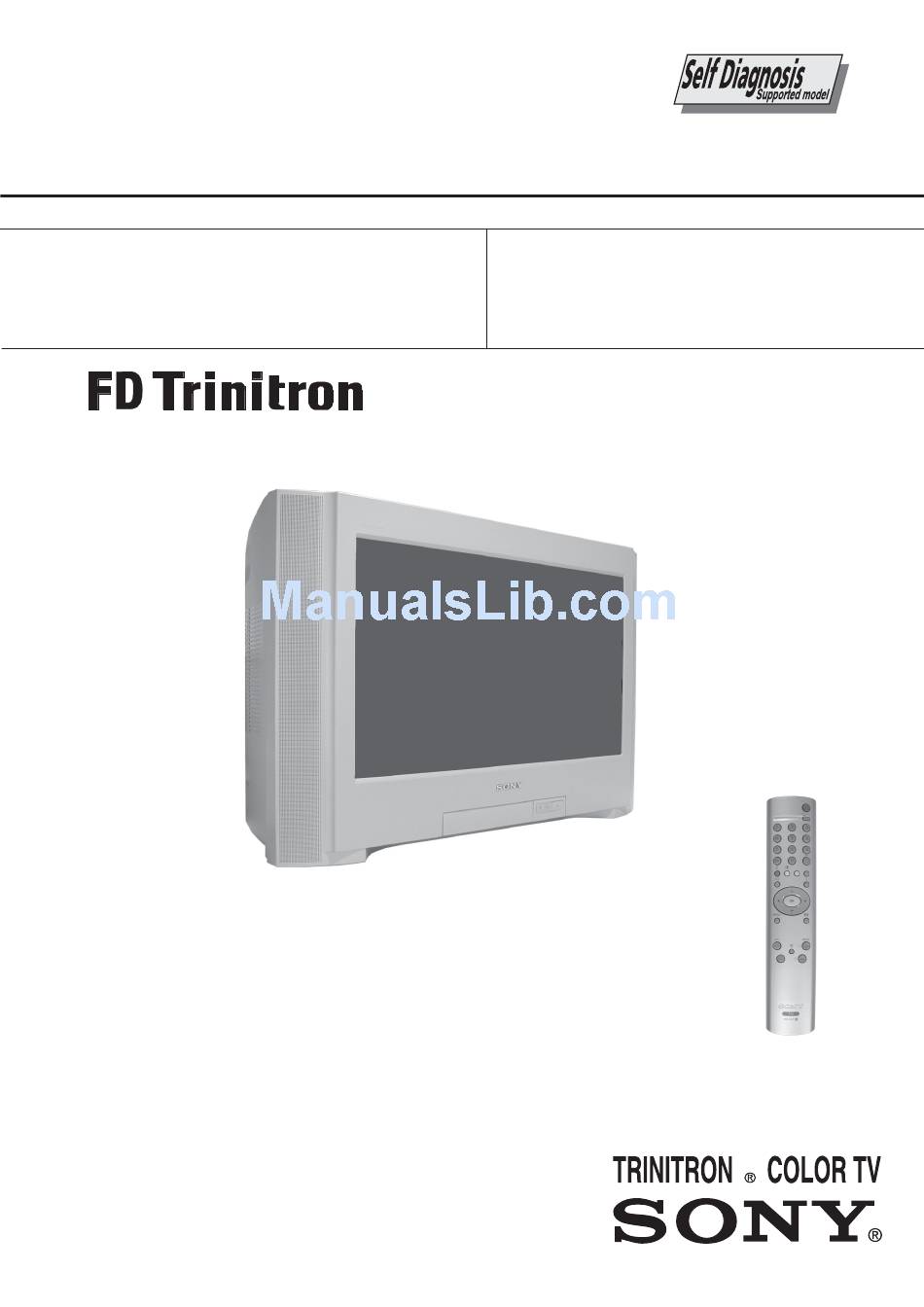

SERVICE MANUAL

MODEL
KV-28CL11B
KV-28CL11E
COMMANDER
DEST
CHASSIS NO.
RM-947
FR
SCC-Q54U-A
RM-947
ESP
SCC-Q53V-A
MODEL
KV-28CL11K
KV-28CL11
- 1 -
FE-2
CHASSIS
COMMANDER
DEST
CHASSIS NO.
RM-947
OIRT
SCC-Q51R-A
RM-947

Advertisement

Table of Contents
loading

Related Manuals for Sony FD TRINITRON KV-28CL11B

Summary of Contents for Sony FD TRINITRON KV-28CL11B

  • Page 1: Service Manual

    SERVICE MANUAL FE-2 CHASSIS MODEL MODEL COMMANDER DEST CHASSIS NO. COMMANDER DEST CHASSIS NO. KV-28CL11B KV-28CL11K RM-947 SCC-Q54U-A RM-947 OIRT SCC-Q51R-A KV-28CL11E RM-947 SCC-Q53V-A KV-28CL11 RM-947 - 1 -...

  • Page 2: Table Of Contents

    TANCE CRITIQUE POUR LA SÈCURITÈ DU FONCTIONNEMENT, ANY SERVICE WORK TO AVOID POSSIBLE SHOCK HAZARD NE LES REMPLACER QUE PAR DES COMPSANTS SONY DONT DUE TO LIVE CHASSIS, THE CHASSIS OF THIS RECEIVER IS LE NUMÈRO DE PIÈCE EST INDIQUÈ DANS LE PRÈSENT DIRECTLY CONNECTED TO THE POWER LINE.
  • Page 3 y l l . s l . s l . s l e i l . s l n i l & n i l i n i y t i - 3 -...

  • Page 4: Connectors

    21 pin connector Pin No Signal Signal level Audio output B Standard level : 0.5V rms (right) Output impedence : Less than 1kohm* Audio output B Standard level : 0.5V rms (right) Output impedence : More than 10kohm* Audio output A Standard level : 0.5V rms (left) Output impedence : Less than 1kohm*...

  • Page 5: Self Diagnostic Software

    FE-2 SELF DIAGNOSTIC SOFTWARE The identification of errors within the FE-2 chassis is triggered in one of two ways :- 1: Busy or 2: Device failure to respond to IIC. In the event of one of these situations arising the software will first try to release the bus if busy (Failure to do so will report with a continuous flashing LED) and then communicate with each device in turn to establish if a device is faulty.

  • Page 6: General

    SECTION 1 GENERAL - 6 -...
  • Page 7 - 7 -...
  • Page 8 - 8 -...
  • Page 9 - 9 -...
  • Page 10 - 10 -...
  • Page 11 - 11 -...
  • Page 12 - 12 -...

  • Page 13: Disassembly

    SECTION 2 DISASSEMBLY 2-1. Rear Cover Removal => => => Remove the rear cover fixing screws indicated and withdraw the rear cover from the Beznet. 2-2. Chassis Removal and Refitting When refitting the chassis ensure that the main bracket is located in the beznet guide slots before sliding the chassis forwards.

  • Page 14: A Board Removal [Step 1]

    2-3. A Board Removal [ Step 1 ] 2-4. A Board Removal [ Step 2 ] Clip. Screw. Remove the 3 screws securing the PWB to the main bracket. Release the 3 securing clips located at the side of the chassis 1 can be seen in the photo above and the other 2 are either and slide the PWB clear of the bracket.

  • Page 15: Picture Tube Removal

    2-7. Picture Tube Removal WARNING: BEFORE REMOVING THE ANODE CAP High voltage remains in the CRT even after the power is disconnected. To avoid electric shock, discharge CRT before attempting to remove the anode cap. Short between anode and CRT coated earth ground strap.
  • Page 16 - 16 -...

  • Page 17: Set-Up Adjustments

    SECTION 3 SET-UP ADJUSTMENTS • Carry out the adjustments in the following order : When complete readjustment is necessary or a new picture 3-1. Beam Landing. tube is installed, carry out the following adjustments. 3-2. Convergence. • Unless there are specific instructions to the contrary, carry 3-3.

  • Page 18: Convergence

    If the V.STAT magnet is moved in the direction of the (a) 3-2. Convergence and (b) arrows, the Red, Green and Blue points move as indicated below. Preparation: • Before starting this adjustment, adjust the focus, horizontal size and vertical size. •...
  • Page 19 Geometry Adjustment. YCH Adjustment Preparation: YCH VR Before starting this adjustment, adjust the horizontal and Deflection Yoke vertical static convergence. Remove the deflection yoke spacer. Tilt the deflection yoke as indicated in the figure below and TLV Adjustment optimise the geometry. Tilting the DY Up and Down will balance the upper and lower pin adjustment.

  • Page 20: Focus Adjustment

    Layout of each control 3-4. Screen (G2), White Balance [Adjustment in the service mode using the remote commander] G2 adjustment Input a dot signal from the pattern generator. Enter the ‘Service Mode’ by pressing ‘TEST’, ‘TEST’ and ‘38’ (TT-38) on the remote commander, to set up the G2 V.STAT service adjustment mode.

  • Page 21: Circuit Adjustments

    SECTION 4 CIRCUIT ADJUSTMENTS 4-1. Electrical Adjustments Service adjustments to this model can be performed using the supplied remote Commander RM-947. How to enter into the Service Mode Turn on the main power switch and enter into the stand-by mode. Press the following sequence of buttons on the Remote Commander.
  • Page 22 Deflection System Adjustment Sub Colour Adjustment Enter into the ‘Geometry’ service menu. Receive a PAL colour bar signal. Select and adjust each item in order to obtain the optimum image. Connect an oscilloscope to Pin 5 of CN3003 [A Board]. Enter into the ‘Service’...

  • Page 23: Test Mode 1

    4-2. TEST MODE 1: Test Mode 1 is available by pressing the ‘TEST’ button once, OSD ‘T’ appears. The functions described below are available by selecting the indicated keys. The ‘T’ is released automatically after each command is executed. y t i s i l i n i i n i...

  • Page 24: Block Diagrams (1)

    5-1. BLOCK DIAGRAMS (1) CN7007 IC0001 CN2201 MICRO, VIDEO PROCESSOR, R.G.B. OUT TO A BOARD CN5008 ROM, AUDIO, VIDEO SWITCH R AUDIO CN0001 TO SPEAKERS +3.3V CN7006 L AUDIO XTAL IN STBY TO A BOARD IC2201 CN5009 IC0002 XTAL OUT J2200 AUDIO AMP REMOTE CONTROL...

  • Page 25: Block Diagrams (2)

    5-1. BLOCK DIAGRAMS (2) A 2/2 ( POWER SUPPLY, DEFLECTION, VIDEO, AUDIO IC5001 PH6101 S6001 V OUTPUT ISOLATOR POWER CN6001 F6001 CN5001 LOWB VARISTOR LINE V- DY+ MAIN RECT FILTER BOOST D6001 T6001 RELAY V- DY- RY6001 H- DY- TO D3 BOARD CN8402 H- DY- CN6003...

  • Page 26: Circuit Board Location

    5-2. CIRCUIT BOARD LOCATION Reference Information RESISTOR : METAL FILM : SOLID C Board FPRD : NON FLAMMABLE CARBON FUSE : NON FLAMMABLE FUSIBLE : NON FLAMMABLE METAL OXIDE DF Board : NON FLAMMABLE CEMENT : NON FLAMMABLE WIREWOUND CVM Board S1 Board : ADJUSTMENT RESISTOR A Board...
  • Page 27 A Board Difference Table ~ A Board Waveforms ~ 20us/div 20us/div A Board IC Voltage Table 1.88 Vp-p (H) 1.84 Vp-p (H) 20us/div 20us/div 1.86 Vp-p (H) 6.0 Vp-p (H) 20us/div 20us/div 5.4 Vp-p (H) 16.8 Vp-p (H) 20us/div 5ms/div 1.83 Vp-p (V) 488 mVp-p (V) 5ms/div...
  • Page 28 ~ A Board Semiconductor Location Table ~ NOTE: Portions of the circuit marked as shown are high ~ A Printed Wiring Board Conductor side ~ voltage areas. Use care to prevent electric shock during inspection or repair. - 28 -...

  • Page 29: A Board Schematic

    A.-28CL11 R6004 R6008 1.5k R6011 T6003 FB6002 R6014 1.1UH JW6043 1.5k R6006 C6013 PS2201 JW6044 R6007 C6000 C6002 L6003 D6001 R6003 33UH D4SB60L-F CN6006 Q6003 C6001 FB6001 C6003 D6039 JW6045 C6057 275V R6032 C6012 C6006 C6021 R6049 R6010 R6033 D6038 JW6029 R6013 R6048...
  • Page 30 A.-28CL11 CN5012 TO D2 BOARD CN8301 R5145 2.2M IC5001 STV9379A C5082 220PF TP10 CN5001 R5089 JR5008 R5064 R5042 100K 1/10W D5002 C5003 R5088 1.2K 1/10W TO D3 BOARD R5090 Q5076 CN8402 R5061 2SD601A-Q-TX 1/10W R5004 C5008 R5003 C5004 R5062 C5021 C5001 L5004 C5005...
  • Page 31 TU1001 BTF-EF411 CN0001 CN3001 CN1002 CN1001 A.-28CL11 L1004 L1003 C1001 C1012 J2404 C1006 C1005 L1001 R1006 D1002 JR1014 56UH L2403 R1000 L1002 JW2018 JW2017 R1005 C2435 C1007 C1003 C1000 C1008 R3421 R3059 JW2409 C1004 R3454 L2404 JW2001 D1007 JR3414 UDZTE17-5.6B D1001 C1009 JR1001...
  • Page 32 J2200 CN2200 CN2202 CN2201 A.-28CL11 C2225 R2217 IC2201 AUDIO L JW2232 10MM TDA7496S R2202 AUDIO R JW2227 JW2216 7.5MM C2203 C2227 R2201 C2204 AUDIO R R2216 C2200 C2206 AUDIO L JW2212 C2232 JW2217 JW2209 C2220 12.5MM 15MM C2223 C2228 1000 35V C2213 L2201 JW2222...
  • Page 33 ~ C Printed Wiring Board Conductor side ~ ~ D2 Printed Wiring Board Conductor side ~ ~ D3 Printed Wiring Board Conductor side ~ ~ DF Printed Wiring Board Conductor side ~ - 33 -...

  • Page 34: C Board Schematic

    ~ C Board Semiconductor Voltages ~ ~ C Board IC Voltages ~ ~ C Board Waveforms ~ 20us/div 20us/div 2.32 Vp-p (H) 2.32 Vp-p (H) 20us/div 20us/div C.-28CL11 2.32 Vp-p (H) 116 Vp-p (H) CN7004 COMPONENTS MARKED AS XX ARE NOT FITTED ON THIS MODEL 20us/div 20us/div JW7004...

  • Page 35: D3 Board Schematic

    DF.-28CL11 R8954 330k D8909 1/10W 1SS133 C8952 R8955 DYNAMIC FOCUS 220k CN8701 C8953 R8968 3300p MAGENTA V-PULSE R8953 R8956 C8957 R8965 R8966 IC8701 C8951 270k 8.2M C8704 TA78M08S 1/10W 1/10W TO A BOARD L8701 NS CORRECT CN5010 10uH LOW B C8701 R8957 IC8902...

  • Page 36: Semiconductors

    5-4. SEMICONDUCTORS IRF614-005 TDA9394H LM358N IRF614-037 LM393DT IRF620 LM393N M5216P TDA2822M TEA2124 ( TOP VIEW ) ( MARKING SIDE VIEW ) 2SA933AS-QT 2SAG33ASQT 2SA933AS-RT 2SC1740S-RT TOP209P MSP3410G-PP-B8V3 2SC2785-HFE LETTER SIDE ( TOP VIEW ) BF421-AMMO SE-135N 2SC2785-HFE 2SA1091-O SE135N-LF4 3 GND DTA144ESA 2SK2518-01MR DTA144ESA...
  • Page 37 ERA38-06 MTZJ-T-72-10B AK04-V1 ERD28-06S ERA81-004TP1 MTZJ-T-77-15B AU-01Z-V1 ERC06-15S ERA83-006 MTZJ-T-77-33A BYD33G FMN-G12S MTZJ-3.6A MTZJ-33C BYD33G-AMMO GP08D MTZJ-T-77-2.2A MTZJ-7.5B DINL20-TA RGP10GPKG23 HZS9.1NB2 P6KE200ASY D1NL20U RG15GPKG23 MTZJ-T-77-3.6B RD3.6ES-B2 DINL40-TA2 RG1CLF-B1 MTZJ-4.7C RD3.9ES-B2 ERB44-06TP1 RU-3AM MTZJ-T-77-5.1B RD5.1ESB2 EGP20G RU3YX-LF-C4 MTZJ-T-77-5.6B RD5.6ESB2 EG-1Z-V1 RU3YX-V1 MTZJ-T-77-6.8A RD6.8ES-B2 EL1Z...

  • Page 38: Diagrams

    5-5 IC BLOCK DIAGRAMS A BOARD IC5001 STV9379A A BOARD IC0401/IC5031 LM393DT FLYBACK GENERATOR POWER AMPLIFIER THERMAL PROTECTION A BOARD IC6001 MCZ3001D Remote DVLD Internal Driver Sel=34v ref 5v Reg. 10v 15v/8v Level Shift Vsense Control Logic Latch Centre Timer A BOARD IC2201 TDA7496S VOLUME OP AMP...

  • Page 39: Exploded Views

    SECTION 6 EXPLODED VIEWS NOTE : Items with no part number and no description are not Items marked “*” are not stocked stocked because they are seldom required for routine since they are seldom required for service. routine service. Some delay should The construction parts of an assembled part are indicated be anticipated when ordering these items.

  • Page 40: Picture Tube

    6-2. PICTURE TUBE REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK *X-4043-161-1 BEZNET ASSY 52-57 4-369-318-21 SPRING, TENSION 4-093-657-01 SPRING, METAL £ 1-456-320-11 DEGAUSSING COIL 4-093-660-01 DOOR, CONTROL *4-203-390-11 CUSHION, DGC 4-093-662-01 WINDOW, ORNAMENTAL *4-204-812-02 HOLDER, DGC (25”) 4-093-659-01 BUTTON, POWER £...

  • Page 41: Electrical Parts List

    SECTION 7 ELECTRICAL PARTS LIST PARTS LISTING TABLE OF CONTENTS Page C BOARD COMPLETE Parts List : ..................DF BOARD COMPLETE Parts List : ....................A BOARD COMMON Parts List : Parts common to all models in this manual ..........A BOARD VARIANT Parts List : Parts that belong only to the model specified Model...
  • Page 42 C DF REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK * A-1302-071-A C Board, Complete < RESISTOR > 4-382-854-01 SCREW (M3X8), P, SW (+) R7001 1-247-903-00 CARBON 1/4W R7002 1-249-429-11 CARBON 1/4W < CAPACITOR > R7003 1-247-903-00 CARBON 1/4W R7005 1-215-869-11 METAL OXIDE C7001 1-136-189-00 MYLAR...
  • Page 43 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK C8957 1-126-964-11 ELECT 10UF 20.00% 50V R8908 1-216-033-00 RES-CHIP 1/10W C8958 1-136-169-00 FILM 0.22UF 5.00% 50V R8909 1-215-489-00 METAL 680K 1% 1/4W C8959 1-136-169-00 FILM 0.22UF 5.00% 50V R8910 1-216-295-91 SHORT CHIP R8911 1-216-073-91 RES-CHIP 1/10W...
  • Page 44 B1 A REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK * A-1302-130-A A Board, Complete (KV-28CL11B) C2035 1-164-005-11 CERAMIC CHIP 0.47UF * A-1302-170-A A Board, Complete C2036 1-126-157-11 ELECT 10UF 20.00% 16V (KV-28CL11E/KV-28CL11K) C2037 1-126-965-91 ELECT 22UF 20.00% 50V C2038 1-163-117-00 CERAMIC CHIP 100PF 5.00% 50V A Board, Common Parts...
  • Page 45 F4 D1 A REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK C3020 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V C5047 1-115-521-11 FILM 0.82UF 5.00% 250V C3025 1-126-935-11 ELECT 470UF 20.00% 16V C5048 1-162-134-11 CERAMIC 470PF 10.00% 2KV C3027 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V C5050 1-107-638-11 ELECT...
  • Page 46 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK C6141 1-126-943-11 ELECT 2200UF 20.00% 25V D3420 8-719-069-55 DIODE UDZSTE-175.6B D3424 8-719-069-60 DIODE UDZSTE-179.1B < CONNECTOR > D3435 8-719-069-60 DIODE UDZSTE-179.1B D5001 8-719-302-43 DIODE EL1Z CN0001 *1-816-976-51 PLUG, CONNECTOR 5P D5002 8-719-081-90 DIODE PDZ22B-115 CN2201 *1-816-975-51 PLUG, CONNECTOR 4P CN3003...
  • Page 47 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK < FILTER > L5003 1-412-521-31 INDUCTOR 4.7UH L5004 1-535-303-00 LEAD, JUMPER (5.0MM) FL2001 1-239-803-11 FILTER, EMI L5005 1-412-542-41 INDUCTOR 270UH L5007 1-412-533-21 INDUCTOR 47UH < IC > L5032 1-412-553-11 INDUCTOR 3.3MH IC0001 6-702-097-02 IC TDA9394H/N1/5/1031 L5033 1-406-989-21 INDUCTOR...
  • Page 48 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK JR2009 1-216-295-91 SHORT CHIP R0096 1-216-073-91 RES-CHIP 1/10W JR2010 1-216-295-91 SHORT CHIP R0420 1-216-073-91 RES-CHIP 1/10W JR2401 1-216-295-91 SHORT CHIP R0425 1-216-085-91 RES-CHIP 1/10W JR3004 1-216-295-91 SHORT CHIP R0426 1-216-073-91 RES-CHIP 1/10W JR3007 1-216-295-91 SHORT CHIP R0428...
  • Page 49 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK R2213 1-216-049-11 RES-CHIP 1/10W R5001 1-216-091-00 RES-CHIP 1/10W R2401 1-414-760-21 FERRITE R5002 1-216-073-91 RES-CHIP 1/10W R2402 1-216-041-00 RES-CHIP 1/10W R5003 1-215-888-00 METAL OXIDE R2403 1-216-113-00 RES-CHIP 470K 5% 1/10W R5004 1-249-385-11 CARBON 1/4W R2404 1-216-113-00 RES-CHIP...
  • Page 50 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK R5058 1-216-057-00 RES-CHIP 2.2K 5% 1/10W R6036 1-249-413-11 CARBON 1/4W R5068 1-215-916-00 METAL OXIDE R6037 1-216-041-00 RES-CHIP 1/10W R5069 1-216-073-91 RES-CHIP 1/10W R6039 1-208-814-91 METAL CHIP 0.5% 1/10W R5070 1-216-049-11 RES-CHIP 1/10W R6040 1-208-830-11 METAL CHIP 100K 0.5% 1/10W...
  • Page 51 A D2 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK < CRYSTAL > < RESISTOR > X0001 1-578-774-71 VIBRATOR, CRYSTAL JR8301 1-216-864-11 SHORT CHIP X2001 1-760-628-11 VIBRATOR, CRYSTAL R8303 1-249-441-11 CARBON 100K 5% 1/4W A Board Variant Parts (KV-28CL11B) R8304 1-216-825-11 METAL CHIP 2.2K 5% 1/10W...
  • Page 52 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK MISCELLANEOUS £ 1-571-433-21 SWITCH, PUSH (AC POWER) £ 1-424-733-11 COIL, PFC CHOKE 65MMH £ 1-823-715-11 CORD, POWER £ 1-453-372-21 TRANSFORMER ASSY, FLYBACK (NX-4521//Z214) 8-598-535-20 FRONTEND BTF-EF411 (KV-28CL11B) 8-598-533-10 FRONTEND BTF-EC411 (KV-28CL11E/KV-28CL11K) 1-529-988-11 SPEAKER (4.2X24CM) £...
  • Page 53 • User programmable Functional Check through Infrared • Fast and documented Test Mode setting of all Sony TV chassis Additional features such as Adjustments and Troubleshooting are available in chassis-dependent software modules. Please contact your local Sony Service organisation for the latest information.
