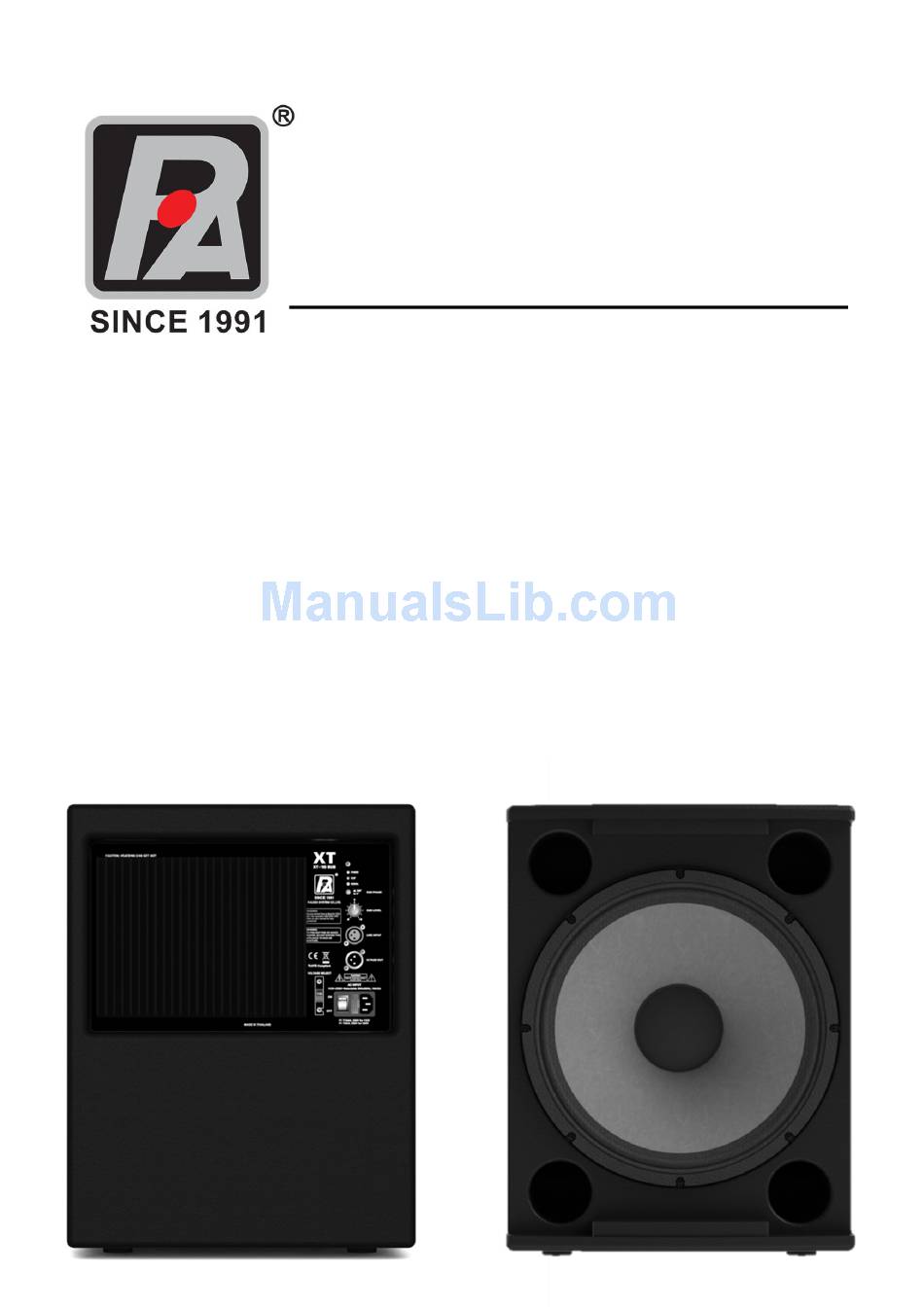

- Page 1 P.Audio System Co., Ltd. XT-15Sub: 1200w (Peak) Active 15” Subwoofer...
- Page 3 Protect the AC Mains power cord from being walked on or otherwise damaged and inspect for damaged connections and damaged insulation. DO NOT SUSPEND THE XT-15Sub 10. There are NO user-serviceable parts inside the enclosure. DO NOT REMOVE THE AMPLIFIER MODULE!
-
Page 4: Specifications
The P.Audio XT-15Sub series was designed to bring a new level of performance to a range of P.Audio products. It is perfectly mated to the XT-8 and XT-10 through internal subwoofer EQ and optimized line level high pass output. -
Page 5: Features And Applications
FEATURES AND APPLICATIONS The XT-15Sub can be used in a wide range of scenarios, whether fixed install or portable live sound or speech reinforcement. The XT Series excels in commercial sound reinforcement, where a powerful, yet compact and discrete sound system is required. Some examples of use are shown below. -
Page 6: Ac Mains Connection
Portable sound reinforcement: 2 XT-15Sub with 2 XT-10 SETUP AND USE OF THE XT-15Sub NOTE: The XT-15Sub uses a switchable AC Mains power supply. It is the responsibility of the user to insure that the AC mains are set to the correct AC voltage. -
Page 7: Audio Connections
Prior to connecting the AC mains cable, ensure that the AC mains switch is in the OFF position. The XT-15Sub will operate on AC mains voltages of 115 volts OR 230 volts. The required AC mains frequency is between 50 Hz and 60 Hz. The acceptable voltage range is 104VAC- 126VAC and 207VAC-253VAC. - Page 8 XLR cable may be used for this wiring. In all cases, pin 2 on the XLR connector is the positive terminal. The XT-15Sub also features a Sub Gain control that allows the output level of the subwoofer to be set to match the acoustic level of the associated mid-hi speaker. This feature may be adjusted to suit individual music styles and room acoustics.
-
Page 9: Rigging And Suspension
The X9 Sub is intended to be used with a standard M20 screw thread style satellite pole mount (available from P.Audio) for mounting the XT-8 or XT-10 above it. The XT-15Sub MUST be located on a level surface that is capable of safely supporting the weight of both the XT-15Sub and the XT-8 or XT-10. -
Page 10: Product Service
PROBLEM: Distorted sound When input levels to the XT-15Sub amplifier exceed 0.775 V RMS it is possible to produce system clipping or overdrive. It is still possible to “overdrive” the input section of the enclosure. If distorted sound is present the following steps should be taken: Verify that the mixer’s output is not clipping or overloaded. - Page 11 Loudspeaker systems, individual components and accessories. For more information regarding any of P.Audio’s products or advice on how to set up and use this product, please do not hesitate to use the contact details below to contact us.
