CHAPTER 2: HARDWARE INSTALLATION

2.1

NST ALLING

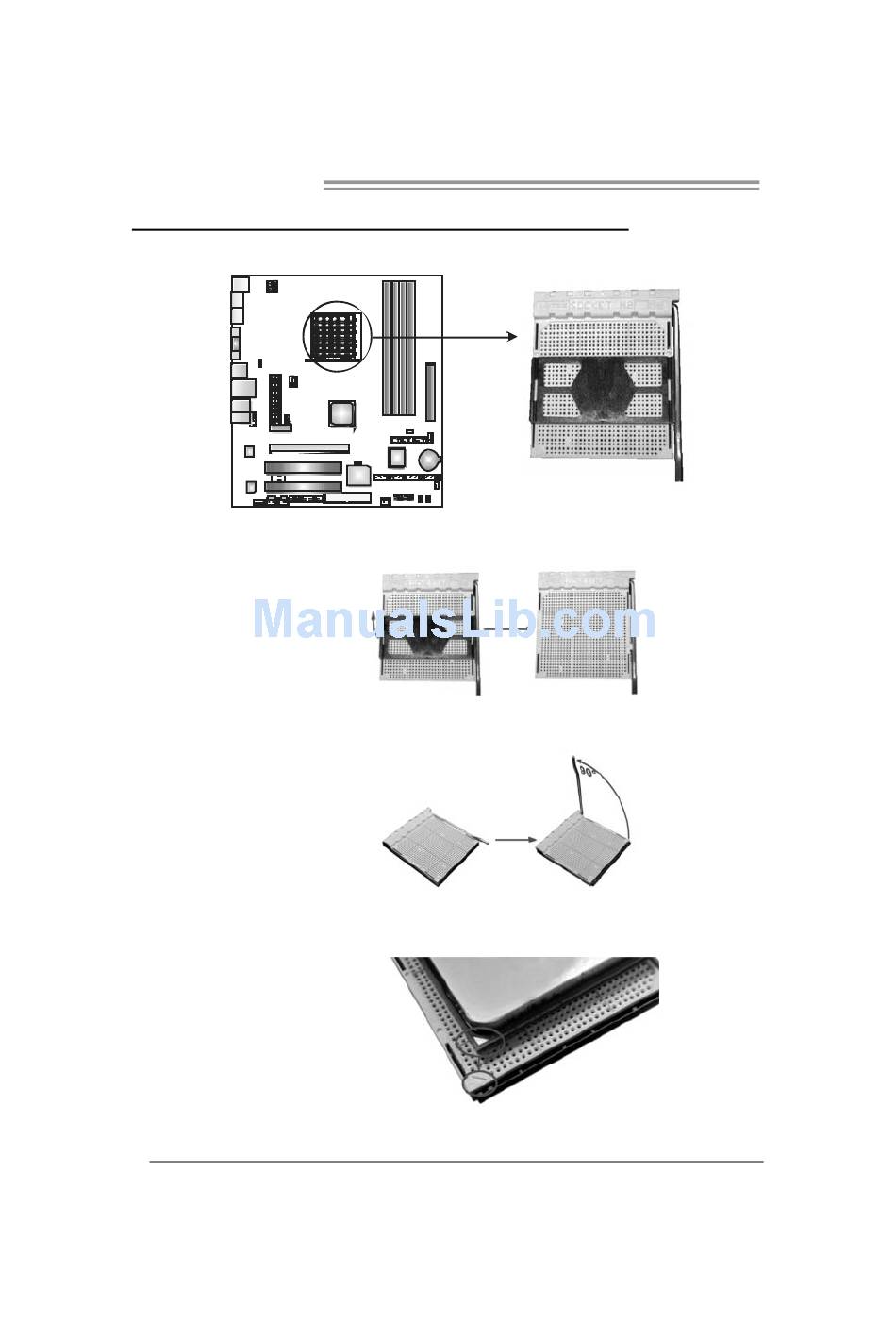

Step 1: Remove the socket protection cap.

Step 2: Pull the lever toward direction A from the socket and then raise the

lever up to a 90-degree angle.

Step 3: Look for the white triangle on socket, and the gold triangle on

CPU should point towards this white triangle. The CPU will fit only

in the correct orientation.

ENT RAL

ROCESSING

(CPU)

NIT
