Robertshaw 9915i Quick Start Installation Manual

DELUXE
PROGRAMMABLE
THERMOSTATS
9901 9915 9920
Models , and
i i
Quick Start Installation Manual
111-326C
3

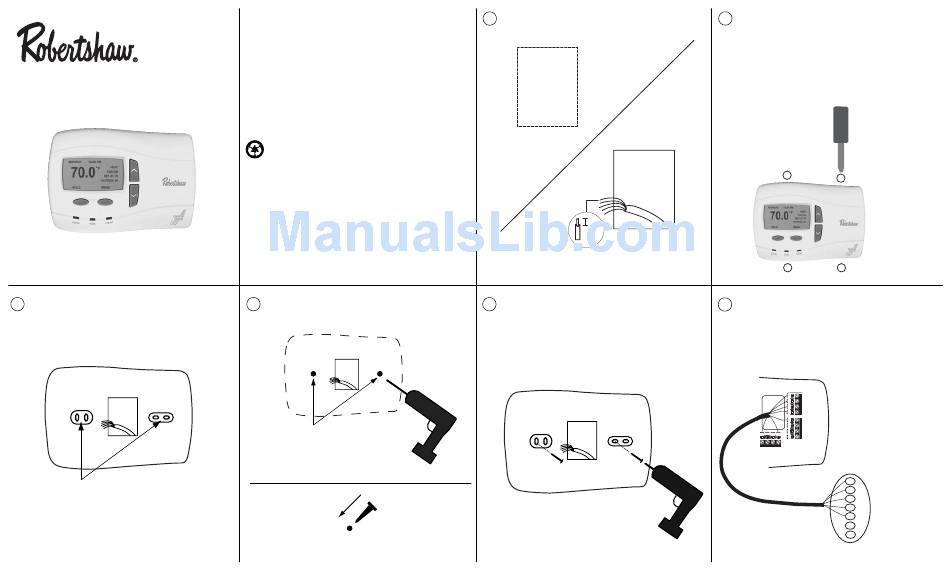

Mark mounting hole locations on wall.
Mark mounting hole
locations on wall using
unit base as template.
Installation DOs and DON'Ts
DO
• Shut off all power to system before installing.
• Read entire manual before installing.
• Make sure that all wiring conforms to national and
local codes.
DO NOT
i • Install on voltages greater than 30 VAC.
• Short jumper across terminals on the gas valve or at the
system control.
• Connect ground to any terminal in this unit.
• Install on outside walls or in direct sunlight.
Recycling Thermostat
If this thermostat REPLACES a thermostat that contains mercury,
DO NOT discard the old thermostat in the regular trash. Mercury is harmful
to humans and the environment. For this reason, do not open, break, or
crush the mercury cell. If mercury leaks from a damaged cell, DO NOT
touch or handle mercury with bare hands. Use protective, non-absorbent
gloves to place mercury into a sealable container. Fill the container with
sand or another absorbent material and seal the container completely.
Return the mercury or mercury products, in a sealed container, to Invensys
Climate Controls or a local recycling center for proper disposal. If you have
any questions, call Robertshaw technical support at 1-800-445-8299.
Invensys Climate Controls
28C Leigh Fisher Blvd.
El Paso, TX 79906
Attn: Mercury Recycling Center
4 3
Drill / " holes at marked locations on
16
wall. Insert plastic anchors into holes.
Drill 3 / 16 holes
a
b
Press anchors into holes until flush.
1
Select location for installation.
1"
a
Cut
1-1/2"
out
opening
1/4"
Remove 1/4" of insulation
from end of each wire
5
Align unit base over plastic anchors
embedded in wall and secure with the
screws provided.
2
Open the case with a screwdriver. Place
in slot and gently pry forward at all four
locations.
Lift cover straight off. Do not pivot on
upper or lower retaining clips.
b
2
1
3
4
6
Connect wiring between unit and
furnace. For Model 9901i (1H/1C
furnace applications).
TERMINAL DESIGNATIONS
Thermostat
C - 24VAC Common
R - 24VAC
Y1 - 1st stage cooling
C
E/W1 - 1st stage heating
R
Y1
O - Not used
E/W1
B - Not used
A2
G - Fan
W2
Y2
A1 - Aux contact
L
A2 - Aux contact
W2 - Not used
A1 O B G
9901
i
Y2 - Not used
L - Not used
C
R
Y
W
G
B
O
Equipment Wiring
Terminals
Please refer to
furnace installation
manual for proper
terminations
