DeLOCK USB 2.0 to SVGA adapter User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
USB 2.0 to SVGA adapter
Product-No: 61434
User m anu al No: 614 34-a
w w w. de l oc k . d e

Advertisement

loading
Need help?

Need help?

Do you have a question about the USB 2.0 to SVGA adapter and is the answer not in the manual?

Questions and answers

Related Manuals for DeLOCK USB 2.0 to SVGA adapter

Summary of Contents for DeLOCK USB 2.0 to SVGA adapter

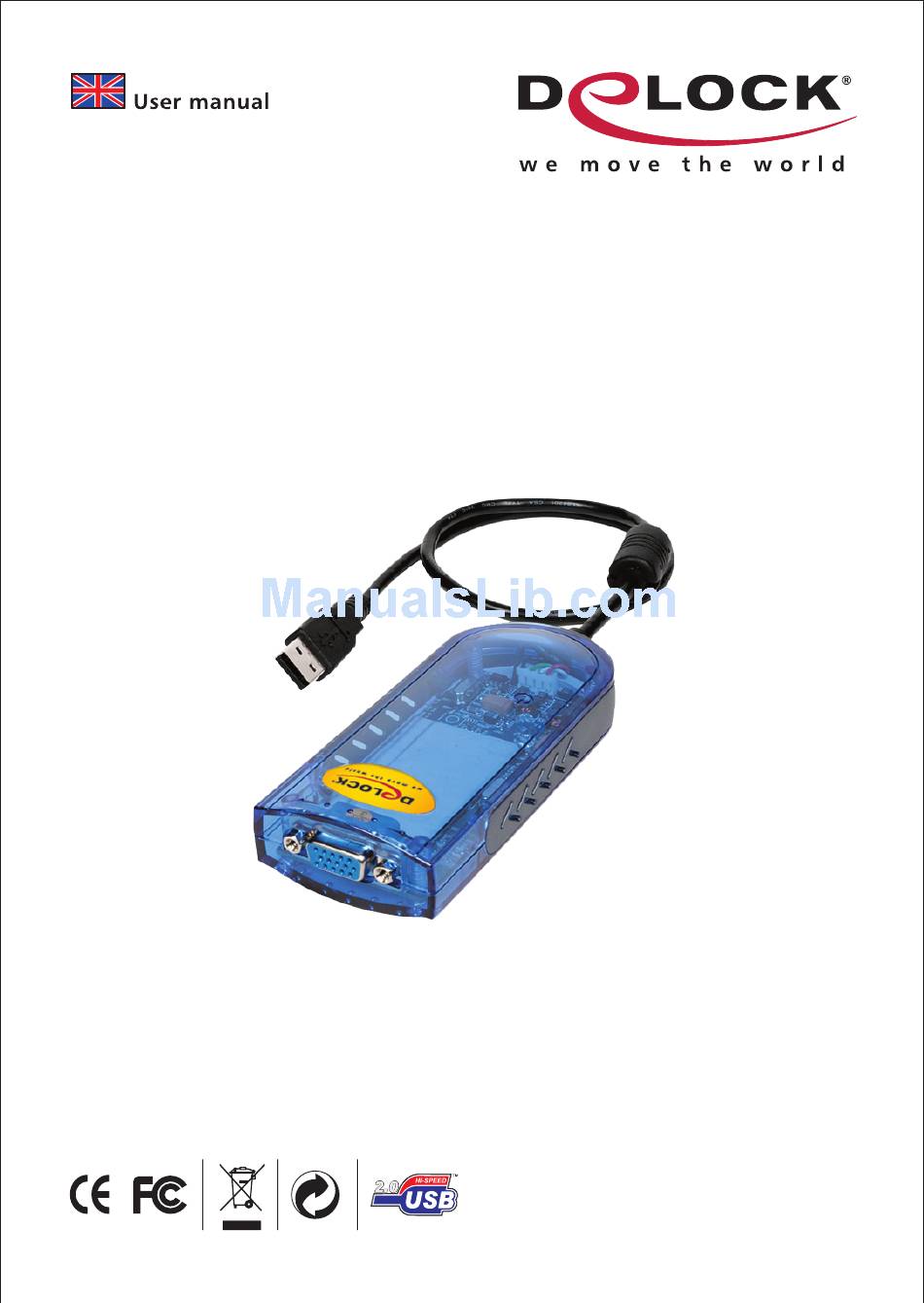

  • Page 1 USB 2.0 to SVGA adapter Product-No: 61434 User m anu al No: 614 34-a w w w. de l oc k . d e...

  • Page 2: Important Note

    === IMPORTANT NOTE === Three USB2.0 SVGA adaptors in Blue, Silver, and Dark Grey individually are available to connect 4 monitors, first on your VGA Port of the Computer, the other 3 via USB HUB. Please notice that each USB2.0 SVGA adaptor should be installed separately.
  • Page 3 How will YOU use it? System Requirements •Available USB 2.0 port •Windows 2000/XP operating system. Package Contents •USB 2.0 VGA Adapter x 1 •Driver/Manual CD x 1 ( Driver version : 5.4.2.0831.0101H ) *Make sure that product package contains all items before operation. If any item is missing or damaged, then please contact your dealer immediately.

  • Page 4: Display Utility

    Display Utility After the driver is installed, a utility will appear in the lower right taskbar. This utility allows you to quickly change the settings and resolution for your USB 2.0 VGA Adapter. Access the menu by right clicking on the icon. Support Resolution : Support Function : 1.
  • Page 5 USB-VGA (Extended) By default, your USB 2.0 VGA Adapter will extend your Windows desktop. You can change the relative position of this extension under the Display Properties See instructions located later in the manual. Mirror Your USB 2.0 VGA Adapter will mirror your Windows desktop. You can see the same desktop image in another monitor.
  • Page 6 USB-VGA (Off) This option disables the USB 2.0 VGA Adapter on the system. USB 2.0 VGA Adapter Properties To access the Display Properties for the USB 2.0 VGA Adapter, go to “ Control Panel ” and double click on the “ Display ” icon. Select the “Settings ” tab. Click on the “Display”...
  • Page 7 Virtual Repositioning Your Displays On the Settings tab of your Display Properties, click and drag the appropriate monitor icon (labeled 1 or 2) to the desir ed position. For example, the secondary display can be dragged to the left of the primary display, allowing it to be virtually on the left.
  • Page 8 Step 2 : Click “Next “. Step 3 : Select “Yes, I want to restart my computer now. ”Click “Finish“.
  • Page 9 Frequently Asked Questions (FAQ) Q: Why can I not make the USB 2.0 to VGA Adapter the primary display? A: Some video cards ship their product with a ut ility that prevent other video cards from being set as the primary card. Check the bottom right hand corner taskbar for the utility.

  • Page 10: Troubleshooting Tips

    Troubleshooting Tips The following troubleshooting tips may help if you are experiencing any issues. Contact your dealer for additional help if needed. •Check to make sure that all connectors are plugged in correctly. •Make sure that the USB port that you are using is USB 2.0. •Check to see that the monitor is connected correctly and the power is ON.
  • Page 11 * A connection fee applies according to fee schedule of Deutsche Telekom AG or your local tlephone provider. You can find current product information on our homepage: www.delock.de Final clause Information and data contained in this manual are subject to change without notice in advance.
