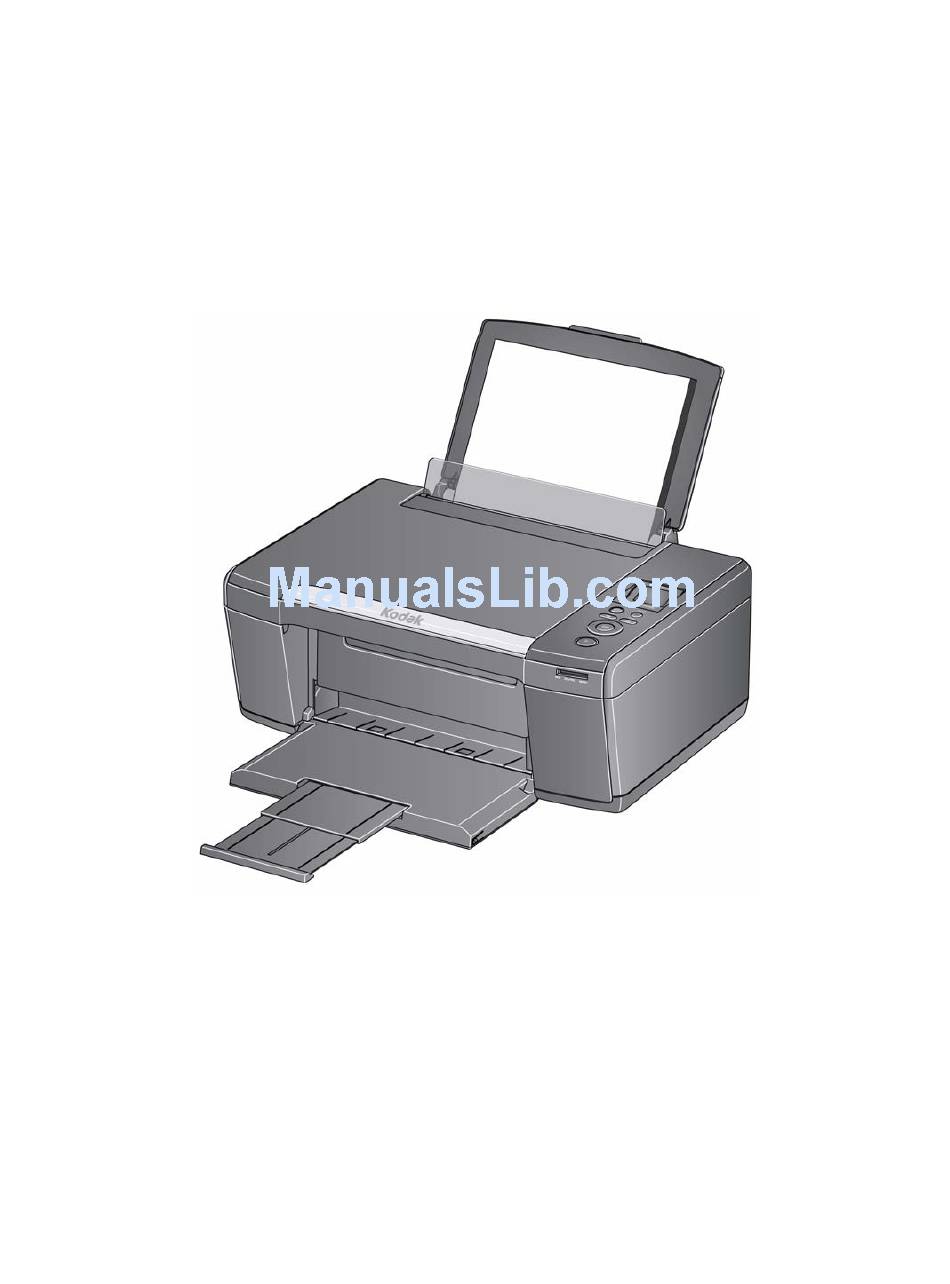

  • Page 1 KODAK ESP C110 All-in-One Printer Extended User Guide...
  • Page 2 Eastman Kodak Company Rochester, NY 14650 © Eastman Kodak Company, 2010 Kodak, EasyShare, ESP, and Perfect Touch are trademarks of Eastman Kodak Company. Specifications subject to change without notice. December 2010...

  • Page 3: Table Of Contents

    Viewing pictures on a memory card... 14 Finding pictures on a memory card ... 14 Using default settings to print a picture ... 15 Changing the settings and printing pictures... 16 Printing panoramic pictures... 18 Printing tagged pictures... 19 Transferring pictures to a computer... 20 www.kodak.com/go/aiosupport...
  • Page 4 Updating if your printer is connected to a computer with MAC OS... 47 Monitoring and adjusting printer performance ... 48 Checking ink levels... 48 Resetting factory defaults ... 48 Replacing the printhead ... 49 7 Troubleshooting Basic troubleshooting ...53 Getting help on the Web ... 54 Power light...55 www.kodak.com/go/aiosupport...
  • Page 5 Canadian statements... 64 European compliance statement... 64 German compliance statement ... 64 REACH Article 33 declarations... 65 Waste electrical and electronic equipment labeling... 65 ENERGY STAR® Qualified All-in-One Printer ... 65 Warranty Information... 66 Declaration of Conformity... 67 www.kodak.com/go/aiosupport Table of contents...
  • Page 6 www.kodak.com/go/aiosupport...

  • Page 7: Printer Overview

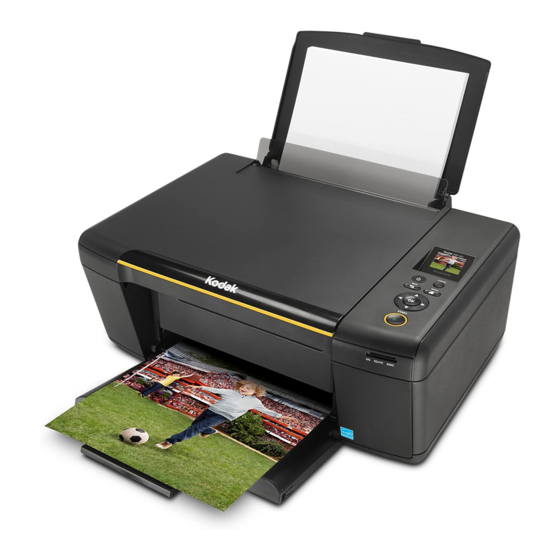

    Paper input tray Right paper-edge guide Scanner lid Scanner glass Control panel Memory card slot Access door 10 Printhead with ink cartridges installed 11 USB port 12 Power cord connection port 13 Output tray extender 14 Paper output tray www.kodak.com/go/aiosupport...

  • Page 8: Control Panel

    Used to navigate menus and scroll through pictures Begins copying, scanning, printing, maintenance task, and file transfer Selects a menu item and allows you to continue with the current operation Displays the higher level screen in the menu structure Turns the printer on or off www.kodak.com/go/aiosupport...

  • Page 9: Home Center Software

    Home Center Software KODAK Home Center Software is installed with your KODAK All-in-One Printer Software, unless you choose otherwise. The Home Center icon will appear on your desktop. On a computer with WINDOWS Operating System (OS), you can use Home Center Software to: •...

  • Page 10: Configuring Printer Settings

    Resetting factory defaults, page NOTE: Resetting factory defaults does not change the date and time, language, country/region, or network settings. – Press OK to view the Firmware Version number; press OK when you are done. www.kodak.com/go/aiosupport Printing tagged pictures, page...

  • Page 11: Setting Your Printer As The Default Printer

    1. From the dock, open System Preferences. 2. In the Hardware section, click Print & Fax. 3. Select your printer from the drop-down list next to Default Printer. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer...

  • Page 12: Handling Paper

    COLORLOK Technology logo on the package. Use only paper that is designed for inkjet printers. For the best photo printing results, use KODAK Photo Papers, which are optimized to work with KODAK All-in-One Printers, or photo papers designed for use on pigment-based inkjet printers.

  • Page 13: Envelope Sizes

    Loading paper To load paper: 1. Lift the input tray. 2. Open the output tray, then pull out the extender until it is fully extended. Do not load envelopes with cutout or clear windows. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer...

  • Page 14: Loading Plain Paper

    1. Fan and stack the paper. 2. Make sure the left and right paper-edge guides are in the far left and far right positions, then insert the paper into the input tray. 3. Move the paper-edge guides until they touch the paper. www.kodak.com/go/aiosupport...

  • Page 15: Loading Photo Paper

    If the photo paper is loaded in the wrong direction, the image will be cut off and the paper may jam. If the paper is loaded with the wrong side up, the image quality will be affected. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer...

  • Page 16: Loading Envelopes

    2. Insert the envelope(s) into the tray with the flap away from you and the top of the envelope against the right side of the tray. 3. Move the paper-edge guides until they touch the envelope(s). Do not load envelopes with cutout or clear windows. www.kodak.com/go/aiosupport...

  • Page 17: Printing

    1. Load paper into the paper input tray. 2. Open the document you want to print, then select File > Print. 3. In the Print dialog box, make sure that KODAK ESP C110 Series AiO is selected, then click Properties.

  • Page 18: Printing Forms

    1. Load paper into the paper tray. 2. Open the document you want to print, then select File > Print. 3. In the Print dialog box, make sure that Eastman Kodak Company ESP C110 is selected. 4. In the Copies & Pages drop-down list, select Paper Handling.

  • Page 19: Printing Pictures

    If you use a memory card with an adapter, make sure you insert and remove the adapter and the memory card as a unit; do not remove the memory card while leaving the adapter in the printer. memory card slot www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer...

  • Page 20: Viewing Pictures On A Memory Card

    To view these pictures, press OK. 6. To view these pictures, press OK. to select View / Print Photos, then press OK. to select Find Photos, then press OK. to select Year, Month, or Day; press www.kodak.com/go/aiosupport to scroll through the pictures.

  • Page 21: Using Default Settings To Print A Picture

    Loading photo paper, page memory card slot to display the picture you want to print. To prevent loss of data from your memory card, do not remove it from the printer while printing. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer 9), and move the...

  • Page 22: Changing The Settings And Printing Pictures

    OK. for each picture you want to print. to select an option (see table below), then press Settings www.kodak.com/go/aiosupport Loading photo paper, to change the Description Scroll through the pictures on the memory card;...
  • Page 23 Scene Balance On (default) Add Date to Prints No (default) www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer Description To transfer all the pictures on the memory card to your computer, press OK then Start. (Your printer and computer must be connected with a USB cable.)

  • Page 24: Printing Panoramic Pictures

    Print Size, then press To prevent loss of data from your memory card, do not remove it from the printer while printing. www.kodak.com/go/aiosupport Description To save the settings as the new default, press OK. With Yes selected, press OK.

  • Page 25: Printing Tagged Pictures

    2. Insert the memory card into the memory card slot. 3. When the “Print tagged images?” message appears, press Start. tagged (also “marked” or “DPOF”) functionality. 9), and move the paper-edge guides until they touch the paper. memory card slot www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer Loading photo paper,...

  • Page 26: Transferring Pictures To A Computer

    2. Press Back. 3. Press 4. Press Start. 5. Follow the on-screen instructions on your computer. recommend that you transfer them using a memory card reader attached directly to your computer. to select Transfer All to PC, then press OK. www.kodak.com/go/aiosupport...

  • Page 27: Copying

    1. Lift the scanner lid, and place the document face down in the right-front corner of the scanner glass. 2. Close the lid. 3. Press Home. 4. Press Start to begin copying. 48), or defaults that you have set on the printer (see www.kodak.com/go/aiosupport Resetting factory Save as Defaults,...

  • Page 28: Adjusting The Settings And Copying A Document

    Color (default) Black & White Same Size (default) Fit to Page 20% to 500% www.kodak.com/go/aiosupport to change the setting. Description The number of copies that print. Prints full color. Prints black and white (grayscale). The copy is the same size as the original.
  • Page 29 (Normal is default) Save as Defaults No / Yes 6. Press Start to begin copying. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer Description Good quality output; prints faster than Best. The highest quality, but the slowest print speed; eliminates the banding effect that sometimes occurs when printing Draft or Normal.

  • Page 30: Changing The Number Of Copies Of A Document

    1. Lift the scanner lid, and place the document face down in the right-front corner of the scanner glass. 2. Close the lid. 3. Press Home. 4. With Copy Document selected, press 5. Press Start to begin copying. www.kodak.com/go/aiosupport to select a number.

  • Page 31: Enlarging Or Reducing A Document

    2. Close the lid. 3. Press Home. 4. With Copy Document selected, press OK. 5. Press 6. Press 7. Press Start to begin copying. to select Copy Size. to select an enlargement or reduction. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer...

  • Page 32: Darkening Or Lightening A Copy

    4. With Copy Document selected, press OK. 5. Press 6. Press number above zero for a lighter copy. 7. Press Start to begin copying. to select Brightness. to select a number below zero for a darker copy, or press www.kodak.com/go/aiosupport to select a...

  • Page 33: Copying A Photograph

    4. Press Home. 5. Press 6. Press Start to begin copying. 48), or defaults that you have set on the printer (see Loading photo paper, page to select Copy Photo. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer Resetting factory Save as Defaults,...

  • Page 34: Adjusting The Settings And Copying A Photograph

    4 x 7 4 x 8 5 x 7 4 x 12 8 x 10 8.5 x 11 or A4 www.kodak.com/go/aiosupport to change the setting. Description The number of copies that print. Prints full color. Prints black and white (grayscale).
  • Page 35 For photo paper quality copies, load photo paper into the printer (see page 6. Press Start to begin copying. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer Description Good quality output; prints faster than Best. The highest quality, but the slowest print speed;...

  • Page 36: Changing The Number Of Copies Of A Photograph

    1. Lift the scanner lid, and place the photograph face down in the right-front corner of the scanner glass. 2. Close the lid. 3. Press Home. 4. Press 5. Make sure Quantity is selected. 6. Press 7. Press Start to begin copying. to select Copy Photo, then press OK. to select a number. www.kodak.com/go/aiosupport...

  • Page 37: Enlarging Or Reducing A Photograph

    2. Close the lid. 3. Press Home. 4. Press 5. Press 6. Press 7. Press Start to begin copying. to select Copy Photo, then press OK. to select Copy Size. to select the copy size. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer...

  • Page 38: Darkening Or Lightening A Photograph

    6. Press number above zero for a lighter copy. 7. Press Start to begin copying. to select Copy Photo, then press OK. to select Brightness. to select a number below zero for a darker copy, or press www.kodak.com/go/aiosupport to select a...

  • Page 39: Scanning

    1. Open the Printer Tools window. • On a computer with WINDOWS OS, select Start > All Programs > Kodak > • On a computer with MAC OS, open Home Center Software, then select the 2. Under the Tools heading, select Printer Scan Settings.
  • Page 40 • Location (folder) where the scanned files will be option for each setting: Setting Options Scan As Color Black and white File format .jpg .bmp .tif Resolution (dpi) www.kodak.com/go/aiosupport with WINDOWS OS) with MAC OS) “scan1”, “scan2”, and so on. saved...
  • Page 41 4. When you are finished making selections, click OK on the bottom right of the Printer Scan Settings window. 5. Close the Printer Tools window. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer Options When connected to a computer with WINDOWS • Best for E-mail •...

  • Page 42: Scanning From The Computer

    4. Make sure that Picture is selected and Collage - Combine all pictures is cleared, then follow the on-screen instructions. NOTE: Click the Help icon for additional instructions. Pictures, then follow the on-screen instructions. tab, click Scan Application, then follow the on-screen instructions. to scan, then follow the instructions. www.kodak.com/go/aiosupport...
  • Page 43 6. Select Color Picture or Black and White Picture. 7. Select Automatically detect multiple pictures, if it is not selected. 8. Click Preview or Scan All, then follow the on-screen instructions. NOTE: Click the Help icon for additional instructions. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer...

  • Page 44: Scanning From The Control Panel

    (default) Name of computer (only if a computer is connected by wireless network) Memory Card www.kodak.com/go/aiosupport to change the setting. Description The scanned file is sent to the USB-connected computer. The scanned file is sent to the computer on the wireless or Ethernet network.
  • Page 45 Save as Defaults No / Yes 6. Press Start to make a scan. The scanned file appears at the destination you specified. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer Settings Description Sets the scan settings for scanning a document (see settings for scanning from the...

  • Page 46: Maintaining Your Printer

    For optimal performance, keep the printer connected to a computer that is powered on and has the KODAK Home Center Software installed, or keep the printer powered on and connected to the Internet through a wireless network.

  • Page 47: Cleaning The Scanner Glass And Document Backing

    1. Turn off the printer and unplug it from the power outlet. 2. Lift the scanner lid. 3. Wipe the glass with a soft cloth or sponge, slightly moistened with a nonabrasive glass cleaner. CAUTION: www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer...
  • Page 48 NOTE: If the document backing needs further cleaning, use isopropyl (rubbing) 7. When you finish cleaning, plug in the printer and press the on/off button to power on the printer. alcohol on a soft cloth, then wipe thoroughly with a cloth moistened with water to remove any residual alcohol. www.kodak.com/go/aiosupport...

  • Page 49: Replacing Ink Cartridges

    The ink cartridges are located in the printhead. Black ink cartridge Checking ink levels, page Do not use non-Kodak brand or refilled ink cartridges. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer 48). When an ink cartridge is Printhead...
  • Page 50 3. Pinch the tab on the ink cartridge. 4. Lift the ink cartridge out of the printhead. 5. Remove the new ink cartridge from its bag. IMPORTANT: To prevent the printhead from drying out, insert the ink cartridge into the printhead immediately. www.kodak.com/go/aiosupport...
  • Page 51 KODAK ESP C110 All-in-One Printer 6. Remove the protective cap from the cartridge. 7. Insert the ink cartridge into the printhead. 8. Press down on the ink cartridge tab until you hear a click. 9. Close the printer access door.

  • Page 52: Updating The Software And Printer Firmware

    3. Select Start > All Programs > Kodak > Kodak AiO Printer Tools. 4. Make sure that KODAK ESP C110 Series AiO - Connected appears in the lower left corner of the Printer Tools window. NOTE: If KODAK ESP C110 Series AiO - Connected does not appear in the lower 5.

  • Page 53: Updating If Your Printer Is Connected To A Computer With Mac Os

    1. Make sure that your computer is connected to the Internet. 2. Open Home Center Software. 3. On the KODAK AiO Home Center menu, select Check for Updates. 4. If there are software updates, follow the on-screen instructions for updating your software.

  • Page 54: Monitoring And Adjusting Printer Performance

    NOTE: Resetting factory defaults does not change the date and time, language, to select Maintenance, then press OK. select Order Supplies. to select Printer Settings, then press OK. to select Reset All Settings, then press OK. country/region, or network settings. www.kodak.com/go/aiosupport...

  • Page 55: Replacing The Printhead

    2. Lift the printer access door, and wait for the carriage to move to the access position. 3. Remove both ink cartridges and set them aside. Replacing the printhead is not a regular maintenance procedure. Replace the printhead only if you receive a new printhead from Kodak. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer...
  • Page 56 4. Unlatch the used printhead by lifting the button in the center of the carriage. 5. Lift the used printhead out of the carriage. 6. Remove the new printhead from its bag. Do not touch the copper contacts on the printhead, as doing so may damage the printhead. CAUTION: www.kodak.com/go/aiosupport...
  • Page 57 KODAK ESP C110 All-in-One Printer 7. Remove the plastic protective cap. Copper contacts Be careful not to scratch or touch the copper contacts while inserting IMPORTANT: the printhead. 8. Place the new printhead into the carriage. 9. Push firmly against the target label of the printhead until you hear a loud snap.
  • Page 58 11. Press down on the ink cartridge until you hear it click into position. 12. Repeat steps 13. Close the printer access door. The printer detects the new printhead. Follow the instructions on the LCD to calibrate your printer. for the color ink cartridge. www.kodak.com/go/aiosupport...

  • Page 59: Troubleshooting

    , or other problem in the search field. Ink cartridge • Check that KODAK Ink Cartridge(s) are installed. Do not use non-Kodak brand or refilled ink cartridges. • Remove, then install the cartridges again. Make sure the cartridges click into place.

  • Page 60: Getting Help On The Web

    • Make sure the paper in the input tray is free of tears or creases. • Make sure you do not overload the paper input tray. For more information, go to www.kodak.com/go/esp110support, then type Paper jam in the search field.

  • Page 61: Power Light

    • The printer is busy. – Wait for the printer to finish the task. • The printer is ready. www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer...

  • Page 62: Product And Safety Specifications

    Print sizes 2 x 3 in. / 5 x 8 cm Quality Best, Normal, Draft modes on plain paper Auto-detect media Auto-detect plain paper and photo papers Image enhancement KODAK PERFECT TOUCH Technology with Home Center Add date to prints No (default), Yes Color Black-and-white or color...

  • Page 63: Copy Photo Features

    US Letter - 8.5 x 11 in. / 22 x 28 cm A4 - 8.3 x 11.7 in. / 21 x 30 cm Auto-destination Auto picture detection 20 sheets of photo paper, up to 12 mil (290 gsm) 20 envelopes www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer...

  • Page 64: Connectivity

    (MAC OS), including segmentation scanning Power Input: 110–240 V AC, 50–60 Hz The printer shall only be used with a switching adapter. Output: 36 V DC at 0.9 A 15°C (59°F) to 30°C (86°F), and 20 to 80% RH. www.kodak.com/go/aiosupport...

  • Page 65: System Requirements

    Iron-on transfers All commercially available inkjet varieties on 8.5 x 11 in. and A4 Minimum CPU INTEL CELERON Processor Minimum CPU PowerPC G4, G5, or INTEL-based MAC Labels All commercially available inkjet varieties on 8.5 x 11 in. and A4 size sheets size sheets www.kodak.com/go/aiosupport KODAK ESP C110 All-in-One Printer...
  • Page 66 5 x 7 in. / 13 x 18 cm 8 x 10 in. / 20 x 25 cm US Letter (8.5 x 11 in. / 22 x 28 cm) A4 (8.3 x 11.7 in. / 21 x 30 cm) www.kodak.com/go/aiosupport...

  • Page 67: Safety Information

    Safety information KODAK ESP C110 All-in-One Printers are Class 1 LED Products. • Always follow all warnings and instructions marked on the product. • Use only the power source indicated on the product regulatory label. • Use only the power cord that comes with the product (or an approved power cord greater or equal to H05W-F, 3G, 0.75mm...

  • Page 68: Ink Cartridge Safety

    • Use only a dry, soft cloth to clean the LCD screen. Do not use any liquid or chemical cleaners. • If the LCD screen is damaged, contact Kodak immediately. If any of the solution from the display gets on your hands, wash them thoroughly with soap and water.

  • Page 69: Regulatory Compliance

    • Consult the dealer or an experienced radio/TV technician for help. Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this product not expressly approved by Eastman Kodak Company might cause harmful interference and void the FCC authorization to operate this product.

  • Page 70: Canadian Statements

    This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your person. European compliance statement Hereby, Kodak declares that this wireless KODAK All-in-One Printer is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 71: Reach Article 33 Declarations

    4 hours. Increasing the delay time may result in reduced energy savings. ENERGY STAR and the ENERGY STAR mark are registered U.S. service marks. As an ENERGY STAR partner, Kodak has determined that this product meets ENERGY STAR Guidelines for energy efficiency. For more information on the ENERGY STAR...

  • Page 72: Warranty Information

    Warranty service will include all labor as well as any necessary adjustments and/or replacement parts. If Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak together with proof of the purchase price paid.

  • Page 73: Declaration Of Conformity

    KODAK ESP C110 All-in-One Printer Declaration of Conformity See www.kodak.com/go/declarationofconformity. www.kodak.com/go/aiosupport...
  • Page 74 10 sizes, 7, 60 finding photos, 14 firmware, downloading (updating), 46—47 glass, scanner cleaning, 41—42 location, 1 graph paper, printing, 12 grocery list, printing, 12 home button, 2 Home Center Software, 3, 13, 33, 35, 36, 37, 39, 47 www.kodak.com/go/aiosupport...
  • Page 75 58 index card stock sizes, 60 ink cartridges, replacing, 43—45 ink levels, 48 iron-on transfers, sizes, 6, 60 KODAK All-in-One Printer Software, 3 KODAK Home Center Software See Home Center Software label sizes, 60 language, setting, 4...
  • Page 76 USB port, location, 1 viewing photos, 14 warranty ink, 57 printer, 58 printhead, 58 Web support downloads, 54 Electronics Industry Alliance, 40 Material Safety Data Sheets (MSDS), 62 REACH Article 33 declarations, 65 recycling, 40 wide-ruled paper, printing, 12 www.kodak.com/go/aiosupport Index...
