- Page 1 User Guide • Guide d'utilisation Guía del usuario • Guia do Usuário O ce 2100 Series All-in-One Printers • Imprimantes tout-en-un Impresoras multifunción • Impressoras Multifuncionais...
- Page 3 KODAK ESP Office 2100 Series All-in-One Printers Your KODAK All-in-One Printer combines ease-of-use and affordable inks to provide high-quality pictures and documents. Resources Support is available! Go to www.kodak.com/go/aiosupport for: ■ Answers to questions ■ Software or firmware upgrades ■...
-
Page 4: Table Of Contents
Using the scanner glass ..............11 Using the Automatic Document Feeder (ADF)........12 Printing....................14 Printing documents................14 Printing pictures ................. 14 Copying ....................15 Scanning....................16 Faxing...................... 17 Sending faxes ..................17 Receiving faxes................... 17 Ordering supplies ..................18 www.kodak.com/go/aiosupport... - Page 5 3 Troubleshooting ................19 Basic troubleshooting................19 Getting help on the Web ................23 4 Safety and Warranty Information ........... 24 Safety Information..................24 LCD Screen Safety ..................25 Ink Cartridge Safety.................. 25 Warranty Information ................26 Declaration of Conformity................. 28 www.kodak.com/go/aiosupport...
- Page 6 www.kodak.com/go/aiosupport...
-
Page 7: Printer Overview

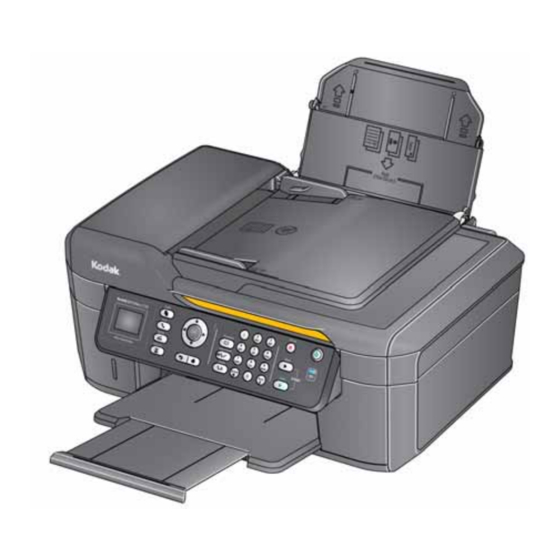

This printer lets you print, copy, scan, and fax pictures and documents. Components 1 Control panel Paper input tray 2 Automatic document feeder (ADF) Right paper-edge guide 3 ADF paper-edge guides Output tray 4 Left paper-edge guide Output tray extender www.kodak.com/go/aiosupport... - Page 8 Printer Overview 9 Front USB port (ESP Office 2170 only) 11 Scanner lid 10 Memory card slot 12 Scanner glass www.kodak.com/go/aiosupport...
- Page 9 Printer Overview 13 KODAK Service Number 17 Line in phone port 14 Access door 18 Ext out phone port 15 Carriage 19 USB port (for connecting to computer) 16 Printhead with ink cartridges installed 20 Power cord connection port www.kodak.com/go/aiosupport...
-
Page 10: Control Panel
Used to navigate menus and scroll through pictures OK button Selects a menu item, accepts a setting, or continues with the current operation Attention light Blinks when an error occurs Phonebook button Displays the phonebook of fax numbers; lets you enter or edit phone numbers www.kodak.com/go/aiosupport... - Page 11 Lights when the fax auto answer feature is on 17 Home button Displays the main menu 18 Back button Displays the next higher screen in the menu structure 19 Photo button Displays the Print Photo Options menu 20 Scan button Displays the Scan Options menu www.kodak.com/go/aiosupport...
-
Page 12: Home Center Software
Extended User Guide, and configure your printer from your computer. Paper For the best photo printing results, use KODAK Photo Papers, which are optimized to work with KODAK All-in-One Printers. For the best document printing results, use KODAK Document Papers or a paper with the COLORLOK Technology logo on the package. -
Page 13: Paper Types
Maximum size English units 4 x 6 in. 8.5 x 14 in. Metric units 10 x 15 cm 22 x 36 cm For more information about paper types and sizes, see the Extended User Guide at www.kodak.com/go/esp2150manuals or www.kodak.com/go/esp2170manuals. www.kodak.com/go/aiosupport... -
Page 14: Loading Paper
Printer Overview Loading paper Open and lift the paper input tray. Pull out the paper output tray and the extender until they are fully extended. www.kodak.com/go/aiosupport... - Page 15 Fan and stack the paper. Make sure the left and right paper-edge guides are to the far left and far right, then insert the paper (short side first) into the input tray. Move the paper-edge guides until they touch the paper. www.kodak.com/go/aiosupport...
- Page 16 Insert the paper (short side first) into the input tray with the logo side facing toward the tray and the glossy side toward you. IMPORTANT: If the photo paper is loaded the wrong way, the image quality will be affected. Move the paper-edge guides until they touch the paper. www.kodak.com/go/aiosupport...
-
Page 17: Basic Functions
Using the scanner glass To place an original on the scanner glass: Remove any originals from the automatic document feeder (ADF). Lift the scanner lid, and place the document or picture face down in the right-front corner. Close the scanner lid. www.kodak.com/go/aiosupport... -
Page 18: Using The Automatic Document Feeder (Adf)
The ADF accepts originals from B5 (6.9 x 9.8 in. / 176 x 250 mm) to legal size (8.5 x 14 in. / 216 x 356 mm). IMPORTANT: Do not load photographs, cards, or any paper stock heavier than 24 lb / 90 gsm in the ADF. Move the ADF paper-edge guides outward. ADF paper-edge guides www.kodak.com/go/aiosupport... - Page 19 Basic Functions Fan and stack the originals, then insert them face up in the ADF. Move the ADF paper-edge guides until they touch the paper. www.kodak.com/go/aiosupport...
-
Page 20: Printing
WINDOWS OS. Home Center Software lets you edit and enhance your pictures quickly. On a computer with either MAC OS or WINDOWS OS, you can print pictures from KODAK EASYSHARE Software or any picture-editing or photo-management software. For more information about printing, see the Extended User Guide at www.kodak.com/go/esp2150manuals... -
Page 21: Copying
Press to select Copy Document or Copy Photo. Press Start Black to make a black-and-white copy, or press Start Color to make a color copy. For more information about copying, see the Extended User Guide at www.kodak.com/go/esp2150manuals or www.kodak.com/go/esp2170manuals. www.kodak.com/go/aiosupport... -
Page 22: Scanning
Select Scan Pictures and Documents (on a computer with WINDOWS OS), or select the Tools tab, then click Scan Application (on a computer with MAC OS). Follow the instructions on the computer screen. For more information about scanning, see the Extended User Guide at www.kodak.com/go/esp2150manuals or www.kodak.com/go/esp2170manuals. www.kodak.com/go/aiosupport... -
Page 23: Faxing
NOTE: You can receive an incoming fax manually, even if Auto Answer is turned on. When you hear the phone ring, press Start Black or Start Color. For more information about faxing, see the Extended User Guide at www.kodak.com/go/esp2150manuals or www.kodak.com/go/esp2170manuals. www.kodak.com/go/aiosupport... -
Page 24: Ordering Supplies
Open Home Center Software. Select Order Supplies (on a computer with WINDOWS OS) or select the Tools tab, then click Order Supplies (on a computer with MAC OS). Select the item(s) you want to buy, then follow the on-screen instructions. www.kodak.com/go/aiosupport... -
Page 25: Troubleshooting
Problem Possible Solutions Wireless For wireless connectivity issues, go to connectivity www.kodak.com/go/inkjetnetworking. Printer does not • Make sure you are using the power cord that came with your power on printer. • Make sure the power cord is connected to the AC adapter and is plugged into an outlet or power strip. - Page 26 Make sure that the Active Connection Type is Wi-Fi, and that the IP Address is not 0.0.0.0. – your router is transmitting data. – the firewall (excluding WINDOWS Firewall) is allowing the services needed for your printer. For more information, go to www.kodak.com/go/inkjetnetworking. www.kodak.com/go/aiosupport...
- Page 27 Loading photo paper, page • For more help, go to www.kodak.com/go/troubleshooting. Ink cartridge errors • Check that KODAK Ink Cartridge(s) are installed. Do not use non-Kodak brand or refilled ink cartridges. • Remove, then install the cartridges again. Make sure the cartridges click into place.
- Page 28 • If you are connected to a DSL phone line, make sure you have a DSL filter connected to the phone jack. For more information, go to www.kodak.com/go/troubleshooting. Error • Go to www.kodak.com/go/esp2150support codes/messages www.kodak.com/go/esp2170support, then type your error code or message. www.kodak.com/go/aiosupport...
-
Page 29: Getting Help On The Web
Contact Kodak at www.kodak.com/go/contact resolve. and have the following information available: – KODAK Service Number (located inside the printer when you open the access door) – Printer model number (located on the control panel above the LCD) – Computer model, operating system, and version of Home Center Software www.kodak.com/go/aiosupport... -
Page 30: Safety And Warranty Information
(ink can leak out of the product). ■ Avoid placing this product in an environment that is subject to rapid changes in temperature or humidity, mechanical shocks, vibration, or dust. Do not place near radiators, heating vents, or in direct sunlight. www.kodak.com/go/aiosupport... -
Page 31: Lcd Screen Safety
Use only a dry, soft cloth to clean the LCD screen. Do not use any liquid or chemical cleaners. ■ If the LCD screen is damaged, contact Kodak immediately. If any of the solution from the display gets on your hands, wash them thoroughly with soap and water. Ink Cartridge Safety ■... -
Page 32: Warranty Information
If Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak together with proof of the purchase price paid. - Page 33 (such as third party ink or ink tanks), failure to follow Kodak’s operation, maintenance or repacking instructions, failure to use items supplied by Kodak (such as adapters and cables), or claims made after the duration of this warranty.
-
Page 34: Declaration Of Conformity
Unless a specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or liability exists beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by negligence or other act. - Page 36 Eastman Kodak Company Rochester, NY 14650 U.S.A. © Eastman Kodak Company, 2010. MC/MR/TM: Kodak, ESP, EasyShare. 1K7637 Printed in China.
