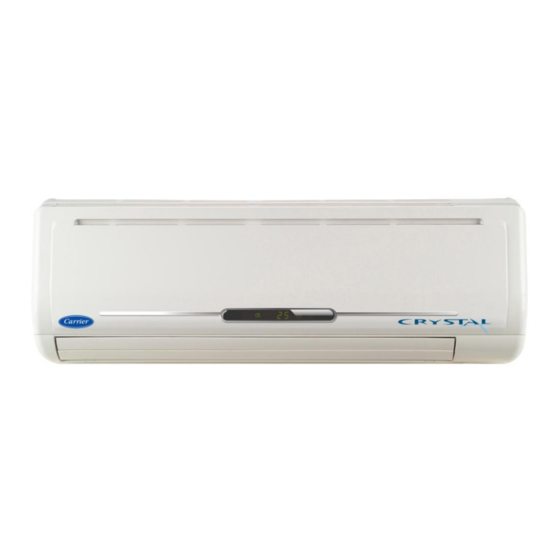

Split type room air conditioner
Hide thumbs Also See for 42KCR009713:

Advertisement

Before using your air conditioner, please read
this manual carefully and keep it for future reference.
-
SPLIT TYPE

ROOM AIR CONDITIONER

Suit for
42KCR009713/38KCR009713
42KCR012713/38KCR012713
42KCR018713/38KCR018713
42QCR009713/38QCR009713
42QCR012713/38QCR012713
42QCR018713/38QCR018713
42KCR009713G/38KCR009713G
42KCR012713G/38KCR012713G
42KCR018713G/38KCR018713G
Please read this installation manual completely
before installing the product.
If the power cord is damaged, replacement work
shall be performed by authorised personnel only.
Installation work must be performed in accordance
with the national wiring Standards by authorised
personnel only.
Contact an authorised service technician for
repair, maintenance or installation of this unit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42KCR009713 and is the answer not in the manual?

Questions and answers

Summary of Contents for Carrier 42KCR009713

  • Page 1: Room Air Conditioner

    SPLIT TYPE ROOM AIR CONDITIONER Suit for Please read this installation manual completely 42KCR009713/38KCR009713 before installing the product. 42KCR012713/38KCR012713 If the power cord is damaged, replacement work 42KCR018713/38KCR018713 shall be performed by authorised personnel only.
  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS Warning ............................2 Caution .............................2 INSTALLATION INSTRUCTIONS Selecting installation place......................3 Accessories ..........................4 Indoor unit installation........................5 Outdoor unit installation......................7 REFRIGERANT PIPE CONNECTION Refrigerant pipe connection .....................8 ELECTRICAL WORK Electrical work ........................9 AIR PURGING Air purging with vacuum pump ....................11 Safety and leakage check .....................13 TEST RUNNING Test running ......
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Read the follow SAFE TY PRECAUTIONS carefully before installation. Electrical work m ust be installed by a licensed electrician. Be sure to use the correct rating of the power plug and main circuit for the model to be installed. Incorrect installation due to ignoring of the instruction will cause harm or damage, and the seri ousness is classified by the following indications.
  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS Selecting installation place Read completely, then follow step by step. Indoor unit Do not expose th e indoor unit to heat or st eam. Select a place where th ere are no obstacles in front or around the unit. Make sure that condensation drainage can be conveniently routed away.
  • Page 5: Accessories

    INSTALLATION INSTRUCTIONS Accessories Q ty Number Name of Accessories Installation Plate Clip Anchor Self-tapping Screw A ST3.9X25 Seal (See Page 8 for details) (See page 8 for details) Drain Joint Liquid side Parts you must 6.35 Connecting purchase (A minim um 9.52 pipe Assembly ( 12 000Btu/h model)
  • Page 6: Indoor Unit Installation

    INSTALLATION INSTRUCTIONS Indoor unit installation 1. Fit the Installation Plate Correct orientation 1. Fit the installation plate horizontally of Installation Plate on structural parts of the wall with spaces around the installation plate. 2. If the wall is made of brick, concrete or the like, drill eight (8) 5mm diameter holes in the wall.
  • Page 7 INSTALLATION INSTRUCTIONS 3. Connective Pipe and Drainage Installation Drainage 1. Run the drain hose sloping downward. Do not install the drain hose as illustrated below. Do not put the end of Do not block water flow by a rise. drain hose into water. Fig.7 2.
  • Page 8: Outdoor Unit Installation

    INSTALLATION INSTRUCTIONS 5. Piping and wrapping Bundle the tubing, connecting cable, and Indoor unit Ponding box drain hose with tape securely, evenly as shown in Fig.11. Pipe room Connective Because the condensed water from rear cable of the indoor unit is gathered in ponding Drain hose box and is piped out of room.
  • Page 9: Refrigerant Pipe Connection

    REFRIGERANT PIPE CONNECTION Settlement of outdoor unit An chor the outdoor unit with a bolt and nut Æ 10 or Æ 8 ti ghtly Air inlet and horizontall y on a concrete or rig id moun t. Air inlet Mounting dimensions A(mm) B(mm) 700x535x235...
  • Page 10 ELECTRICAL WORK C: Putting nut on Flare nu t Remove flare nuts attached to indoor and outdoor unit, then put them on pipe/tube having completed burr removal.(not possible Copper t ube to put them on after flaring work) D: Flaring work Fig.17 Firmly hold copper pipe in a die in the Handle...
  • Page 11: Electrical Work Electrical Work

    ELECTRICAL WORK Connect the cable to the indoor unit NOTE: Before performing any electrical work, turn off the main power to the system. 1. The inside and outside connecting cable can be connected without opening the front panel. 2. Remove the front cover on chassis and front cover of frame as shown in Fig.20. Then remove the terminal board cover by loosening the screw.
  • Page 12: Air Purging

    AIR PURGING After the confirmation of the above conditions, prepare the wiring as follows: 1) Never fail to have an individual power circuit specifically for the air conditioner. As for the method of wiring, be guided by the circuit diagram posted on the inside of control cover.
  • Page 13 AIR PURGING When relocate the unit to another place, perform evacuation using vacuum pump. Make sure the refrigerant added into the air conditioner is liquid form in any case. (Not applicable to the units with R22 ) Cau tion in handling the p acke d valve Open the valve stem until it hits against the stopper.
  • Page 14: Safety And Leakage Check

    TEST RUNNING Safety and leakage check %Ï Electrical safety check Perform the electric safe check after completing installation: 1. Insulated resistance The insulated resistance must be more than 2M © 2. Grounding work After finishing grounding work, measure the grounding resistance by visual detection and grounding resistance tester.
  • Page 15 CS515-I1 202000191081 20090618...
  • Page 16 Before using your air conditioner, please read this manual carefully and keep it for future reference. SPLIT TYPE ROOM AIR CONDITIONER Suit for Please read this installation manual completely before installing the product. 42KCR024713/38KCR024713 If the power cord is damaged, replacement work 42QCR024713/38QCR024713 shall be performed by authorised personnel only.
  • Page 17 CONTENTS SAFETY PRECAUTIONS Warning ............................2 Caution .............................2 INSTALLATION INSTRUCTIONS Selecting installation place......................3 Accessories ..........................4 Indoor unit installation........................5 Outdoor unit installation......................7 REFRIGERANT PIPE CONNECTION Refrigerant pipe connection .....................8 ELECTRICAL WORK Electrical work ........................9 AIR PURGING Air purging with vacuum pump ....................11 Safety and leakage check .....................13 TEST RUNNING Test running ......
  • Page 18: Safety Precautions

    SAFETY PRECAUTIONS Read the follow SAFE TY PRECAUTIONS carefully before installation. Electrical work m ust be installed by a licensed electrician. Be sure to use the correct rating and main circuit for the model to be installed. Incorrect installation due to ignoring of the instruction will cause harm or damage, and the seri ousness is classified by the following indications.
  • Page 19: Installation Instructions

    INSTALLATION INSTRUCTIONS Selecting installation place Read completely, then follow step by step. Indoor unit Do not expose th e indoor unit to heat or st eam. Select a place where th ere are no obstacles in front or around the unit. Make sure that condensation drainage can be conveniently routed away.
  • Page 20: Accessories

    INSTALLATION INSTRUCTIONS Accessories Q ty Number Name of Accessories Installation Plate Clip Anchor Self-tapping Screw A ST3.9X25 Seal (See Page 8 for details) (See page 8 for details) Drain Joint Parts you must Liquid side 9.52 Connecting purchase (A minim um pipe Assembly p ipe wa ll-thick ness o f 0.7mm is re quired .)
  • Page 21: Indoor Unit Installation

    INSTALLATION INSTRUCTIONS Indoor unit installation Correct orientation 1. Fit the Installation Plate of Installation Plate 1. Fit the installation plate horizontally on structural parts of the wall with spaces around the installation plate. 2. If the wall is made of brick, concrete or the like, drill eight (8) 5mm diameter holes in the wall.
  • Page 22 INSTALLATION INSTRUCTIONS 3. Connective Pipe and Drainage Installation Drainage 1. Run the drain hose sloping downward. Do not install the drain hose as illustrated below. Do not put the end of Do not block water flow by a rise. drain hose into water. Fig.7 2.
  • Page 23: Outdoor Unit Installation

    INSTALLATION INSTRUCTIONS 5. Piping and wrapping Bundle the tubing, connecting cable, and Indoor unit Ponding box drain hose with tape securely, evenly as shown in Fig.11. Connective Pipe room Because the condensed water from rear cable Drain hose of the indoor unit is gathered in ponding box and is piped out of room.
  • Page 24: Refrigerant Pipe Connection

    REFRIGERANT PIPE CONNECTION Settlement of outdoor unit Anchor the outdoor unit with a bolt and nut Æ 10 or Æ 8 tightly Air inlet and horizontall y on a concrete or rigid moun t. Air inlet Mounting dimensions A(mm) B(mm) 845x 695x335 Air outlet 895x 860x330...
  • Page 25: Electrical Work

    ELECTRICAL WORK C: Putting nut on Flare nut Remove flare nuts attached to indoor and outdoor unit, then put them on pipe/tube having completed burr removal.(not possible to put them on after flaring work) Copper tube D: Flaring work Fig.17 Firmly hold copper pipe in a die in the dimension shown in the table below.
  • Page 26 ELECTRICAL WORK NOTE: The supply voltage must be consistent with the rate voltage of the air conditioner. Minimu m nor minal cross -secti onal ar ea of condu ctors : Input Rated Amp Nominal cross-sectional Rated current Power supply Model area (Switch/Fuse) of appliance...
  • Page 27: Air Purging

    AIR PURGING After the confirmation of the above conditions, prepare the wiring as follows: 1) Never fail to have an individual power circuit specifically for the air conditioner. As for the method of wiring, be guided by the circuit diagram posted on the inside of control cover.
  • Page 28 AIR PURGING When relocate the unit to another place, perform evacuation using vacuum pump. Make sure the refrigerant added into the air conditioner is liquid form in any case. (Not applicable to the units with R22 ) Caution in handling the packed va lve Open the valve stem until it hits against the stopper.
  • Page 29: Safety And Leakage Check

    TEST RUNNING Safety and leakage check %Ï Electrical safety check Perform the electric safe check after completing installation: 1. Insulated resistance The insulated resistance must be more than 2M © 2. Grounding work After finishing grounding work, measure the grounding resistance by visual detection and grounding resistance tester.
  • Page 30 CS515-I2 202000191083...
