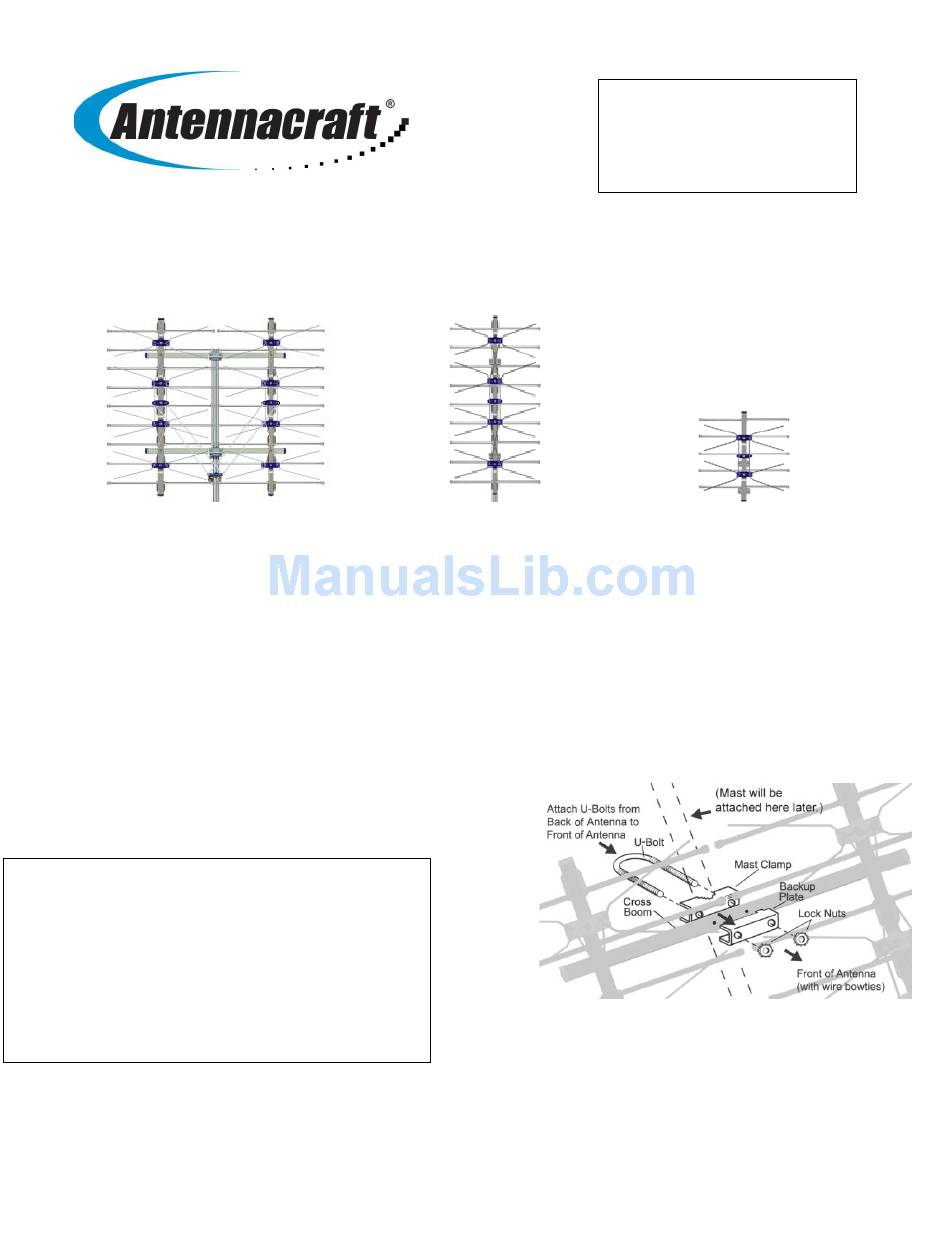

AntennaCraft U2000 Installation Instructions

Uhf 2-4-8-bay

Advertisement

Quick Links

U8000
8-Bay UHF Antenna
BEFORE YOU BEGIN
Read this manual and separate Consumer Product Safety
Commission information. For your safety and convenience,
plan each step of the installation and purchase the nec-
essary hardware in advance. The order in which you
perform the steps and the hardware required depends on
the mounting and connection methods you choose.
Note: There is no built-in VHF feed thru feature on these
antennas.
We recommend two people assemble the entire antenna on
the ground, and then mount the assembled antenna on the
mast.
Warning: When you install your antenna, use
extreme caution. If the antenna starts to fall, let it
go! It could contact overhead power lines. If the
antenna touches the power lines or guy wires it
can cause electrocution and death. Call the power
company to remove the antenna.
Do not attempt to remove it yourself.
ASSEMBLING THE ANTENNA
1.
Press the supplied end plugs into the ends of the
antenna booms.
WARNING: Installation of this
product near power lines is
DANGEROUS. For your safety,
follow the installation directions.
U4000
4-Bay UHF Antenna
2.
For Model U8000 only: Use the supplied
hardware to loosely attach the supplied mast clamp
assemblies (mast clamp, backup plate, U-bolt and
locknuts) through the holes on the cross booms.
Note: There is an extra mast clamp, U-bolt and
lock nuts to secure the aluminum leg at the bottom
plastic connector marked CONNECT LEAD-IN
HERE.
Model U8000
For Models U2000 and U4000: The mast clamps are pre-
attached to the main boom and you need only attach the
U-bolts and nuts
U2000
2-Bay UHF Antenna
