AntennaCraft Mini State 5MS9000 Manual

HDTV Ready
MINI STATE MINI STATE MINI STATE MINI STATE MINI STATE
Model 5MS9000

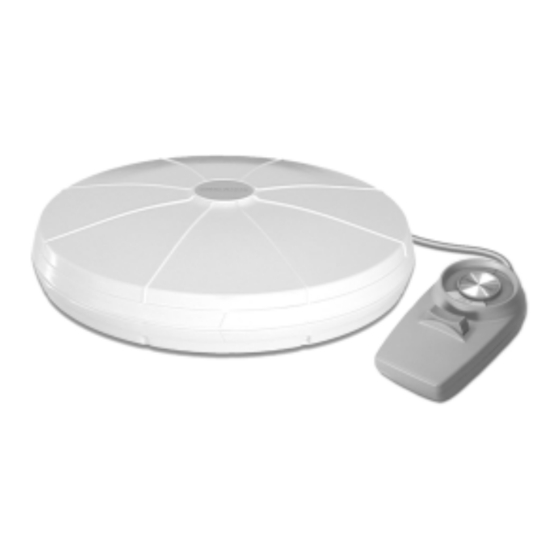

Your Antennacraft Mini-State Directional, Rotating Antenna
provides excellent reception of VHF/UHF TV channels in most
viewing locations. The UV protective housing is made of im-
pact-resistant filled co-polymer, making the exterior resistant
to weathering. It features both AC and DC operation and is
excellent for use on recreational vehicles, boats, or in the
home.
The VHF section is a circular shaped, slot tuned, broadband,
unidirectional traveling wave antenna. The UHF section is a
broadband, multi-element array. Both UHF and VHF signals
are amplified with a built-in split-band amplifier that provides
up to 20 dB gain.
The Mini-State Antenna system is designed for long life and
requires no routine maintenance. Should the unit ever quit
working, refer to the troubleshooting tips to help determine
possible causes. Do not attempt to service this product your-
self, as opening or removing covers may expose you to dan-
gerous voltage or other hazards. Refer all servicing to quali-
fied service personnel.
WARNING:
To reduce the risk of fire or electric shock, do not expose this
appliance to rain or moisture.
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICING. REFER ALL SERVICING TO
QUALIFIED SERVICE PERSONNEL.
CAUTION
WARNING: INSTALLATION OF
THIS PRODUCT NEAR POWERLINES
IS DANGEROUS. FOR YOUR SAFETY,
FOLLOW THE INSTALLATION
Amplified UHF/VHF
Indoor/Outdoor TV Antenna
with Internal Rotator
AC/DC Remote Controlled for
RV, Boat or Home
BEFORE INSTALLATION
Note: to CATV SYSTEM INSTALLER
Article 820-40 of the NEC specified that the cable ground shall
be connected to the grounding system of the building "as close
to the point of cable entry as practical".
Note: Do not plug your Mini-State power supply into an AC out-
let or DC power source until all electrical and antenna connec-
tions have been made. Doing so may short out the power sup-
ply/transformer and void your warranty.
Included in the Mini-State Antenna System:
• VHF/UHF antenna with amplifier and internal rotator
• Remote hand control unit with 8' cable
• 12 VDC/120 VAC power supply unit
• 12VDC Adapter with fused powercord
• 60' combination coaxial/3-wire rotator cable
• Stainless steel mounting hardware kit
CAUTION:
Use of controls or adjustments or performance of procedures
other than those specified may result in hazardous radiation
exposure.
The lightning flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of unin-sulated
"dangerous voltage" within the product's enclosure that may be
of significant magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and main-
tenance (servicing) instructions in the literature accompanying
the appliance.
DIRECTIONS
