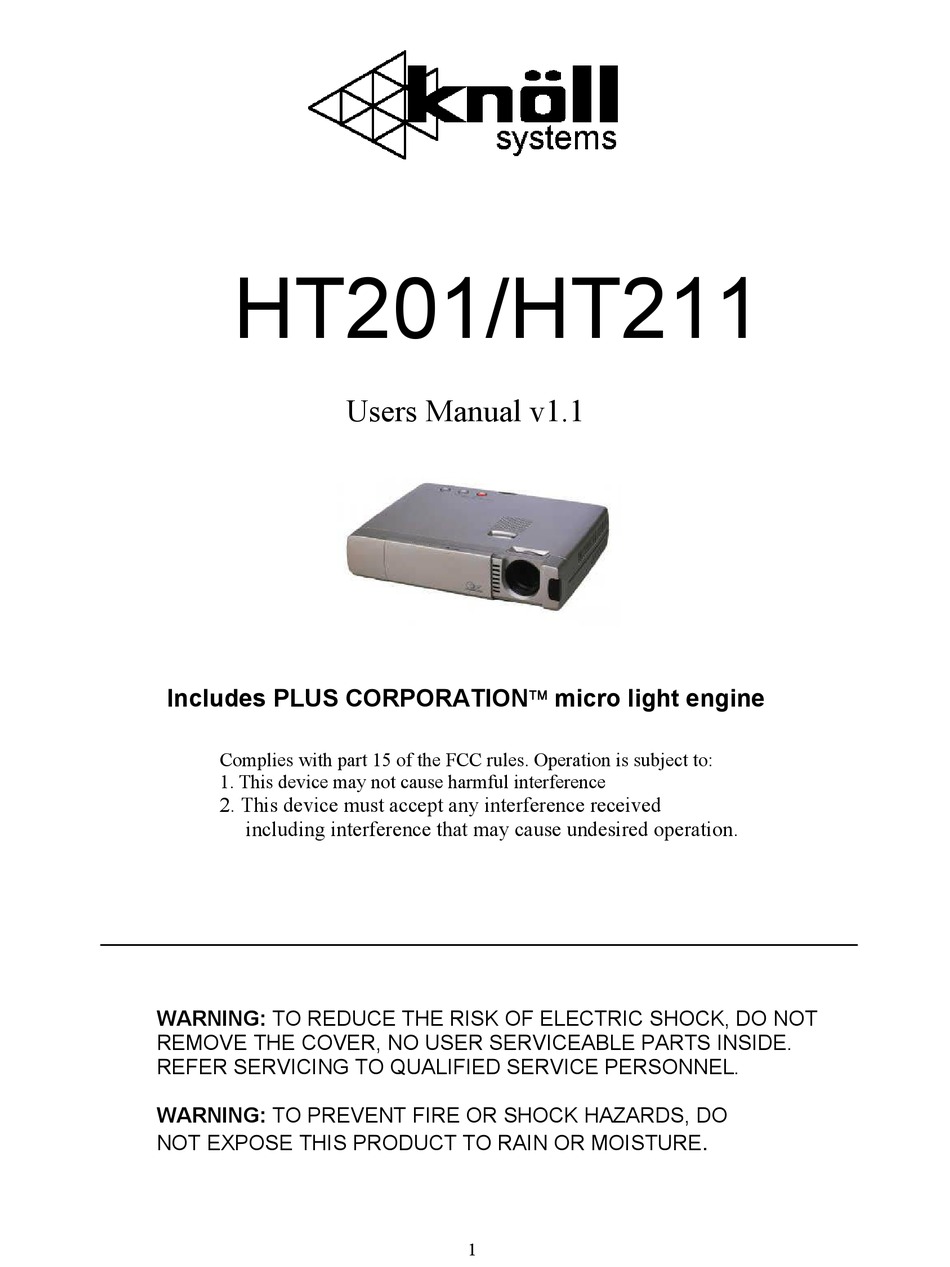

HT201/HT211
Includes PLUS CORPORATION micro light engine
Complies with part 15 of the FCC rules. Operation is subject to:
1. This device may not cause harmful interference
2. This device must accept any interference received
including interference that may cause undesired operation.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE THE COVER, NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE
Users Manual v1.1
1
.
Advertisement
Table of Contents
Related Manuals for Knoll HT201
Summary of Contents for Knoll HT201
- Page 1 HT201/HT211 Users Manual v1.1 Includes PLUS CORPORATION micro light engine Complies with part 15 of the FCC rules. Operation is subject to: 1. This device may not cause harmful interference 2. This device must accept any interference received including interference that may cause undesired operation.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings. Installation • For best results, use your projector in a darkened room. •... -
Page 3: Table Of Contents
Table of Contents IMPORTANT SAFETY INFORMATION Table of contents Basic information Features Remote control Terminal connections Projector part identification Projector positioning Connecting video equipment Connecting component video Connecting a PC or Macintosh Using the remote control as a computer mouse D-Sub pin assignments Using the projector Selecting the input source... -
Page 4: Features
The advanced intelligent compression technology of the HT211 enables it to present clear XGA images without any line omission. The HT201 presents clear S-VGA images. • The remote control can be used to operate your PC or Macintosh when the supplied... -
Page 5: Remote Control
Remote Control Inserting the batteries 1) Press firmly and slide the battery cover off. 2) Insert the supplied two batteries (size AAA). Ensure that the polarities (+ and -) of the batteries are aligned correctly. Always replace batteries with fresh alkaline type. -
Page 6: Terminal Connections
Terminal Connection Panel Projector Part Identification Installation The distance from the projector lens to the screen determines to the size of the projected image, therefore, you need to consider the place where you set up the projector and screen before making connections. You also need to consider the screen size and height of the unit and screen as other important factors. -
Page 7: Projector Positioning
1.2m (3.9 feet) and the maximum size is about 200 inches (508cm) at a distance of 6.8m (22.3 feet) from the screen. The HT201 and HT211 do not have zoom capability so they must be positioned at the exact distance from the screen.] Use the following information to position the projector. -
Page 8: Connecting Video Equipment
Connecting Video Equipment You can connect a document camera, VCR, laser disc player, and DVD player, etc. Connecting to the VIDEO IN VIDEO/S-VIDEO JACKS You can connect up to two pieces of video equipment to the VIDEO IN jacks following the illustration below. Two types of connections can be made. -
Page 9: Connecting Component Video
Connecting Component Video Equipment withYCbCr output jacks to the RGB IN connector You can also connect the video component to the RGB IN connector, if the video component has the component video (YCbCr) signal jacks. This connection may provide a better picture quality than the connections on page 8. -
Page 10: Connecting A Pc Or Macintosh
Connecting a PC or Macintosh Connecting a PC or Macintosh to the Projector enables computer images for impressive presentations. • The following display standards are supported by the HT211 (HT201 may not support some of the higher resolutions): VGA 640x480 for graphics... -
Page 11: Using The Remote Control As A Computer Mouse
Modifying the DIP switch (for Macintosh) setting Modify the DIP switch setting on the MAC cable as shown below. Macintosh adapter cable DIP switch setting (o=ON) MONITOR RESOLUTION Multiple scan 21 Multiple scan 21 Multiple scan 21 VGA/SVGA 21 Color 1152x870 19 Color 1024x768... -
Page 12: Sub Pin Assignments
Connecting the remote mouse receiver to an IBM PC/AT computer Connect the IBM/Mac connector on the remote mouse receiver and PC's mouse port with the supplied serial cable. Connecting the remote mouse receiver to an IBM PS/2 or Macintosh computer Connect the supplied serial cable to the IBM/Mac connector on the remote mouse receiver. -
Page 13: Operation
Operation Using the Projector 1) Connect the supplied power cable to the projector, then to the wall outlet (the mains). The POWER indicator on top of the unit lights in amber. 2) Press the POWER ON button on the remote control or the POWER button on top of the unit to turn on the unit. -
Page 14: Turning The Projector Off
• Adjust the projected image from the source connected to the RGB IN connector. The resolutions most suitable to the incoming signals will automatically be selected. However, if any vertical banding, noise, dot interference, or crosstalk appears on the screen, adjust "PICTURE ADJ,"... -
Page 15: Turning Off The Image And Muting The Sound Temporarily
Windows 95 There are two methods you can use to change your resolution. Method 1 1. Move your cursor to the background image and click. 2. In the "Properties" menu, select "Settings." 3. Change your resolution and click "OK." 4. You may be asked to reboot for the changes to take effect, or a message saying, "Windows is about to resize your display"... -
Page 16: Enlarging The Picture
Use the up/down cursor button to select the projection type listed below, then press enter and leave the setup menu. Projection Type Floor, front projection Floor, rear projection Ceiling, front projection Ceiling, rear projection HT201/HT211 Menu Normal Reversed horizontally Reversed vertically Reversed vertically and horizontally... -
Page 17: Adjusting The Image From The Source Connected To The Rgb In Connector
Setting "INPUT MODE" to "YCbCr" or Component Video When you have connected the component video (YCbCr) signal output jacks of the video component to the RGB IN connector on the unit, set the projector to "YCbCr" to obtain better picture quality. 1. - Page 18 Timing Chart Signal Resolution NTSC 640 x 480 768 x 576 SECAM 768 x 576 VESA 640 x 350 640 x 400 640 X 400 VESA 640 X 400 VESA 640 X 480 640 X 480 640 X 480 640 X 480 640 X 480 VESA 640 X 480...
-
Page 19: Adjusting The Picture Elements
Adjusting the picture elements The picture elements such as brightness, contrast, white balance, and so on can be adjusted individually for each input source. The adjustable items vary depending on the input source and “INPUT MODE” setting. color balance. Manual Adjustment of Computer Images Adjusting clock frequency and phase 1. -
Page 20: Specifications
Specifications Optical DMD TM Lens Lamp Image Size Projection Distance Light Output Contrast Ratio Color Temperature Electrical Inputs Color Reproduction Horizontal Resolution Power Requirement Mechanical Dimensions Net Weight Operational Temperatures Regulations Single Chip Digital Micro Device (DMD), 1024x768 pixels Single Chip Digital Micro Device (DMD), 800x600 pixels Manual focus F3.0 f =23mm Model 28-631 high performance compact lamp 914 to 5080mm (36 to 200 inches) diagonal... -
Page 21: Troubleshooting
Troubleshooting: Common Problems & Solutions Problem Does not turn on No picture Image isn’t square to the screen Picture is blurred Remote control does not work The STATUS indicator is lit or blinking Cross color in RGB mode Check These Items Check that the cord is plugged in with power at that outlet Slide lamp cover off lens... -
Page 22: Replacing The Lamp Housing
When the STATUS indicator on the projector keypad lights or blinks Status Light Message Condition On Continually Blinking Very Rapidly (On and off in a cycle of 1 sec.) Blinking Rapidly (On and off in a cycle of 4 sec.) Blinking Slowly (On and off in a cycle of 8 sec.) Blinking Very Slowly (On and off in a... -
Page 23: Lamp Replacement Procedure
When ordering a replacement lamp, specify the correct replacement lamp – Product code 28- 631. Knoll Systems 145 Tyee Drive Point Roberts, WA USA 98281 11791 Machrina Way, Richmond BC Canada V7A 4V3 © Copyright 1999-2000 All Rights Reserved...
