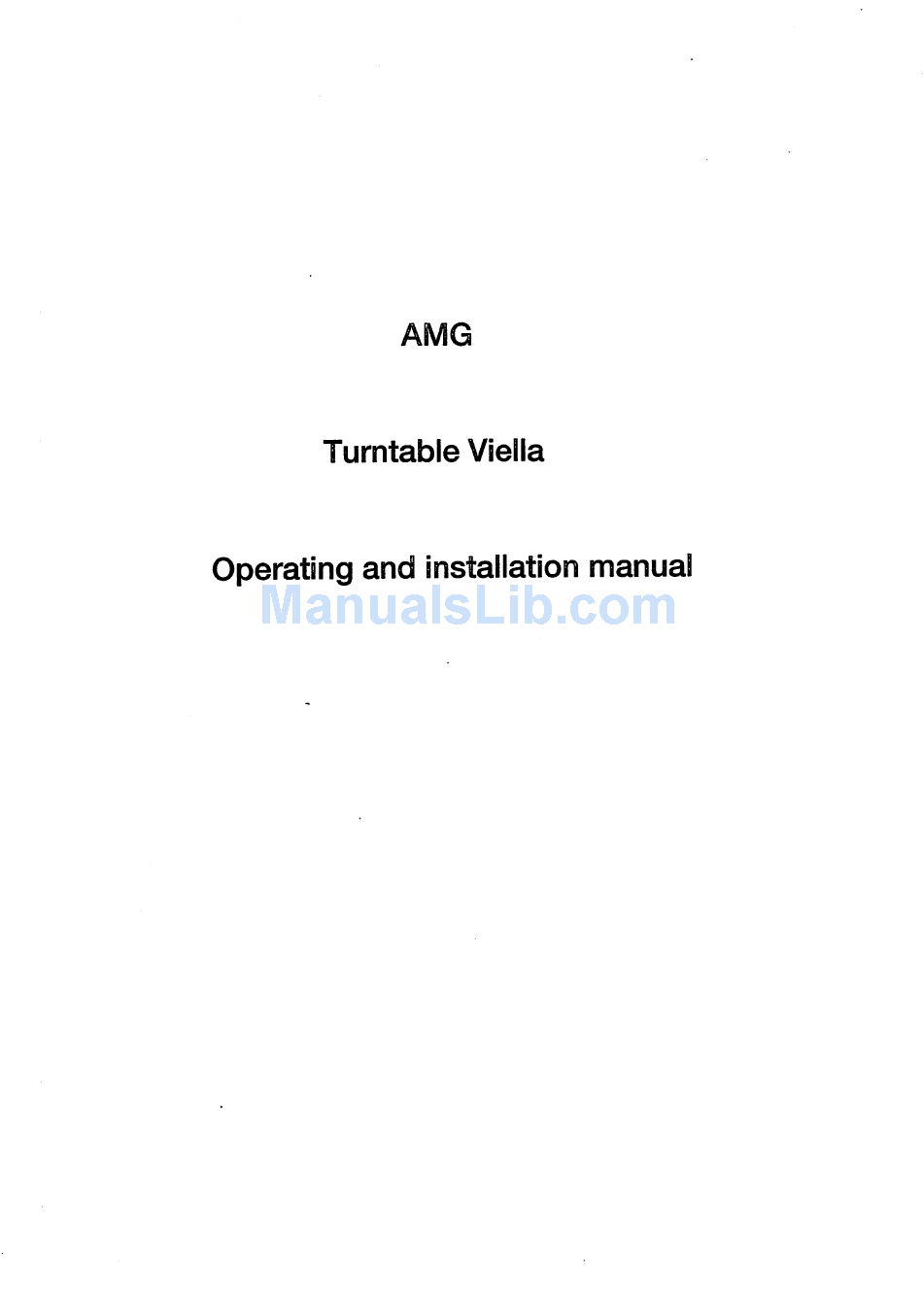

- Page 1 Turntable Melia Operating and installation manual...
- Page 2 AMG VieIla V12 turntable Installation and operating instructions Unpacking: After opening the outer cardboard box you found this manual on top of the inner box. It would be best to leave the inner box in the outer and open it there.
- Page 3 For adjusting the pickup arm or installing a cartridge, please see your arm manual. Now inspect the platter seat at the sub platter for cleanliness before you put the platter on it. Take your platter and the belt mounter. Slip the mounter over the record spindle. Lay your platter inverted on a soft surface.
- Page 5 Riemen mit beiden Handen in die Rille out der Motoreriemen- scheibe legen. Dann die Holzklotze berous ziehen. Den Teller dobei holten use both hands to slide the drive belt off the wooden sticks into the groove of the motor pulley. Then hove somebody pull out the wooden blocks DEBUR AND...
- Page 9 hardened lamm axle. ground and lapped aluminum sub-platter turnable tone arm board — drive belt m o t o r pulley mounting hole distance to turntable center adjustable by turning the board — M 3 threads for arm mounting bushing +/- 15 scale of degrees for 91/V1 a n d 12-I2 tone arms set to zero...
- Page 12 Tone arm "I 2,1 12 Operating and installation manual...
- Page 13 Tone arm AMG 12J2 Dear music-lover, thank you for your vote of confidence by choosing the AMG tone arm for playing your records. Technical description The tone arm 12J2 has been developed in a completely new patented principle of engineering.
-
Page 14: Adjustment Procedures
We also supply a cinch box made of solid aluminum and a pcb with two high quality cinch connectors and a 2 mm ground connector. If your turntable does not have connectors fit in. Adjustment procedures Slide the tone arm with the shaft into the mounting bushing. If you got the version with the female connector in the bushing ( in combination with the Viella turntable ) be sure both connectors are matching before you push the arm shaft to the detent. - Page 15 azimuth adjustment screw #0.9 p r e c i s i o n spirit level pivot center for templates swivel clamp for arm tube VTA adjustment screw removeable head shell grip ( hex screw driver I/ 1.5) lb antiscating adjustment screw ( hex screw driver it 1.5) VIA locking screw mounting bushing...
- Page 16 locking screw to slide azimuth adjustment screw weight back and forwards ( hex screw driver # 0.9) ( hex screw driver # 1.51 locking screw to remove weight ring ( hex screw driver tt 1,5 ) arm rest with silicone insert azimuth locking screw ( hex screw driver # 0.9 bearing case...
