Operation Instruction; Connection; Control Buttons - AOC i2252VWH Service Manual

Service Manual

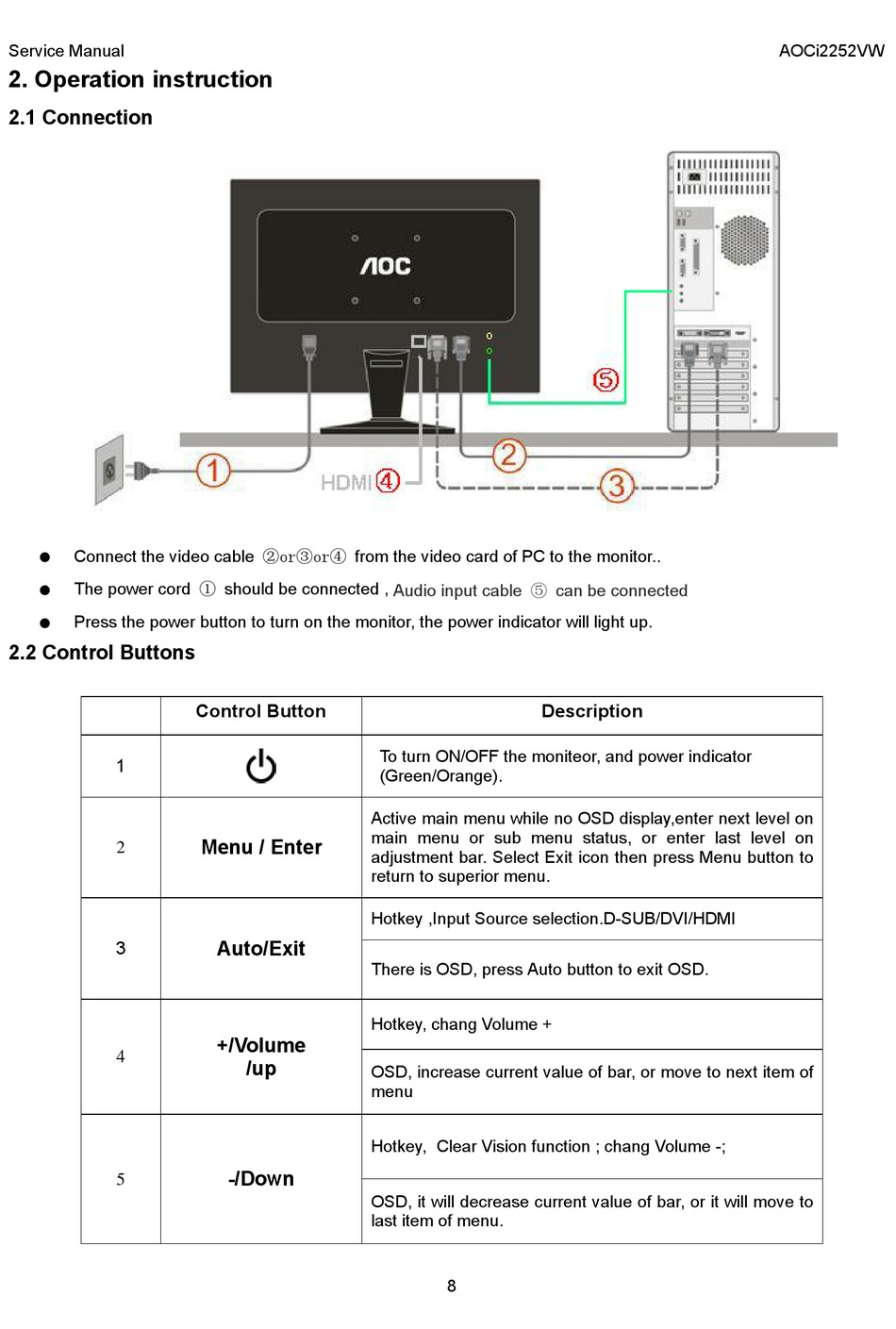

2. Operation instruction

2.1 Connection

Connect the video cable ②or③or④ from the video card of PC to the monitor..

The power cord ① should be connected ,

Press the power button to turn on the monitor, the power indicator will light up.


2.2 Control Buttons

1
2
3
4
5
Control Button
Menu / Enter
Auto/Exit
+/Volume
/up
-/Down
Audio input cable ⑤ can be connected
To turn ON/OFF the moniteor, and power indicator
(Green/Orange).
Active main menu while no OSD display,enter next level on
main menu or sub menu status, or enter last level on
adjustment bar. Select Exit icon then press Menu button to
return to superior menu.
Hotkey ,Input Source selection.D-SUB/DVI/HDMI
There is OSD, press Auto button to exit OSD.
Hotkey, chang Volume +
OSD, increase current value of bar, or move to next item of
menu
Hotkey, Clear Vision function ; chang Volume -;
OSD, it will decrease current value of bar, or it will move to
last item of menu.
8
Description
AOCi2252VW
