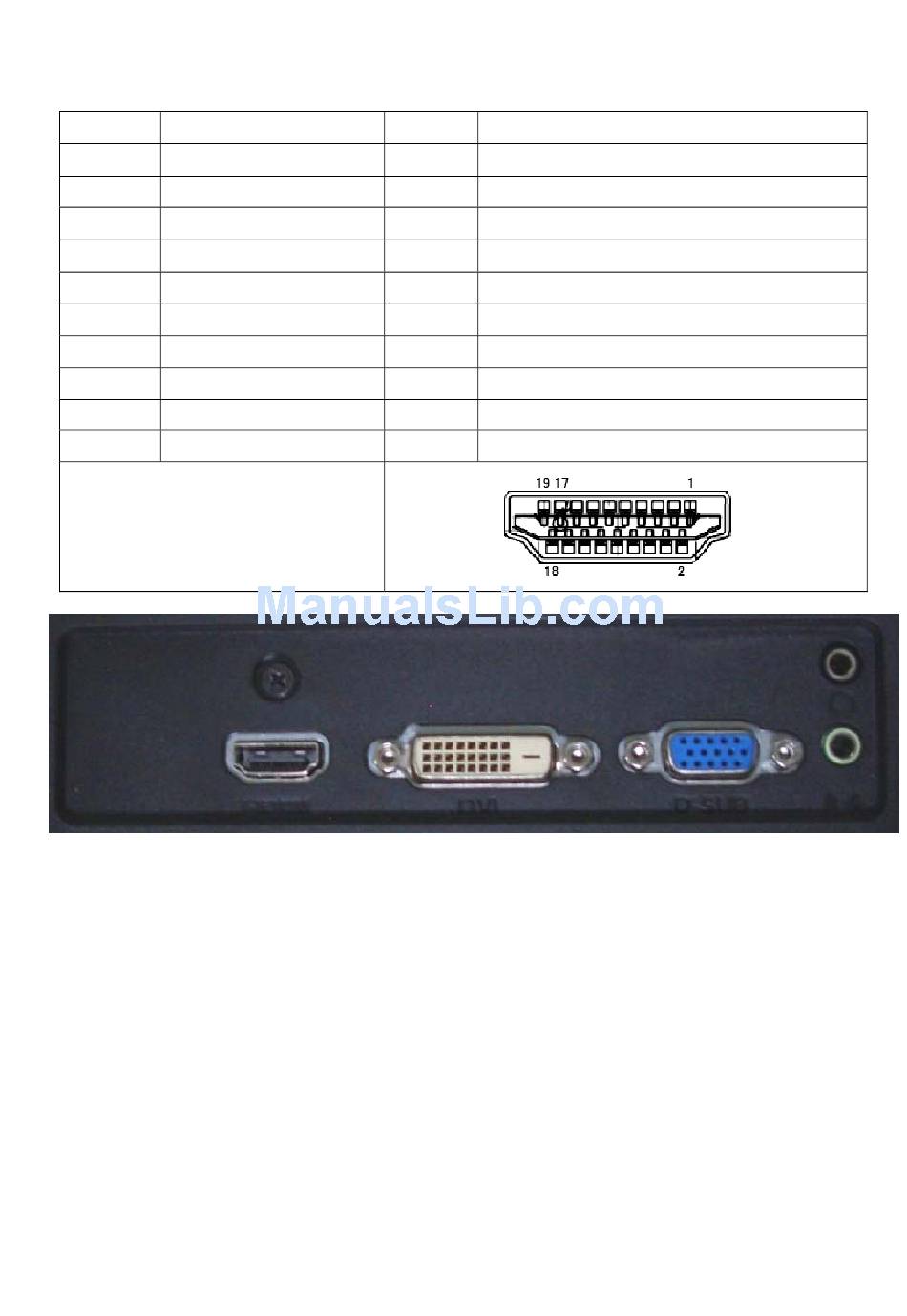

1.6 HDMI interface

Pin No.
1 TMDS Data2+
2 TMDS Data2 Shield
3 TMDS Data2–
4 TMDS Data1+
5 TMDS Data1 Shield
6 TMDS Data1–
7 TMDS Data0+
8 TMDS Data0 Shield
9 TMDS Data0–
10 TMDS Clock+
HDMI
Connector layout
Description Pin No.
13 TMDS Clock Shield
14 TMDS Clock–
15 CEC
16 Reserved (N.C. on device)
17 SCL
18 SDA
19 DDC/CEC Ground
20 +5 V Power
21 Hot Plug Detect
22
7
AOCi2252VW
Description
