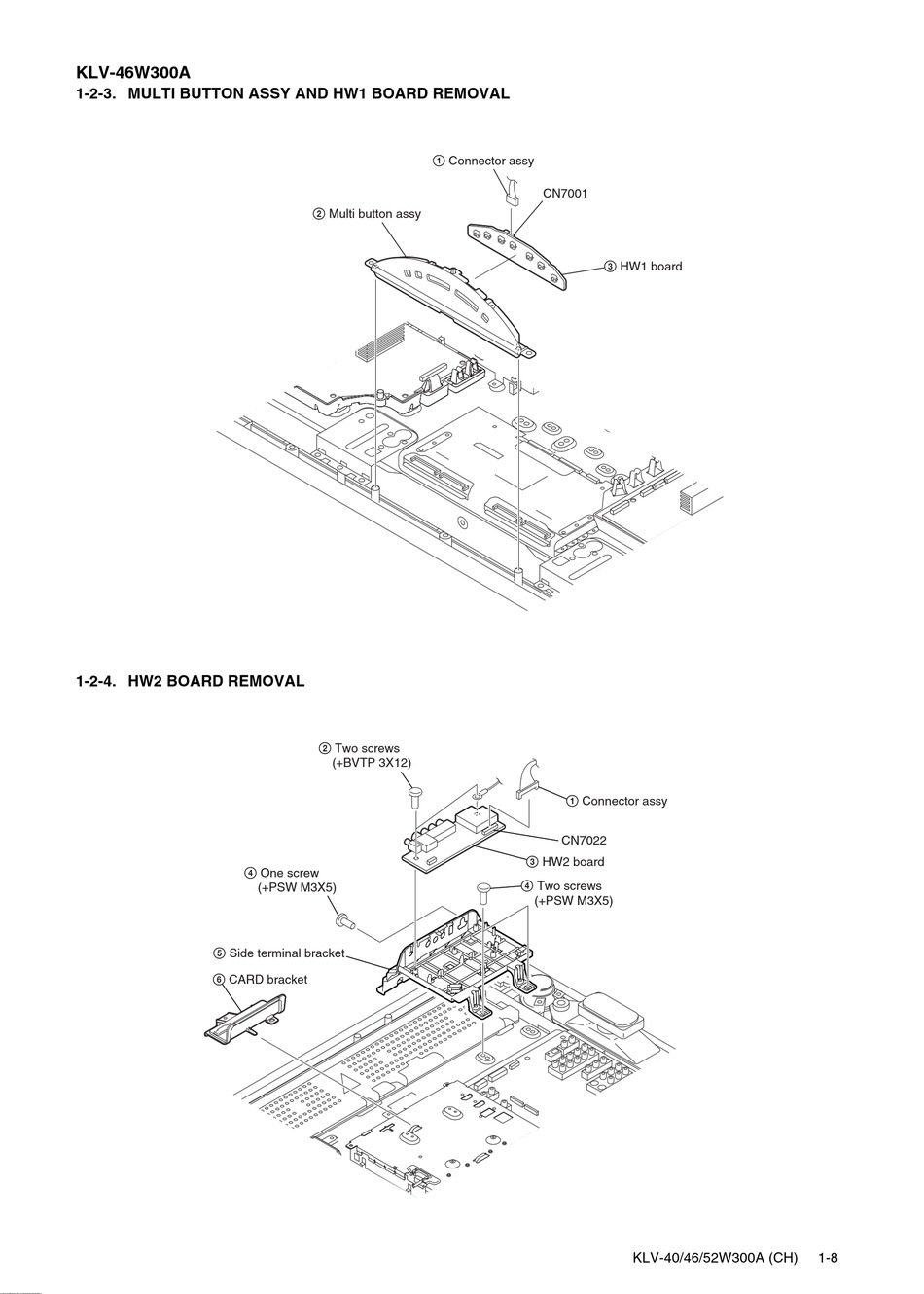

1-2-3. MULTI BUTTON ASSY AND HW1 BOARD REMOVAL

1-2-4. HW2 BOARD REMOVAL

D846660B279CC0D5520DEF8E80C6FD0B0509C3DE5F2E1AA6BE3E1A7273D346DB3E46563B45E4A2DC
2 Multi button assy
2 Two screws
(+BVTP 3X12)
4 One screw
(+PSW M3X5)
5 Side terminal bracket
6 CARD bracket
1 Connector assy
CN7001
3 HW1 board
1 Connector assy
CN7022
3 HW2 board
4 Two screws
(+PSW M3X5)
KLV-40/46/52W300A (CH) 1-8
