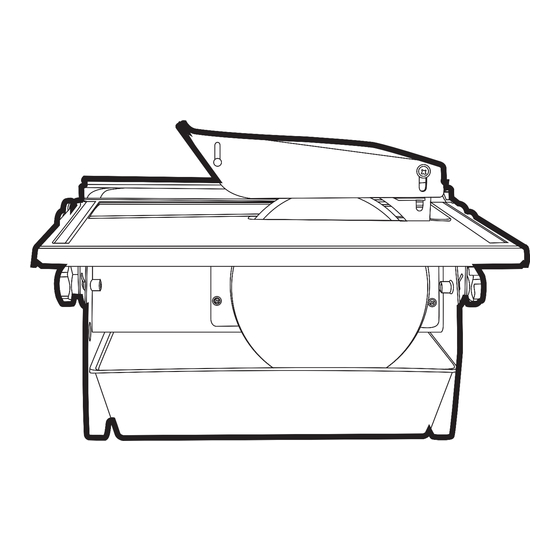

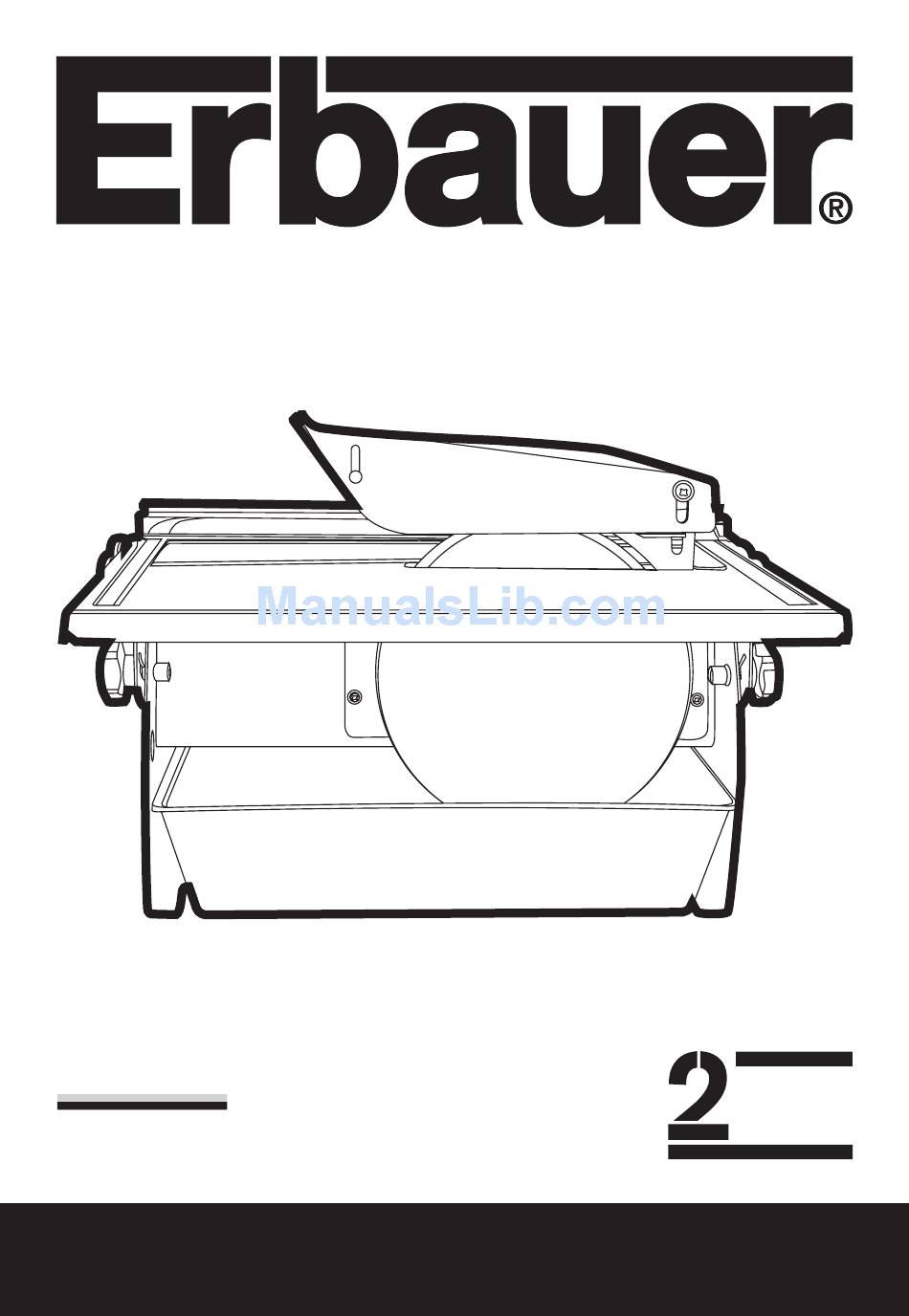

- Page 1 WARRANTY YEARS ERB180C 720W Tile Cutter...
- Page 2 Congratulations on your purchase of a quality power tool from Screwfix Direct Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 24-month guarantee, the terms of which are detailed below. If this product develops a fault within the guarantee period contact Screwfix Direct Ltd on Freephone 0500 41 41 41.
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS WARNING! Read all instructions.Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVETHESE INSTRUCTIONS 1. Keep the work area clean. Cluttered areas and benches invite injuries. 2. Consider work area environment. Do not expose power tools to rain. -
Page 4: Health Advice
instructions for lubrication and changing accessories. Inspect tool cord periodically and if damaged have it replaced by an authorised service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean and free of oil or grease. 15. Disconnect tools. When not in use, before servicing and when changing accessories such as blades, bits and cutters, remove the mains plug from the socket. - Page 5 Additional Safety Rules for your Tile Cutter 1.Remove the mains plug from socket before carrying out any adjustment servicing. 2.If the supply cord is damaged have it replaced by a qualified person. 3.Always wear both eye and ear protection when using the machine. Ensure that the directional arrow marked on the blade corresponds with the rotational direction of the motor.
- Page 6 1. ON/OFF SWITCH 2. PARALLEL GUIDE SECURING KNOB 3. GUIDE CLAMPS (SEPARATE ACCESSORY) 4. PARALLEL GUIDE 5. 45 DEGREE MITRE GUIDE 6. BLADE GUARD 7. BLADE GUARD BRACKET 8. DIAMOND CUTTING BLADE 9. BLADE GUARD COVER 10. WATER TRAY 11. TABLE ANGLE SECURING KNOB (ONE EACH SIDE) 12.
-
Page 7: Technical Data
TECHNICAL DATA Voltage: 230V~50Hz Input power: 720W(S2 15min) No load speed: 2800min (S2) Diamond blade size: Ø180x2.2x Ø25.4mm(bore) Max. cut at 90 degree: 35mm Table tilting range: 0-45 degrees Table size: 420 x 400mm Weight: 14.2kg NOTE: S2 means:After 15mm continous cutting,The motor must be switched off and allowed to cool to room temperature. - Page 8 OPERATION INSTRUCTIONS WARNING: Before using your tile gutter be sure to read the instruction manual carefully. 1. FITTING THE PARALLEL GUIDE (see fig1) Position the parallel guide on work table as shown. Align the holes in the fixing plates with the holes in the upright ends of the parallel guide, fix it with the four securing knobs provided.
-
Page 9: Maintenance
6. CUTTING WITH THE TABLE AT AN ANGLE (see fig7) Use this facility if you wish to cut an angle. Loosen the two table securing knobs (one at each side of table). Tilt the table to the desired angle using the scale under the table (see fig7). -
Page 10: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. PLUG REPLACEMENT Fig 9 The fuse in the main plug of your power tool should always be replaced with one of identical rating. -
Page 11: Declaration Of Conformity
Yeovil BA 22 8RT Declare that the product 720W TILE CUTTER ERB180C Complies with the essential health and safety requirements of the following directives: 89/336 EEC, 93/68 EEC – EMC Directive. 73/23 EEC, 93/68 EEC – Low Voltage Directive. 98/37 EC – Machinery Directive.
