Summary of Contents for Erbauer ERB337TCB

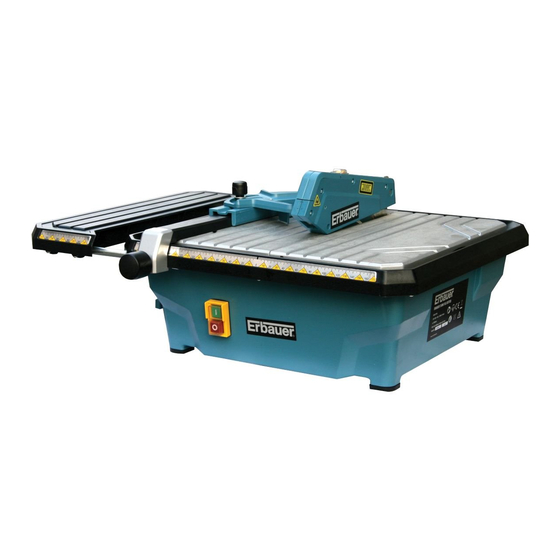

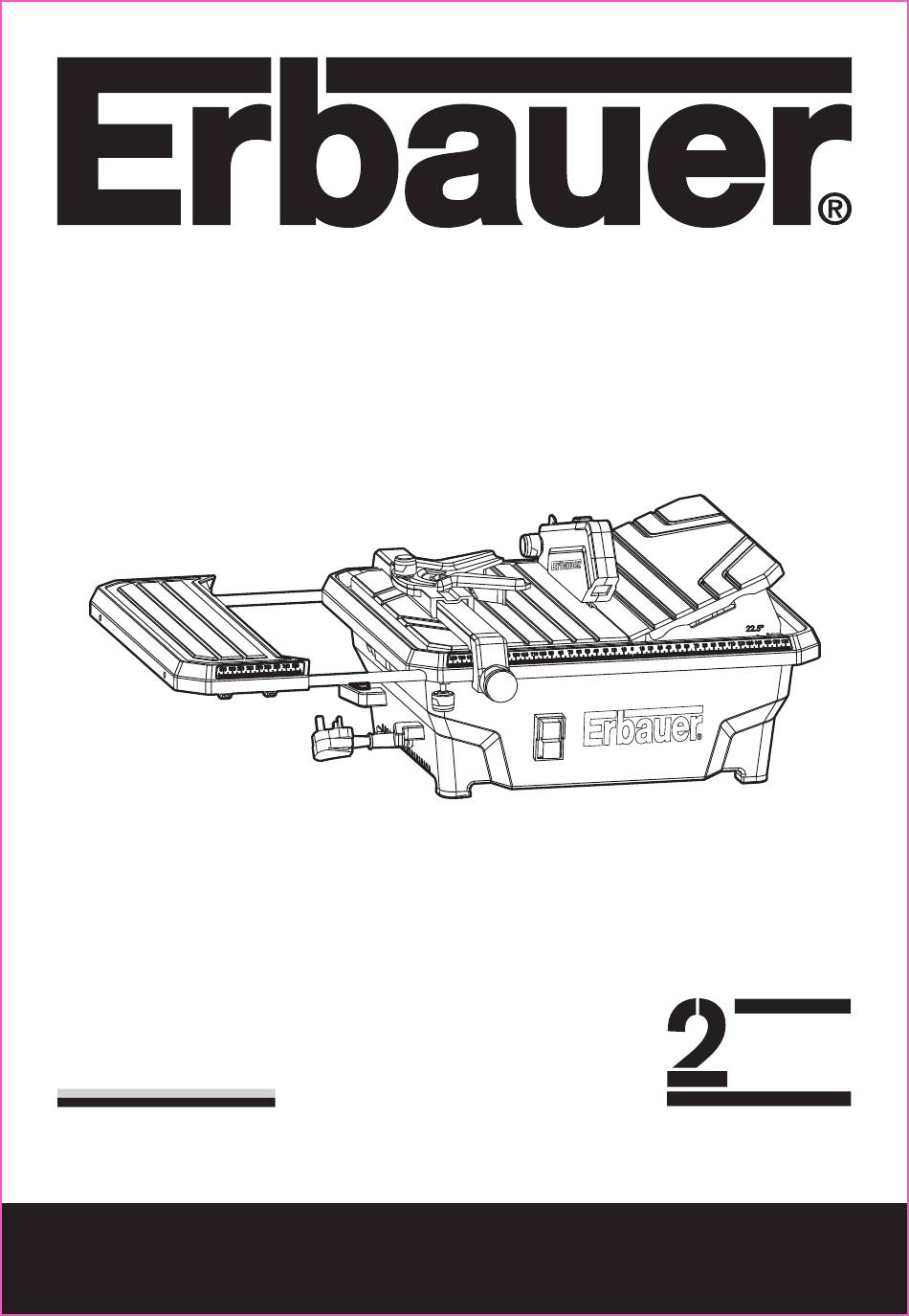

- Page 1 WARRANTY YEARS ERB337TCB Original Instructions SAFETY AND OPERATING MANUAL ERBAUER 750W TILE CUTTER...
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carries a 24-month guarantee, the terms of which are detailed below.
-
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to yourmains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS keep work area clear. - Page 5 - Never use blades on this machine. - Use only diamond discs for which the maximum possible speed is not less than ERBAUER 750W TILE CUTTER...
- Page 6 the maximum spindle speed of the tool and the material to be cut. - Faults in the machine, including guards or diamond discs, should be reported as soon as they are discovered. Never use the machine without the guard in position. - Maximum size of working piece should be 1m².
- Page 7 Wear eye protection. Wear respiratory protection. WARNING – To reduce the risk of injury,user must read instruction manual. Conforms to relevant safety standards Caution, risk of cuttin Use only non fragmented discs Hand protection shall be worn ERBAUER 750W TILE CUTTER...
- Page 8 1. Protective guard 2. Laser light On/Off switch 3. Extension table 4. Mitre cutting guide 5. On/Off switch 6. Working table 7. Laser battery box 8. Vertical fence...
-
Page 9: Caracteristiques Techniques
Laser Class Laser wave length 650nm NOISE A weighted sound pressure LpA 93.5dB(A) A weighted sound power: LwA 103.2db(A) Uncertainty 3dB(A) The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary. ERBAUER 750W TILE CUTTER... - Page 10 ACCESSORIES The tile cutter is supplied with following accessories: Mitre cutting guide Parallel guide 45° vertical fence Blade Spanners Water reservoir plug Extension work table...
- Page 11 Loosening these screws allows some minor adjustment to ensure the bracket does not foul the tile when cutting, or if the laser needs slight re-alignment. - Put the cover (45° vertical fence) back into position. ERBAUER 750W TILE CUTTER...
- Page 12 INSTALLATION OF THE DIAMOND DISC - Unplug the tile cutter from the mains supply. - Remove the cover (45° vertical fence) of the water tank. - Insert the inner flange, the diamond disc and the outer flange on the spindle (Fig 2) then tighten the bolt clockwise with the two spanners provided (Fig 3).
- Page 13 (Fig 10). Ensure that the deck is correctly secured before working. Fig 7 Fig 8 Fig 10 Fig 9 ERBAUER 750W TILE CUTTER...
- Page 14 EXTENSION OF THE WORKING TABLE - Unplug the tile cutter from the mains supply. - Pull out the table extension to the required length and then secure using the screw shown in (Fig 11). FILLING THE WATER TANK Before cutting, the tank must be filled with water: - Unplug the tile cutter from the mains supply.
- Page 15 The mitre cutting guide simply clips onto the parallel guide. Make sure that the tile is held firmly in the guide before making the cut. ERBAUER 750W TILE CUTTER...
-
Page 16: Maintenance
CUTTING AN ANGLE OR BEVEL Use the 45° vertical fence if you wish to cut an angle or bevel on the tile edge. lift the 45° vertical fence inserting the plastic tabs into the corresponding holes on the table. Then make the cut as before. -
Page 17: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recyclemore.co.uk ERBAUER 750W TILE CUTTER... - Page 18 Declaration of Conformity We, Importer Erbauer (UK) LTD BA22 8RT Declare that the product ERBAUER 750W TILE CUTTER ERB337TCB Complies with the following Directives: Machine Directive 2006/42/EC and/or Low voltage directive 2006/95/EC EMC directive 2004/108/EC 2002/95/EC Restrictions of the Use of Certain Hazardous Substances in...
- Page 19 ERBAUER 750W TILE CUTTER...
