Summary of Contents for Erbauer ERB474HTL

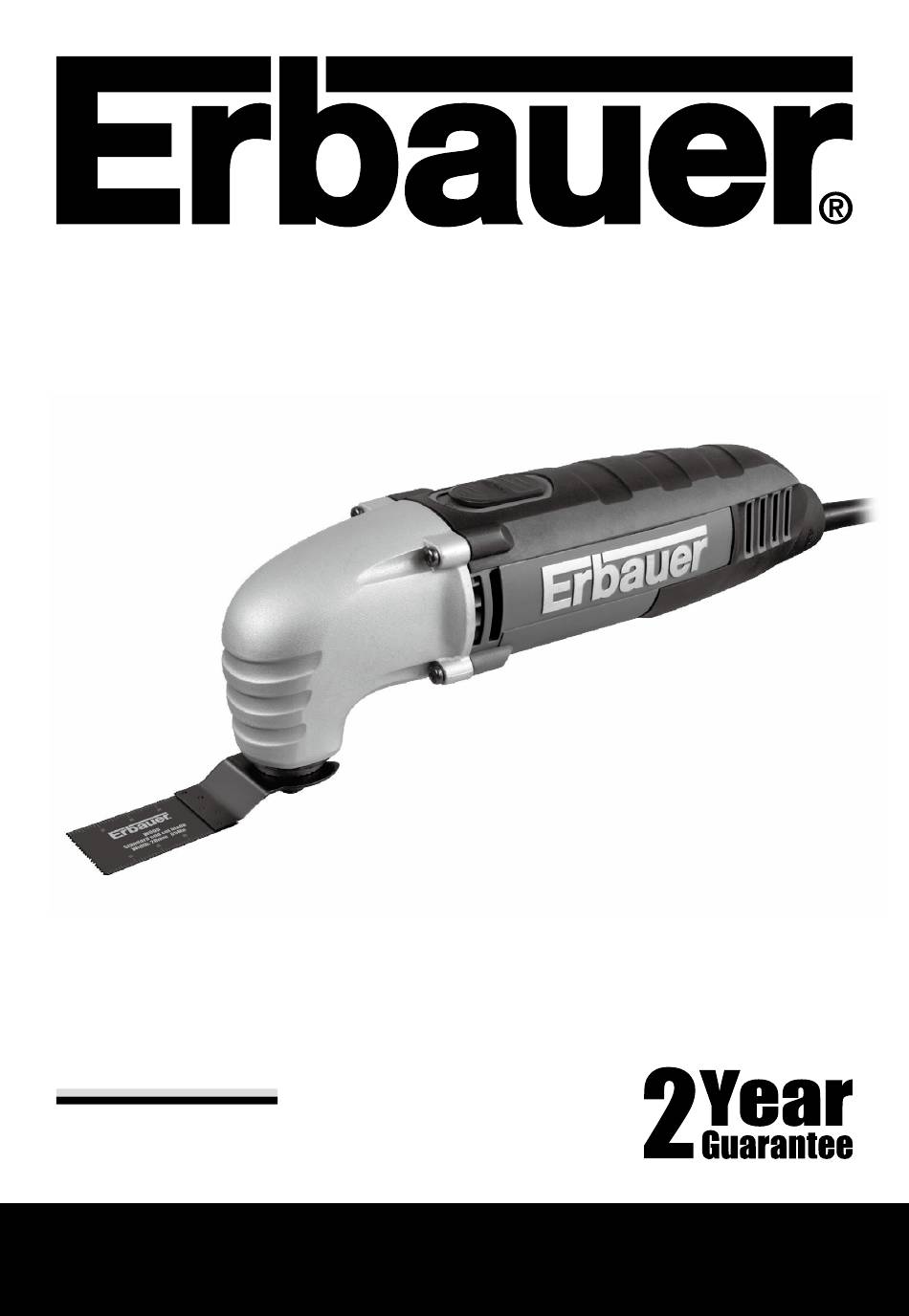

- Page 1 ERB474HTL 250W MULTICUTTER...
- Page 2 Original Instructions (Version 2.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 6 Warning: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: - lead from lead-based paints, - crystalline silica from bricks and cement and other masonry products, and - arsenic and chromium from chemically-treated lumber.
- Page 7 How the tool is being used and the materials being cut or drilled. The tool being in good condition and well maintained The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles. And the tool is being used as intended by its design and these instructions.
- Page 8 Warning: This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product! Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity...
- Page 9 SYMBOLS To reduce the risk of injury, user must read instruction manual Double insulation Warning Wear ear protection Wear eye protection Wear dust mask Wear gloves Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 11 1. ON/OFF SWITCH 2. VENTING SLOTS 3. VARIABLE SPEED CONTROL 4. KEY STORAGE 5. TOOL HOLDER 6. STANDARD END CUT BLADE 7. HSS SEMICIRCLE SAW BLADE 8. SANDING PAD (PERFORATED) 9. PERFORATED SANDING SHEETS 10. FLANGE 11. SMALL FLANGE FOR OTHER BRANDS’ SANDING PADS 12.
-
Page 12: Technical Data
TECHNICAL DATA Voltage 230-240V~50Hz Power input 250W Oscillation speed 11000-20000/min Oscillation angle 3.2° Protection class Machine weight 1.4kg A weighted sound pressure : 82dB(A) =3.0dB(A) A weighted sound power : 93dB(A) K =3.0dB(A) Wear ear protection when sound pressure is over 80dB(A) ACCESSORIES Hex key... -
Page 13: Mounting Accessories
OPERATION INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. Intended Use The power tool is intended for sawing and separating wooden materials, plastic, plaster, non-ferrous metals and fasteners (e.g. nails and clamps) as well as for working on soft wall tiles and for dry grinding of small surfaces. - Page 14 Fig. 4 3. OPERATING THE ON/OFF SWITCH ——Switching the power tool ON: Slide switch (1) forward (I). ——Switching the power tool OFF: Slide switch (1) backward (0). 4. USING THE VARIABLE SPEED CONTROL Select oscillation frequency (speed) while the motor is running.
-
Page 15: Working Hints For Your Tool
WORKING HINTS FOR YOUR TOOL If your power tool becomes too hot, especially when used at low speed, set the speed to maximum and run it with no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Always keep the blade sharp. -
Page 16: Plug Replacement
PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. Check the voltage given on your power tool matches the supply voltage. The power tool is supplied with a fitted plug, however if you should need to fit a new plug follows the instruction below. -
Page 17: Ec Declaration Of Conformity
EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-1 EN 60745-2-4 Authorised Signatory and technical file holder Date: 11/06/14 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 250W MULTICUTTER... - Page 19 250W MULTICUTTER...
