Summary of Contents for Erbauer ERB337TCB

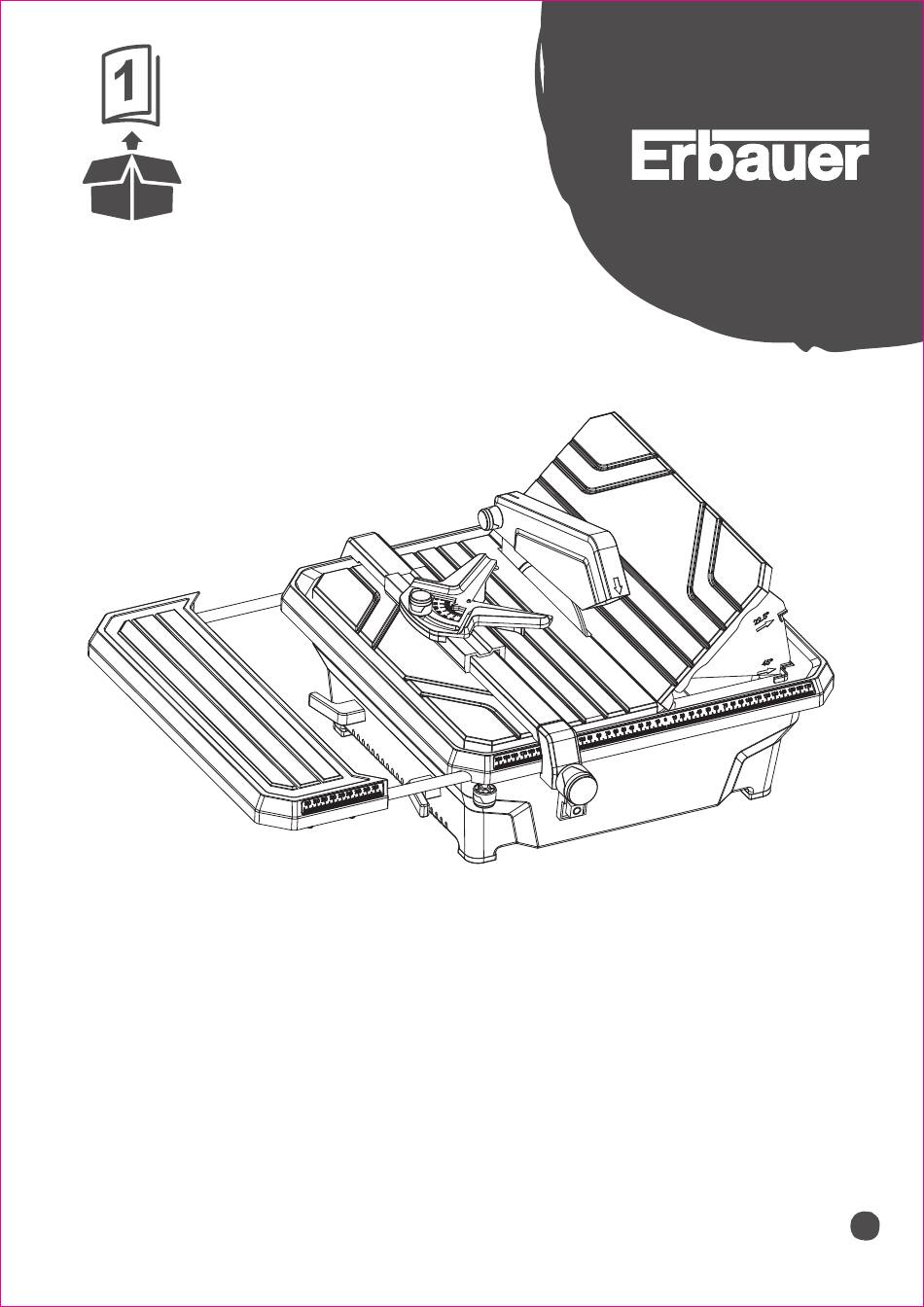

- Page 1 EAN: 3663602797982 ERB337TCB ORIGINAL INSTRUCTIONS V10518...
- Page 2 Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of Conformity...
- Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. [17] [18] [13] [14] [15] [11]...
- Page 4 Product description...
-
Page 7: General Power Tool Safety Warnings
Safety intructions GENERAL POWER TOOL SAFETY WARNINGS WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following. Read all these instructions before attempting to operate this product and save these instructions. - Page 8 > Use safety glasses. > Use face or dust mask if working operations create dust. 10. Connect dust extraction equipment. > If the tool is provided for the connection of dust extraction and collecting equipment, ensure these are connected and properly used. 11.
- Page 9 21. Warning. > The use of any accessory or attachment other than one recommended in this instruction manual may present a risk of personal injury. 22. Have your tool repaired by qualified person. > This electrical tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.
- Page 10 The following information applies to professional users only but is good practice for all users: ADDITIONAL SAFETY WARNING FOR CONSTRUCTION DUST The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now also targets to reduce the risks associated with silica, wood and gypsum dusts.
- Page 11 • Lead from lead-based paints. • Crystalline silica from bricks and cement and other masonry products. • Arsenic and chromium from chemically treated timber. • Your risk from these exposures varies, depending upon how often you do this type of work. To reduce your exposure to these chemicals: •...
- Page 12 tool may cause hand-arm vibration syndrome if its use is not adequately managed. WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
-
Page 13: Technical Specifications
Product description 1. 45° Vertical fence 6. ON/OFF Switch 11. Mitre cutting guide 2. Diamond disc 7. Lock knob 12. Lock knob 3. Scale (for extension table) (for protective guard) 4. Working table 8. Parallel guide 13. Metal bracket 5. Lock knob 9. - Page 14 Rating Label Explanation: ERB337TCB Designation of the tool (ERB - Erbauer, 337 - Model Number, TC - Tile Cutter, B - Version of machine)
- Page 15 Assembly SYMBOLS On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt Hertz Input power Kilogram m/min Metres per minute...
-
Page 16: Assembling The Machine
UNPACKING 17. Tile cutter assembly x 01 9. Extension table x 01 8. Parallel guide assembly x 01 15. Water reservoir plug x 01 2. Diamond disc x 01 13. Metal bracket x 01 11. Mitre cutting guide x 01 18. - Page 17 INSTALLATION OF THE DIAMOND DISC (B-E) - Unplug the tile cutter from the mains supply. - Remove the cover (45° vertical fence) of the water tank. - Insert the inner flange, the diamond disc and the outer flange on the spindle (B) then tighten the bolt clockwise with the two spanners provided (C).
-
Page 18: Connection To The Electrical Supply
WARNING! During use the water level must never drop below the MIN marking. - When you have finished cutting, remove the plug inside the tank to drain the water (M). WARNING! Do not add chemicals or detergents to the water. CONNECTION TO THE ELECTRICAL SUPPLY Before switching on, make sure that the voltage of the mains supply is the same as indicated on the rating plate. - Page 19 WARNING! The disc will continue to rotate for a few seconds after the machine has been switched off. Wait for the disc to stop before removing the workpiece or making any adjustments. Stop the machine immediately if there is undue vibration or some other fault.
-
Page 20: Intended Use
INTENDED USE This tile cutter shall be used only to cut tiles to a required size or shape. It shall not be used to cut inflammable, explosive or toxic materials. Other uses for the machine will lead to the damage of the machine and a series of dangers to the operator. -
Page 21: General Cleaning
Care & maintenance THE GOLDEN RULES FOR CLEANING WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! - Keep the product clean. Remove debris from it after each use and before storage. - Regular and proper cleaning will help ensure safe use and prolong the life of the product. -
Page 22: Power Cord
POWER CORD If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to a safety hazard. PLUG REPLACEMENT If you need to replace the fitted plug then follow the instructions below. Important The wires in the mains lead are coloured in accordance with the following code: Green &... -
Page 23: Recycling And Disposal
REPAIR - This product does not contain any parts that can be repaired by the consumer. Contact a qualified specialist to have it checked and repaired. - Apart from diamond discs there are no other user serviceable parts inside this tile cutter. -
Page 24: Troubleshooting
TROUBLESHOOTING Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Troubleshooting could lead to an increased risk to the operator due to the fact that safety guards / covers may have to be removed. - Page 25 Guarantee At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. That’s why we offer a 2 year guarantee against manufacturing defects on our Erbauer power tool products.
- Page 26 3 Sheldon Square London W2 6PX United Kingdom Declare that the product 750W TILE CUTTER , ERB337TCB Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following Directives: EC Machinery Directive 2006/42/EC The EMC Directive 2014/30/EU...
- Page 27 Manufacturer • Fabricant • Producent • Hersteller • Producător • Fabricante: Kingfisher International Products Limited, 3 Sheldon Square, London, W2 6PX, United Kingdom www.kingfisher.com/products Distributor: B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com Screwfix Direct Limited, Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com...
