HOOD PARTS
48" OUTDOOR HOOD
For Model: UXG7480VDS0
(Stainless)
1
12−07 Litho in U.S.A. (cre)
Part No. W10174410 Rev.A
Previous
Page
Next
Page
1
2
Advertisement
Related Manuals for KitchenAid UXG7480VDS0
Ventilation Hood KitchenAid W10153151 Installation Instructions And Use & Care Manual
30" (76.2 cm), 36" (91.4 cm) and 48" (121.9 cm) wall-mount canopy grill vent hood, suitable for use in damp locations (28 pages)
Ventilation Hood KitchenAid UXG7360VDS0 Parts List
36" outdoor hood (2 pages)
Ventilation Hood KitchenAid W10322991C Installation Instructions And Use & Care Manual
30" (76.2 cm) and 36" (91.4 cm) wall-mount canopy range hood (28 pages)
Ventilation Hood KitchenAid 36" Installation Instructions And Use And Care Manual
36" (91.4 cm) and 48" (121.9 cm) hood liner (36 pages)
Ventilation Hood KitchenAid UXT4030AYW Product Dimensions
Dimension guide (1 page)
Ventilation Hood KitchenAid KXD4630YSS0 Technical Education
Jenn-air;unbranded. downdraft vent hood wiring diagram theory of operation (14 pages)
Ventilation Hood KitchenAid KitchenAid KVUC600KSS0 Installation Instructions And Use And Care Manual
30" (76.2 cm) and 36" (91.4 cm) commercial style (40 pages)
Ventilation Hood KitchenAid KVWB406DSS Installation Instructions And Use & Care Manual
30" and 36" range hoods (32 pages)
Ventilation Hood KitchenAid KWCU265HWH1 Installation Instructions And Use And Care Manual
30"/36"/48" wall-mount canopy range hood (13 pages)
Ventilation Hood KitchenAid KVWC956KSS0 Installation Instructions And Use And Care Manual
36" (91.4 cm) and 48" (121.9 cm) designer commercial-style (52 pages)
Ventilation Hood KitchenAid KPEU722M Installation Instructions And Use And Care Manual
30" (76.2 cm), 36" (91.4 cm) retractable (pop-up) downdraft vent systems (32 pages)
Ventilation Hood KITCHENAID KCIP 1010 Manuel
(20 pages)
Ventilation Hood KitchenAid W10029780 Installation Instructions And Use & Care Manual
30" (76.2 cm) and 36" (91.4 cm) wall-mount canopy range hood (28 pages)
Ventilation Hood KitchenAid KXW4430YSS0 Installation Instructions And Use & Care Manual
30" (76.2 cm) and 36" (91.4 cm) wall-mount canopy range hood (28 pages)
Ventilation Hood KitchenAid KVUB600DSS Installation Instructions And Use & Care Manual
30" and 36" range hood (33 pages)
Ventilation Hood KitchenAid 36"(91.4CM) ISLAND RANGE HOOD Installation And Use Instructions Manual
36"(91.4cm) island range hood (32 pages)
Summary of Contents for KitchenAid UXG7480VDS0
Page 1

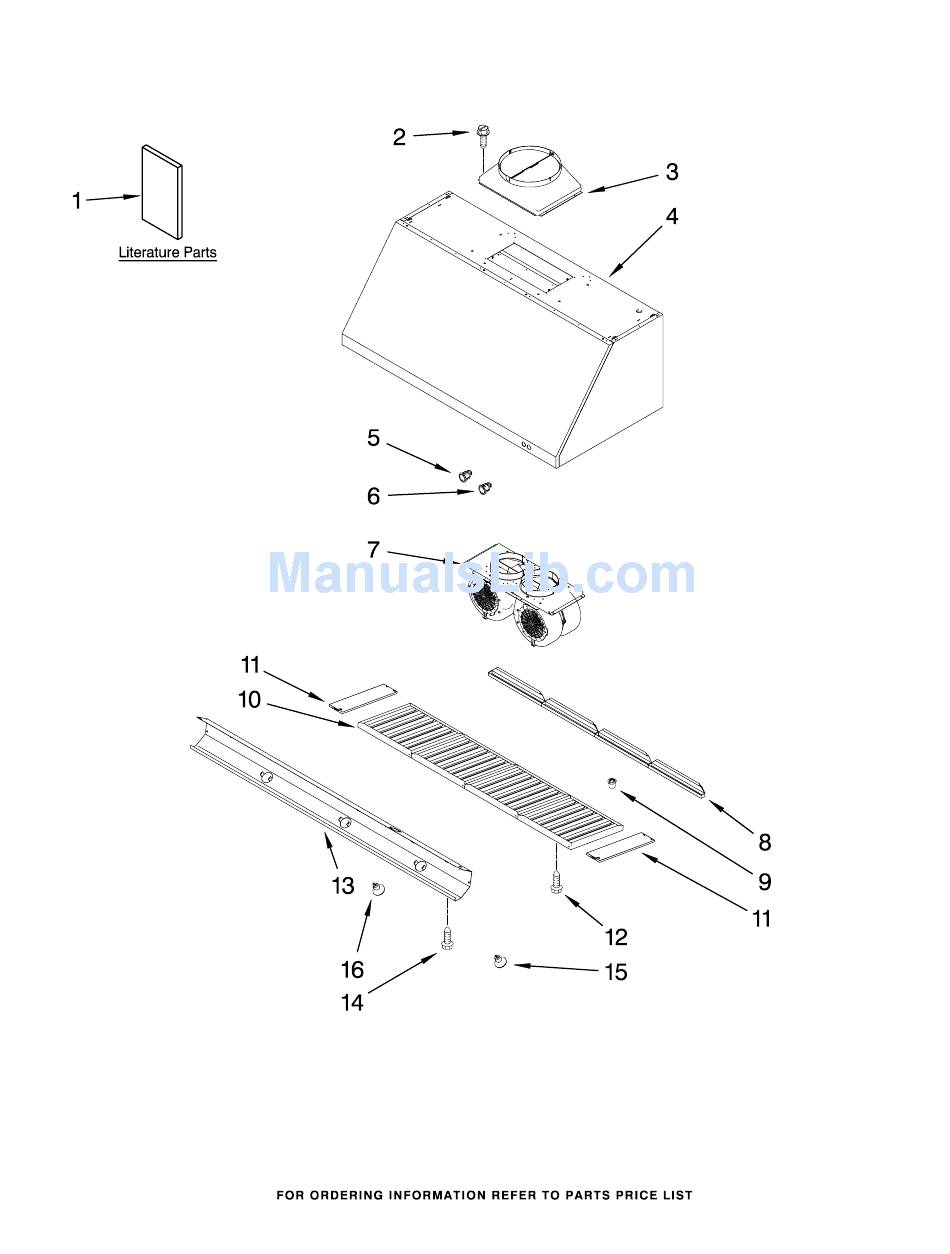

HOOD PARTS 48" OUTDOOR HOOD For Model: UXG7480VDS0 (Stainless) 12−07 Litho in U.S.A. (cre) Part No. W10174410 Rev.A...
