About the CLARiTY Operating System

CLARiTY is an icon-based operator control system. It has an easy-to-
use touch screen and most areas of the display are "active", that is,
simply touching an area of the screen is like pressing a "button" on a

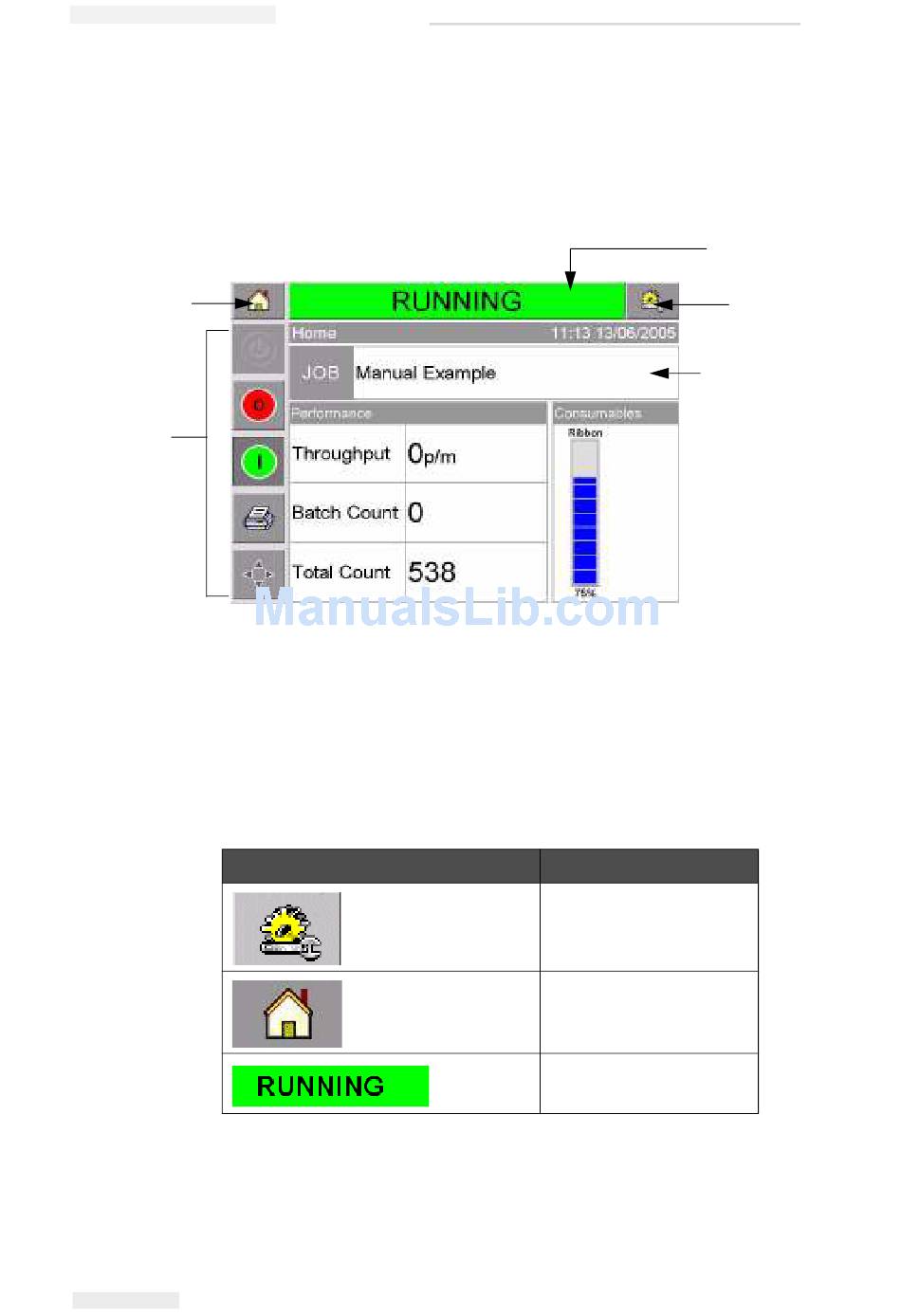

traditional control panel. The CLARiTY home screen's main buttons
are shown in Figure 2-2.
5
4
1. Machine Status Button
2. Tools Button
3. Current Job Details Button
Figure 2-2: CLARiTY Home Screen
Shortcut buttons take you directly to the key pages, regardless of the
page that you are currently viewing.
Table 2-1 provides the list of shortcut buttons to be used to access the
required pages.
Buttons
Table 2-1: List of Shortcut Buttons
2-4 About the CLARiTY Operating System
4. Control Frame Buttons
5. Home Button
Display
Tools Page for printer set
up and diagnostics
Home Page
Fault and Warning Pages
1
2
3
