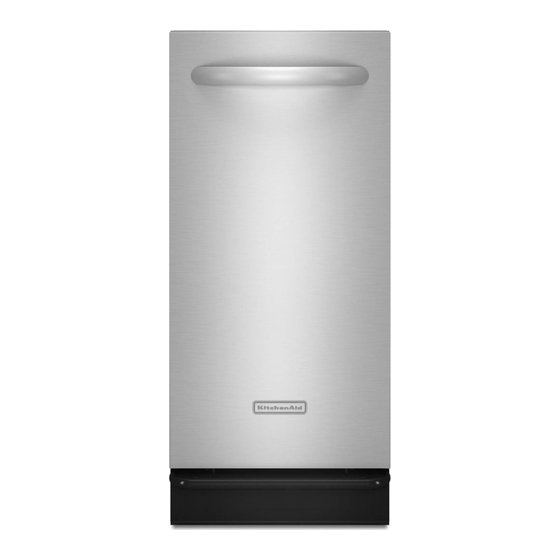

KitchenAid KUCS03FTSS0 Parts List

11−07 Litho in U.S.A. (els)
MOTOR AND DRIVE PARTS
For Models: KUCS03FTPA0, KUCS03FTSS0
(No−Panel)
1
(Stainless)
Illus. Part
No. No.
1
9871923 Tech Sheet
9872215 Guide, Use & Care
2 9870343 Motor, Drive
3 9871067 Screw,
4 776327 Plate, Drive
5 776338 Locknut
6 4149667 Gear, Drive
7 454512 Pin, Slotted
8 776035 Washer, Wave
9 297462 Washer, Thrust
10 777124 Gear, Driven
11 776036 Clip, Ring
12 780477 Chain, Drive
13 777971 Switch, Motor
Parts Not Illustrated and
Optional Parts (Not Included)
9870118 Undercounter
Part No. W10118275 Rev. C
TRASH COMPACTOR
DESCRIPTION
Literature Parts
(Includes No. 13)
Mount
Spring
Conversion Kit
