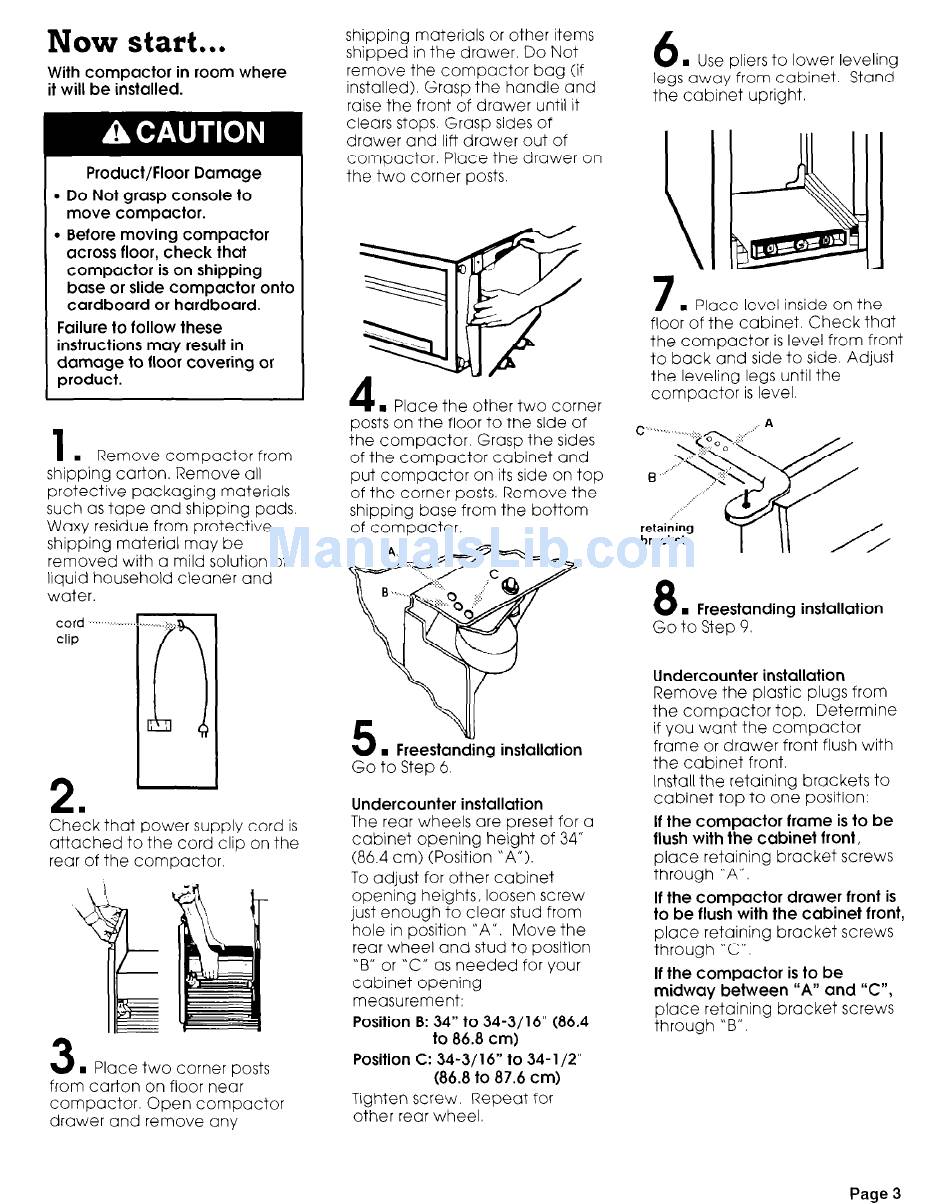

Now start...
With compactor
in room where
it will be installed.
Product/Floor
Damage
. Do Not grasp console
to
move compactor.
. Before moving
compactor
across floor, check
that
compactor
is on shipping
base or slide compactor
onto
cardboard
or hardboard.
Failure to follow these
instructions
may result in
damage
to floor covering
or
product.
1
.
Remove compactor
from
shipping
carton.
Remove
all
protective
packaging
materials
such as tape and shipping
pads
Waxy residue from protective
shipping
material
may be
removed
with a mild solution
of
liauid household
cleaner
and
water.
cord
. . . . .
clip
2.
. :...:.
. .
r!l I
Check that power supply cord is
attached
to the cord clip on the
rear of the compactor.
3
n
Place two corner posts
from carton
on floor near
compactor.
Open compactor
drawer
and remove
any
shipping
materials
or other items
shipped
in the drawer.
Do Not
remove
the compactor
bag (if
installed).
Grasp the handle
and
raise the front of drawer
untrl it
clears stops. Grasp sides of
drawer
and lift drawer
out of
compactor.
Place the drawer
on
the two corner posts.
n
Place the other two corner
posts on the floor to the side of
the compactor.
Grasp the sides
of the compactor
cabinet
and
put compactor
on its side on top
of the corner posts. Remove
the
shipping
base from the bottom
of compactor.
n
Freestandina
installation
Go to Step 6.
-
Undercounter
installation
The rear wheels are preset for a
cabinet
opening
height
of 34"
(86.4 cm> (Position
"A").
To adjust for other cabinet
opening
heights,
loosen screw
just enough
to clear stud from
hole in position
"A".
Move the
rear wheel
and stud to position
"B" or "C" as needed
for your
cabinet
opening
measurement:
Position B: 34" to 34-3/16"
(86.4
to 86.8 cm)
Position C: 34-3/l 6" to 34- l/2"
(86.8 to 87.6 cm)
Tighten screw.
Repeat
for
other rear wheel.
6
n
Use pliers to lower leveling
legs away from cabinet.
Stand
the cabinet
upright
7
n
Place level inside on the
floor of the cabinet.
Check that
the compactor
is level from front
to back and side to side. Adjust
the leveling
legs until the
compactor
is level.
8
n
Freestanding
installation
Go to Step 9.
Undercounter
installation
Remove
the plastic plugs from
the compactor
top.
Determine
if you want the compactor
frame or drawer
front flush with
the cabinet
front.
Install the retaining
brackets
to
cabinet
top to one position:
If the compactor
frame is to be
flush with the cabinet
front,
place
retaining
bracket
screws
through
"A",
If the compactor
drawer
front is
to be flush with the cabinet
front,
place
retaining
bracket
screws
through
"C".
If the compactor
is to be
midway
between
"A" and "C",
place
retaining
bracket
screws
through
'B".
