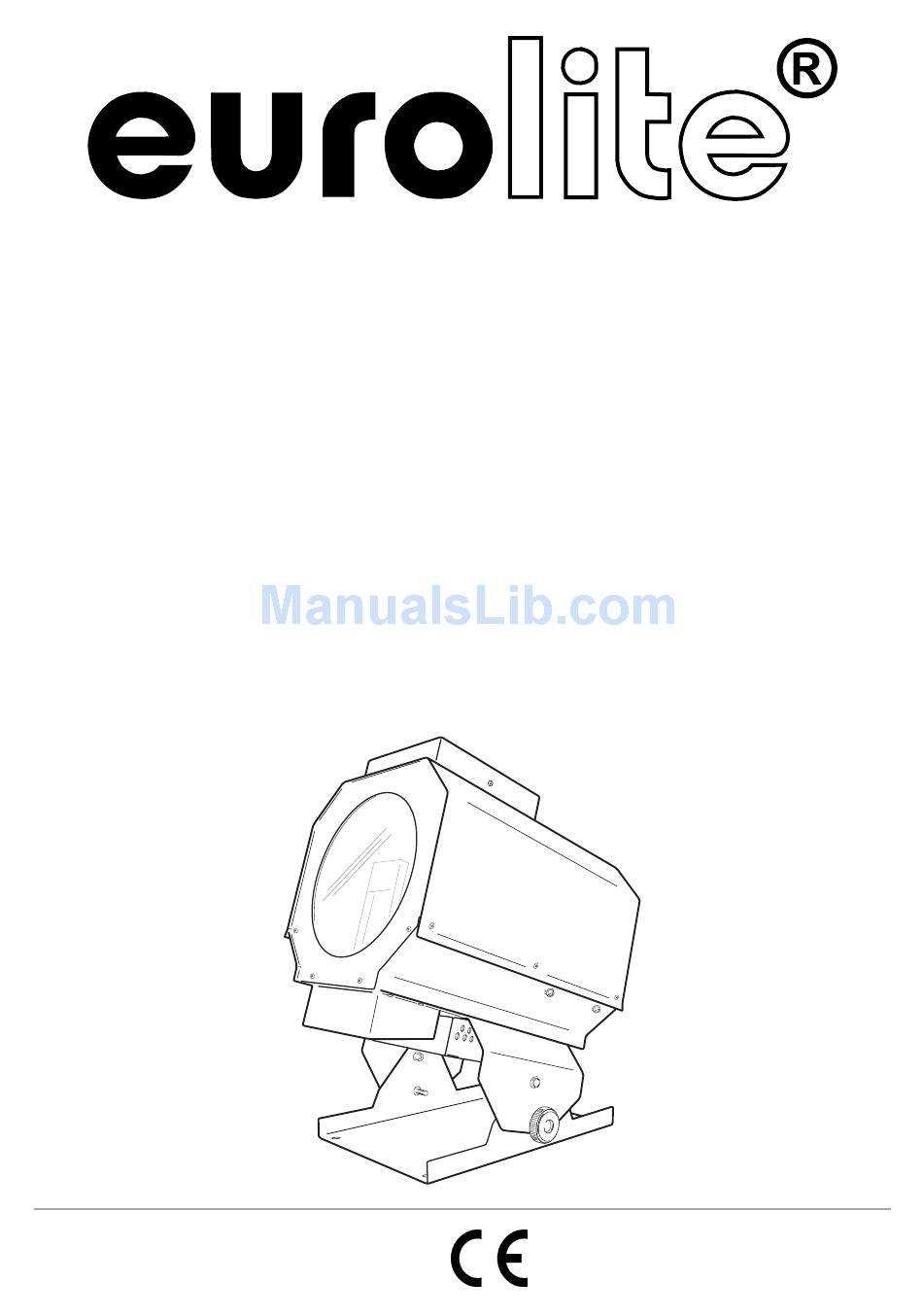

www.clubsoundrent.nl BEDIENUNGSANLEITUNG USER MANUAL MODE D'EMPLOI MANUAL DEL USUARIO SKY BEAM Outdoor Spot © Für weiteren Gebrauch aufbewahren! Copyright Keep this manual for future needs! Nachdruck verboten! Gardez ce mode d’emploi pour des Reproduction prohibited! utilisations ultérieures! Réproduction interdit! Guarde este manual para posteriores usos. Prohibida toda reproducción. -
Page 2: Safety Instructions
- download the latest version of the user manual from the Internet INTRODUCTION Thank you for having chosen a EUROLITE SKY BEAM. If you follow the instructions given in this manual, we are sure that you will enjoy this device for a long period of time. - Page 3 Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer. DANGER TO LIFE! The electric connection must only be carried out by a qualified electrician! This device falls under protection-class I.
-
Page 4: Operating Determinations
HEALTH HAZARD! Never look directly into the light source, as sensitive persons may suffer an epileptic shock (especially meant for epileptics)! Keep away children and amateurs! Never leave this device running unattended. CAUTION! Provide for sufficient splinter shield OPERATING DETERMINATIONS This device is an outdoor spot for creating decorative effects. -
Page 5: Description Of The Device
fastened. The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may explose and emit a high ultraviolet radiation, which may cause burns. The maximum ambient temperature t = 45° C must never be exceeded. Operate the device only after having familiarized with its functions. - Page 6 Overview (1) Housing/projector head (2) Objective lens (3) Fan (4) Tripod/baseplate (5) Lamp cover (6) Fastening screw (7) Fixation screw/knurled head screw (8) Safety switch (9) Mirror reflector 18/43 00026549.DOC, Version 1.4...
-
Page 7: Installation
(10) Saftey cover (11) Fuseholder (12) Fastening screw (13) Power supply INSTALLATION Installing/Replacing the lamp DANGER TO LIFE! Only install the lamp with the device switched off! Unplug from mains before! For the installation, you need one HMI 1200 100V/1200W lamp. The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection gloves, helmet with sight, leather apron). - Page 8 Keep exchanged lamp in a protective container and remove accordingly. During the operation, the lamp reaches temperatures of up to 725° C. Before replacing the lamp, unplug mains lead and let the lamp cool down (approx. 10 minutes). During the installation do not touch the glass-bulbs bare-handed! Please follow the lamp manufacturer's notes! Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the device was not designed for.
-
Page 9: Operation
DANGER TO LIFE! Before taking into operation for the first time, the installation has to be approved by an expert! Connection with the mains DANGER TO LIFE! The electric connection must only be carried out by a qualified electrician! In order to connect the device to the mains, you have to install a power-plug. The occupation of the connection cables is as follows: Cable International... -
Page 10: Replacing The Fuse
4) The electric power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments. Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems have to be removed. DANGER TO LIFE! Disconnect from mains before starting maintenance operation! We recommend a frequent cleaning of the device. -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Power supply: 230 V AC, 50 Hz ~ Power consumption: 2250 W Protection grade: IP33 Dimensions: 475 x 325 x 525 mm Weight: 32 kg Fuse: T 15 A, 250 V Beam angle: approx. 5-7° Maximum ambient temperature T 45°...
