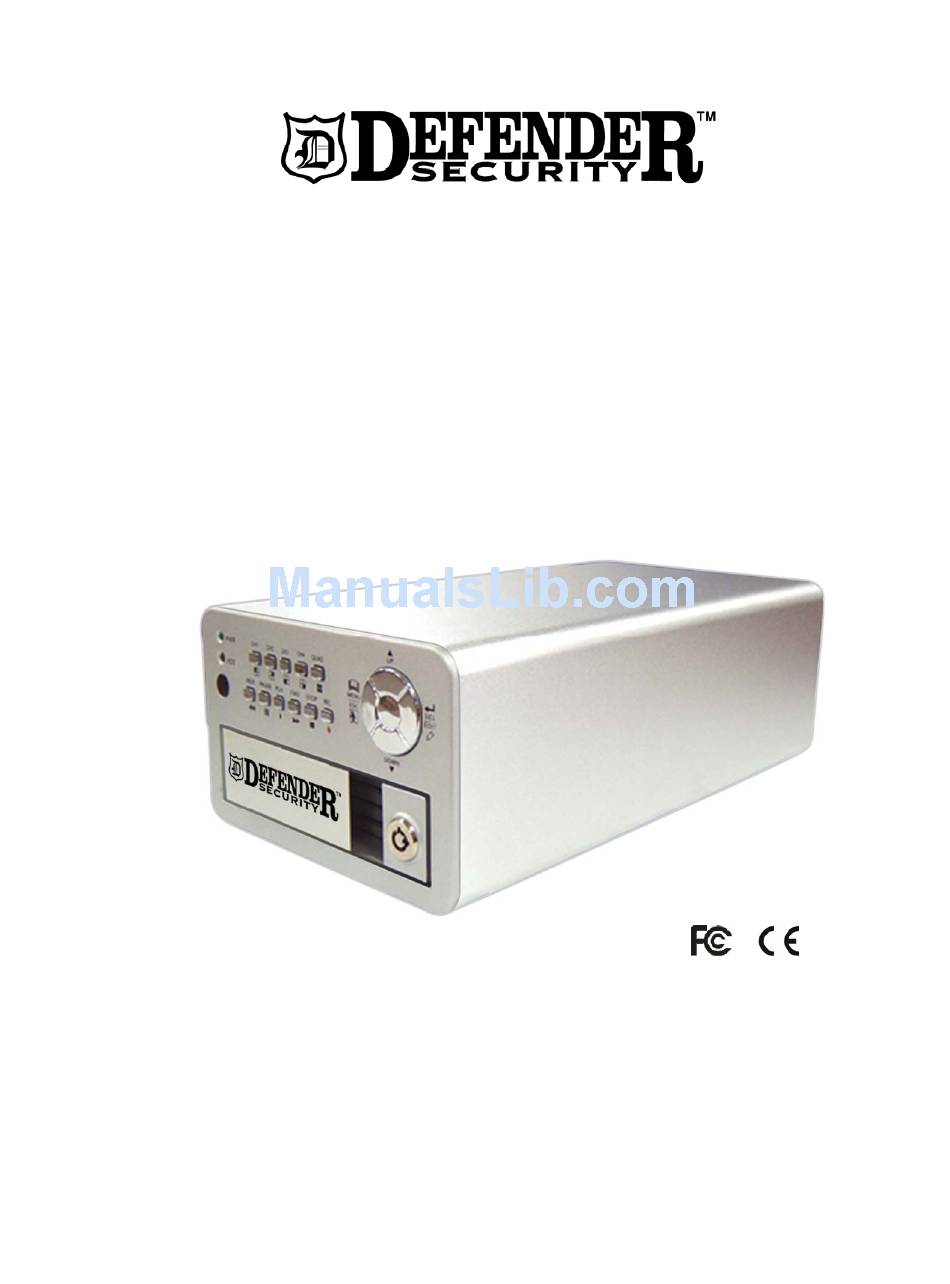

Page 1: Installation Manual
Installation Manual 4-Channel Simplex DVR Model 82-12150 www.mcmelectronics.com... -
Page 2: Table Of Contents
Model 82-12150 4CH DVR Installation Manual Table of Contents Safety and Environment .................... 1 Environmental Considerations....................1 Before You Start ........................1 Warnings ..........................1 Features........................Hardware Installation ....................Install Hard Disk ........................2 Camera, Monitor and Power Connections................3 DVR System Boot....................... Hard Drive Detection ......................3 DVR Setup........................ -
Page 3: Safety And Environment
User’s Manual 4CH DVR 1. Safety and Environment Read all safety and operating instructions before operating your new DVR 1.1 Environmental Considerations To prevent electric shock or other hazard, do not expose unit to rain, moisture, or dust. This unit should be located in an area with low humidity and a minimum of dust. Place this unit in a well-ventilated area and do not place heat-generating, or heavy objects on this unit. -
Page 4: Features
User’s Manual 4CH DVR 2. Features • Monitor and record up to four cameras • Easy installation, set-up, and operation • Modified MJEPG compression • USB 2.0 port to connect DVR to PC • Removable hard drive bay (cold swap) •... -
Page 5: Camera, Monitor And Power Connections
User’s Manual 4CH DVR 3. Hardware Installation (cont’d) 3.2 Camera, Monitor and Power Connections • Connect up to four cameras to the BNC Video Input ports on the rear panel • Connect a single CCTV monitor to the BNC Video Output port on the rear panel •... -
Page 6: Dvr System Boot
User’s Manual 4CH DVR 4. DVR System Boot After installing a hard drive and connecting 4.1 Hard Drive Detection power to the DVR, the system initiates a boot- up procedure that starts with the HDD-check sequence. If a hard drive is not detected, the setup will display a message to install a hard HDD Checking……….. -
Page 7: Menu Directory
User’s Manual 4CH DVR 5. DVR Setup (cont’d) Menu Directory Camera Select Record Select Record Mode Record Frame Rate Main Menu Video Quality Auto Record Password Setup Record Schedule Password Change Sub Menu Picture Setup Time Setup Hard Drive Setup Motion Setup Restore Factory Default 5.2 Camera Select and Record Select... -
Page 8: Video (Recording) Quality
User’s Manual 4CH DVR 5.3 Record Mode Once the Camera Select and Record Select channels are defined, use the “ Down” button on the front panel to move down to the Record Mode option. Press the “ Select ” button on the front panel to edit the Record Mode option. -
Page 9: Record Schedule
User’s Manual 4CH DVR 5. DVR Setup (cont’d) 5.6 Record Schedule After choosing the desired global Video Quality setting, use the “ Down” button on the front panel to move down to the Record Schedule option. Press the “ Select” button on the front panel to display the Record Schedule screen. - Page 10 User’s Manual 4CH DVR 1.) AUTO RECORD – Set “ON” to automatically start recording in 5 minutes from boot-up. Set “OFF” to manually initiate recording using the “Record” button on the DVR front panel. 2.) PASSWORD SETUP – In the “ON” setting, a valid password (see PASSWORD CHANGE below) is required to use the “Menu”, “Stop”, and Restore Factory Default buttons on the front panel.
-
Page 11: Hard Drive Setup
User’s Manual 4CH DVR 5.8 Hard Drive Setup 1.) OVERWRITE ENABLED : To enable, or disable the automatic hard drive overwrite operation, use the “ Up” and “ Down” HARD DISK SETUP buttons to move to the OVERWRITE ENABLED OVERWRITE ENABLED [YES] option, and press the “... -
Page 12: Motion Detection Setup
User’s Manual 4CH DVR MOTION ALARM DURATION Use the “ Up” and “ Down” buttons to move to MOTION ALARM DURATION, and press the “ Select ” button to choose the time duration (in seconds) for displaying the word “MOTION” on the screen for each channel where motion is detected. Choose OFF, 5, 10, 15, 20, 25, 30 seconds. -
Page 13: Restore Factory Defaults
User’s Manual 4CH DVR 5.11 NTSC/PAL Output Select If necessary, the user can change jumper JS1 to select either NTSC or PAL video output. Use the diagram below to locate the jumper on the main board, and change accordingly. NOTE: The video output is set to NTSC by default. It should not be necessary to change this factory default. -
Page 14: Stop Recording
User’s Manual 4CH DVR QUAD REC [M] (T) 2008/07/01 16:22:30 1.) Hard drive percentage used 5.) Status (REC, Play, FF1, FF2, FF3, REW, PAUSE). 2.) “Recording” symbol indicates channel 6.) HDD Info ([M] Master disk [S] Slave disk). is currently recording 7.) Record Schedule: (T) Continuous (A) Motion (─) No Record 3.) Channel number indicator... -
Page 15: Playback
User’s Manual 4CH DVR 6.3 Recording Length (cont’d) Another method of estimating recording length is by using a formula like the example in figure #1 below (assuming 120GB HDD @ 7fps @ NORMAL quality): 120 (G Byte) x 1024 (M Byte) x 1024 (K Byte) 332 Hours 15 (K Byte/frame) x 7 (frame/sec.) x 60 (sec.) x 60 (min.) Figure #1... -
Page 16: Usb Connection
User’s Manual 4CH DVR 8. USB Connection 8.1 Software Installation 1. Insert the USB Driver/Program CD in your PC’s CD-ROM drive 2. Choose SETUP to install drivers. 3. Select the program directory 4. Choose “Next” to install the program files on your PC 5. -
Page 17: General Software Navidation Buttons
User’s Manual 4CH DVR 8.3 General Software Navigation Buttons - 15 -... -
Page 18: General Software Functions
User’s Manual 4CH DVR 8.4 General Software Functions - 16 -... - Page 19 User’s Manual 4CH DVR 8.4 General Software Functions (cont’d) - 17 -...
-
Page 20: Specifications
User’s Manual 4CH DVR 9. Specifications ITEM DESCRIPTION NOTE Video Format NTSC / PAL Operation System None STAND-ALONE Camera Input Channel 4 channel Composite BNC 1 channel Composite BNC Video Output Channel USB 2.0 port NTSC 120 frames/second 4 x 30 frames/second Display Frame Rate 100 frames /second 4 x 25 frames/second... - Page 21 User’s Manual 4CH DVR - 19 -...
