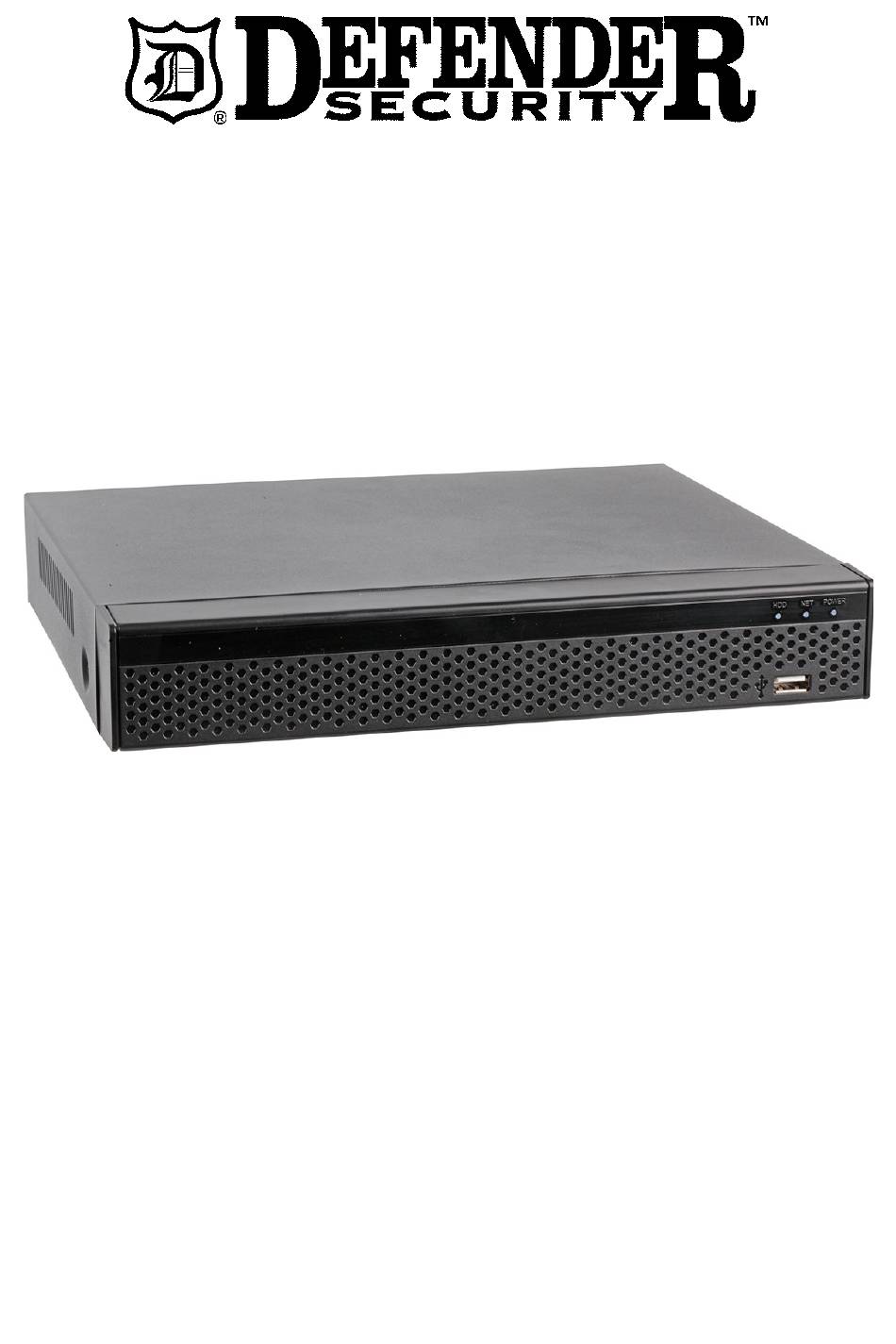

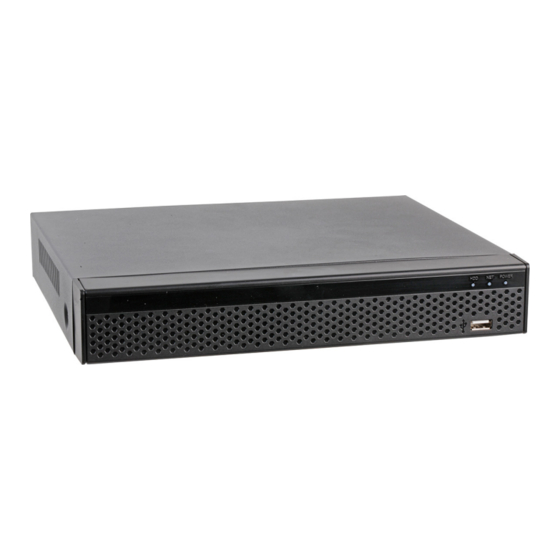

5MP HYBRID DVR
MODELS: DFR-5MP-XVR4 & DFR-5MP-XVR8
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFR-5MP-XVR4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Defender Security DFR-5MP-XVR4

Summary of Contents for Defender Security DFR-5MP-XVR4

  • Page 1 5MP HYBRID DVR MODELS: DFR-5MP-XVR4 & DFR-5MP-XVR8...

  • Page 2: Important Safety Information

    4.1 XVR rear panel interface description RS485 interface for Please read these instructions carefully before use and retain for future reference. RJ45 Ethernet interface PTZ camera access IMPORTANT SAFETY INFORMATION • When using electrical appliances basic safety precautions should always be followed.
  • Page 3 HARD DRIVE INSTALLATION (BB MODELS ONLY) • Disconnect the power supply. • Remove the screw in the top centre of the rear panel and the screw on each side of the unit and remove the top casing. • With reference to the four keyhole slots in the base of the unit, partly insert a suitable screw into the relevant threaded mounting points on the hard drive.

  • Page 4: Channel Configuration

    CONFIGURATION Network Settings • Ensure the DVR is correctly connected to the local network via the RJ45 Ethernet socket. The network parameters must be correctly set before operating the device over the network. • The interface displays the IP/Port settings where it is possible to modify the address and port as required.

  • Page 5: Web Operation

    interface to play the video. is “12345”), and click “Login”. click "Add", select add channel, click "Save" to complete the addition. 5.6 Recording Settings 5.9 Shut down NOTE: Recording Schedule The device opens all channels by default for 24 hours record. •...
  • Page 6 7.Mobile App Operation Step 1: Download and Install MOBILE APP OPERATION Use the Android or iOS phone to scan the corresponding QR code or search "BitVision" from the application store to download and install • Search the app store for “BitVision” or scan the QR codes below and download and install the app: the BitVision App.

  • Page 7: Specification

    SPECIFICATION Model DFR-5MP-XVR4 DFR-5MP-XVR8 Processor/Codec HISilicon HI3520DV400 Op Sys Embedded Linux Video Input 4×(AHD/TVI/CVI:8M; TVI/AHD: 5M; 8×(AHD/TVI/CVI:8M; TVI/AHD: 5M; AHD/ Normal Mode: Analogue: AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/ TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: TVI/CVI: 1080P/720P; Analogue: 960H) 1080P/720P; Analogue: 960H) Lite Mode: Analogue: 4×(AHD/TVI/CVI: 1080P/720P;...
  • Page 8 Playback & Backup 2CH 1080P@30fps 4CH 1080P@30fps Decode Capability: Sync Playback Pure Analogue: 4CH 5MP@6fps, 4CH 8MP Lite@8fps, 8CH 5MP@6fps, 4CH 8MP Lite@8fps, 8CH 4CH 4MP@8fps, 4CH 3MP@9fps, 4MP@8fps, 8CH 3MP@9fps, 4CH 1080p@15fps, 4CH 1080N@25fps 8CH 1080P@15fps, 8CH 1080N@25fps Mix Mode: 1CH 5MP@30fps, 1CH 4MP@30fps, 4CH 5MP@6fps, 4CH 4MP@8fps, 1CH 3MP@30fps, 2CH 1080P@30fps,...
