Page 1: Installation Manual

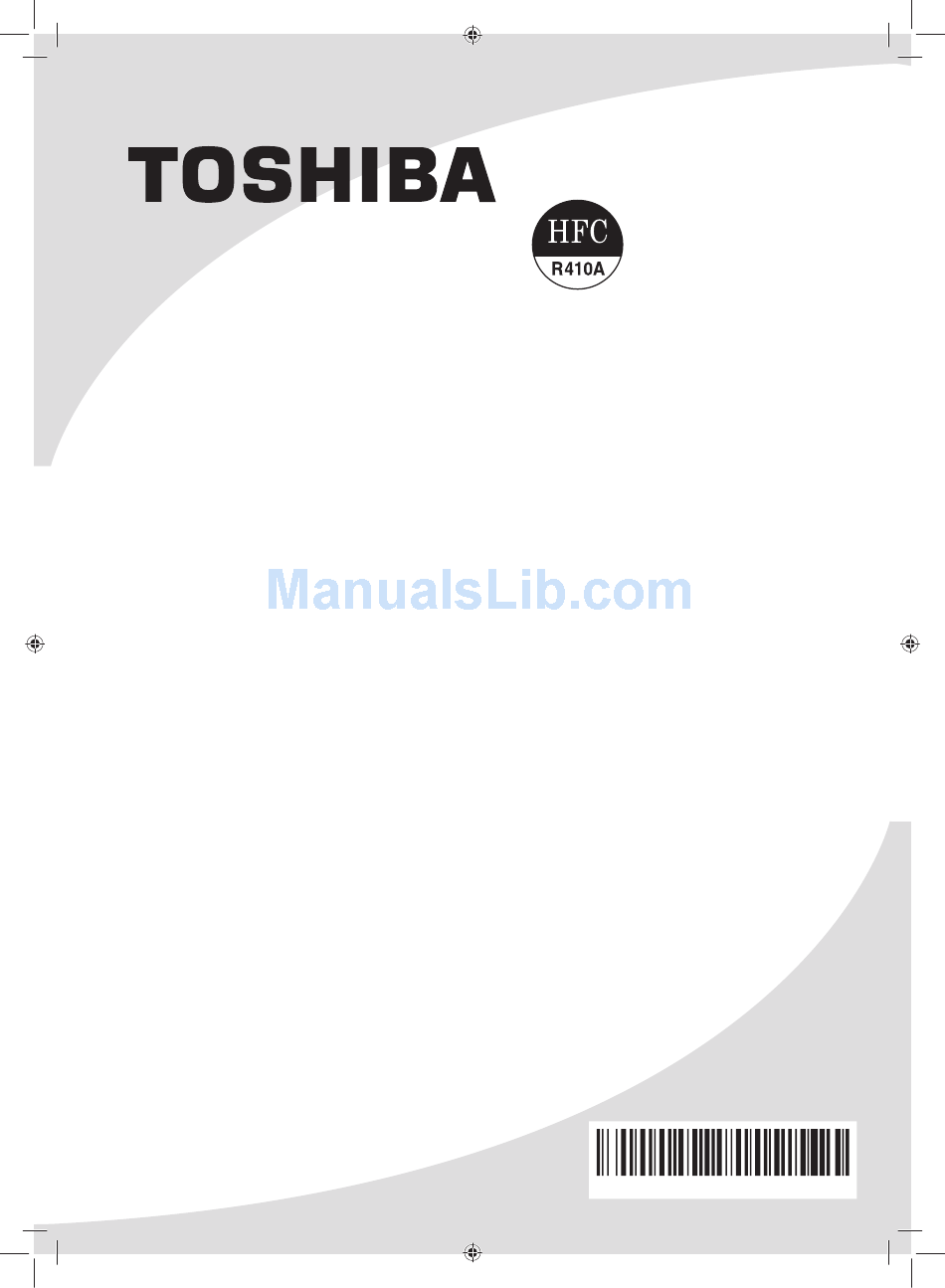

INSTALLATION MANUAL AIR CONDITIONER (SPLIT TYPE) Indoor unit RAS-10G2KVP Series RAS-13G2KVP Series RAS-16G2KVP Series Outdoor unit RAS-10G2AVP Series RAS-13G2AVP Series RAS-16G2AVP Series 1115751104 1115751104-EN.indd 1 1115751104-EN.indd 1 5/26/2557 BE 10:45 AM 5/26/2557 BE 10:45 AM... -
Page 2: Table Of Contents
CONTENTS PRECAUTIONS FOR SAFETY ............................1 INSTALLATION DIAGRAM OF INDOOR AND OUTDOOR UNITS ...................3 Optional Installation Parts ...............................3 INDOOR UNIT ..................................4 Installation Place ................................4 Cutting a Hole and Mounting Installation Plate .......................4 Piping and Drain Hose Installation ..........................5 Indoor Unit Fixing ................................6 In case of Indoor unit is fi... -
Page 3: Precautions For Safety
PRECAUTIONS FOR SAFETY PRECAUTIONS FOR SAFETY The manufacturer shall not assume any liability for the damage caused by not observing the description of this manual. Be sure to read this installation manual carefully before installing. Recommend to the owner to perform maintenance periodically when using over long periods of time. Be sure to follow the precautions provided here to avoid safety risks. - Page 4 WARNING • Installation work must be requested from the supplying retail dealership. Self-installation may cause water leakage, electrical shock, or fi re as a result of improper installation. • Specifi ed tools and pipe parts for model R410A are required, and installation work must be done in accordance with the manual. HFC type refrigerant R410A has 1.6 times more pressure than that of conventional refrigerant (R22).
-
Page 5: Installation Diagram Of Indoor And Outdoor Units
INSTALLATION DIAGRAM OF INDOOR AND OUTDOOR UNITS INSTALLATION DIAGRAM OF INDOOR AND OUTDOOR UNITS For the rear left and left piping Hook Installation plate Wall Insert the cushion between the indoor unit and wall, and tilt the indoor unit for better operation. -
Page 6: Indoor Unit
INDOOR UNIT INDOOR UNIT Mounting the installation plate Installation Place Anchor bolt holes • A place which provides the spaces around the indoor unit as shown in the diagram Hook • A place where there are no obstacles near the air inlet and outlet •... -
Page 7: Piping And Drain Hose Installation
In case of bottom right or bottom left piping Piping and Drain Hose Installation • After scribing slits of the bush body with a knife or a making-off pin, cut them with a Piping and drain hose forming pair of nippers or an equivalent tool. Slit * Since dewing results in a machine trouble, make sure to insulate both connecting pipes. -
Page 8: Indoor Unit Fixing
Indoor Unit Fixing Drainage 1. Run the drain hose sloped downwards. 1. Pass the pipe through the hole in the wall and hook the indoor unit on the installation plate at the upper hook. NOTE 2. Swing the indoor unit to right and left to confi rm that it is fi rmly hooked up on the installation plate. -
Page 9: Evacuating
Tightening connection Compound pressure gauge Pressure gauge –101 kPa Align the centers of the connecting pipes and tighten the fl are nut as far as (–76 cmHg) Manifold valve possible with your fi ngers. Then tighten the nut with a spanner and torque wrench as shown in the fi... -
Page 10: Electrical Works
ELECTRICAL WORKS ELECTRICAL WORKS The power supply can be selected to connect to indoor unit or outdoor unit. Choose proper way and connect the power supply and connecting cable by follow the instruction as following. Model RAS-10, 13, 16G2KVP Series 50Hz, 220-240V Single phase Power source 60Hz, 220-230V Single phase... -
Page 11: Power Supply And Connecting Cable Connection
Power Supply and Connecting Cable Connection Power Supply Input at Indoor Unit Terminal Block (Recommend) Indoor Unit Outdoor Unit Power supply cable Connecting cable connect to Stripping length of the terminal block (1, 2, 3, ˙) power supply cable Earth line 100 mm 10 mm Terminal block... -
Page 12: Power Supply Input Wiring Diagram
Power supply input Wiring Diagram Power supply input at Indoor unit Terminal Block (Recommend) Indoor Terminal Block Power supply input Outdoor Terminal Block Power supply input at Outdoor unit Terminal Block (Optional) Indoor Terminal Block Outdoor Terminal Block Power supply input CAUTION 1. -
Page 13: Wiring Between Dred (Demand Response Enabling Device) And Outdoor Unit
Wiring between DRED Connection procedure (Demand response enabling device) and Outdoor Unit • This air conditioner complies with AS/NZS 4755.3.1. • DRM available: DRM1, DRM2, DRM3 • The terminal block meets ELV requirements. This model supports DRM1 DRM2 DRM3. AS/NZS 4755 DRM1 DRM2 DRM3... -
Page 14: Outdoor Unit Preparation
Outdoor unit preparation Demand response interface (DRI) 1. Loosen the screws for Valve cover then pull the Valve cover downward and remove it. 2. Loosen the screws for Upper cabinet then lift the Upper cabinet upward to remove it then take off water proof cover. 3. -
Page 15: Others
OTHERS OTHERS Gas Leak Test Test Operation To switch to the TEST RUN (COOL) mode, press Temporary switch for 10 seconds. (The unit will make a short Pi sound.) Check places for the indoor unit. Temporary switch Check places for the outdoor unit. - Page 16 1115751104 1115751104-EN.indd 14 1115751104-EN.indd 14 5/26/2557 BE 10:45 AM 5/26/2557 BE 10:45 AM...
