Summary of Contents for KitchenAid KSSS48MHX00

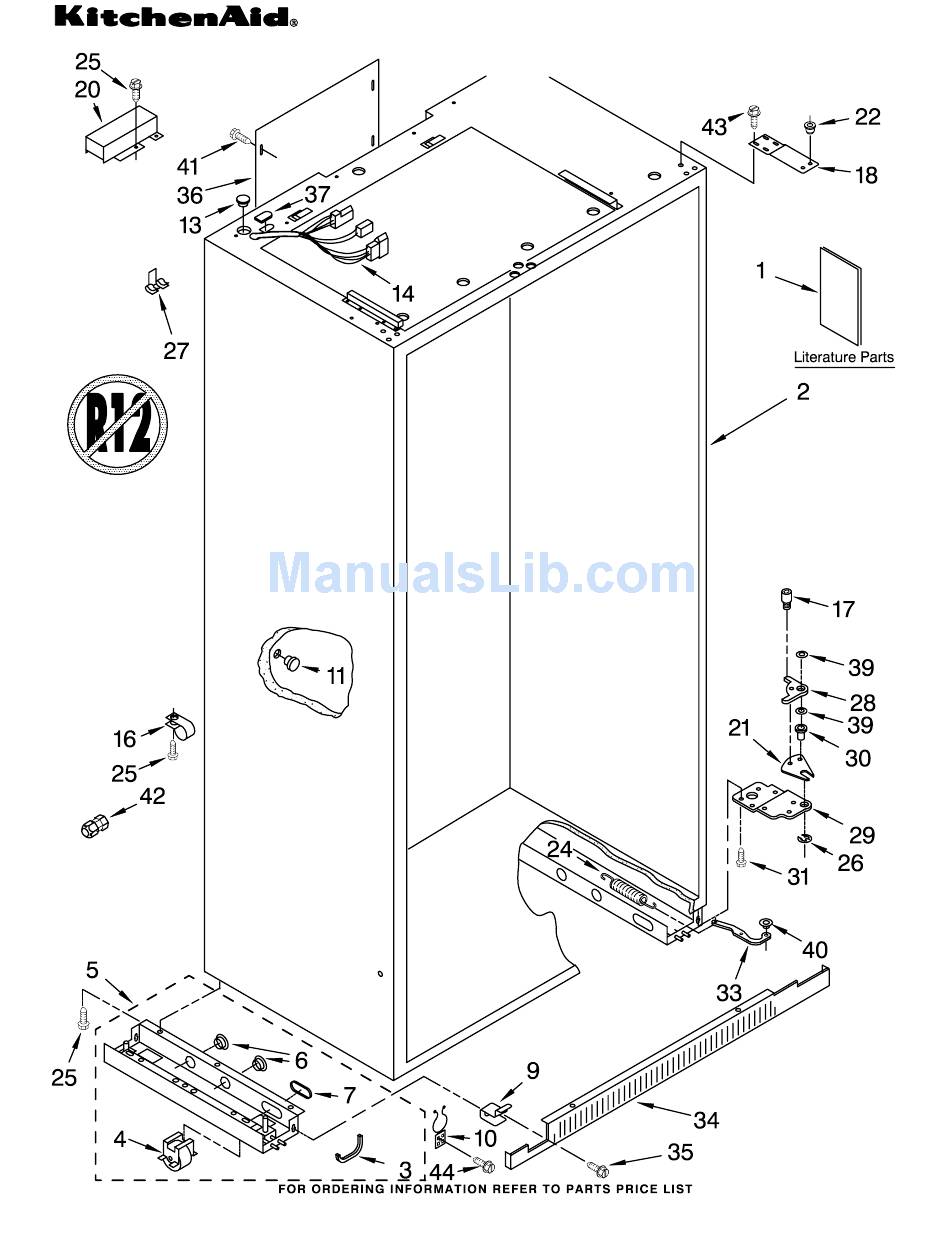

- Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Model: KSSS48MHX00 (Stainless Steel) 11−99 Litho In U.S.A. (mek) Part No. 4398498...
-
Page 2: Cabinet Parts
Rear (4) Support, Leveler Assembly 2004506 Refrigerator Side 2004505 Freezer Side 2005006 Grommet, Wiring 2005007 Grommet, Flexible CABINET PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION 2006442 Mounting Stud, Grill 2005237 Clip, Wire 1112849 Cap, Grommet 1113122 Grommet, Wiring... - Page 3 4398498 CABINET TRIM PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION 2004553 Cabinet, Trim (2) 2003857 Screw 1163283 Screw 2004538 Cabinet, Trim (Bottom) 486194 Screw 2003647 Cabinet, Trim Top 2005925 Seal−Trim, Side...
-
Page 4: Freezer Liner Parts
FREEZER LINER PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2005567 Bracket, Light 1113650 Lens 2005042 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSS48MHX00 (Stainless Steel) 4398498... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air...
- Page 7 REFRIGERATOR CONTROL PANEL PARTS 4398498 For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION 1112642 Control Panel 2003303 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113137 Seal, Control Panel 489260 Screw (3)
- Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION 1113627 Control Panel 2003309 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113136 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3)
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSS48MHX00 (Stainless Steel) 4398498... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION 2174404 Frame, Shelf 2003377 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2006525 Frame, Assembly Meat Pan 2164373 Egg Carrier 1112247 Cover, Crisper...
-
Page 11: Freezer Shelf Parts
4398498 FREEZER SHELF PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION 2003144 Solid Shelf 2003135 Front, Ice Compartment 1113638 Shelf, Fixed (2) 1112052 Shelf, Deep 2208196 Basket 2003114 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw... - Page 12 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS48MHX00 Illus. Part 2003715 Top Grille 2005549 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2003724 Decortive Panel 2005534 Guard, Compressor 2003613 Trim, Grille 2003619 Trim, Grille 2003599 Trim, Grille 2003605 Trim, Grille...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSS48MHX00 (Stainless Steel) 4398498... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION 2003872 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2005329 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top &...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSS48MHX00 (Stainless Steel) 4398498... - Page 16 FREEZER DOOR PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION 2003878 Freezer Door Panel (Includes Insulation) 2004881 Retaining Ring, Door−Closure 2004524 Hinge, Bottom 489282 Screw 2005329 Hinge, Top 2004520 Spacer−Door, 2005610 Seal 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top &...
- Page 17 UPPER UNIT PARTS For Model: KSSS48MHX00 (Stainless Steel) 4398498...
- Page 18 1108143 Relay 2169137 Capacitor 486899 Screw 487869 Screw 2003392 Condenser 943447 Grommet (4) 1113019 Clamp (4) 487522 Screw UPPER UNIT PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION 851095 Wire Tie (2) 2202581 Drier 2208903 Motor, Fan 2190685 Blade, Fan...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS48MHX00 (Stainless Steel) 4398498...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater...
- Page 21 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48MHX00 (Stainless Steel) 4398498...
- Page 22 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION 2188322 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003926 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube...
-
Page 23: Icemaker Parts
ICEMAKER PARTS For Model: KSSS48MHX00 (Stainless Steel) 4398498... - Page 24 227991 Connector, Wire 2006738 Water Valve, Harness 489348 Clamp, Nylon Valve 488946 Clamp Tube 2174155 Cover PARTS NOT ILLUSTRATED ICEMAKER PARTS For Model: KSSS48MHX00 (Stainless Steel) Illus. Part DESCRIPTION 628228 Mold & Heater (Also Order 542638 Silicone Grease) 628398 Motor 628356 Cup−Water Fill...
