The DSP4/4 is a 4in/4out audio signal processor that uses a state-of-the-art 32-bit floating point DSP (digital signal
processor). The unit provides powerful and flexible audio processing for all types of sound systems. Superior audio
quality is ensured by the use of 24-bit A/D and D/A converters.
The ADFE system on the DSP4/4 can find and eliminate feedback on each of the four outputs individually, allowing
multi-channel distributed sound systems to have the benefit of ADFE economically. The ADFE system works by
detecting feedback frequencies in the range of 100Hz to 5.6kHz. It places a 1/5 octave notch filter on the offending
frequency with 1/10 octave accuracy. The initial notch depth is 6dB, but is changed to 12dB if the same frequency is
still found to be feeding back.

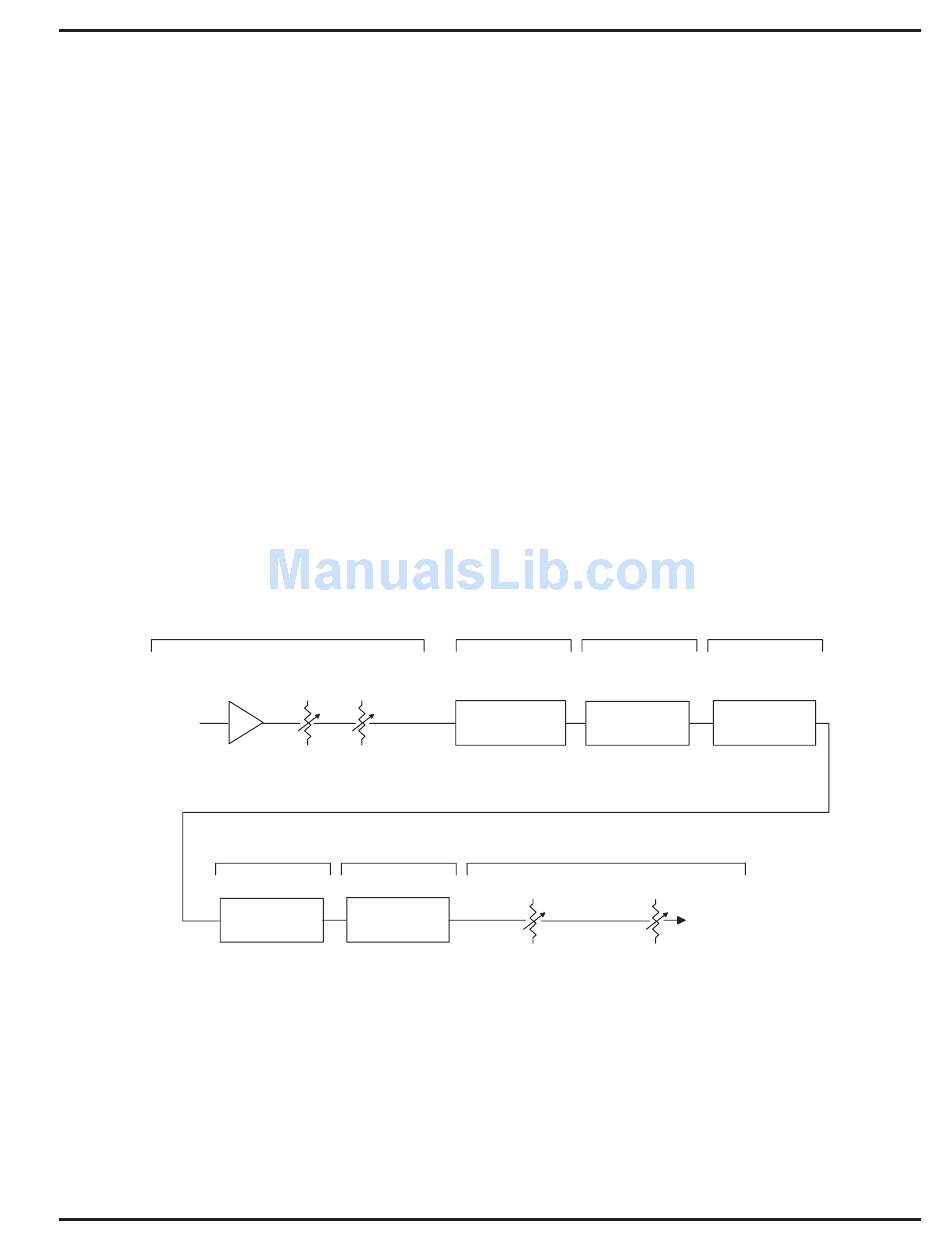

Figure 1 shows the simplified block diagram of one channel of the DSP4/4. The gain for each input is individually
controlled. Following the input gain control is a 4 x 4 matrix with fully adjustable crosspoint gains. Each of the four
matrix outputs has a complement of 12 user-adjustable filters, a full function compressor, a limiter, audio delay, and
individual output gain control.
13 programmable pin connections on the rear panel allow control of a variety of functions on the DSP4/4. Set up as
"inputs," external pots or switches can be connected to provide input and output muting and/or level control, or used
to recall of any of the 8 available preset memories. 8 of the 13 pins can also be programmed as "outputs," which are
used to drive external indicators to signal the state of a programmable input. For example, a programmable output
can be used to light an LED as an indication of whether an output is muted or unmuted.
An RS-232 port is available to allow almost all of the functions of the DSP4/4 to be controlled either by a computer or
a dedicated control system (such as AMX or Crestron systems).
Input Channel (1 of 4)
Balanced Input

GENERAL TECHNICAL DESCRIPTION

Rear Panel
0dB to -30dB, Off
Input Gain
+10dB to -68dB, Off
Limiter
Audio Delay
Limiter
Audio Delay
DSP4/4 Functional Block Diagram
Rio Rancho, NM – USA
Matrix Crosspoint
Filters/ADFE
(1 of 16)
(12/output)
+10dB to -20dB
12 Filters +
and Off
ADFE
Output Channel (1 of 4)
Output Gain
Rear Panel
0dB to -78dB, Off
0dB to -30dB, Off
4 In / 4 Out Digital Audio Processor
Compressor
Compressor
To Balanced
Output Driver
3
