INSTRUCTION MANUAL EC-618B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC-618B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cozzia EC-618B

Summary of Contents for Cozzia EC-618B

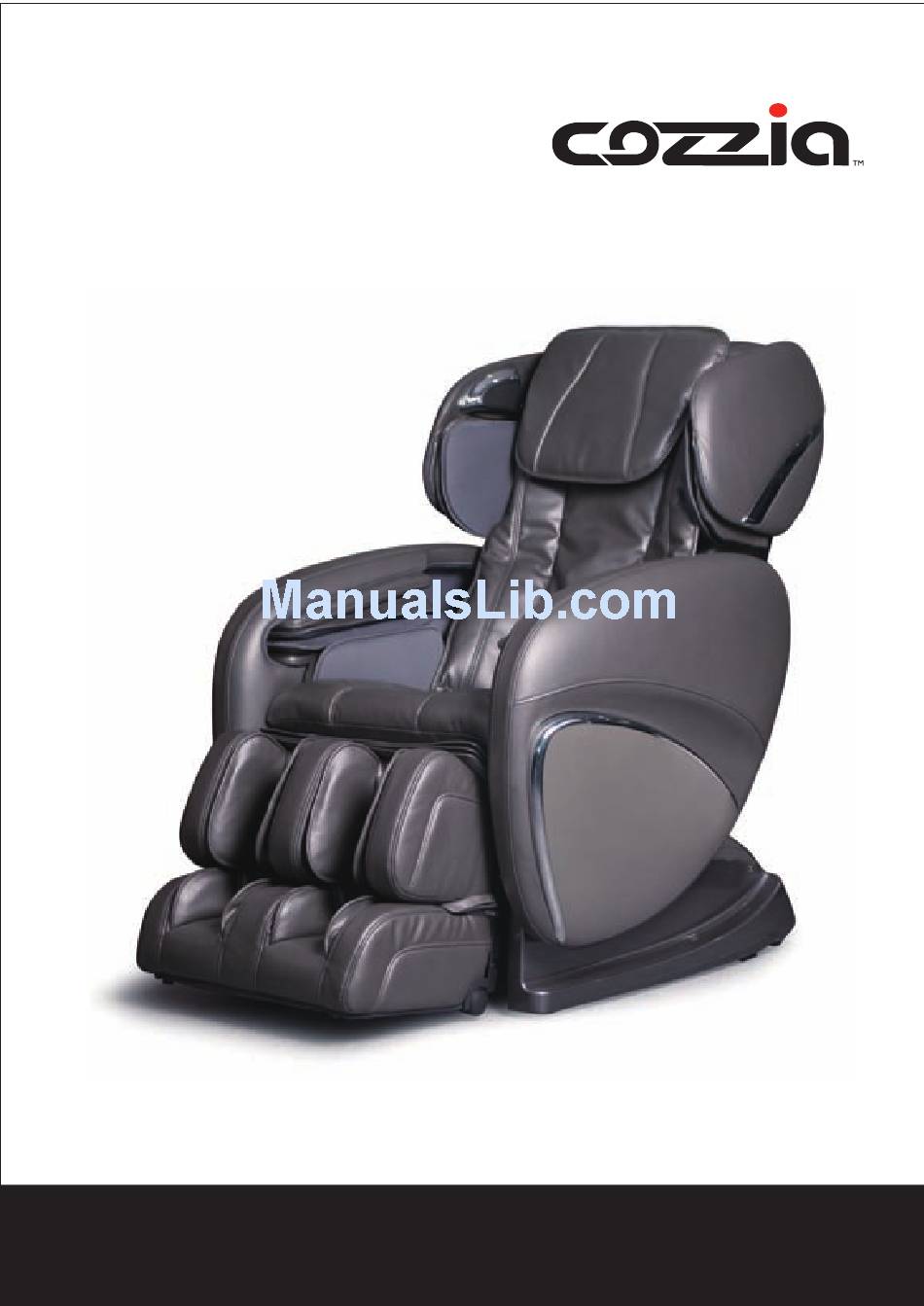

  • Page 1 INSTRUCTION MANUAL EC-618B...

  • Page 2: Table Of Contents

    Thank you for purchasing the EC-618B Massage chair. Before using your massage chair, please read the contents of this instruction manual and refer to it when needed. Table of Contents Luxury Features ………………………......…… 1 Safety Precautions ………………………......…. 2-6 Chair Components ……………………….....….. 7-8 Chair Installation &...

  • Page 3: Luxury Features

    Luxury Features ● COZZIA massage Chair is controlled by a microcomputer that performs various intelligent massage type and combinations such as Kneading, Swedish, Tapping, Shiatsu, Clapping, Rolling, Scrapping, Foot Roller, Vibration and Air Massage. All these types performing massage with accurate on the acupressure points, to effectively alleviate fatigue, promote metabolism and improve blood circulation.

  • Page 4: Safety Precautions

    Safety Precautions IMPORTANT SAFETY INSTRUCTIONS When using the massage chair, basic precautions should always be followed, including the following: Read all instructions before using this massage chair. DANGER -To reduce the risk of electric shock: ● Always unplug this massage chair from the electrical outlet immediately after using and before cleaning.
  • Page 5 ● To disconnect, turn all controls to the off position, then remove the plug from the outlet. ● Do not stand on or in the massage chair. Use only while seated. ● The product is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
  • Page 6 Caution ● This massage chair is to be used indoors only. ● If you use the massage chair in a cold room, do not increase the room temperature abruptly. It is recommended that you increase the temperature gradually to a normal level. ●...
  • Page 7 3. People with Medical Conditions Consult your doctor before use if you: ● are under medical rest as ordered by a doctor. ● have spinal disorders, an abnormal spinal condition or have suffered a spinal injury. ● have back problems. ●...
  • Page 8 4. Instances When the Massage Chair Should Not Be Used In the following events, please switch off the main power switch immediately and disconnect the power cord from the electrical outlet: ● If water is accidentally spilled onto the massage chair. This may result in electric shock or malfunction.

  • Page 9: Chair Components

    Chair Components Pillow LED + Speaker Shoulder panel Backrest Handrest Side panel Seat Pad Calvesrest Footrest Castor...
  • Page 10 Massaging Position 34 Air Bags 1 Vibration 2 Heater 30 Air Bags 2 Roller Back Massage Vibration Air Bag Heater Roller Mode...

  • Page 11: Chair Installation & Moving

    Chair Installation & Moving Note: Ensure sufficient spaces around the chair. When backrest reclining and footrest raising, the minimum 80cm space must be ensured both at the front and the back of chair. Bottom of the chair may damage the tatami mattress or floor. It is recommended to spread a piece of mattress under the chair.
  • Page 12 Step 2: ● Turn the backrest to front, it will help expose all the air tubes out from backrest, named group A as picture showing, and remove the spare white plastic stoppers on each air tube. ● Connect well air tubes "A" with corresponding air tube "B"(out from PCB box) as shown in picture.
  • Page 13 Step 4: Backrest Pad ● Attach backrest pad onto backrest with the zipper. ● Align and engage Velcro Zipper onto backrest. Backrest Velcro Step 5: Install Side Panel 1) Remove side panel cover E by slightly pulling the cloth strip (which could be threw away after use) from inner side panel.
  • Page 14 3) Attach side panel to the seat by aiming the 4 screw holes, then fix by the 4 bolts (M6*30). 4) Target the white plastic holes on inner side of side panel to attach side panel cover (E). Repeat above 1) ~ 4) to assemble the other side.
  • Page 15 Step 7: Connect the Power Cord. Step 8: The back massage strength-control pad has been inserted into the backseat cover. If strong massage is desired, remove the back massage strength-control pad from the cover; this strengthens the massage. If mildermassage are desired, insert the back massage strength-control pad into the cover;...

  • Page 16: Moving The Chair

    Moving the chair 1. Restore the footrest to its original position. 2. Recline the chair to tilt approximately 45 degrees. Move the chair using the wheels as the fulcrum. Note: ● Always return the footrest to its original length and restore it to its original position before moving the chair, otherwise injury during movement may result.

  • Page 17: Chair Remote Controller

    Chair Remote Controller 25/26...

  • Page 18: Operation Guide

    Operation Guide Connect to the power supply, and turn the switch to “I” position, chair is now in idle mode. During its idle mode, ON/OFF button will blink, which means the electric is well connected. During its idle mode, only ON/OFF, Pause, Legrest Recline/Restore, Chair Recline/Restore buttons can be operatable.
  • Page 19 6. CHAIR RECLINE AND RESTORE Keep pressing to reach lying flat comfortably, while pressing to restore the chair to its original positon. Full body Auto massage program 7. GENTLE(2D) 8. RELAX (2D) 9. THERAPHY (2D) 10. VIGOROUS (2D) 11. DEMO (2D) 12.
  • Page 20 Note: The Auto Program of Gentle, Relax, Therapy and Vigorous, are preset one LED background color, and you can also adjust the LED color by pressing the LED button. 17. ZIG - ZAG ZIG - ZAG function Start/Stop Control Button Press this button to activate updated full body twisting massage by air squeezing located in back and seat.
  • Page 21 Press this button to activate rhythmic mode 1 Kneading function for a full back massage at medium strength. Press the button again to activate mode 2 Kneading function. Press the button for the third time to stop Kneading function and switch to mode 1 Swedish function.
  • Page 22 23. ROLLING Rolling function Start/Stop Control Button – 3 levels of width to be adjusted When mode 2 Clapping function is engage, press this button to activate Rolling function for a full back massage. Press this button again to stop the Rolling function. To activate Rolling directly, press this button 3 times during idle mode.
  • Page 23 Setting Air Squeeze 30. SHOULDER Shoulder Air Squeeze Massage Control Button – 5 levels of intensity to be adjusted Press this button once to activate rhythmic air massage at shoulder. Press this button again to stop the function. 31. BACK & SEAT Back and Seat Air Squeeze Massage Control Button –...

  • Page 24: Grounding Instructions

    Grounding Instructions This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for the electric current to reduce the risk of electric shock. This product is equipped with a cord with an equipment-grounding conductor and a grounding plug.

  • Page 25: Chair Specifications

    CHAIR SPECIFICATIONS Product Name Ogawa Smart DeLight Model no. EC-618B Power source 110-120V~ Alternating current 50/60Hz Power consumption 300W Power of speakers 14W ( 2 sides) Timer 5/10/15/20/25/30 minutes Maximum operating period 30 minutes Seat Part: 52.4'' x 30'' x 25.8'' Dimension (Length/width/height) Back Part: 51.6'' x 30'' x 22.6''...

  • Page 26: Troubleshooting

    1. Make sure the chair is plugged into a massage chair are not functioning. working outlet. 2. Turn the power OFF and then ON again. If you continue to have problems, please read te warranty card and contact the COZZIA service department.

  • Page 27: Product Care And Storage

    Product Care and Storage 1. Storing the Massage Chair ● Wipe off dust and dirty from the massage chair with a dry, soft, clean cloth after use. ● Keep the massage chair clean and away from places of high humidity. ●...

  • Page 28: Warranty Information

    COZZIA customer service will not issue Return Material Authorizations (RMAs) for products. COZZIA products will be either repaired by the consumer or by an in-home technician. COZZIA will not issue Return Material Authorizations (RMAs) for buyer’s remorse.
  • Page 29 PRODUCT REPAIRS Many COZZIA product repairs may be performed by the consumer in their own home with parts and instructions supplied by COZZIA such as remote controller replacements that don’t require a technician. Canadian consumers may contact COZZIA's customer service department at 1-877-977-0656 between 9:00 am and 5:00 pm PST, Monday through Friday for warranty or service issues.
  • Page 30 ● COZZIA’s sole liability and the purchaser's exclusive remedy shall be for the repair, or at COZZIA’s option, for the replacement of the defective part. Not withstanding the above, if replacements parts for defective materials are not available, COZZIA reserves the right to make substitutions in lieu of repair or replacement.

  • Page 31: Warranty Card (Attachment)

    Product Serial No. (located on product): Purchase Price: Model No: Date Purchased: First Name: Last Name: Address: City: State: Zip: Phone: Email: Please mail to: Cozzia USA LLC 14327 E Don Julian Rd, City of Industry, CA, 91746 Tel: 1-877-977-0656 Fax: 1-800-521-4712...
