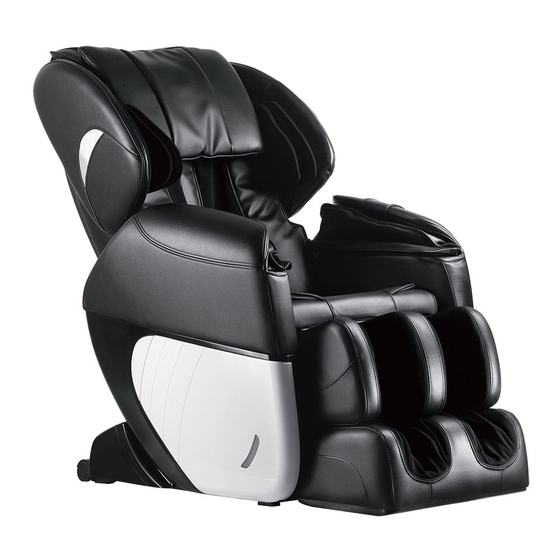

- Page 1 Assembly Instructions Failure to follow instruction manual can void warranty EC-629/EC-820...
- Page 2 Assembly Instructions STEP 1: Massage chair arrives in three boxes. As pictured below. Box 1:The Base Box 2: Backrest Box 3: Side Boards STEP 2: Open box 1 and remove all the packing materials. Take the base out of the box and remove the plastic bag.Collect all the accessories and put them aside.
- Page 3 STEP 3: Cut the cable tie, used for shipping, securing the backrest actuator. Remove the protective material which wrapped on the head of backrest actuator. Remove the cardboard. Remove the cotter pin and bolt and set aside. As pictured below. STEP 6: Preferably using two people, carefully set the backrest on the cradle points on the base.
- Page 4 STEP 10: Recline the backrest until it locks into position. Attach backrest bracket to reclining actuator. Lock the bolt by cotter pin. STEP 8: Connect the backrest air hose connector. STEP 11: Open box 3 and take out the two side boards. Pull the strip of cloth to detach the side panel cover.
- Page 5 STEP 12: Screw the four double-threaded screws onto the frame. STEP 13: Secure the side board with screw nut and washers. Then attach the side board cover. Take the side board close to the base and connect the air hose and wire connecters. Attach the side boards onto the base.
- Page 6 STEP 16: Attach the tablet holder onto left side board. Then put the tablet into the holster and rest the holster onto the holder. STEP 17: Connect the chair to power supply, turn on the power switch. Then you can enjoy your massage chair.
