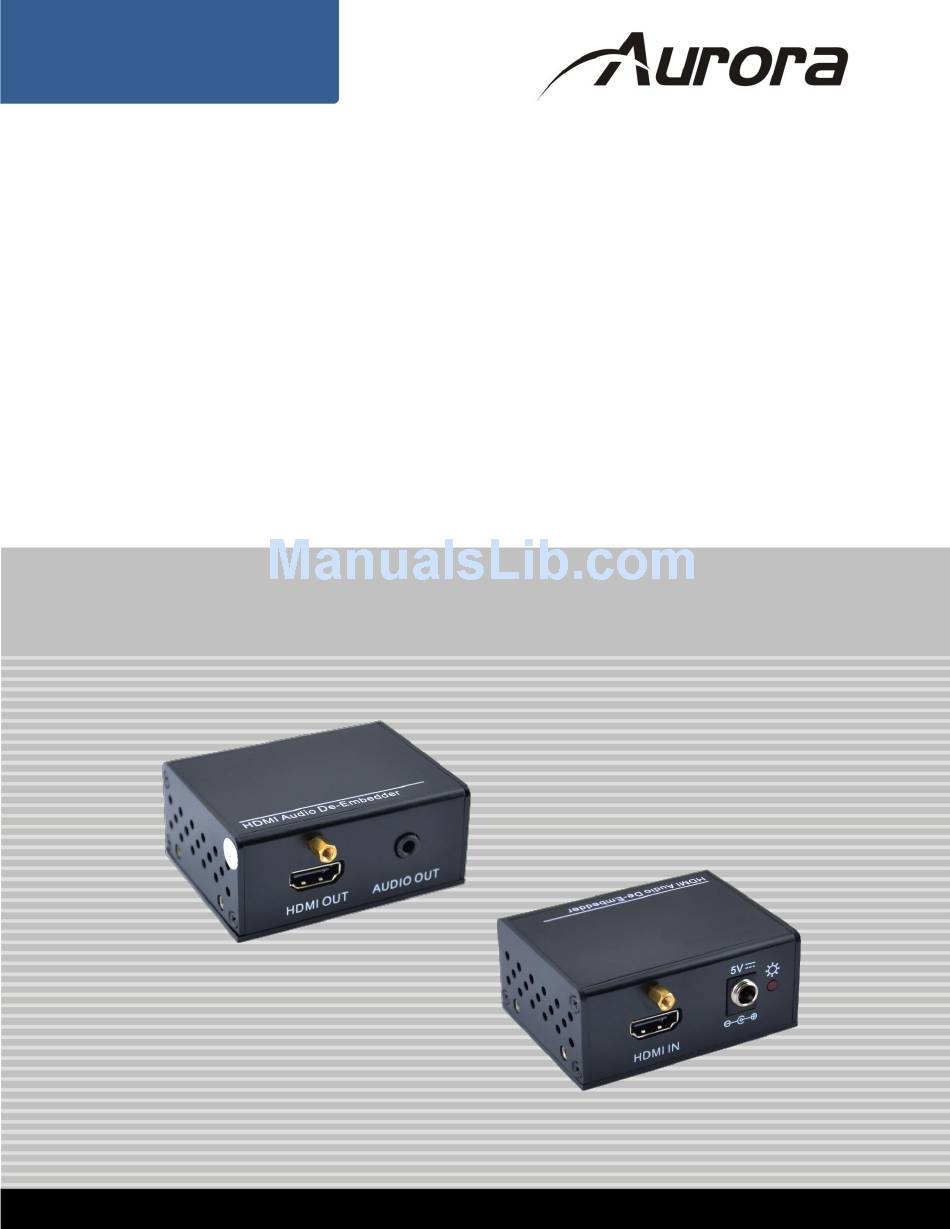

- Page 1 USERS GUIDE ASP-HDB1 HDMI Audio De-Embedder Manual Number: 131120...
-
Page 2: Safety Instructions
Power outlet: To prevent electric shock, be sure the electrical plug used on the product power cord matches the electrical outlet used to supply power to the Aurora product. Use only the power adapter and power connection cables designed for this unit. -
Page 3: Table Of Contents
PACKAGE CONTENTS ......................1 INTRODUCTION ........................2 About ..............................2 Features ..............................2 Front & Rear ASP-HDB1 ........................3 APPLICATIONS ......................... 4 ASP-HDB1 DVD Audio to Amplifier ...................... 4 APPENDIX 1 Troubleshooting ..................... 5 APPENDIX 2 Technical Specifications ................6 APPENDIX 3... -
Page 4: Package Contents
User Guide PACKAGE CONTENTS Please make sure the following items are included within your package. Contact your dealer if any items are missing or damaged. 1x ASP-HDB1 1x 5V Power Supply 2x Mounting Ears 4x Screws ... -
Page 5: Introduction
User Guide INTRODUCTION About The ASP-HDB1 is a high-quality HDMI audio splitter / de-embedder, with an HDMI and stereo audio output at resolutions up to 1920x1200@60Hz. The ASP-HDB1 is HDCP compliant making it compatible with most products on the market today. -
Page 6: Front & Rear Asp-Hdb1
User Guide Front & Rear ASP-HDB1 ① ② ③ ④ ⑤ Front & Rear 1. HDMI IN: HDMI input port, used to connect to an HD video source device, such as a DVD player, a computer etc. 2. 5V DC: DC 5V power wall supply. -
Page 7: Applications
User Guide APPLICATIONS ASP-HDB1 DVD Audio to Amplifier... -
Page 8: Appendix 1
Make certain display is not trying to do Dolby® with source via EDID 3. No audio output on analog jack is the ASP-HDB1 is not a down mixer. It will only de-embed stereo digital audio from the HDMI source. -
Page 9: Appendix 2
User Guide APPENDIX 2 Technical Specifications Model Name ASP-HDB1 Technical Role of usage Stripping audio from HDMI and converting to stereo analog Frequency 340MHz bandwidth Pixel Clock 165MHz Audio support Stereo PCM (48KHz only) Freq. Response 20Hz – 20KHz CMRR >70dB @ 20Hz –... -
Page 10: Appendix 3 Warranty
Limited 3 Year Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. This Limited Warranty covers products purchased in the year of 2009 and after. - Page 11 User Guide This product warranty extends to the original purchaser only and will be null and void upon any assignment or Aurora Multimedia Corp. 205 Commercial Court Morganville, NJ 07751 Phone: 732-591-5800 Fax: 732-591-6801...
