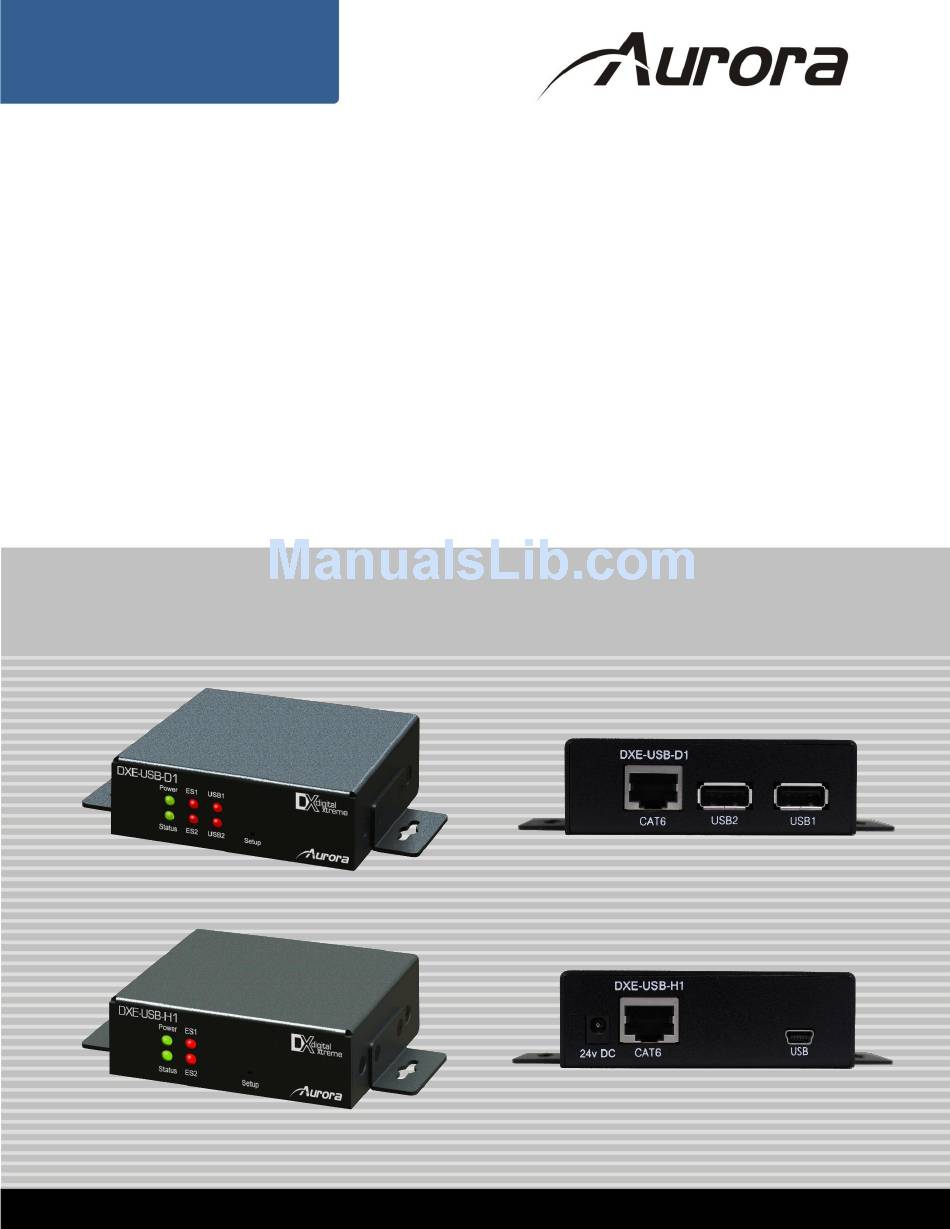

- Page 1 USERS GUIDE DXE-USB Series USB 2.0 CAT 6 480Mbps 220’ Extender Manual Number: 131120...
-
Page 2: Safety Instructions
Power outlet: To prevent electric shock, be sure the electrical plug used on the product power cord matches the electrical outlet used to supply power to the Aurora product. Use only the power adapter and power connection cables designed for this unit. -
Page 3: Table Of Contents
User Guide TABLE OF CONTENTS PACKAGE CONTENTS ......................1 INTRODUCTION ........................2 About ..............................2 Features ..............................2 Front DXE-USB-H1, DXE-USB-D1 ....................... 3 Rear Panel DXE-USB-H1, DXE-USB-D1, DXE-USB-D1P ..............4 APPLICATIONS ......................... 5 Example 1 DXE-USB-H1 Connected to DXE-USB-D1................. 5 Example 2 DXW-2EU Connected to DXE-USB-H1 ................ -
Page 4: Package Contents
User Guide PACKAGE CONTENTS Please make sure the following items are included within your package. Contact your dealer if any items are missing or damaged. DXE-USB-S1 1 qty DXE-USB-H1 Host Side (PC) Extender 1 qty DXE-USB-D1 Device Side Extender ... -
Page 5: Introduction
INTRODUCTION About The DXE-USB Series is a single cable USB extender capable of transmitting bi-directional USB 2.0 over a CAT 5e/6 cable. Together (DXE-USB-S1) the DXE-USB-H1 (Host PC Side) & DXE- USB-D1 (Device Accessory Side) work together to extend to USB up to 220 feet at a full 480Mbps. -
Page 6: Front Dxe-Usb-H1, Dxe-Usb-D1
User Guide Front DXE-USB-H1, DXE-USB-D1 DXE-USB-H1 Front Power LED – Lights solid green when unit is powered. Status LED – Blinks green when processor is running. ES1 & ES2 LEDs – Lights red when setup button is pushed to indicate what mode of operation the unit is in. -
Page 7: Rear Panel Dxe-Usb-H1, Dxe-Usb-D1, Dxe-Usb-D1P
User Guide Rear Panel DXE-USB-H1, DXE-USB-D1, DXE-USB-D1P DXE-USB-H1 Rear 24V DC – Power connector for 24v DC power supply. CAT6 – Connect a standard RJ-45 CAT6 cable to a DXE-USB-D1 / D1P or DXW-2EU. USB – Connect this Mini USB Type B connector to a PC (Host) using the supplied cable. DXE-USB-D1 Rear ... -
Page 8: Applications
User Guide APPLICATIONS Example 1 DXE-USB-H1 Connected to DXE-USB-D1 The DXE-USB-H1 (Host Unit) will be located by the computer using the Mini USB to USB Type A Male cable that is supplied with the DXE-USB-H1. Power will be drawn from the computer’s USB port for the H1. The 24v DC must be connected to power the remote DXE-USB-D1. -
Page 9: Example 2 Dxw-2Eu Connected To Dxe-Usb-H1
The RJ-45 of the DXE-USB-H1 will connect to the DXW-2EU USB 2.0 3.5mm black connector and the RS-232 3.81mm green connector (power & ground only). The pin-out for the RJ-45 is noted below. More information on the DXE-USB-H1 can be found on the Aurora website www.auroramm.com 1- DM... -
Page 10: Example 3 Dxw-2Euh Connected To Dxe-Usb-D1P
User Guide Example 3 DXW-2EUH Connected to DXE-USB-D1P The DXE-USB-D1P (Device Unit with 24v DC supply) will be located by the product using the USB Type A connectors (ex. Keyboard, mouse, etc). The DXW-2EUH will supply 5v to the USB connectors for local charging even if the DXE-USB-D1P is not connected as it derives its power from the HDBaseT connection. -
Page 11: Operation
User Guide OPERATION The DXE-USB Series has the ability to send USB 2.0 up to 220ft at a data rate of 480Mbps. The DXE-USB-H1 is the host extender that will sit by the computer. It is powered from the USB port itself of the computer. -
Page 12: Connector Pin Definition
User Guide CONNECTOR PIN DEFINITION CAT6 Extender Port 1- DM 2- DP 3- 24V DC 4- Host Detect 5- Device Detect 6- GND 7- QM 8- QP 1- VCC (+5V) 2- D- (Data-) 3- D+ (Data+) 4- ID (5 pin Micro & Mini) or GND (4 pin Type A or B) 5- GND (Ground 5 pin Micro &... -
Page 13: Cat5E/6/6A
User Guide CAT5e/6/6A All transmission distances are measured using Belden 1583A CAT5e 125MHz Solid UTP cable. The transmission distance is defined as the distance between the video source and the display. To reduce the interference among the unshielded twisted pairs of wires in UTP cable, you can use shielded STP cables to improve EMI problems, which is worsen in long transmission. -
Page 14: Appendix 1
User Guide APPENDIX 1 Troubleshooting Problem Solution a. Check 24v power supply is plugged in on H1 unit. b. Check to see if Wall supply is plugged into wall outlet. 1. Power LED is not lit on D1 c. Make certain wall outlet has power. d. -
Page 15: Appendix 2
User Guide APPENDIX 2 Technical Specifications Model Name DXE-USB Technical DXE-USB Series USB 2.0 Distance 220ft CAT 6 Front Selections Paperclip hole setup button Front LED for H1 Power, Status, ES1, ES2 Front LED for D1 / D1P Power, Status, ES1, ES2, USB1, USB2... -
Page 16: Appendix 3 Warranty
Limited 3 Year Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. This Limited Warranty covers products purchased in the year of 2009 and after. - Page 17 User Guide This product warranty extends to the original purchaser only and will be null and void upon any assignment or Aurora Multimedia Corp. 205 Commercial Court Morganville, NJ 07751 Phone: 732-591-5800 Fax: 732-591-6801...
