- Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) (Biscuit) Part No. 4398457 11−99 Litho In U.S.A. (mek)
-
Page 2: Cabinet Parts

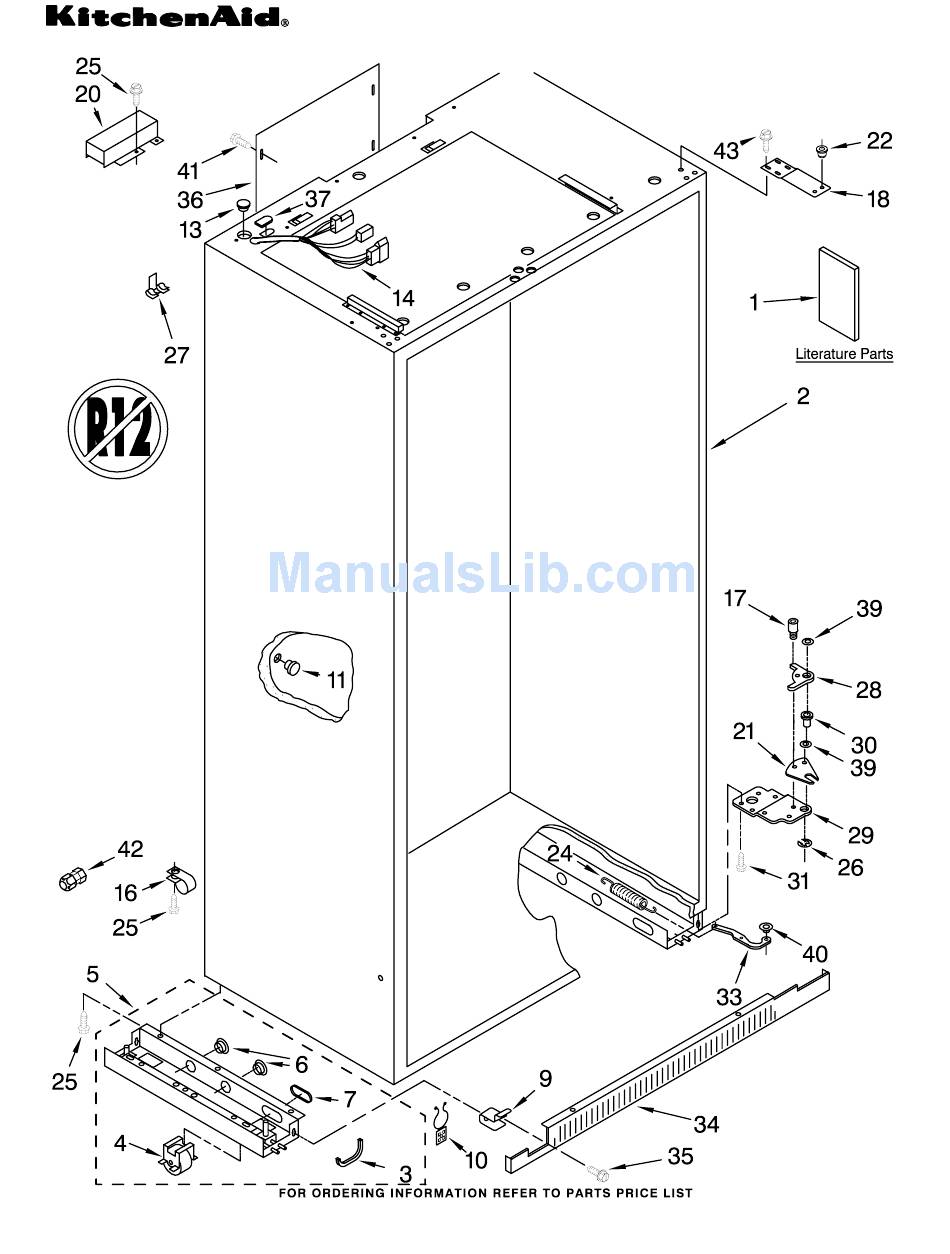

For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 Illus. Part DESCRIPTION LITERATURE PARTS LIT2006136 Use & Care Guide LIT2006651 Energy Label LIT2005930 Service & Wiring Sheet LIT628370 Modular Icemaker Service Sheet LIT2006137 Installation Instructions Cabinet (Not A Serviceable Part) 2005004 Grommet, Tube Crossover 1112023 Roller, Front &... - Page 3 For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 4398457 CABINET TRIM PARTS (White) (Black) (Biscuit) Illus. Part DESCRIPTION Cabinet, Trim (2) 2004668 White 2005820 Black 2005730 Biscuit 2003857 Screw 1163283 Screw 2004536 Cabinet, Trim (Bottom) 489464 Screw 2003645 Cabinet, Trim Top 487944 Washer (2)
-
Page 4: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2005567 Bracket, Light 1113650 Lens 2005042 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) (Biscuit) 4398457... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air...
- Page 7 REFRIGERATOR CONTROL PANEL PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 4398457 (White) (Black) Illus. Part DESCRIPTION 1112640 Control Panel 2003301 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113133 Seal, Control Panel 489260 Screw (3)
- Page 8 FREEZER CONTROL PANEL PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) Illus. Part DESCRIPTION 1113625 Control Panel 2003307 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113132 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3)
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) (Biscuit) 4398457... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) Illus. Part DESCRIPTION 2174402 Frame, Shelf 2003375 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2006523 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113893 Cover, Crisper...
-
Page 11: Freezer Shelf Parts
For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 4398457 FREEZER SHELF PARTS (White) (Black) Illus. Part DESCRIPTION 2003142 Solid Shelf 2003133 Front, Ice Compartment 1113564 Shelf, Fixed (1) 1113636 Shelf, Deep (2) 2208192 Basket 2003112 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side... - Page 12 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 Illus. Part DESCRIPTION Top Grille Assembly 2003716 White 2005901 Black 2006395 Biscuit 2005549 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw Decortive Panel Assembly 2003725 White 2005904 Black...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) (Biscuit) 4398457... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) Illus. Part 2003939 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2004006 Wiring Assembly, 489399 Screw 983663 Coupling, Motor...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) (Biscuit) 4398457... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 Illus. Part DESCRIPTION 2003870 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2005329 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top &...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) (Biscuit) 4398457... - Page 18 FREEZER DOOR PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) Illus. Part DESCRIPTION Freezer Door Panel (Includes Insulation) 2202546W White 2202546B Black 2202546T Biscuit 2004881 Retaining Ring, Door−Closure 2004524 Hinge, Bottom 489282 Screw 2005329 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer,...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) (Biscuit) 4398457... - Page 20 DISPENSER AND FRONT PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 Illus. Part DESCRIPTION Housing, Dispenser (Not Serviceable) 2195051 Strain Relief 2150347 Union 2180209 Spring, Torsion 2196195 Pin 2180208 Ice Door Mechanism 2180205 Door, Ice 489000 Screw Lever, Ice Dispenser 2180259 White...
- Page 21 UPPER UNIT PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) (Biscuit) 4398457...
- Page 22 For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 Illus. Part DESCRIPTION 2003398 Assembly, Unit Base 2163787 Clip, Compressor Mounting (4) 2183418 Compressor (Includes Items 8, 9, 11, 12 & 21) (Also Order 876765 Tube Kit) 680975 Washer 2163786 Grommet, Mounting 2154760 Overload 2162358 Terminal Cover...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) (Biscuit) 4398457...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve, Condenser Inlet Tube 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan...
- Page 25 AIR FLOW AND RESERVOIR PARTS For Models: KSSS36QHW00, KSSS36QHB00, KSSS36QHT00 (White) (Black) (Biscuit) 4398457...
