Net Optics BPO-HBSX-LC Instruction Manual

Optical bypass switch with hearbeat

Advertisement

Quick Links

Installation Guide for
TM
Optical Bypass Switch with Heartbeat
800-0148-001 Doc. PUBBPOHBSXU Rev A, 06/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPO-HBSX-LC and is the answer not in the manual?

Questions and answers

Summary of Contents for Net Optics BPO-HBSX-LC

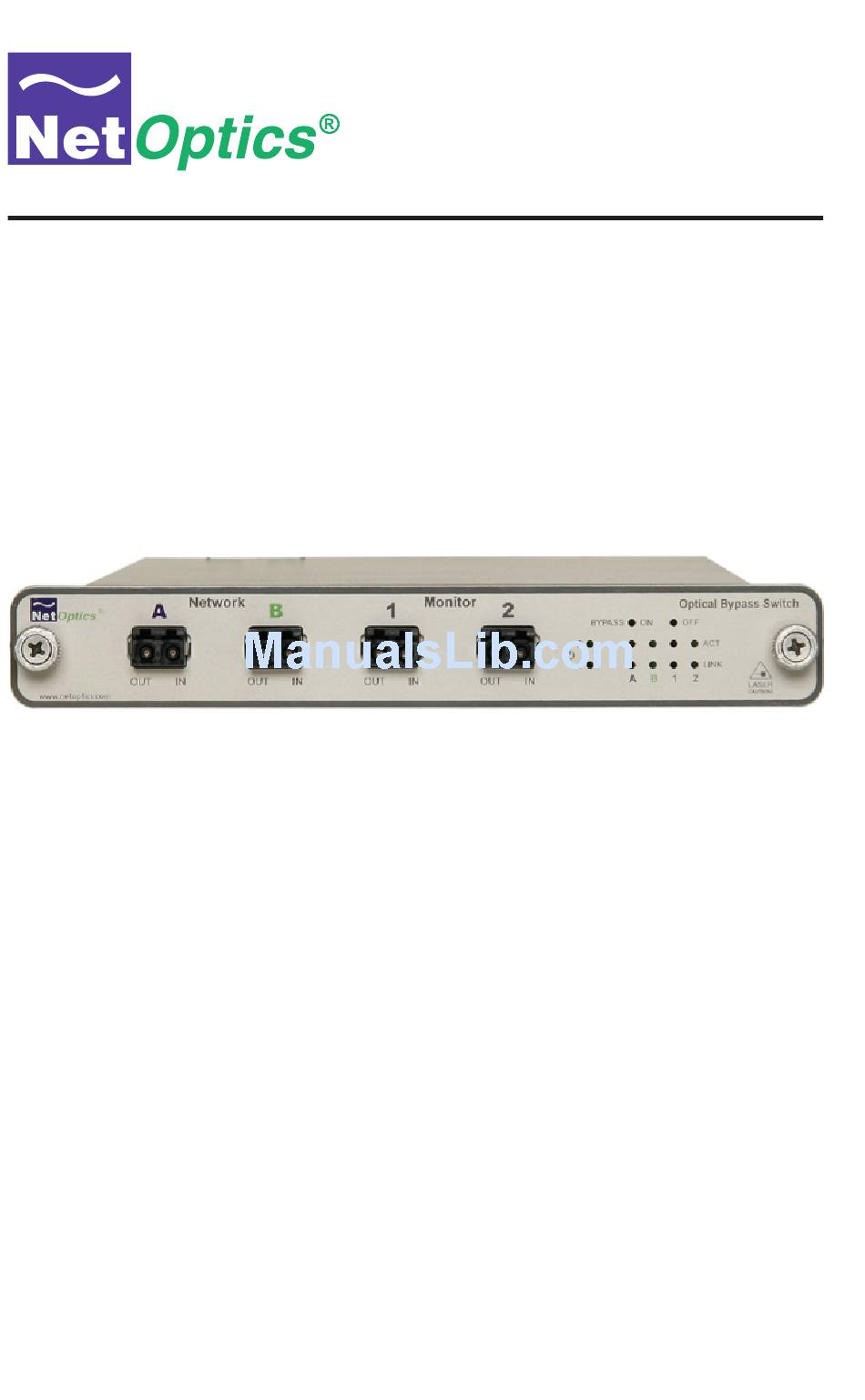

  • Page 1 Installation Guide for Optical Bypass Switch with Heartbeat 800-0148-001 Doc. PUBBPOHBSXU Rev A, 06/06...
  • Page 3: Table Of Contents

    Optical Bypass Switch with Heartbeat Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Key Features .
  • Page 4 Optical Bypass Switch with Heartbeat PLEASE READ THESE LEGAL NOTICES CAREFULLY. By using a Net Optics Optical Bypass Switch you agree to the terms and conditions of usage set forth by Net Optics, Inc . No licenses, express or implied, are granted with respect to any of the technology described in this manual .
  • Page 5: Introduction

    . Whether you are a novice or an expert, this installation guide is designed to help answer any questions and to provide a quick set-up reference. Net Optics Optical Bypass Switches with Heartbeat provide a permanent and trouble-free access port for in-line network security and monitoring devices.
  • Page 6: Key Features

    Support • Net Optics offers free technical support throughout the lifetime of your purchase. Our technical support team is available from 8 am to 5 pm Pacific Time, Monday through Friday at +1 (408) 737-7777 and via email at ts-support@netoptics .com .
  • Page 7: Product Diagrams

    Optical Bypass Switch with Heartbeat Product Diagrams Bypass Indicator LEDs Network Monitor Optical Bypass Switch ® BYPASS LINK LASER www.netoptics.com CAUTION! Network Ports Activity & Link Monitor Ports Power A & B LEDs C & D LEDs Figure 1: Front View Panel Figure 2: Rear View Panel RS232 Port PWR DC Jack Terminals...
  • Page 8: Bypass Modes

    Optical Bypass Switch with Heartbeat Bypass Modes The Optical Bypass Switch with Heartbeat bypasses attached in-line device when one of three events occurs: • Power loss to the switch • Link failure • Application failure Two LEDs on the front of the Optical Bypass Switch indicate whether the switch is bypassing the connected appliance or not .
  • Page 9: Power Loss Bypass

    Optical Bypass Switch with Heartbeat Power Loss Bypass The Optical Bypass Switch protects link integrity when the attached in-line device loses power. To install the Optical Bypass Switch for this type of protection, the switch should share the same power source as the in-line appliance.
  • Page 10 IPX Packet Packet Contents (Hex) Description ----------------------------- ---------------- 00 50 C2 3C 60 00 MAC DA Net Optics 00 50 C2 3C 60 01 MAC SA Net Optics 81 37 Packet Type IPX FF FF 00 30 00 00 00 00...
  • Page 11: Unpacking And Inspection

    Unpack the Optical Bypass Switch, power supplies, and cables provided. Each Optical Bypass Switch is delivered with the following: • 2 Power supplies • 2 LC fiber cables (models , and BPO-HBSX-LC BPO-HB-LX/SX BPO- ) or 2 LC-to-SC cables (model HBLX-SC/LC BPO-HBSX-SC/LC •...
  • Page 12 Optical Bypass Switch with Heartbeat Link Fault Detect You can set the bypass switch to drop the remaining full-duplex link when one side fails. The Link Fault Detect features ensures that connected devices are aware of a failure on both sides of the link. Bypass Detect You can set the Monitor Ports to cycle on and off while the bypass switch is in Bypass Enabled mode .
  • Page 13 Optical Bypass Switch with Heartbeat The following commands are listed: a = Input Timeouts b = Input Configuration c = Input Heartbeat Packet d = Display Configuration e = Display Heartbeat Packet z = Reset to Factory Defaults To set the timeout values: 1 .
  • Page 14 Optical Bypass Switch with Heartbeat 3. Enter packet bytes in Hex format in the following order: MAC DA Net Optics (6 bytes) MAC SA Net Optics (6 bytes) Packet Type (2 bytes) Packet Bytes CRC (4 bytes) Alternately you can load the packet as a pre-formatted text file. The text file should be one byte per line, beginning with a decimal value for the number of packets followed by hex values for the remaining bytes.
  • Page 15: Connecting To The Network

    Optical Bypass Switch with Heartbeat To restore the bypass switch to factory defaults: 1 . Type z and press Enter. You are prompted to select which type of packet you want to restore, IP or IPX. 2. Select 1 to restore defaults with an IP packet or 0 to restore defaults with an IPX packet.
  • Page 16 Optical Bypass Switch with Heartbeat Network Monitor Optical Bypass Switch ® BYPASS LINK LASER www.netoptics.com CAUTION! To Switch, Server, or Router To Switch, Server, or Router Figure 6: Connecting to the Network 3. Verify that the bypass switch Network Ports are cabled in-line between two devices .
  • Page 17: Connecting To The In-Line Device

    Optical Bypass Switch with Heartbeat Connecting to the In-line Device To connect the bypass switch to the in-line device: 1. Connect Monitoring Port C to the in-line appliance using a duplex LC fiber cable. This acts as your DCE interface. 2.
  • Page 18: Specifications

    Dimensions: 1.125” high x 11.5” deep x 6.5” wide Connectors (2) Duplex LC connectors (monitoring ports) (2) Duplex LC connectors (network ports) Cables BPO-HBSX-LC model: (2) LC cables, 3 meter BPO-HB-LX/SX model: (2) LC cables, 3 meter Certifications Fully RoHS Compliant...
  • Page 19: Limitations On Warranty And Liability

    . Net Optics, Inc. warrants this Optical Bypass Switch to be in good working order for a period of ONE YEAR from the date of purchase from Net Optics or an authorized Net Optics reseller.
  • Page 20 © 2010 by Net Optics, Inc. All Rights Reserved.
