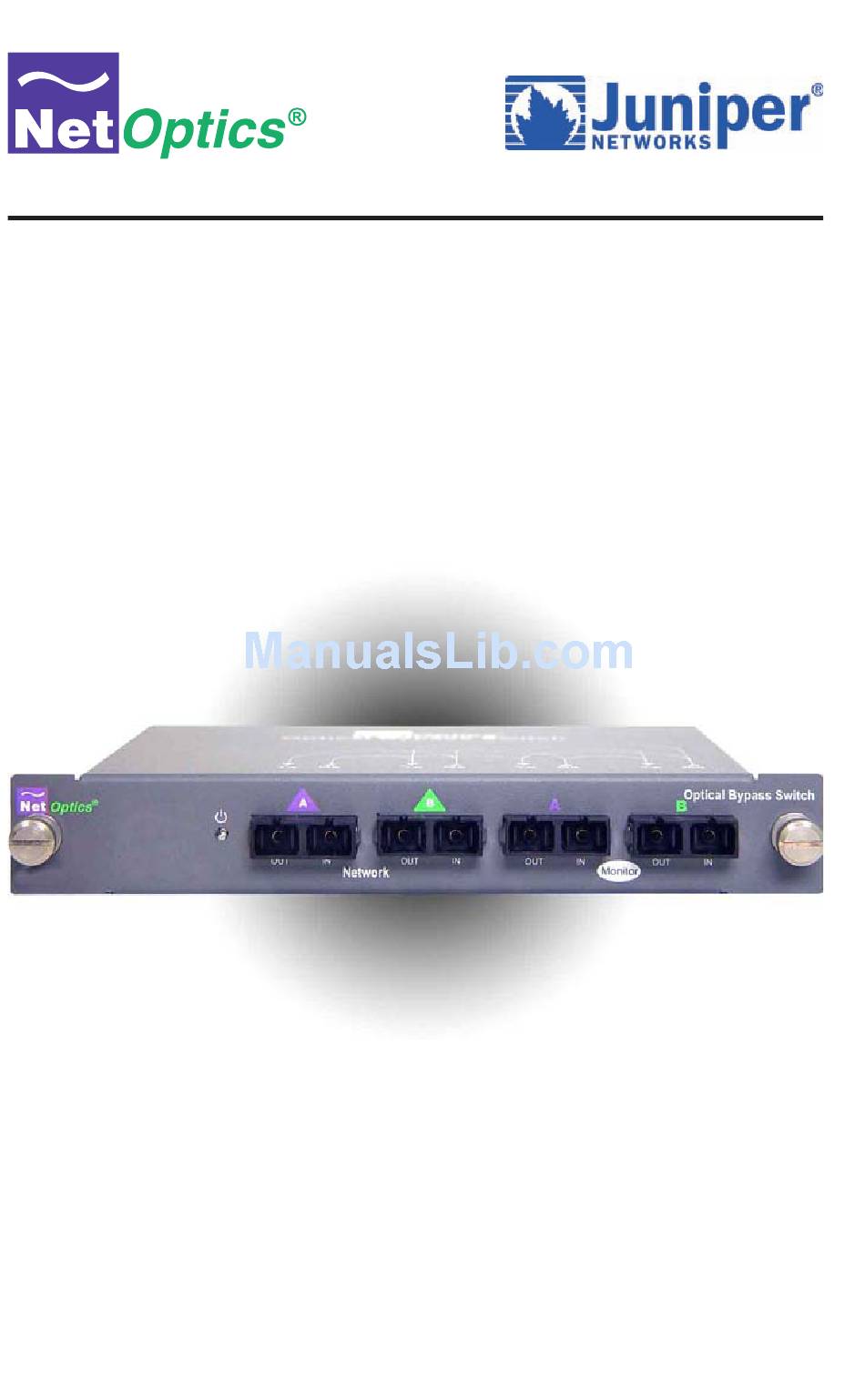

Page 1: Optical Bypass Switch
Installation Guide for Optical Bypass Switch Models N-IDP-POBPSX-001, N-IDP-POBPLX-002 Doc. IGNET-N-IDP-POBPSX-001/LX-002 Revised 09/05... -
Page 2: Table Of Contents
Power.Loss.Bypass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Connecting.the.Optical.Bypass.Switch.to.the.Network. . . . . . . . . . . . . . . . . . . . 5 Connecting.the.Optical.Bypass.Switch.to.the.IPS . - Page 3 By.using.a.Net.Optics.Optical.Bypass.Switch.you.agree.to.the.terms.and.conditions.of.usage.set.forth. by.Net.Optics,.Inc .. No.licenses,.express.or.implied,.are.granted.with.respect.to.any.of.the.technology.described.in.this. manual ..Net.Optics.retains.all.intellectual.property.rights.associated.with.the.technology.described.in. this.manual ..This.manual.is.intended.to.assist.with.installing.Net.Optics.products.into.your.network . Trademarks and Copyrights ©.2005.by.Net.Optics,.Inc ...Net.Optics®.is.a.registered.trademark.of.Net.Optics,.Inc ..Additional. company.and.product.names.may.be.trademarks.or.registered.trademarks.of.the.individual.companies. and.are.respectfully.acknowledged . Additional Information Net Optics, Inc. reserves the right to make changes in specifications and other information contained in.this.document.without.prior.notice ..Every.effort.has.been.made.to.ensure.that.the.information.in. this.document.is.accurate ..Net.Optics.is.not.responsible.for.typographical.errors .
-
Page 4: Introduction
The Optical Bypass Switch supports fail-open monitoring with any fiber IDP device.when.it.shares.the.same.power.source.as.the.IDP ..While.the.Optical. Bypass Switch is receiving power, it diverts network traffic to attached IDP. In this state, all in-line traffic is routed directly to the IDP connected to the Opti- cal.Bypass.Switch .. - Page 5 •. Front-mounted.connectors.support.easy.installation.and.operation •. Cables.included.for.plug-and-play.deployment •. Silk-screened.application.diagram.illustrates.all.connections.for.easy.. deployment •. Optional.19-inch.rack.frames.holds.two.Bypass.Switches •. Tested.and.compatible.with.all.major.manufacturers’.monitoring.devices,. including.protocol.analyzers,.probes,.and.intrusion.detection/prevention. systems Support •. Net.Optics.offers.free.technical.support.throughout.the.lifetime.of.your. purchase. Our technical support team is available from 8 am to 5 pm Pacific Time,.Monday.through.Friday.at.+1.(408).737-7777.and.via.email.at.ts- support@netoptics .com ..FAQs.are.also.available.on.Net.Optics.website.at. www .netoptics .com . Optical Bypass Switch...
-
Page 6: Product.diagram
Optical Bypass Switch Product Diagram Optical Bypass Switch ® O U T O U T O U T O U T Monitor N e t w o r k 96470 GigaBit www.netoptics.com Network Ports A & B Monitor Ports A & B Figure.1 ..Front.View.Panel... -
Page 7: Power.loss.bypass
..When.the.Bypass.Switch.is.receiving.power.it.is.in.Bypass. Disabled.(OFF.).mode ..In.Bypass.Disabled.mode.the.switch.sends.network. traffic through the connnected device. Internet Router When.power.to.the.Bypass.switch.fails,.it.enters.Bypass.Enabled.(ON).mode. and network traffic bypasses the connected device until power to the switch is restored . Internet Router Because in-line traffic is no longer flowing through the IDP, the appliance may be removed and replaced without downtime. -
Page 8: Unpacking And Inspection
Unpacking and Inspection Unpack.the.Optical.Bypass.Switch,.power.supply,.and.cables.provided ..Each. Optical.Bypass.Switch.is.delivered.with.the.following: For models N-IDP-POBPSX-001, N-IDP-POBPLX-002: •..1.DC.power.supply • 2 Duplex SC-SC fiber cables • 2 Duplex SC-LC fiber cables •..1.Manual If.any.component.is.missing.or.damaged,.contact.Net.Optics.Customer. Service.immediately . Connecting the Optical Bypass Switch to the Network 1 ..Connect.Network.Port.A.to.the.appropriate.switch,.server.or.router.device. using a duplex SC fiber cable. This acts as your DCE interface. - Page 9 Connecting the Optical Bypass Switch to the In-line Security Device 1 ..Connect.Monitoring.Port.A.to.the.in-line.appliance.Port.A.using.a.duplex. SC-to-LC fiber cable. This will act as your DCE Interface. 2 ..Connect.Monitoring.Port.B.to.the.in-line.appliance.Port.B.using.a.duplex. SC-to-LC fiber cable. This will act as your DTE interface. 3 ..Verify.that.the.Switch.Monitoring.Ports.are.cabled.in-line.between.two. devices . 4 ..Connect.the.power.supply.to.the.switch ..Make.sure.you.connect.the.
-
Page 10: Specifications
Insertion Loss: Network Port: ≤ 1.25 dB Fiber Type: Singlemode:.Corning.8 .5/125µm,.wavelength,.1300nm Insertion Loss: Network Port: ≤ 1.25 dB Note: There is no insertion loss when the switch is not receiving power and is in Bypass Disabled mode. Operating Specifications: Operating Temperature: 5˚C to 40˚C Storage Temperature: -10˚C to 70˚C... -
Page 11: Warranty
If.you.have.a.problem.and.require.service,.please.call.the.number.listed.at.the.end.of.this.section.and. speak.with.our.technical.service.personnel ..They.may.provide.you.with.an.RMA.number,.which.must. accompany.any.returned.product ..Return.the.product.in.its.original.shipping.container.(or.equivalent). insured.and.with.proof.of.purchase . Additional Information Net Optics, Inc. reserves the right to make changes in specifications and other information contained in.this.document.without.prior.notice ..Every.effort.has.been.made.to.ensure.that.the.information.in. this.document.is.accurate ..Net.Optics.is.not.responsible.for.typographical.errors . THE.WARRANTY.AND.REMEDIES.SET.FORTH.ABOVE.ARE.EXCLUSIVE.AND.IN.LIEU.OF. ALL.OTHERS,.EXPRESS.OR.IMPLIED ..No.Net.Optics.reseller,.agent,.or.employee.is.authorized. to make any modification, extension, or addition to this warranty. - Page 12 www.netoptics.com ©.2005.by.Net.Optics,.Inc ..All.Rights.Reserved ...
