- Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Model: KSSP36QMS03 (Stainless Steel) Part No. W10115020 10−06 Litho In U.S.A. (dmm)
-

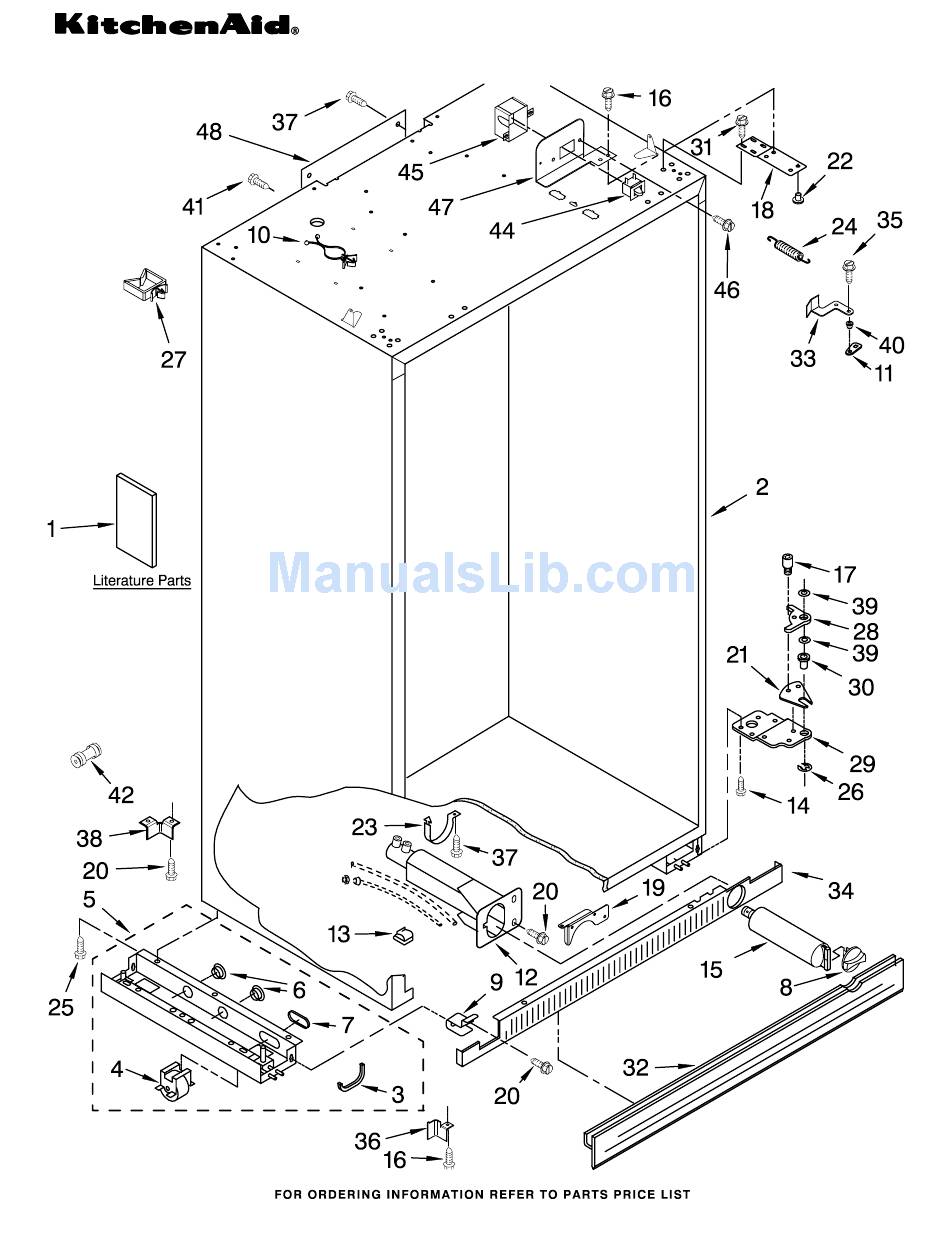

Page 2: Cabinet Parts
2005007 Grommet, Flexible Cap, Water Filter 2186494B Black 2006442 Mounting Stud, Grill 2320650 Clamp, Tube 2005783 Cam, Door Closer CABINET PARTS For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2209022 Housing, Water Filter 488946 Clip, Water Tube 3400525 Screw 2255709 Filter, Water... - Page 3 W10115020 CABINET TRIM PARTS For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552S Stainless Steel Screw 8281250 Stainless Steel 2316686 Cabinet, Trim (Bottom) 486194 Screw 2313991 Cabinet, Trim Top Cabinet Trim (Left Side) 2222553S Stainless Steel 2005925 Seal−Trim, Side...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2302867 Wire, Shelf 2302882 Shelf, Fixed (2) 2259081 Basket 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10115020... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSP36QMS03 (Stainless Steel) W10115020... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Control...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS W10115020 For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2302771 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2310197 Control Box Wire Harness 2221121 Support, Control 489006 Screw (2) 2306086 Display Board, Ingredient Care Center... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSP36QMS03 Illus. Part 2257401S Stainless Steel 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2320678 Cover, Unit Front 487415 Screw 2310194 Wire Assembly 2220944 Stainless Steel 489348 Clamp 2215910 Grommet, Flexible (Stainless Steel)
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSP36QMS03 (Stainless Steel) W10115020... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2222591 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2302841 Meat Pan Cover Assembly 2302834 Crisper Cover Assembly 2257581 Trim, Glass Rear 2252411 Crisper Pan (2) Slide, Meat Pan...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSP36QMS03 (Stainless Steel) W10115020...
- Page 12 2306045 Air Duct 2198643 Lens Block, Fan Scroll 2209481 Right 2209066 Left 2215650 Cover, Emitter Liner (Not A Serviceable Part) For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2259025 Cover, Air Outlet 2259367 Light Shield 2314042 Cover, Evaporator 8281163 Screw...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSSP36QMS03 (Stainless Steel) W10115020... - Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSP36QMS03 (Stainless Steel) Illus. Part 2222960 Ice Bin 2222959 Crusher Bin 2258222 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSP36QMS03 (Stainless Steel) W10115020... - Page 16 REFRIGERATOR DOOR PARTS For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item #9) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222795 Rail, Lid 2222981 Gasket, Utility 2222810 Door Gasket, Magnetic Handle, Door...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSP36QMS03 (Stainless Steel) W10115020... - Page 18 FREEZER DOOR PARTS For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door Panel (Includes Item #14) 2320570B Black 2304896 Safety Barrier 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222813 Door Gasket, Magnetic Handle, Door 2256472S Stainless Steel...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSSP36QMS03 (Stainless Steel) W10115020... - Page 20 DISPENSER AND FRONT PARTS For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2310199 Wire Assembly Cover, Dispenser (Not Available− Order Item 25) 2304772 Spring, Torsion 2196195 Pin 2304355 Ice Door Mechanism 2180353 Door, Ice...
- Page 21 UPPER UNIT PARTS For Model: KSSP36QMS03 (Stainless Steel) W10115020...
- Page 22 8281149 Screw 1157158 Screw 2259307 Condenser 943447 Grommet (4) 2310243 Wire, Jumper 487522 Screw 2155774 Wire Tie 2317982 Drier UPPER UNIT PARTS For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2310207 Wire Assy. (Condenser Fan) 2206036 Motor, Fan 2190685 Blade, Fan...
- Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSP36QMS03 (Stainless Steel) W10115020...
- Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 2259352 Tube, Discharge 9791833 Clip, Thermistor...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Model: KSSP36QMS03 (Stainless Steel) W10115020... - Page 26 2198641 Bracket, Icemaker Cover 2208136 Clamp, Nylon Valve 488937 Clamp Tube 2259417 Tube, Water Inlet 2257538 Cover 488500 Screw ICEMAKER PARTS For Model: KSSP36QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2212351 Mold & Heater (Also Order 542638 Silicone Grease) Motor (Not−...
