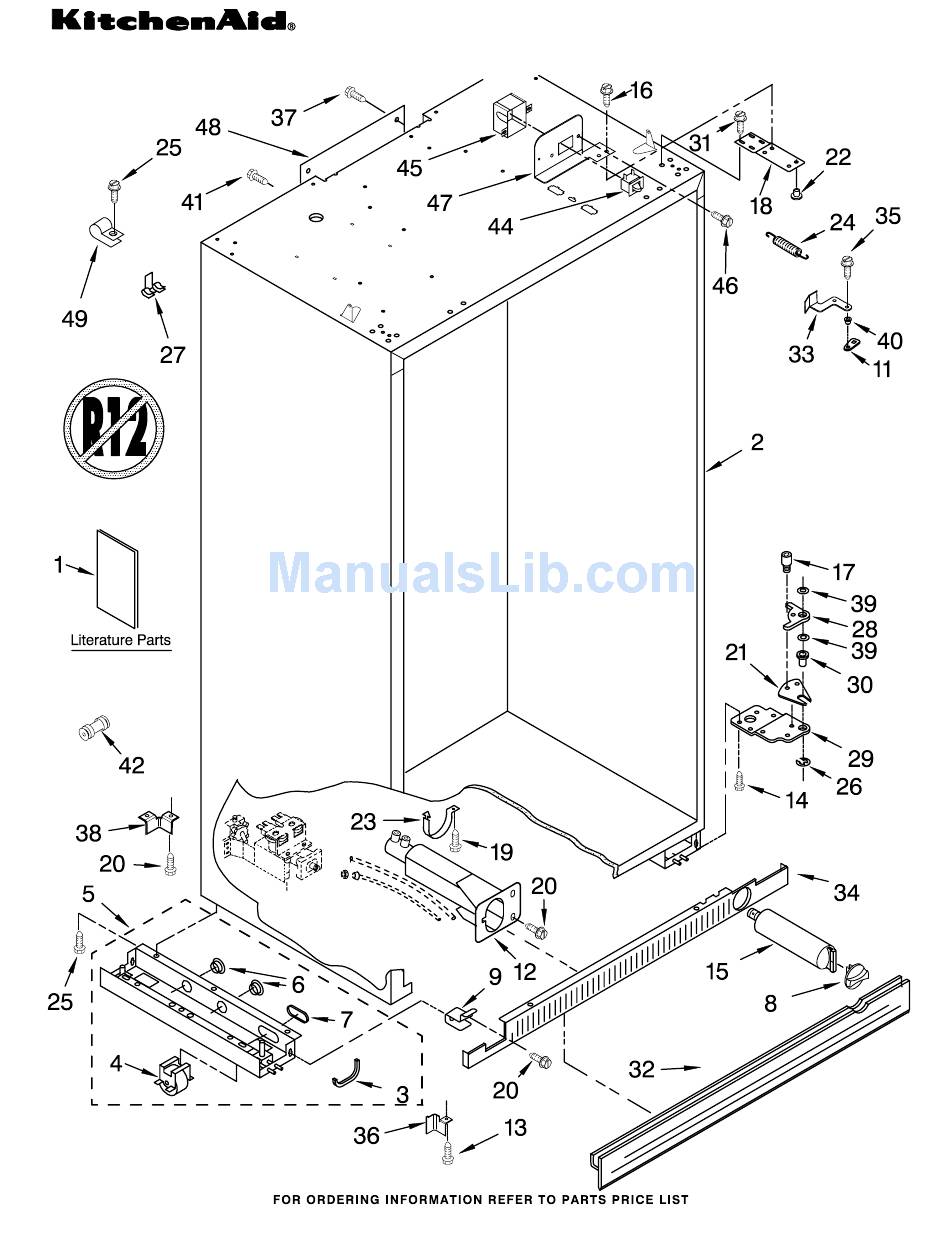

- Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Model: KSSP36QKS01 (Stainless Steel) 5−03 Litho In U.S.A. (tpm) Part No. 8198070...
-
Page 2: Cabinet Parts
Flexible 2186494B Cap, Water Filter 2006442 Mounting Stud, Grill 2005783 Cam, Door Closer 2209022 Housing, Water Filter 488500 Screw CABINET PARTS For Model: KSSP36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 3400525 Screw 2203221 Filter, Water 489399 Screw 2005378 Screw, Door Stop... - Page 3 8198070 CABINET TRIM PARTS For Model: KSSP36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2215919S Cabinet, Trim (Right Side) 8281250 Screw 2254724 Cabinet, Trim (Bottom) 486194 Screw 2003645 Cabinet, Trim Top 2215936S Cabinet Trim (Left Side) 2005925 Seal−Trim, Side 489464 Screw...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSP36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2220889 Solid Shelf 2220846 Front, Ice Compartment 1113636 Shelf, Fixed (2) 1113564 Shelf, Deep 2208192 Basket 2220843 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSP36QKS01 (Stainless Steel) 8198070... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSP36QKS01 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2221211 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 486194 Screw 1112257 Hole Plug 2220888 Meat Pan, Air...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS 8198070 For Model: KSSP36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2215715 Control Box 2215670 Insert, Control 2209159 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2003841 Retainer, Knob 2221121 Support, Control 489006 Screw 2162085 Socket, Light 2160708 Light Bulb (2) - Page 8 2215924S Grille Assembly 2209490 Cover, Unit 486194 Screw 2215830 Back Panel 2209492 Guard, Wiring 2220944 Panel, Insert 2215678 Baffle−Air, Condenser 2221297 Enclosure, Terminal 487415 Screw 2187429 Wire Assembly, RC/FC Light Switch 488946 Clamp, Tube For Model: KSSP36QKS01 (Stainless Steel) 8198070...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSP36QKS01 (Stainless Steel) 8198070... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSP36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2174402 Frame, Shelf 2003375 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 2179404 Rack, Wine 2216625 Egg Bin 2006523 Frame, Assembly Meat Pan 1113893 Cover, Crisper 2003378 Glass, Crisper...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSP36QKS01 (Stainless Steel) 8198070...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSP36QKS01 Illus. Part 2208939 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 2155590 Retainer, 2155788 Gasket, Cover 2208968 Grommet 486194 Screw 2003924 Deflector, 488500 Screw, Ground 2162085 Socket, Light (2) 488937 Clamp, Nylon...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSSP36QKS01 (Stainless Steel) 8198070... - Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSP36QKS01 (Stainless Steel) Illus. Part 2003939 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2187421 Wiring Assembly, 489399 Screw 2205716 Coupling, Motor...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSP36QKS01 (Stainless Steel) 8198070... - Page 16 REFRIGERATOR DOOR PARTS For Model: KSSP36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 8201580 Refrigerator Door Panel (Includes Insulation) 2220922 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2220809 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2188497 Door Gasket,...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSP36QKS01 (Stainless Steel) 8198070... - Page 18 FREEZER DOOR PARTS For Model: KSSP36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2215657B Freezer Door Panel (Includes Insulation and Dispenser Housing) 2220810 Hinge, Bottom 489282 Screw 2220922 Hinge, Top 2004520 Spacer−Door, 2209355 Panel, Decorative Upper 1112533 Gasket Retainer, Side (2) 1112538 Gasket Retainer, Top &...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSSP36QKS01 (Stainless Steel) 8198070... - Page 20 DISPENSER AND FRONT PARTS For Model: KSSP36QKS01 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2221203 Wire Harness Cover, Dispenser (Not Serviced) 2180209 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180352 Door, Ice 489000 Screw...
- Page 21 UPPER UNIT PARTS For Model: KSSP36QKS01 (Stainless Steel) 8198070...
- Page 22 2209037 Shroud, Condenser (Left) 2254739 Control Board 2203075 Spacer (5) 2209493 Bracket, Inverter 486899 Screw 488208 Screw 2209062 Condenser UPPER UNIT PARTS For Model: KSSP36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 943447 Grommet (4) 2187422 Wire, Jumper 487522 Screw 851095 Wire Tie (2)
- Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSP36QKS01 (Stainless Steel) 8198070...
- Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSP36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2196155 Defrost Bi−Metal 2209119 Wire Harness 486194 Screw 2215508 Bracket 2209067 Side Support 2209035 Suction Tube 2209454 Tube, Connect (Drier) 2209451 Heater, Drain Pan 2209450 Hanger, Heater...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Model: KSSP36QKS01 (Stainless Steel) 8198070... - Page 26 2209430 Tube, Filter Outlet 2221221 Valve, Solenoid 489115 Fastener, Snap−In 2254727 Water Valve, Harness 1129177 Insert, Tube PARTS NOT ILLUSTRATED ICEMAKER PARTS For Model: KSSP36QKS01 (Stainless Steel) Illus. Part DESCRIPTION 2208136 Clamp, Nylon Valve 488937 Clamp Tube 2204357 Compression Nut 2221232 Cover 628228 Mold &...
