R400

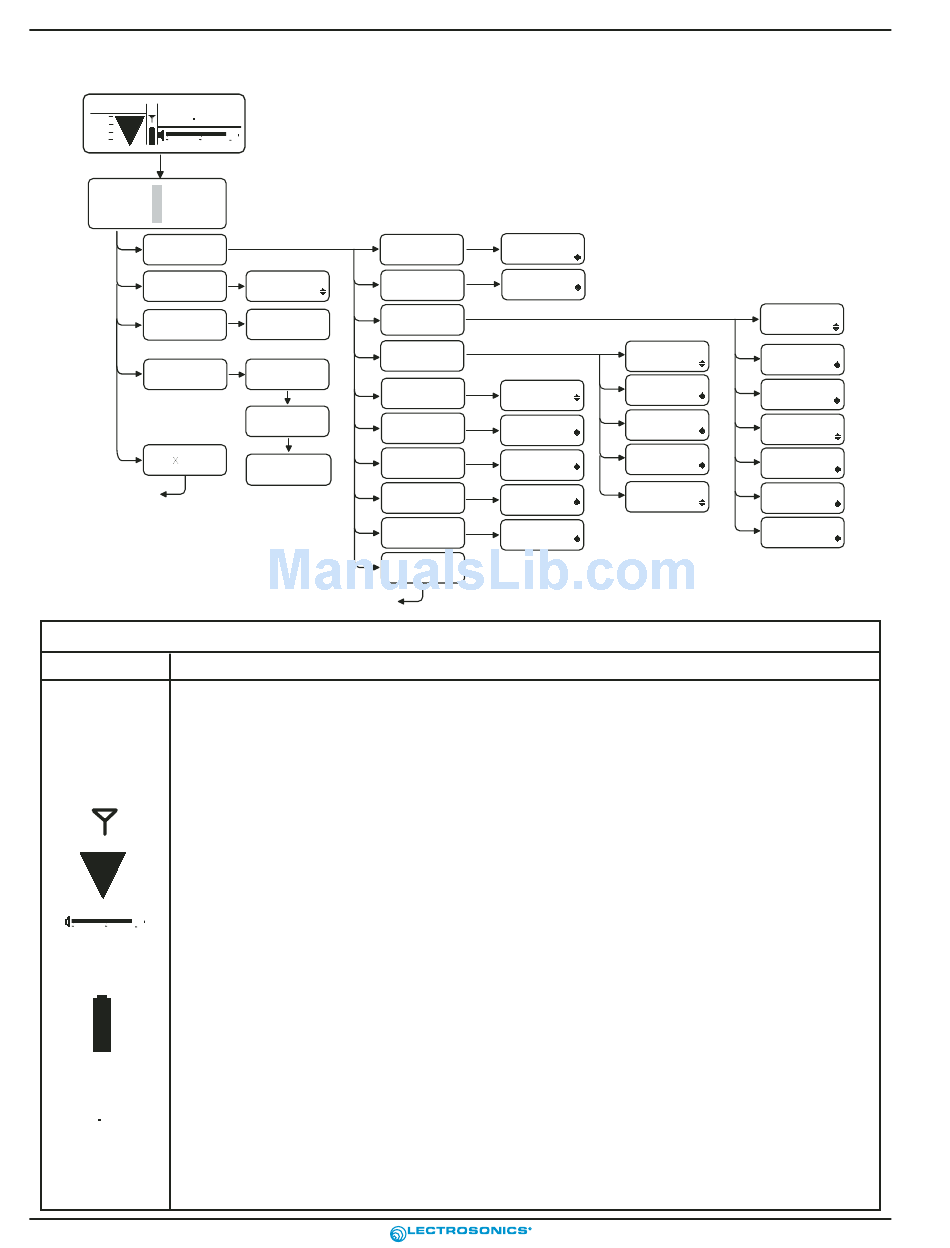

Main Window

R400

557.100

1000

NORM

100

1uV

TopMenu

SetUpRx

LockSet

SmrtTun

Scan

xExit

SetUpRx

LockSet

SmrtTun*

Scan

Exit

Return to

Main Window

Icon

Pilot tone indicator - A steady "P" is displayed when the transmitter pilot tone is present (200 Series

and the native 400 Series Compatibility Modes only). The icon flashes if no pilot tone is detected and

changes to a small "b" if the pilot tone has been bypassed. To bypass the pilot tone, from the Main

Window, push the MENU control twice to select SetUpRx, then rotate the control to select PilotBP.

Push the MENU control again and rotate it to highlight BYPASS. Push the POWER/PREV MENU

button several times to return to the Main Window.

Antenna Phase indicator - Displays antenna phase switching activity. As the DIV ANT phase is

switched, the symbol will flip vertically.

RF level - Displays the relative strength of the incoming RF. The icon grows taller as the strength of

the incoming RF signal increases. RF level calibrations are shown from 1 uV to 1000uV on the bezel

to the left of the RF level icon.

Audio Level - The audio level bar changes in size horizontally to indicate the audio level (modula-

tion) of the signal received from the transmitter. The bar display will show a vertical bar at the right

end when the audio signal is in limiting (maximum level) at the transmitter. Calibration marks in dB

are displayed below the bar.

Battery Level - Indicates the transmitter battery status or the transmitter battery use time, depending

on the TXBAT setting. The transmitter battery status icon is available only in compatibility modes

supporting battery telemetry (400 and 200 Series). In such cases, the transmitter battery status icon

appears 5 to 10 seconds after the transmitter signal is acquired. If selected in the TXBAT setup

screen, the transmitter battery timer is available in any compatibility mode. It accumulates hours and

minutes that the communications link is active, retaining the timing even when the receiver is off.

Operating Frequency/Tuning Mode/Switch Settings - Displays the operating frequency, the tuning

557.100

NORM

mode and the settings for the Frequency Select Switches in the associated transmitter(s). The

Tuning Mode indicates whether the receiver is set for Normal tuning or Group tuning. (See Tuning

Menu)
