UST GC2300 Series Owner's Manual
  1. Manuals
  2. Brands
  3. UST Manuals
  4. Portable Generator
  5. GC2300 Series
  6. Owner's manual

UST GC2300 Series Owner's Manual

Gasoline generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

DISCLAIMER: All pictures may not be identical to product inside box.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GC2300 Series and is the answer not in the manual?

Questions and answers

tony
June 10, 2025

is this generator a 2 stro ke

0

Subscribe to Our Youtube Channel

Related Manuals for UST GC2300 Series

Summary of Contents for UST GC2300 Series

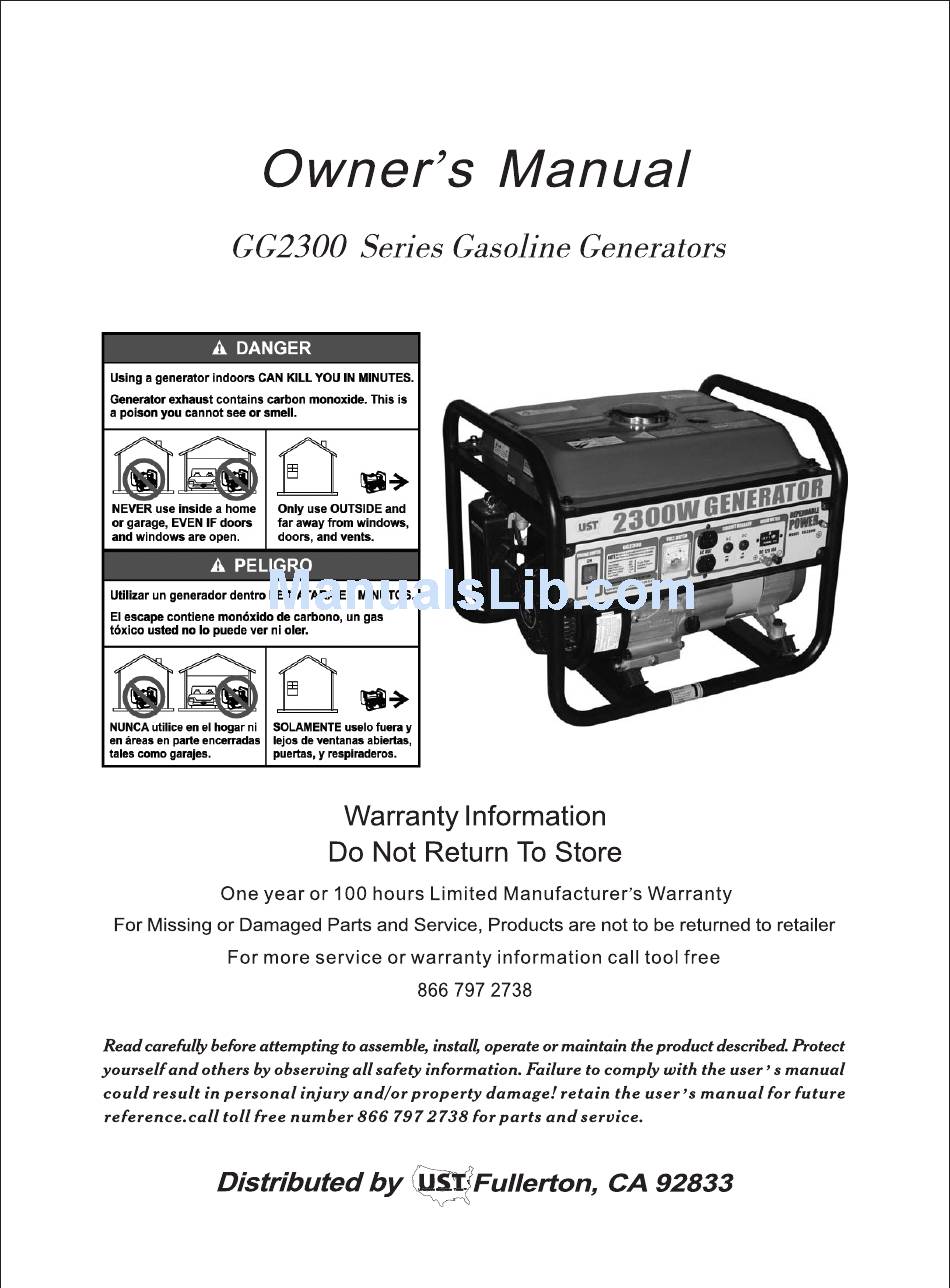

  • Page 1 DISCLAIMER: All pictures may not be identical to product inside box.

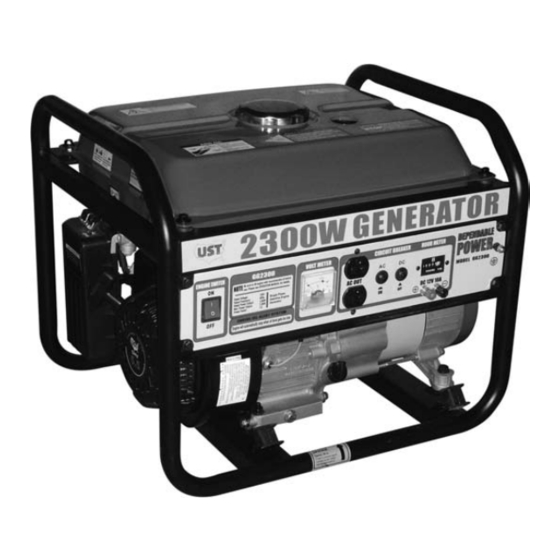

  • Page 3 1. FUEL TANK 2. FUEL TANK CAP 3. FUEL GAUGE 4. FRAME 5. CIRCUIT BREAKER 6. GROUND TERMINAL 7. HOUR METER 8. DC TERMINALS 9. DC PROTECTOR 10. DOUBLE SOCKET 11. VOLT METER 12. OIL FILLER CAP 13. OIL DRAIN PLUG 14.
  • Page 4 OIL IS INCLUDED WITH NEW GENERATORS, SAVE THE CONTACNER TO MEASURE OIL VOLUME FOR OIL CHANGES.
  • Page 6 5.Pull the stater grip lightly until resistance is felt then pull briskly. 6.Push the choke rod to the OPEN position as the engine warms up.
  • Page 9 7. Engine will not start if oil level is not correct.
  • Page 11 Engine will not start unless oil level is correct. Had spark plug against metal, pull start nope to see spark. Plug in known working light bulb. In case long term storage generator has no output when started,please turn off the circuit breaker and prod the ARM to increase the throttle until the volt-meter indicates voltage...

  • Page 12: Wiring Diagram

    10.WIRING DIAGRAM CIRCUIT BREAKER AC OUT VOLT METER GROUND TERMINAL DIODE DC PROTECTER WINDING EXCITER WINDING MAIN WINDING ENGINE SWITCH ALERT UNIT FIELD WINDING OIL LEVEL SPARK SWITCH BLUE PLUG WHITE BROWN GREEN YELLOW BLACK Gr GRAY IGNITION COIL 11.SPECIFICATIONS Package(LxWxH) (in) 20.87 17.12 18.4(530 435 460mm) Net weight (lbs)

  • Page 17: Air Cleaner Assy

    AIR CLEANER ASSY. PART NO DESCRIPTION QJ168FJH-3.05.01-01 COVER, air cleaner QJ168FJH-3.05.01-02 COVE, filtering QJ168FJH-3.05.01-04 SEAL, QJ168FJH-3.05.01.01 bellow hull ASSY QJ168FJH-3.05-01 Colloid pipe QJ168QDJ.07.03 SEAL, air cleaner GB/T5787 BOLT M6*12 GB/T6177 NUT M8 GB/T5789 BOLT M8*35 QJ168FJH-3.05-02 BRACKET, air cleaner QJ168FJH-3.05.01-03 Sustain board GB/T823 BOLT M6*12...
  • Page 19 PART NO DESCRIPTION QJ2900F.04.01 Muffler QJ2900F.04-01 Muffler Cover FRAME PART NO DESCRIPTION QJ2900.04.01A Frame QJ2900.04-01 Shockproof Mounting Feet l QJ2900.04.02 Shockproof Mounting Feet ll GB/t6177-86 Screw M8...
