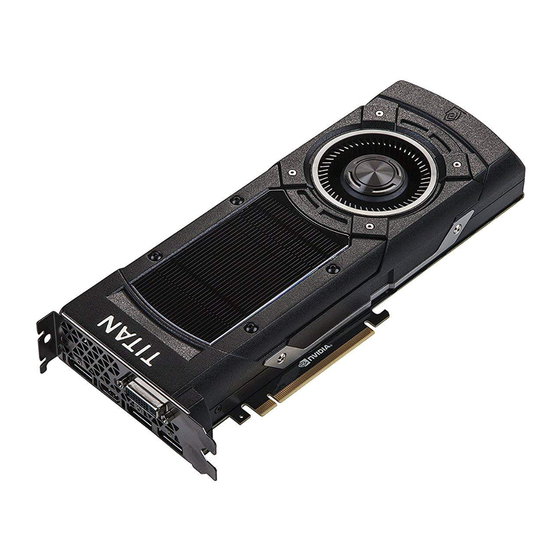

Plus, with NVIDIA’s GeForce Experience built right into its drivers, you can take advantage of NVIDIA’s tens of thousands of hours of testing to optimize your gameplay settings with one click. About This Guide This installation guide discusses the installation and operation of the NVIDIA GeForce GTX TITAN X graphic card.
> Operating System Microsoft Windows 8, 32-bit or 64-bit Microsoft Windows 7, 32-bit or 64-bit Prior to unpacking your new NVIDIA GeForce GTX Linux, 32-bit or 64-bit TITAN X graphics card, it is important to make FreebSD x86 sure you meet all the system requirements listed >...
GeForce GTX TITAN X Graphics Card One 6-Pin and one 8-Pin Power Connectors Installing the NVIDIA GeForce GTX TITAN X graphics card hardware involves opening up your computer. Follow all of the safety instructions provided here to ensure that there is no damage to you, your computer, or the graphics board.
Remove any existing graphics card (if there is one). Save hardware (such as screws and brackets) to use when installing the NVIDIA The GeForce GTX TITAN X graphics card is a PCI Express 3.0 ×16 graphics card. graphics card. Your computer may already have a graphics card installed in the PCI Express slot.
Page 8
HARDWARE INSTALL ATION HARDWARE INSTALL ATION Plug the GeForce GTX TITAN X graphics card into the Primary PCI Install a second GeForce GTX TITAN X graphic card (2-way SLI): Express x16 slot on your motherboard. This is often the slot closest to Install the second GeForce card into the outer most PCI Express the CPU but may be the second or third slot.
SOFT WARE INSTALL ATION Connect one 6-pin and one 8-pin PCI Express auxiliary power connectors to the top edge of the GeForce GTX TITAN X graphics card. Note that the connectors and sockets on the graphics card have SoFTwARE INSTAllATIoN a unique shape and connect one way only.
The GeForce Experience software begins to install. To install/update your graphics driver, use the newly installed Ge- Force Experience. GeForce Experience automatically checks NVIDIA servers for the latest GeForce drivers each day, and notifies users if a new driver is available Open GeForce Experience and select the Drivers tab.
You can enable SLI by either clicking on the SLI capable system balloon in the system tray or by going to the NVIDIA Control Panel. Note: It may take several minutes for the installation to take place. Your screen may go blank for a few seconds one or Note: You must have an SLI-ready motherboard and 2 or 3 more times during installation.
CONFIGURING SLI CONFIGURING HDMI Enabling / Disabling SLI Once you have the NVIDIA Control Panel open, click on Configure SLI, Surround, PhysX in the left task pane. CoNFIGURING HDMI Select from the following multi-GPU configurations: > Maximize 3D performance Select this mode when you want your graphics cards to work to- gether to increase your rendering performance and image quality.
Plus, it allows users to optimize the game settings to their PC with a single click. GeForce Experience also includes NVIDIA ShadowPlay™ that lets you capture and share your favorite gaming moments.
NVIDIA CUDA™: Unlock the power of the GPU’s processor cores to accelerate demanding tasks such as video transcoding, physics simulation, ray tracing, and more, delivering incredible The NVIDIA GeForce GTX TITAN X graphics card is compliant with the performance improvements over traditional CPUs. following regulations: >...
Page 15
COMPLIANCES COMPLIANCES JAPAN However, there is no guarantee that interference will not occur in a particular installation. Voluntary Control Council for Interference (VCCI) If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: >...
Page 16
No license is granted by implication or otherwise under SAFETY any patent or patent rights of NVIDIA Corporation. Specifications mentioned in this Underwriters Laboratories (UL) publication are subject to change without notice. This publication supersedes and replaces all information previously supplied.
