Summary of Contents for Nvidia GeForce4 Ti 4400

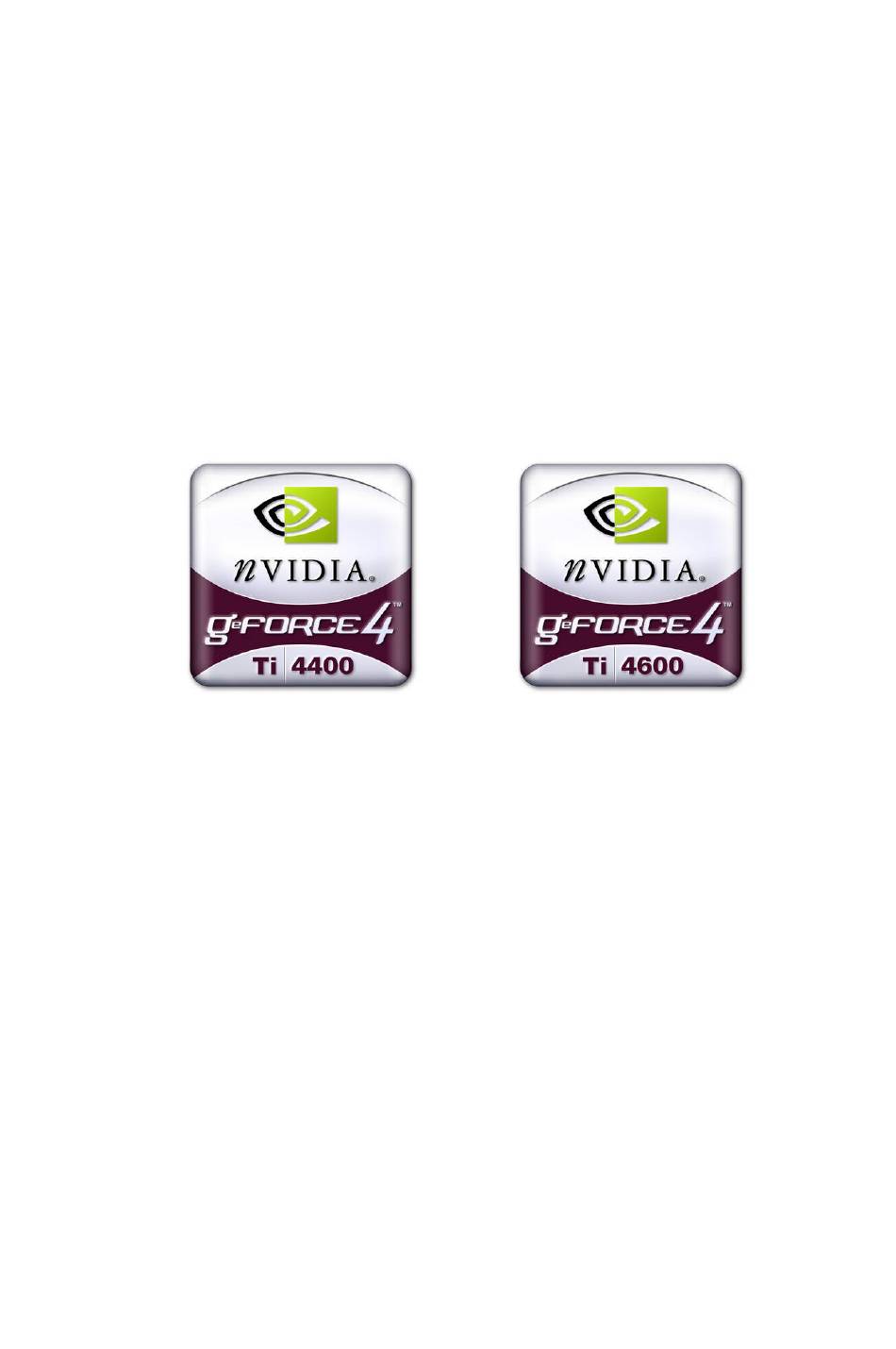

- Page 1 NVIDIA GeForce4 Ti 4600/4400 3D GRAPHIC ACCELERATOR MANUAL...
- Page 2 ATE IN INDOWS 5.4 NVIDIA U ..............9 TILITY IN INDOWS YSTEM 5.4.1 GeForce4 Ti4600 / 4400 (NVIDIA)..............9 5.4.2 nView......................10 5.4.2.1 Standard mode:................11 5.4.2.2 Color correction…................12 5.4.2.3 Screen Adjustment…..............13 5.4.2.4 nView enable mode.................14 6. MANUALLY INSTALL WINDOWS 98 AND WINDOWS ME DRIVERS......15 6.1 I...
- Page 3 1. NVIDIA GeForce4 Ti 4600/4400 Features GeForce4 Ti 4600 AGP bus, with 128MB DDR SDRAM on Board Graphics core 256-BIT Fill rate (AA samples/sec.) 4.8 BILLION Triangles/sec 86 MILLION Memory bandwidth 10.4 GB/SEC GeForce4 MX4400 AGP bus, with 64MB DDR SDRAM on Board...
- Page 4 2. Hardware installation 2.1 Package Contents NVIDIA GeForce4 Ti 3D Accelerator card CD title or Software diskettes This manual 2.2 Installing the card Turn off your computer Remove the cover of the computer per the owner’s manual Install the card in the AGP bus slots...
- Page 5 3. Resolutions and colors supported: GeForce4 Ti 4600/4400 B.P.P. Refresh Rates (HZ) 60/70/72/75/85/100/120/140/144/150/170/200/240 640*480 60/70/72/75/85/100/120/140/144/150/170/200/240 60/70/72/75/85/100/120/140/144/150/170/200/240 60/70/72/75/85/100/120/140/144/170/200/240 800*600 60/70/72/75/85/100/120/140/144/170/200/240 60/70/72/75/85/100/120/140/144/170/200/240 60/70/72/75/85/100/120/140/144/150/170/200/240 1024*768 60/70/72/75/85/100/120/140/144/150/170/200/240 60/70/72/75/85/100/120/140/144/150/170/200 60/70/72/75/85/100/120/140/144/150/170/200 1152*864 60/70/72/75/85/100/120/140/144/150/170/200 60/70/72/75/85/100/120/140/144/150 60/70/72/75/85/100/120/140/144/150/170 1280*960 60/70/72/75/85/100/120/140/144/150/170 60/70/72/75/85/100/120/140/144/150 60/70/72/75/85/100/120/140/144/150/170 1280*1024 60/70/72/75/85/100/120/140/144/150/170 60/70/72/75/85/100/120/140/144/150 60/70/72/75/85/100/120/140/144/150 1600*900 60/70/72/75/85/100/120/140/144/150 60/70/72/75/85/100/120 60/70/72/75/85/100/120 1600*1200 60/70/72/75/85/100/120...
- Page 6 4. Smart Installation For Windows XP, Windows 2000, Windows 98, Windows ME 4.1 Put the DRIVERS CD in your CD-ROM 4.2 Click Driver installation 4.3 If everything fine, screen will show Confirm Installation window. Then Select OK...
- Page 7 4.4 Now appears the Driver Confirmation window Select Install If the drivers is very new may not certified by Microsoft, if so, system will prompt you the drivers do not have “digital signature”, still you can force to install. 4.5 Then restart your computer.
- Page 8 11. Then show Browse for Folder Select E:\drivers\ NVIDIA\7200\winXP (If 7200 not exist, use 7X00 instead) Note: “E:”-> CD Drive, “NVIDIA”-> VGA chip brand name, “7200”-> VGA model name Then select OK and then click Next 12. If no problem occur, system will start to install the driver 13.
- Page 9 5.3 How to Change Refresh Rate in Windows XP Make sure that you have installed windows XP Driver. Click on the Start box in the lower left corner and proceed to Setting, Control Panel Inside the Control panel group , click on Display icon to open the Display Properties folder and choose Settings click the Advance Settings choose Monitor Click on the Refresh Rate sub window to change refresh rate...
- Page 10 Chip model name, IRQ setting and many useful information. Additional properties is for advance user to setting OpenGL, Direct3D, Overlay control, Desktop Utilities and 3D antialiasing settings. NVIDIA on the Internet can reach NVIDIA official web site for more NVIDIA news.
- Page 11 5.4.2 nView nView have 4 modes : Standard, Clone, Horizontal span and Vertical span. If the optional connector is connected, you will be able to choose one as Windows default display device. Only the device is plugged and functional, You will be able to check the selection box.
- Page 12 5.4.2.1 Standard mode: nView disabled, only one monitor will work. Click Device Settings >> , you can select output device – Analog display, TV or Digital display. Or you can select Advanced … and select output device. Click Video output format bar to select S-Video or RCA (optional) output, default is auto select.
- Page 13 5.4.2.2 Color correction… Click Device Settings >>, select Color Correction…. This Window shows NVIDIA Digital Vibrance is functional and you can adjust Brightness, Contrast, Gamma and save it as your favorite setting. If you don’t like your adjustments, you can also check...
- Page 14 5.4.2.3 Screen Adjustment… Click Device Settings >>, select Screen Adjustment… You can adjust screen position. Display Timing can let you set your computer timing.
- Page 15 5.4.2.4 nView enable mode You need two monitors, one analog monitor (CRT) and one TV or DVI (digital display monitor). All connected well and functional. nView allow you to choose any one of the 3 different display device to be primary device, and one of the rest two to be secondary device.
- Page 16 11. Then show Browse for Folder tab Select E:\drivers\ NVIDIA\7200\Win9X or \Winme (If 7200 not exist, use 7X00 instead) Note: “E:”-> CD Drive, “NVIDIA”-> VGA chip brand name, “7200”-> VGA model name Then select OK 12. Then show Update Device Driver Wizard tab...
- Page 17 Now comes up a update drivers wizard window. Please follow the on screen instruction. Please specify the drivers location at your CDROM letter: \drivers\NVIDIA\7200\ win2000 (If 7200 not exist, use 7X00 instead) or the directory where you put your drivers Select Install and click “YES”...
- Page 18 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two condition.(1).this device may not cause harmful interference. (2).this device must accept any interference received, including interference that may cause undesired operation Warning: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules.
