[ 1 ] GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
[ 2 ] CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
[ 3 ] MX-M200D/MX-M160D/MX-M160 . . . . . . . . . . . . . . . . . . . . . . . 3-1
[ 4 ] AR-SP10/AR-RP10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
[ 5 ] AR-D34/AR-D35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
[ 6 ] MX-FX10/AR-MM9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
[ 7 ] MX-NB10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
[ 8 ] MX-TR10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
[ 9 ] CHANGING THE COPY PAPER SIZE IN THE TRAY. . . . . . . . . 9-1
[10] ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
AR-PF2 MACRO FONT FLASH ROM KIT . . . . . . . . . . . . . . . . 11-1
[12] MX-PK10 PS EXPANSION KIT . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
[13] AR-SM5 256Mb EXPANSION MEMORY . . . . . . . . . . . . . . . . . 13-1
Parts marked with "
" are important for maintaining the safety of the set.
Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

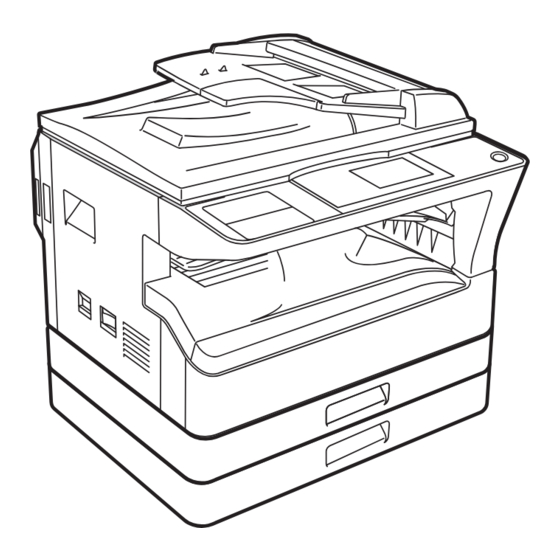

INSTALLATION MANUAL
MX-M200D
CONTENTS
SHARP CORPORATION
CODE : 00ZMXM200DI1E
DIGITAL
MULTIFUNCTIONAL
SYSTEM
MX-M200D
MX-M200DK
MX-M160D
MX-M160DK
MX-M160
MODEL
As for the content of the MX-M200DK/MX-M160DK, refer to the
content of the MX-M200D/MX-M160D as long as there is no
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
Advertisement
Table of Contents
Related Manuals for Sharp X-M200DK
Summary of Contents for Sharp X-M200DK
-
Page 1: Table Of Contents
Be sure to replace these parts with specified ones for maintaining the safety and performance of the set. This document has been published to be used for SHARP CORPORATION after sales service only. The contents are subject to change without notice. -
Page 2: Luokan 1 Laserlaite
CAUTION This product is a class 1 laser product that complies with 21CFR 1040.10 and 1040.11 of the CDRH standard and IEC60825-1 Edition 1.2-2001. This means that this machine does not produce hazardous laser radiation. The use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. -
Page 3: Note For Servicing
[1] GENERAL 1. Note for servicing •poorly ventilated Pictogram The label ( ) in the fusing area of the machine indicates the following: : Caution, risk of danger : Caution, hot surface A. Warning for servicing •The fusing area is hot. Exercise care in this area when removing misfed paper. - Page 4 D. Note for handling PWB and electronic parts When handling the PWB and the electronic parts, be sure to observe the following precautions in order to prevent against damage by static electricity. 1) When in transit or storing, put the parts in an anti-static bag or an anti-static case and do not touch them with bare hands.
-
Page 5: 2 ] Configuration
[2] CONFIGURATION 1. System Configurations [AR-RP10] [AR-SP10] [AR-VR7] [MX-NB10] (REVERSING SINGLE PASS FEEDER) (SINGLE PASS FEEDER) (DOCUMENT COVER) (NEWORK PRINTING / SCANNING EXPANSION KIT) Standard for North America only AR-RP10 [MX-M200D] [MX-M160D] [MX-M160] [MX-FX10] [MX-TR10] [AR-D35] [AR-D34] (250-sheet paper feed unit) (2 x 250-sheet paper (JOB SEPARATOR) (FACSIMILE... -
Page 6: Option List
3. Option list Product key Model name Name MX-M200D MX-M160D MX-M160 target AR-RP10 REVERSING SINGLE PASS FEEDER North/South America: STD — Europe, Australia, Agency: OPT AR-SP10 SINGLE PASS FEEDER North/South America: N/A — Europe, Australia, Agency: OPT AR-VR7 DOCUMENT COVER North/South America:N/A —... -
Page 7: 3 ] Mx-M200D/Mx-M160D/Mx-M160
[3] MX-M200D/MX-M160D/MX-M160 1.Installing conditions 3.Installing procedure A.Copier installation A.Developer cartridge installation Do not install your copier in areas that are: 1) Open the bypass tray, and open the side cover. •damp, humid, or very dusty 2) Open the front cover. •exposed to direct sunlight •Hold the both sides and pull down to open. - Page 8 4. Removal and storage of fixing screw 6) Check that two hooks of the developer unit is hooked on the toner cartridge guide, and secure the toner cartridge guide to the 1) Lift the knob and gently pull out the tray. developing unit.
-
Page 9: 4 ] Ar-Sp10/Ar-Rp10
[4] AR-SP10/AR-RP10 1. Unpacking 2) Remove the right cabinet. Remove the screws and remove the right cabinet. For unpacking, refer to the figure below. 3) Remove the document glass and the right document glass holder. Remove the screws, remove the document glass from the copier, and then remove the right document glass holder. - Page 10 5) Attach the right cabinet. 8) Connect the relay connector. Reattach the right cabinet to its original position and fix it with the Connect the harness of the automatic document feeder to the connec- screws. tor of the copier and tighten the screws on the connector. 9) Remove the filament tape.
- Page 11 [5] AR-D34/AR-D35 1. Unpacking 2. Installation (AR-D34) Included parts Part name Quantity Screw M4 x 12 (Fixing plate) Screw M4 x 10 Fixing plate Paper size label 1) Remove the document cover. Lift the document cover from the copier and tilt it to the rear side to remove it.
- Page 12 3) Remove the copier rear cover. Remove the rear cover (upper stage) from the 500-sheet paper feed unit. Remove the two screws and remove the rear cover. 4) Make a hole for connector. • Copier (1-tray model) 6) Install the copier onto the 250-sheet paper feed unit. Cut out the portion shown in the illustration with nippers or the like.
- Page 13 • Copier (1-tray model) + 500-sheet paper feed unit 7) Remove the connection gear lock. Remove the connection gear lock (with the red tug) after setting. 8) Connect the connector Connect the optional relay harness contained in the 1-tray model (2-tray model) paper feed unit to the PWB of the copier.
- Page 14 • Copier (2-tray model) + 250-sheet paper feed unit • Copier (2-tray model) + 500-sheet paper feed unit 9) Remove the cassette packing fixtures. • Copier (1-tray model) + 500-sheet paper feed unit Pull the cassette until it stops. Turn and remove the packing lock fixture which is fixing the paper pres- sure plate inside the cassette in the direction of arrow.
- Page 15 [6] MX-FX10/AR-MM9 1. Unpacking 2) Work the rear cover. Cut and remove the cut-out portion from the rear cover using a tool <Before installation> such as nippers. Be careful with the tool's direction so that the cut surface would be flat. •...
- Page 16 4) Reattach the rear cover. 7) Attach FAX keyboard. <1>Insert the claw locks of the rear cover into the copier, and slide it to <1>Connect the copier flat cable to FAX keyboard. left until they are securely locked. <2>Place the FAX keyboard onto the copier while engaging the pawls. <2>Secure the cover using two screws.
- Page 17 9) Paste label on the rear cabinet of the copier. After installing FAX Expansion Kit, paste the supplied label on the position shown in the illustration. USA, Canada only In order to manifest the compliance with FCC Part 68 and IC CS-03, it is required to provide the machine with the FCC Registration Number (USA), Ringer Equivalence (USA) and Ringer Eqivalence(Canada).
-
Page 18: 7 ] Mx-Nb10
[7] MX-NB10 1. UNPACKING AND INSTALLATION 1-1. UNPACKING 2) Attach the network expansion kit. Connect the connector of the network expansion kit to the connector of the main unit and put excessive harness into the cut-out portion in the main unit. Engage the two pawls on the rear of the network expansion kit with the cut-out portions of the main unit and network expansion kit using the supplied screw (3 x 14). -
Page 19: Setup In A Windows Environment
2. SETUP IN A WINDOWS ENVIRONMENT 2-1. SETTING THE IP ADDRESS OF THE MACHINE Before installing the printer driver, be sure to set the IP address of the machine as explained in “System Settings” in the “Network Printer” manual on the CD-ROM. Consult your network administrator for the correct IP address, subnet mask, and default gateway to be entered. - Page 20 [8] MX-TR10 1. Unpacking 2-2. Attach the separator motor unit. 1) Connect the connector. <Before installation> 2) Insert the two bosses of the copier into the positioning holes of the • For improvement of workability, some description in this manual as separator motor unit and secure it with the supplied screw.
- Page 21 2-5. Attach the paper holder arm. 2) Attach the bosses on the rear and front sides of the separator tray to the separator levers on the rear and front sides of the copier. 1) Attach the paper holder arm on the back side of the separator tray. At this time, be careful about the orientation of the paper holder arm.
- Page 22 2-9. Insert the power cord into the outlet and turn the main switch located on the left side of the copier to the "ON" position. 2-10. Carry out separator unit installation setting. 1) Use the keys on the copier to execute simulation [26-1-1]. 2) Press the [CA] key to exit the simulation.
- Page 23 [9] CHANGING THE COPY PAPER SIZE IN THE TRAY If the size of the loaded paper is different from the size shown in the 4) Press the [OK] key. display, follow the steps below to change the paper size setting of the PAPER SIZE SET tray.
-
Page 24: Adjustments
[10] ADJUSTMENTS 1.Simulations 2.Copier adjustment A. Entering the simulation mode A.Mechanism section Simulation is hereinafter described as SIM. Note: If a jam error or paper empty occurs during copying in the adjustment by the simulation, the image data are not saved, and Perform the following procedure to enter the SIM mode. - Page 25 9) Measure the distance H between the paper lead edge and the image <Adjustment specification> print start position. Set the image print start position set value Adjustment Spec (AUTO, 1st tray indicator ON) again. mode value value range •1 step of the set value corresponds to about 0.1mm shift. OC image lead PHOTO R/0.1 Lead edge...
- Page 26 c.Rear edge void adjustment (SIM50-1, SIM50-19) <Duplex mode adjustment> 1) Set a scale as shown in the figure below. 2nd print surface (auto duplex) off-center adjustment: SIM50-10 (TEXT, 1st tray indicator) A4(8.5" x 11") <Adjustment specification> Mode Set value Specifi- cation range Paper off...
- Page 27 2) Loosen the copy lamp unit wire fixing screw. 4) Loosen the set screw of the scanner drive pulley which is not in contact with No. 2/3 mirror base unit positioning plate. 5) Without moving the scanner drive pulley shaft, manually turn the scanner drive pulley until the positioning plate is brought into contact with No.
-
Page 28: Front Side
(3) Main scanning direction (FR direction) distortion 4) Loosen the mirror base drive pulley fixing screw on the front frame side or on the rear frame side. adjustment This adjustment must be performed in the following cases: •When the mirror base drive wire is replaced. When La <... - Page 29 1) Making of a test sheet Make test sheet by drawing parallel lines at 10mm from the both ends of A3 (11" x 17") white paper as shown below. (These lines When La > Lb Shift the mirror base B rail upward by the half of the must be correctly parallel to each other.) difference of La - Lb.
- Page 30 <Adjustment specification> Note:Since the printed copy is used as a test chart, put the scale in parallel with the edge lines. Note: A judgment must be made with 200mm width, and must not be 2) Set the test chart on the SPF and make a normal (100%) copy. made with 100mm width.
- Page 31 R side (SPF mode) Reduce 1: Duplex: <Adjustment specification> 0.1mm shift Center ±3.5mm(PHOTO Density Exposure Sharp Gray Set value to L side indicator) mode level Chart output range (8) SPF white correction pixel position adjustment(SIM63-7) Auto Auto "2"...
-
Page 32: Ar-Pf1 Barcode Font Kit Ar-Pf2 Macro Font Flash Rom Kit
[11]AR-PF1 BARCODE FONT KIT AR-PF2 MACRO FONT FLASH ROM KIT 1. Unpacking C. Install the ROM PWB to an empty slot in the area shown below. <Parts included> Packed part names Quantity Barcode font ROM (AR-PF1) Flash ROM (AR-PF2) CD-ROM Operation Manual D. -
Page 33: Mx-Pk10 Ps Expansion Kit
[12]MX-PK10 PS EXPANSION KIT 1. Unpacking 3. Click the "Product Key Setting". <Parts included> Packed part names Quantity CD-ROM Product key sheet (With Application Number) 2. Installation For installing of the MX-PK10, install the network expansion kit (MX- 4. Enter the product key, and click the "Submit (S)". NB10) in advance. - Page 34 C. Turn off/on the power again. D. Visit the web page again, print the "PS Font List" at the "Printer Test Page" screen, check to confirm that the list is normally printed. Note: Very important information is described below. Please keep this description in a safe place where it will not be lost.
-
Page 35: Ar-Sm5 256Mb Expansion Memory
[13]AR-SM5 256Mb EXPANSION MEMORY 1. Unpacking D. Insert the memory to the empty socket of the IMC2 PWB. <Parts included> Packed part names Quantity 256Mb expansion memory 2. Installation E. Install the FAX unit, and secure it with four screws. A. - Page 36 LEAD-FREE SOLDER The PWB’s of this model employs lead-free solder. The “LF” marks indicated on the PWB’s and the Service Manual mean “Lead-Free” solder. The alphabet following the LF mark shows the kind of lead-free solder. Example: <Solder composition code of lead-free solder> Solder composition Solder composition code Solder composition...
- Page 37 CAUTION FOR BATTERY REPLACEMENT (Danish) ADVARSEL ! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandoren. (English) Caution ! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
- Page 38 © COPYRIGHT 2009 BY SHARP CORPORATION All rights reserved. Printed in Japan. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic; mechanical; photocopying; recording or otherwise without prior written permission of the publisher.
