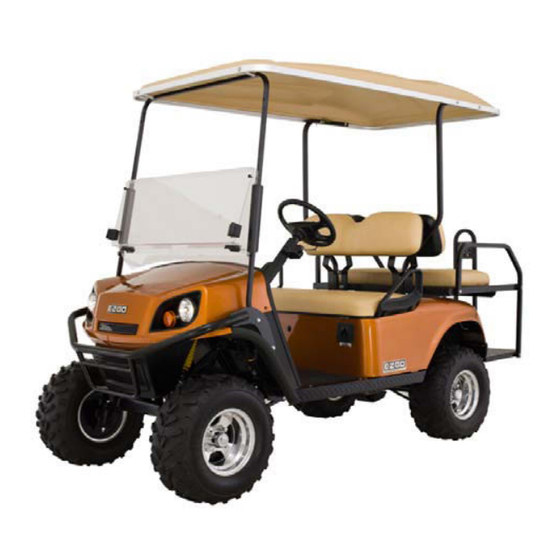

Ezgo 622014 Owner's Manual

Ezgo 622014 Owner's Manual

48 v electric powered vehicle
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Guide
622014
ISSUED JULY 2011
REVISED APRIL 2013

Advertisement

Table of Contents
loading

Related Manuals for Ezgo 622014

Summary of Contents for Ezgo 622014

  • Page 1 Owner’s Guide 622014 ISSUED JULY 2011 REVISED APRIL 2013...
  • Page 2 WELCOME Thank you for purchasing this vehicle. Before driving the vehicle, we ask you to spend some time reading this Owner’s Guide. This guide contains the information that will assist you in maintaining this highly reliable vehicle. Some illustrations may show items that are optional for your vehicle. This guide covers the operation of several vehi- cles;...
  • Page 3 TO CONTACT US E-Z-GO Division of Textron Inc. 1451 Marvin Griffin Road. Augusta, Georgia, USA 30906-3852 North America: Technical Assistance & Warranty PHONE: 1-800-774-3946 FAX: 1-800-448-8124 Service Parts PHONE: 1-888-GET-EZGO (1-888-438-3946) FAX: 1-800-752-6175 International: PHONE: 001-706-798-4311 FAX: 001-706-771-4609 Page i...
  • Page 4 FOREWORD Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. This vehicle has been designed and manufactured in the United States of America (USA). The Standards and Specifications listed in the following text originate in the USA unless oth- erwise indicated.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. SECTION PAGE NO. SAFETY....................................1-1 GENERAL SPECIFICATIONS............................. 2-1 INTRODUCTION.................................. 3-1 OPERATING PROCEDURES.............................. 4-1 MAINTENANCE................................... 5-1 DELCARATION OF CONFORMITY ........................
  • Page 6 TABLE OF CONTENTS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: Page iv...

  • Page 7: Safety

    SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TITLE PAGE NO. SAFETY................................. 1-3 NOTICES, CAUTIONS, WARNINGS, AND DANGERS..................1-3 GENERAL ................................1-4 GENERAL OPERATION ............................1-5 MAINTENANCE ..............................

  • Page 8: Safety

    SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 1 - 2...

  • Page 9: Notices, Cautions, Warnings, And Dangers

    SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. SAFETY For any questions on material contained in this manual, contact an authorized representative for clarification. Read and understand all labels located on the vehicle. Always replace any damaged or missing labels. On steep hills it is possible for vehicles to coast at greater than normal speeds encountered on a flat surface.

  • Page 10: General

    SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. This manual has been designed to assist in maintaining the vehicle in accordance with procedures developed by the manufacturer.

  • Page 11: General Operation

    SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. With electric powered vehicles, be sure that all electrical accessories are grounded directly to the battery (-) post. Never use the chassis or body as a ground connection.

  • Page 12: Ventilation

    SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. • support the vehicle using wheel chocks and jack stands, NEVER get under a vehicle that is supported by a jack, lift the vehicle in accordance with the manufacturer’s instructions •...

  • Page 13: Labels And Pictograms

    SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. LABELS AND PICTOGRAMS MAINTENANCE MIN 150 STORAGE TOWING - Always select ‘TOW MAINTENANCE’ 614121 position before towing 614121 DO NOT alter or tamper with this unit.
  • Page 14 SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. WARNING WARNING READ MANUAL FOR MAXIMUM LOAD BED CAPACITY. MAXIMUM RAMP/HILL < 14 û 25% READ MANUAL SECURE LOAD AS FAR FORWARD XXX lbs.
  • Page 15 SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. CLEAN UP GASOLINE SPILLS WITH DO NOT WATER BEFORE DISPOSE OF STARTING ENGINE BATTERIES IN LANDFILL UNLEADED GASOLINE DO NOT DO NOT...
  • Page 16 SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. HEADLIGHTS KEEP ARMS AND LEGS WITHIN VEHICLE UNLOCKED TO OPERATE VEHICLE IN FORWARD: LOCKED Q TURN KEY TO ON Q MOVE DIRECTION SELECTOR TO FORWARD Q DEPRESS ACCELERATOR PEDAL...
  • Page 17 SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 1 - 11...
  • Page 18 SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 1 - 12...

  • Page 19: General Specifications

    GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TITLE PAGE NO. EXPRESS S4 Vehicle Specifications ..........................2 - 3 EXPRESS L4 Vehicle Specifications ..........................2 - 4 Vehicle Dimensions and Incline Information .........................
  • Page 20 GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 2 - 2...
  • Page 21 GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. MODEL: EXPRESS S4 TYPE: ELECTRIC POWERED PERSONNEL CARRIER MODEL YEAR: 2012 Part No:. 618861 PRODUCT SPECIFICATION CONFIGURATION HIGHLIGHTS TruCourse Technology: Programmable to multiple vehcle terrains, with expanded regenerative braking function, and vehicle charger lockout...
  • Page 22 GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. MODEL: EXPRESS L4 TYPE: ELECTRIC POWERED PERSONNEL CARRIER MODEL YEAR: 2012 Part No:. 618863 PRODUCT SPECIFICATION CONFIGURATION HIGHLIGHTS TruCourse Technology: Programmable to multiple vehcle terrains, with expanded regenerative braking function, and vehicle charger lockout...
  • Page 23 GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. 52.4 in (133.0 cm) 5.5 in (14.0 cm) 74.5 in 65.5 in (166.0 cm) (189.0 cm) 105.3 in (267.0 cm) Front 38.0 (97.0 cm)
  • Page 24 GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TURNING CLEARANCE DIAMETER EXPRESS S4 19.0 ft (5.8 m) EXPRESS L4 19.0 ft (5.8 m) 2 - 6...
  • Page 25 GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 2 - 7...
  • Page 26 GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 2 - 8...

  • Page 27: Introduction

    INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TITLE PAGE NO. FEATURES..................................3-3 General Information ....................................3-3 Key Switch / Headlight Switch..................................3-3 State of Charge Meter....................................3-3 Direction Selector......................................
  • Page 28 INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 3 - 2...

  • Page 29: Features

    INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. FEATURES General Information If the vehicle is equipped with factory installed custom accessories, some accessories remain operational with the key switch in the ‘OFF’...
  • Page 30 INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Park Brake Brake 3 - 4...

  • Page 31: Brake And Park Brake

    INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. With the key switch ‘ON’, depressing the accelerator pedal starts the motor.When the pedal is released, the motor will stop.

  • Page 32: Charger With Dc To Dc Converter

    INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. 16. Charger with DC to DC Converter Charger is used to charge battery while vehicle is parked and the DC to DC converter is used to power accessories. 17.

  • Page 33: Run/Tow Switch

    INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. 19. Run/Tow Switch The Run/Tow switch is used when the vehicle has become stalled or inoperative. To reduce the possibility of severe injury or death resulting from loss of vehicle control, consider the grade of the terrain the vehicle is on and set vehicle’s park brake accordingly before switch- ing the Run - Tow/Maintenance switch to the ‘Tow/Maintenance’...

  • Page 34: Handrail - Rear

    INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. 22. Handrail - Rear The rear handrails are designed to help keep the occupants properly positioned in the event of sudden vehicle position changes.
  • Page 35 INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 3 - 9...
  • Page 36 INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 3 - 10...

  • Page 37: Operating Procedures

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TITLE PAGE NO. SERIAL NUMBER LOCATION ............................4-2 BEFORE INITIAL USE ................................ 4-3 PORATABLE CHARGER INSTALLATION ......................... 4-4 Using the Charger .......................................

  • Page 38: Serial Number Location

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. SERIAL NUMBER LOCATION Two serial number and manufacture date code plates are on the vehicle. One (PART C) is placed on the body below the front, driver side of the seat, PART D is placed on the frame weld tube.

  • Page 39: Before Initial Use

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. BEFORE INITIAL USE Read, understand and follow the safety label on the instrument panel. Be sure you understand how to operate the vehicle, its equipment as well as how to use it safely.

  • Page 40: Poratable Charger Installation

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. PORTABLE CHARGER INSTALLATION Risk of electric shock. Connect charger power cord to an outlet that has been properly installed and grounded in accordance with all local codes and ordinances.

  • Page 41: Using The Charger

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Provide Protection From Elements Keep cooling fins clean and free of dirt and debris NEMA 15 - 5R Grounded AC Receptacle 110 - 120 VAC.

  • Page 42: Led Operation Codes

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. the charge is less than 80% and a LONG flash if the charge is greater than 80%. If the charger’s LED is a steady GREEN the batteries are fully charged and the charger may be unplugged, although not necessary.

  • Page 43: Maintenance Instructions

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Maintenance Instructions 1. For flooded lead-acid batteries, regularly check the water levels of each battery cell after charging and add distilled water as required to the level specified by the battery manufacturer.

  • Page 44: Trucourse Technology

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Always bring the vehicle to a complete stop before shifting the direction selector. Do not take vehicle out of ‘gear’ while in motion (coast). Check the area behind the vehicle before operating in reverse.

  • Page 45: Changing Performance Options

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Changing Performance Options The performance option may be changed if the Compression existing option is not compatible with the terrain Anti-Stall Performance Top Speed...

  • Page 46: Regenerative Braking

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. The TCT system is not a substitute for the service brake which should be used to control speed and reduce possibility of injury.

  • Page 47: Pedal-Up Braking

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Pedal-Up Braking Pedal-up braking is regenerative braking that occurs when the accelerator pedal is released while the vehicle is moving between 8 mph (13 kph) and the vehicle’s top speed.

  • Page 48: High Pedal Disable Feature

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. High Pedal Disable Feature High pedal disable prevents undesired acceleration if the direction selector lever is changed, or the key is turned on while the accelerator is depressed.

  • Page 49: Coasting

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Coasting To reduce the possibility of severe injury or death from coasting at above recommended speeds, limit speed with service brake.
  • Page 50 OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 4 4 4 4 4 - 14...

  • Page 51: Maintenance

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TITLE PAGE NO. VEHICLE CLEANING AND CARE ............................5-3 Vehicle Cleaning ......................................5-3 COMMON SENSE OPERATION ............................5-4 ENVIRONMENTAL CONCERNS............................
  • Page 52 MAINTENANCE AC Voltage ........................................ 5-19 Troubleshooting......................................5-19 HYDROMETER ..................................5-20 Using Hydrometer...................................... 5-21 BATTERY CGARGER MAINTENANCE..............................5-21 PROLONGED STORAGE ..............................5-22 5 - 2...

  • Page 53: Vehicle Cleaning And Care

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. VEHICLE CLEANING AND CARE Vehicle Cleaning To reduce the possibility of severe injury or vehicle damage, read and understand all instructions supplied by manufacturer of pressure washer.

  • Page 54: Common Sense Operation

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. COMMON SENSE OPERATION To prevent severe injury or death, observe the following: Never transport loaded firearms on or in vehicle Check that firearms are unloaded with the safety engaged and are properly secured with muzzle pointing in a safe direction before operating vehicle.

  • Page 55: Repair

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. REPAIR Some servicing operations may require the front wheels, the rear wheels, or the entire vehicle to be raised. To reduce the possibility of severe injury or death from a vehicle falling from a jack: Be sure the vehicle is on a firm and level surface.

  • Page 56: Wheels And Tires

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. WHEELS AND TIRES A tire explosion can cause severe injury or death. Never exceed the inflation pressure rating on the tire sidewall.

  • Page 57: Wheel Installation

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Wheel Installation Valve Stem Cap To reduce the possibility of component damage, do not tighten lug nuts to more than 85 ft.

  • Page 58: Light Bulb Replacement

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. LIGHT BULB REPLACEMENT To reduce the possibility of premature bulb failure, do not touch new bulbs with bare fingers. Use clean, dry tissue or paper towel to handle the glass portion of the bulb.

  • Page 59: Transporting Vehicle

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TRANSPORTING VEHICLE Towing To reduce the possibility of severe injury or death: Use extra caution when towing a vehicle. DO NOT ride on the vehicle being towed.

  • Page 60: Routine Maintenance

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Wear eye protection when working on the vehicle. Use extra care when work- ing around batteries, or using solvents or compressed air. To reduce the possibility of causing an electrical arc, which could result in a battery explosion, turn off all electrical loads from the battery before removing battery wires.

  • Page 61: Periodic Brake Test For Mechanical Brakes

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Over time, a subtle loss of performance may take place; therefore, it is important to establish the standard with a new vehicle. The Periodic Brake Performance Test should be performed regularly as an evaluation of braking system perfor- mance.

  • Page 62: Lubrication

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. LUBRICATION Do not use more than three (3) pumps of grease in any grease fitting at any one time. Excess grease may cause grease seals to fail or grease migration into areas that could damage components.

  • Page 63: Periodic Service Schedule

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. PERIODIC SERVICE SCHEDULE    Check Clean, Adjust, etc. Replace To perform service that is listed in this schedule but not described in this manual, contact a local Service Representa- tive or see the Repair and Service Manual for this vehicle.

  • Page 64: Battery Charging And Maintenance

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. SEMI-ANNUAL - 125 HOURS (includes items listed in previous tables & the following)  DIRECTION SELECTOR Check for wear and smooth movement (lubricate shaft with light oil if required) ...

  • Page 65: Battery

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Wrap wrenches with vinyl tape to prevent the possibility of a dropped wrench from ’shorting out’ a battery, which could result in an explosion and severe per- sonal injury or death.
  • Page 66 MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. DO NOT overfill batteries. The charging cycle will expel electrolyte and result in component damage. A battery being charged will ’gas’ with the majority of the gssing taking place at the end of the charging cycle. This gas is hydrogen with is lighter than air.

  • Page 67: Battery Cleaning

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. The watering device should only be used if the electrolyte level is less than 1/2” (13 mm) above top of plates. WATERING GUN SIMILAR TO THE TYPE INCLUDED IN THE E-Z-GO BATTERY MAINTENANCE KIT VALVE...

  • Page 68: Battery Replacement

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. When cleaning the outside of the batteries and terminals, do not use a water hose without first spraying the batteries with a solution of baking soda (sodium bicarbonate) and water to neutralize any acid deposits.

  • Page 69: Battery Charging

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. To prevent battery explosion that could result in severe personal injury or death, extreme care must be used with aerosol containers of battery terminal protectant. Insulate the metal container to prevent the metal can from contacting battery terminals which could result in an explosion.

  • Page 70: Hydrometer

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. ranty. Different manufacturers have different requirements. Consult the battery manufacturer or the manufacturer’s rep- resentative for specific requirements. The second reason is to determine why a particular vehicle does not perform adequately.

  • Page 71: Using A Hydrometer

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Using A Hydrometer 1. Draw electrolyte into the hydrometer several times to permit the thermometer to adjust to the electrolyte tem- perature and note the reading.

  • Page 72: Prolonged Storage

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. PROLONGED STORAGE Battery charger, controller and other electronic devices need to be disconnected since they will contribute to the pre- mature discharge of batteries.
  • Page 73 MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 5 - 23...
  • Page 74 MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 5 - 24...
  • Page 75 APPENDIX A Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TABLE OF CONTENTS FOR APPENDIX A TITLE PAGE NO. DECLARATION OF CONFORMITY ................................. A - 3 A - 1...
  • Page 76 APPENDIX A Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: A - 2...

  • Page 77: Declaration Of Conformity

    APPENDIX A Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. DECLARATION OF CONFORMITY A - 3...
  • Page 78 APPENDIX A Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. DECLARATION OF CONFORMITY (CONTINUED) A - 4...
  • Page 79 APPENDIX A Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: A - 5...
  • Page 80 APPENDIX A Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: A - 6...
  • Page 82 E-Z-GO Division of Textron Inc., 1451 Marvin Griffin Road, Augusta, Georgia 30906 - 3852 USA Service Parts Manuals, as well as Repair and Service Manuals are available from a local Distributor, an authorized Branch, Genuine E-Z-GO Parts & Accessories Department or at www.shopezgo.com. Copyrighted Material This manual may not be reproduced in whole or in part without the express permission of...
