Page 1: Installation Manual
Kaleido-Alto Kaleido-Quad Multi-Image Display Processor Installation Manual M791-4200-104 21 Jan 2008 Miranda Technologies Inc. 3499 Douglas-B.-Floreani St-Laurent, Québec, Canada H4S 1Y6 Tel. 514-333-1772 Fax. 514-333-9828 www.miranda.com © 2007 Miranda Technologies Inc.. - Page 2 Refer all servicing to qualified service personnel. Servicing should be done in a static-free environment. CONTACT MIRANDA For technical assistance, please contact the Miranda Technical support centre nearest you: Europe, Middle East, Americas...
-
Page 3: Table Of Contents
2.5 Dual power supplies (Optional)......................11 2.6 Multiple Kaleido-Alto/Quad Installations ....................12 2.6.1 Ethernet Connection for use with KEdit................... 12 2.6.2 Controlling Multiple Kaleido-Alto/Quads using RS-422 with a Kaleido-RCP ........12 3 Operation ........................14 3.1 Powering Up............................14 3.2 Front Panel Status LED ......................... 14 3.3 Startup and Preparation to Use Software. - Page 4 Installation Manual Kaleido-Alto & Kaleido-Quad...
-
Page 5: Kaleido-Alto & Kaleido-Quad

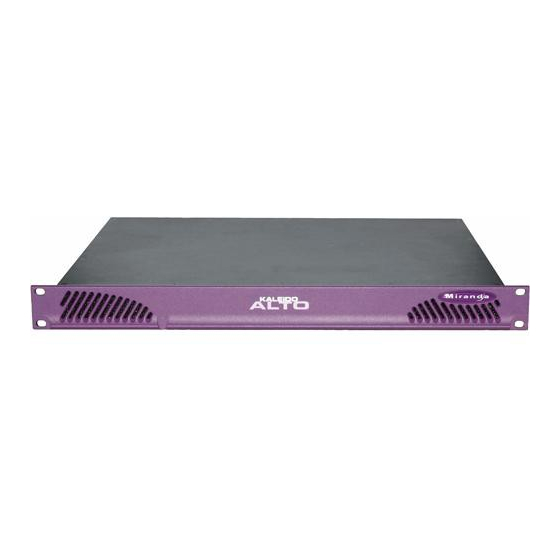

The Kaleido-Alto and Kaleido-Quad multi-image processors can display multiple video inputs (up to 10 for Alto, up to 4 for Quad) on a single high resolution output. The Kaleido-Alto/Quad combines the display of video windows, audio level metering, text identification labelling, tallies and in-screen status indicators in a convenient single RU frame. - Page 6 • Auto-sensing HD-SDI, SDI and Analog Composite inputs (10) • High quality DVI and RGBHV outputs with up to 1920 x 1080 pixel resolution (except Kaleido-Alto-A and Kaleido-Alto-AD models, which are limited to 1280 x 1024) • Embedded, AES and Analog audio level metering with monitoring outputs •...
-
Page 7: Kaleido-Quad Series: Supports Up To 4 Video Inputs
Easy offline layout editing with full choice of window ratio (4:3 and 16:9) and position • Aspect ratio markers • Compact (1 RU) frame • Optional redundant power supply • Optional, simple to use remote control panel Kaleido-Alto & Kaleido-Quad | 3... - Page 8 Installation Manual Kaleido-Quad Configuration Here is a typical configuration for a Kaleido-Quad, in this case illustrating a Quad AD Figure 1.2 Kaleido-Quad AD Configuration 4 | Kaleido-Alto & Kaleido-Quad...
-
Page 9: Installation
Installation Manual 2 Installation 2.1 Unpacking Make sure the following items have been shipped with your Kaleido-Alto/Quad. If any of the following items are missing, contact your distributor or Miranda Technologies Inc. - Kaleido-Alto or Kaleido-Quad unit - a USB mouse... - Page 10 Mouse and Keyboard USB type A Table 1: Signal connections Note that one set of BNC connectors serves all video inputs except the DVI inputs. The Kaleido-Alto/Quad will auto-detect the type of signal applied, and process it appropriately. HD-SDI Video Inputs These inputs must conform to the SMPTE 292M-C standard.
- Page 11 (525/60) signals must conform to the ITU-R BT.470-6 standard. DVI Input A DVI signal may be connected to the Kaleido-Alto/Quad to provide a background image behind the monitoring windows. Supported DVI signal resolutions are shown in the table 2 below.
- Page 12 For the 4-input audio version only inputs IN 1-4 are available. To facilitate cabling of the audio inputs, a terminal block adapter is available separately (Miranda P/N 0686- 9800-100). A lexan is provided to identify the terminals assignment for the input connectors. See figure 2.4.4 for lexan installation on the Alto-TBA-AG terminal block adapter.
- Page 13 2.4.9 and 2.4.10 below. To facilitate cabling of the GPI inputs and outputs, a terminal block adapter is available separately (Miranda P/N 0686-9800-100). A double-sided lexan is provided to identify the terminals assignment for both input and output connectors.
- Page 14 Figure 2.4.10 GPI I/O Characteristics RS-422 A DE-9S connector for connecting remote control devices such as routers or the Kaleido-RCP (12V is supplied through pin 5 to the Kaleido-RCP). Figure 2.4.11 RS-422 A Connector pin-out 10 | Kaleido-Alto & Kaleido-Quad...
-
Page 15: Dual Power Supplies (Optional)
, so make sure to use a simple, basic USB keyboard. 2.5 Dual power supplies (Optional) The Kaleido-Alto HD and the Kaleido-Quad HD/SD can be configured with dual power supplies. The figure shows the location of the power supplies in the base configuration (single power supply) and the option dual- supply configuration. -
Page 16: Multiple Kaleido-Alto/Quad Installations
By default, Kaleido-RCP will send instructions using RS-422 protocol to ID 1. This means that a system comprised of only one Kaleido-Alto frame will work out of the box as each frame’s default ID is also set to 1. However, for applications where more than one Kaleido-Alto/Quad frame is used, you will need to assign a unique ID number to each of them. - Page 17 Foil Foil GND shield GND shield GND shield GND shield Pair 6 Pair 4 Pair 8 Pair 2 External DC power supply +12V or AC/DC adaptor Figure 2.5.2 Kaleido Alto/Kaleido-RCP interconnection for cascading multiple frames Kaleido-Alto & Kaleido-Quad | 13...
-
Page 18: Operation
3.1 Powering Up The power switch is located on the rear panel of the Kaleido-Alto/Quad, just above the power cord. Plug the cord into an appropriate AC power supply, and set the switch to ON ( I ). If you have just switched the unit OFF ( 0 ), always wait a few seconds before turning it ON again to ensure proper startup procedure. -
Page 19: Technical Specifications
(see table 2 on page 7 for details) Connector: HD Embedded Audio Input Signal: SMPTE-292M Bit Resolution: 20-24 bits Sampling Rate: 48 kHz synchronous SD Embedded Audio Input Signal: SMPTE-272M Bit Resolution: 20 bits Sampling Rate: 48 kHz synchronous …..continued Kaleido-Alto & Kaleido-Quad | 15... -
Page 20: Outputs
(see table 2 on page 7 for details) Connector: DVI-I Output (limited res) Signal: Digital DVI Cable Length: 3.6 m (12’) with Altinex CB4012DV Resolution: 800x600 to 1280X1024 at 50/59.94 Hz (see table 2 on page 7 for details) Connector: …..continued 16 | Kaleido-Alto & Kaleido-Quad... -
Page 21: Control
9600 BPS, according to application Connector: DE-9P RS-422 A Signal: RS-422 (SMPTE 207M, EBU-3245) (a 12V power supply on pin 5 is provided for the Kaleido-RCP) Data Rate: 38400 BPS, according to application Connector: DE-9S …..continued Kaleido-Alto & Kaleido-Quad | 17... -
Page 22: Processing Performance
Kaleido-Alto HD, Kaleido-QUAD HD/AD Voltage: 100-240 VAC Power: 110 W (Kaleido-Alto HD) Power: 50 W (Kaleido-Quad HD/AD) Dimensions: 1 RU (19” rack) X 19.25 in (490mm) deep Weight 10lbs (4.5 kg) Operating temperature: 0-40° C DB-44S 18 | Kaleido-Alto & Kaleido-Quad... -
Page 23: Annex
Installation Manual Annex – Kaleido display resolution The Kaleido-Alto/Quad displays all the elements of its layout in a frame whose maximum vertical resolution is 1024 pixels. However, the RGBHV output from all versions of the Kaleido-Alto and the Kaleido-Quad can drive displays with greater vertical resolution, provided they are equipped with an appropriate hardware version (see the chart below). - Page 24 100 - 200 Supported 200* Supported Kaleido-Alto A2 300 and higher Supported Kaleido-Alto AD2 300 and higher Supported Kaleido-Alto HD 300 and higher Supported Kaleido-Quad HD 300 and higher Supported Kaleido-Quad AD 300 and higher 20 | Kaleido-Alto & Kaleido-Quad...
