Power Supply/Battery Chargers

Installation Instructions

I.
Model Numbers
AS
Order
No.
Model Number
Voltage
01309
PS5-BFS-12-UL/CSA/ULC
01310
PS5-BFS-24-UL/CSA/ULC
013XX
PS5-12040-B03-UL/CSA/ULC
013XX
PS5-24040-B03-UL/CSA/ULC
UL1481 - Power Supply/Battery Charger, Guide UTRZ
Power Supply/Battery Charger for use with Listed devices shown in Addendum "A".
UL294 - Access Control Systems Unit Accessory, Guide ALVY
Power Supply/Battery Charger for Access Control Applications
ULC-S527 - Fire Alarm Power Supply/Battery Charger
CSA C22.2 No. 107.1 - Commercial and Industrial Power Supply
* UL Listed Products comply with NFPA 72 - National Fire Alarm Code, and are CSFM Listed
#7315-1214:100 and NY MEA Accepted #MEA 3-92-E
II.
Installation Instructions
1. Mount cabinet per mechanical dimensions and knockout locations given in Section IV.
2. Connect 120VAC, 60Hz., single phase to the black and white leads of the transformer in accordance
with Article 725 or 760 of the National Electrical Code, or Article 16 or 32 of the Canadian Electrical
Code.
3. Low Volt AC Input - Connect to secondary winding of the transformer.
v Fused at 10 Amps (Fuse Type AGC-10)
4. Verify output voltage at "DC Output" and "Battery" terminals.
12V system measures approximately 13.8VDC.
24V system measures approximately 27.6VDC.
5. Connect battery set to "Battery" terminals.
CAUTION: Observe polarity; incorrect polarity will destroy battery fuse.
Fused at 10 Amps (Fuse Type AGC-10).
Recommended battery type - PowerSonic (PSSeries) or YUASA (NPSeries) sealed lead acid/gel cell.
6. Connect "DC Output" to input of user system.
CAUTION: Observe polarity; incorrect polarity may damage user system.
Refer to Section I for Maximum Allowable System Current.
7. Visual Indicators:
AC Presence LED1:
Fault Condition LED3:
System OK LED3:
8. Connect "Fault Output" to system fault annunciation.
PS5-BFS Models: Current limited voltage output
12V system; short circuit fault current is 25mA maximum.
24V system; short circuit fault current is 50mA maximum.
For fault reporting in fire applications, use Relay Module RBKS-124P or RBKS-124N: See Section III.
PS5-B03 Models: Form "C" relay contacts; rated 1A @ 24VDC
9. Fault Conditions:
Low AC / No AC / Blown AC Fuse / Low Battery / Blown Battery Fuse
CAUTION: Fault condition reporting may be delayed dependent on power supply loading.
The battery set is NOT supervised for presence.
10. This unit is intended to be placed in the same room as the control equipment.
11. UL and ULC Battery Standby Information for proper operation of this unit:
a. For 60 hr. standby with 18Ah battery set: Max standby draw: .15A, Max 5 minute alarm current: 3A.
AlarmSaf
w 65A Industrial Way w Wilmington, MA USA 01887-3499 w (978) 658-6717 w FAX: (978) 658-8638 Web Site: www.alarmsaf.com
Max.
Max. AC
System
System
Battery
Input
Current
Capacity
Current
12VDC
4.0A
38Ah
1.25A
24VDC
4.0A
38Ah
2.50A
12VDC
4.0A
36Ah
1.25A
24VDC
4.0A
36Ah
2.50A
Caution
For continuous protection against
fire hazard, replace only with the
same type and rating of fuse
Green LED
Yellow LED (PS5-BFS)
Green LED (PS5-B03)
Caution: Voltage Fault Output
Not for Fire Protective
Signaling Use.
Use for general purpose only.
b. For 24 hr. standby with 18Ah battery set: Max standby draw: .4A,
Max 5 minute alarm current: 3A.
Battery
c. For 60 hr. standby with 36Ah battery set: Max standby draw: .5A,
XFMR
Storage in
Max 5 minute alarm current: 2A.
Voltage
Cabinet
d. For 24 hr. standby with 36Ah battery set - Max standby draw: 1A,
Max 5 minute alarm current: 2A.
17.5VAC
20Ah Max
e. For 4 hr. standby with 20 Ah battery set - Max standby draw: 3A,
28.2VAC
8Ah Max
Max 5 minute alarm current: 4A.
12. Power Supply System Draw (No AC, No load) is 25mA.
17.5VAC
20Ah Max
28.2VAC
8Ah Max
III.

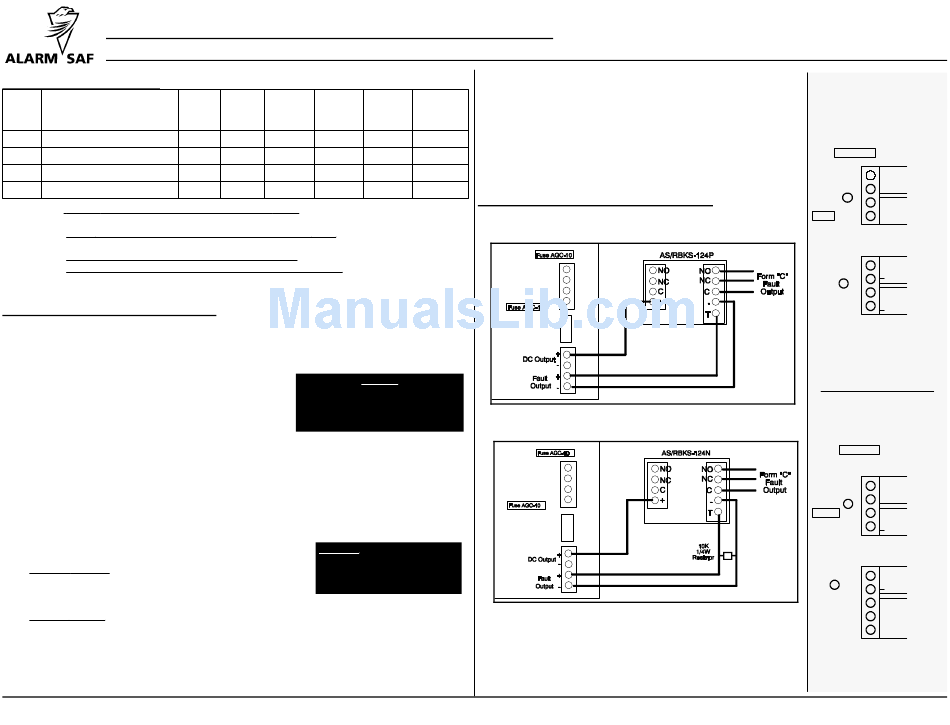

Typical Hook-up Diagrams
{ To Convert the Voltage Fault Output to a Form C relay contact output
The relay will activate on a fault condition.
{ To Convert the Voltage Fault Output to a Form C relay contact output
The relay will deactivate on a fault condition (Fail-Safe Supervision)
{ Power Supply Output
Terminal Designations
AC Fuse
AGC-10
Low Voltage
AC
AC Connect
LED
Battery
AGC-10
Connect
Battery
Fuse
PS5-UL Board
+
DC
Fault
Output
LED
+
Fault
Output
AC Fuse
AGC-10
Low Voltage
AC
AC Connect
LED
AGC-10
+
Battery
Battery
Connect
Fuse
PS-5 UL Board With Relay
Fault
+
DC
LED
Output
NC
C
Fault
Output
NO
52-130Z
090897
