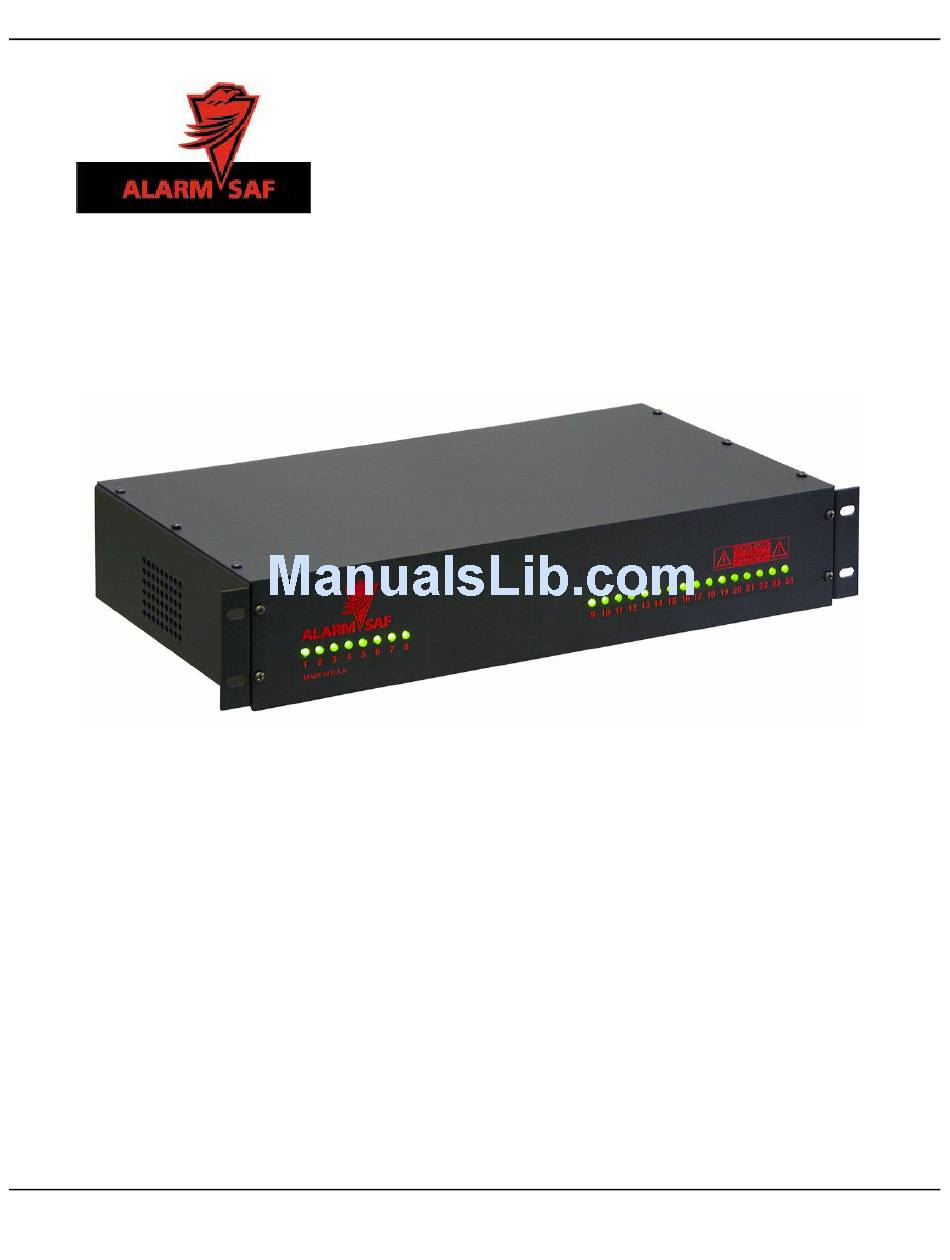

- Page 1 RMMV Series Rack Mount AC/DC Power Supply Operating and Installation Instructions 52-391 Rev A.02...
-
Page 2: Warnings And Notices
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM Warnings and Notices WARNING - To reduce the risk of fire or electric shock, do not expose this product to rain or moisture WARNING - This installation and all servicing should be made by a qualified service... -
Page 3: Table Of Contents
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM Table of Contents Section Page I. Warnings and Notices 1 Introduction 2 Applicable Standards / Documents 3 System Overview 3.1 Electrical Ratings and Specifications 3.2 Terminal Descriptions 3.3 Fusing 4 Installation 4.1 Mounting 4.2 Wiring... -
Page 4: Introduction
7/13/2009, 10:26:56 AM Section 1 Introduction The RMMV series of rackmount power supplies provides either 24 or 28 VAC for powering CCTV or similar low voltage AC operable equipment AND 12 and 24VDC for powering access control or similar DC equipment. -
Page 5: Applicable Standards / Documents
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM Section 2 Applicable Standards / Documents NFPA Standards NFPA 72 National Fire Alarm Code NFPA 70 National Electrical Code US Standards UL 294 Access Control System Units UL 1076 Proprietary Burglar Alarm Units and Systems... -
Page 6: System Overview
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM Section 3 System Overview 3.1 Electrical Ratings and Specifications Manufactured By AlarmSaf 65A Industrial Way Wilmington, MA 01887 Tel: 800 987 1050 978 658 6717 Fax: 978 658 8638 www.alarmsaf.com Model Numbers RMMV Series... -
Page 7: Terminal Descriptions
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM 3.2 Terminal Descriptions All terminal strips are removable with locking screws and accept wire sizes from 12-26AWG. Wire should be sized appropriately for voltage drop and current carrying capability. All terminals are labelled for polarity or phasing where appropriate. -
Page 8: Fusing
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM 3.2.6 Fault Outputs (Common Fault / AC Fault) Form C Contacts Contacts rated at 1A @ 24VDC, 0.5A @ 120VAC Fault relays employ “fail-safe” operation and are powered in a non-fault condition (connection... -
Page 9: Installation
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM Section 4 Installation 4.1 Mounting 4.1.1 Mount the unit in locations that meet the following temperature and humidity requirements. Do not expose to conditions outside of these ranges. Temperature 0 °C to 49 °C (32 °F to 120 °F) Humidity 32 °C (90 °F) @ 93%... -
Page 10: Wiring
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM 4.2 Wiring 4.2.1 Wire Routing All wiring must be installed in accordance with NFPA70 [NEC760] and all local code requirements. Power Limited wiring requires that power limited and nonpower limited wiring remain physically separated. -
Page 11: Operating The Rmmv Rack Mount Power Supply
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM Section 5 Operating the RMMV Rack Mount Power Supply 5.1 Jumper Configuration 5.1.1 AC Zones Each individual AC output zone may be configured for a 24VAC or 28VAC output. The output setting is controlled by the movable jumper plugs behind the front panel (JP1-JP16). The upper setting (V2) is for a 28VAC output, the lower setting (V1) is for a 24VAC output. - Page 12 RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM AC PRESENCE VISUAL INDICATOR AC ON EARTH GOUND DETECTION ENABLE BATTERY PRESENCE DETECTION ENABLE OUTPUT VOLTAGE SELECT SWITCH Figure 5.2.1.1 5.1.2.1.1.2 Jumper Settings For proper operation, the jumpers on the internal PS5-M should be set appropriately.
-
Page 13: Visual Indicators
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM 5.1.2.1.2 SPS4 Jumper Settings The SPS4 has two jumpers for setting its output voltage. It is factory set for 12VDC out. If a different voltage is required, the jumpers must be changed as follows:... - Page 14 RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM 5.2.2.1.3 AC FLT This LED illuminates when the AC input voltage falls below approximately 85% of the nominal input voltage setting. 5.2.2.1.4 COM FLT This LED illuminates on any of the following conditions:...
-
Page 15: Troubleshooting
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM 5.3 Troubleshooting WARNING - Installation and service should only be performed by a qualified service person and should conform to all local codes 5.3.1 AC Section Troubleshooting Condition Possible Cause Solution Verify both ends of the power cord... - Page 16 RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM Verify presence of at least 102VAC on AC trouble the input, the AC switch is ON, and the input circuit breaker is not tripped Verify that a good battery set of the Bad / Incorrect Battery Set...
-
Page 17: Specifications
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM Section 6 Specifications 6.1 Electrical Specifications 6.1.1 Input Voltage 120VAC nominal 6.1.2 Input Power 504W Max 6.1.3 Input Frequency 50-60Hz 6.1.4 Minimum Battery Charge Capacity 7 Amphours 6.1.5 Maximum Battery Charge Capacity 80 Amphours 6.1.6 Maximum Battery Charge Current... -
Page 18: Wiring And Using An Rmbe Series Battery Enclosure With The Rmmv
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM Wiring and using an RMBE Series Battery Enclosure with the RMMV The RMBE Series of Battery Enclosures provides battery backup in a standard 19 inch 2RU rack mountable enclosure. It can be configured for single or dual output. Each output can be configured for either 12 or 24VDC. -
Page 19: Configuration Options
RMMV Series Installation Instructions 7/13/2009, 10:26:56 AM Power Supply 1 Power Supply 2 RESET COM FLT AC FLT 24V DC 12V DC OUT 16 OUT 15 OUT 14 OUT 13 OUT 12 OUT 11 OUT 10 OUT 9 To reduce the risk of fire, replace interior... -
Page 20: Glossary
Glossary 7/13/2009, 10:26:56 AM Glossary See “Accessory Board Connector” Accessory Board Connector Connector present on some AlarmSaf power supplies and accessory boards, allowing plug-in expansion of the system Accessory Board An AlarmSaf product for use with AlarmSaf power supplies containing an ABC connector. These boards allow plug-in expansion of the functionality of the system.
