Operating Instructions

(For User Authentication)
Digital Color Imaging Systems
DP-C354 / C264
Model No.
DP-C323 / C263 / C213
Model No.
Before operating this machine, please carefully read this manual,
and keep this documentation in a safe place for future reference.

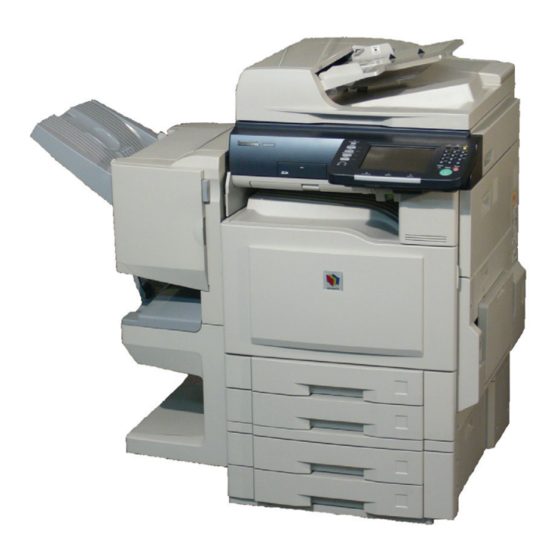

(Illustration shows optional accessories that may not be installed on your machine.)
English

Advertisement

Table of Contents
loading

Related Manuals for Panasonic DP-C354

Summary of Contents for Panasonic DP-C354

  • Page 1: Operating Instructions

    Operating Instructions (For User Authentication) Digital Color Imaging Systems DP-C354 / C264 Model No. DP-C323 / C263 / C213 Model No. Before operating this machine, please carefully read this manual, and keep this documentation in a safe place for future reference.
  • Page 2 Operating Instructions The following Operating Instruction manuals are included with this machine. Please refer to the appropriate manual and keep all manuals for future reference. If you lose the manual, contact the authorized Panasonic dealer. Operating Instructions (For Setting Up) This manual contains essential information for setting up the machine.
  • Page 3 Conventions Icons The following icons are used in this manual. Icon Description Indicates important information that must be read in detail. Indicates reference Information. Notation The following notations are used in this manual. Notation Description For Keys and Buttons Hard buttons on the Control Panel are depicted as **** key, soft buttons on the Touch Panel are depicted as "xxx".

  • Page 4: Table Of Contents

    Table of Contents Chapter 1 General Description User Authentication ......................... Job Tracking ............................ RightFax Server ..........................Chapter 2 Using Machine Login Procedure (Using Copy/Fax/Scanner/Printer) ............... Sending a Document via RightFax ....................Chapter 3 Setting Machine Authentication Setting ........................Registration of Domain Name ......................ID Timeout Setting...........................
  • Page 5 Memo...

  • Page 6: User Authentication

    User Authentication The User Authentication is a function to use devices under the management of a Windows server. As a result, users must be authenticated before they can use the functions of the machine (copying, faxing, scanning, and printing). The supported authentication protocol is NTLM v2. Windows Server - Windows 2000 Server - Windows Server 2003...

  • Page 7: Job Tracking

    Login Data Usage Log Tracking Image System Administrator Panasonic Device System Administrator can receive a machine usage log and tracking image via email. (See page 32) 1. When the Job Tracking function is enabled, the following functions are not available.

  • Page 8: Rightfax Server

    RightFax Server By enabling the RightFax Server function, all the faxes will be sent via the RightFax Server. All the Fax logs can be easily managed by a single server. When using it with the User Authentication function, it will increase the security by controlling the usage, and identifying the users.

  • Page 9: Login Procedure (Using Copy/Fax/Scanner/Printer)

    Login Procedure (Using Copy/Fax/Scanner/Printer) Users must enter the login name, and the password before using any devices which have the User Authentication function enabled. Authentication is performed using the user's Windows account. Note: When using the User Authentication for the first time, refer Chapter 3 Setting Machine (page 14 - page 27). The System Administrator should set up the User Authentication Function.
  • Page 10 This completes the authentication. After completing the authentication, you can use the selected function (copying, faxing, scanning, or printing) . Press "Reset" twice to log out from the authentication. If the authentication fails, one of the following messages may appear. Message Explanation Authentication Failed...
  • Page 11 Memo...

  • Page 12: Sending A Document Via Rightfax

    Sending a Document via RightFax When the RightFax server is used to send a fax, the following details are entered in the recipient (TO) field and sender (FROM) field. Note: Using RightFax function requires configuration of RightFax server, “RightFax Server Setting” on page 26. Field Content Recipient...
  • Page 13 Enter the recipient's name, and then select "OK". Press the Start key. (Up to 15 characters) Note: When Machine does not have connection to G3PSTN, all G3 transmissions are executed through RightFax Server as Emails. When Machine has connection to G3PSTN, only Auto Receive is possible through PSTN.

  • Page 14: Authentication Setting

    Authentication Setting The system administrator can enable/disable the User Authentication for each function (copying, faxing, scanning, and printing). Enter the Key Operator's password (8-digit), Press the Function key. and then select "OK" . Select "General Settings". Note: Default password is "00000000". To change this password, select “85 Key Operator Password”...
  • Page 15 For details, refer to the Operating Instructions (For Function Parameters, Fax Parameter No. 145). Select "On" to use authentication or "Off" to disable authentication, and then choose "OK" . Ex: panasonic Enter the system administrator password, and then select "OK". Disables authentication.

  • Page 16: Registration Of Domain Name

    Registration of Domain Name This sets the NetBIOS domain names, and DNS domain names to use for User Authentication. Enter the Key Operator's password (8-digit), Press the Function key. and then select "OK" . Select "General Settings". Note: Default password is "00000000". To change this password, select “85 Key Operator Password”...
  • Page 17 Authentication Setting. Ex: pana01 Enter the DNS domain name, and then press the "OK". (Up to 60 characters). Ex: panasonic.com Note: If your Windows network is configured with Windows NT Server 4.0, and Exchange Server 5.5, register the Exchange Server Name (FQDN), or the IP Address on the Step 8.

  • Page 18: Id Timeout Setting

    ID Timeout Setting If the ID Timeout Setting is set to "Auto Rst", authentication is cancelled if no operation is performed on the machine for a specified time period after performing authentication. The ID timeout period is set by the "Auto Reset Time Setting"...
  • Page 19 Select the ID Timeout setting, and then choose "OK". Auto Rst An authenticated user will be logged out if no operation is performed on the machine for a specified time after performing authentication. EveryJob On completion of a job, the authenticated user will be logged out when a new operation is performed.

  • Page 20: Auto Reset Time Setting

    Auto Reset Time Setting This sets the ID Timeout period when "Auto Rst" is selected for ID Timeout Setting. Enter the Key Operator's password (8-digit), Press the Function key. and then select "OK" . Select "General Settings". Note: Default password is "00000000". To change this password, select “85 Key Operator Password”...

  • Page 21: Logon Attempts Setting

    Logon Attempts Setting The system is lockout if the permitted number of logon attempts is exceeded during the User Authentication. This sets the number of permitted number of logon attempts. Enter the Key Operator's password (8-digit), Press the Function key. and then select "OK"...

  • Page 22: Lockout Time Setting

    Lockout Time Setting This sets the time period (minutes) for the system lockout when the permitted number of logon attempts is exceeded during the User Authentication. Wait for the Lockout Time period to lapse before you are permitted to logon to User Authentication. Enter the Key Operator's password (8-digit), Press the Function key.

  • Page 23: Authentication Method Setting

    Authentication Method Setting This specifies which authentication method to use by the User Authentication function. Enter the Key Operator's password (8-digit), Press the Function key. and then select "OK" . Select "General Settings". Note: Default password is "00000000". To change this password, select “85 Key Operator Password”...

  • Page 24: Job Tracking Setting

    Job Tracking Setting This enables, or disables Job Tracking. If Job Tracking is enabled, also set the type of log to record, and the Email address to which it is to be sent. Note: Before performing this setup, you first need to register the destination Email address for the log in the address book. Furthermore, change the setting of the Fax Forward (Fax Parameter No.
  • Page 25 Select "120 - 159" tab, and then scroll the Select the Email address to which to send the screen, and choose "131 Job Tracking". log, and then choose "OK". Select the printout method for the received Note: document(s), and then select "OK". Fax parameter No.

  • Page 26: Rightfax Server Setting

    RightFax Server Setting This enables, or disables the RightFax server. Note: Password Transmission is not available if the RightFax Server setting is set to "Valid". When the User Authentication function is enabled, you must login to the machine to change settings. See the following sections for details about how to login.
  • Page 27 Select "120 - 159" tab, and then scroll the Enter an Email Address of the RightFax screen, and choose "132 Via Fax Server". Server, and then select "OK". (Up to 60 characters) Note: Fax parameter No. can be directly selected using with Keypad for quick operation.

  • Page 28: Administrator Login

    Administrator Login This confirms the system administrator who manages the Panasonic machine. After logging in to the machine, the system administrator can set up the authentication function. In case of network trouble, the administrator can login using the Local Machine domain without being authenticated through the network.

  • Page 29: Administrator Name & Password

    Administrator Name & Password The user name, and password for the system administrator are established in "Authentication Setting" on page 14 when User Authentication is enabled for the first time. Use the following procedure if you subsequently wish to change the system administrator name, or password. Enter the Key Operator's password (8-digit), Press the Function key.
  • Page 30 Input the system administrator name (up to 40 characters), and then select the "OK". The name is NOT case-sensitive. Ex: panasonic Input the system administrator password (up to 40 characters), and then select the "OK" The password is case-sensitive. Ex: pana...
  • Page 31 Memo...

  • Page 32: Description Of Job Tracking Notice

    Description of Job Tracking Notice Fax Transmission via Reception via a Telephone Line, and a Telephone Line Reception from Internet Fax / PC Email Transmission to (PSTN) Internet Fax / PC Sender’s Name Fax: ID Number of the FWD: Sender’s Email Address remote station Login Name in the User Authentication...
  • Page 33 Memo...
  • Page 34 TO LIABILITY FOR ANY DAMAGE, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS SUSTAINED BY THE CUSTOMER IN CONNECTION WITH THE USE OR APPLICATION OF THIS PANASONIC MACHINE. SEE YOUR DEALER FOR DETAILS OF DEALER’S WARRANTY.
