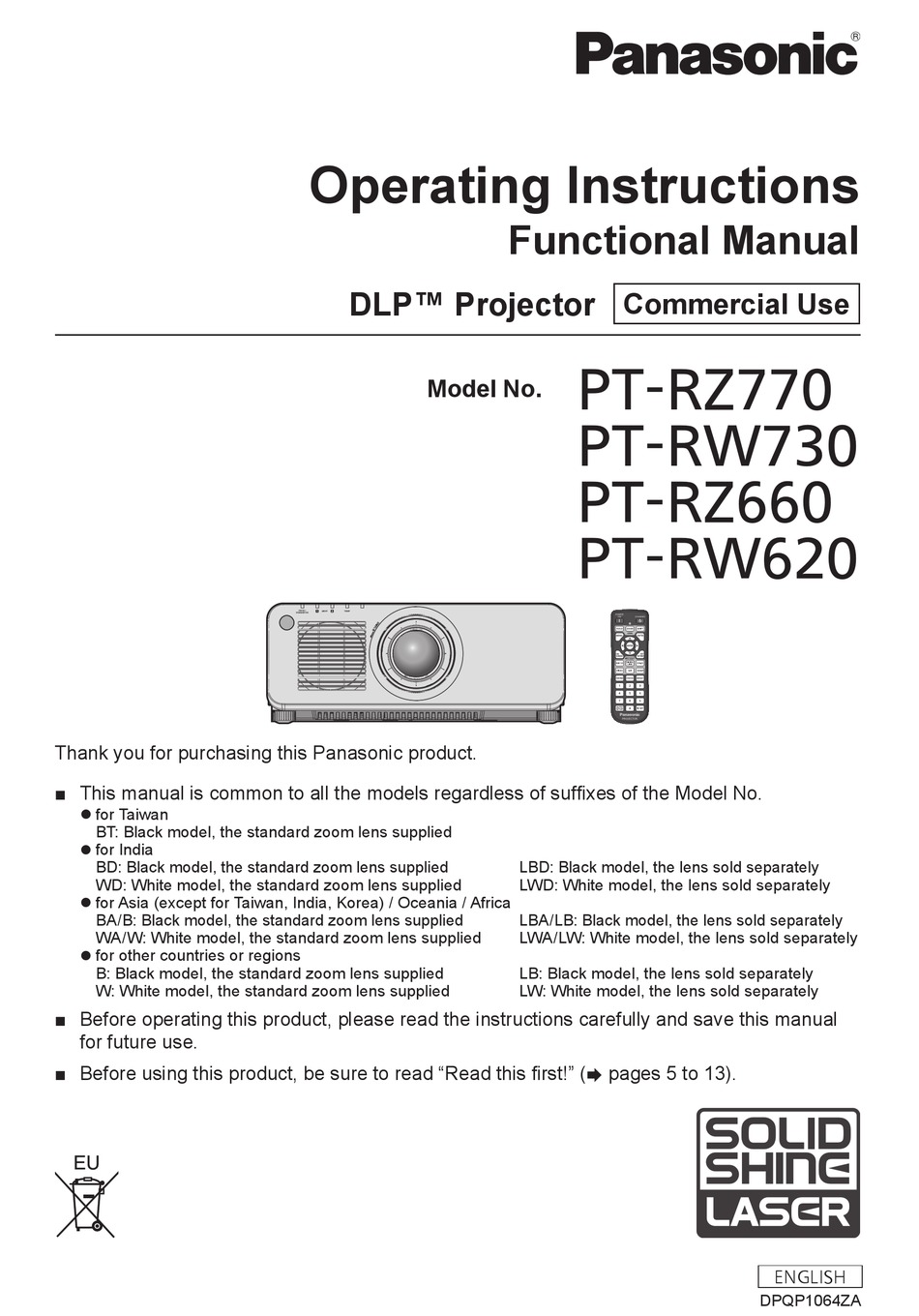

Page 1: Operating Instructions
Model No. PT-RW730 PT-RZ660 PT-RW620 Thank you for purchasing this Panasonic product. ■ This manual is common to all the models regardless of suffixes of the Model No. z for Taiwan BT: Black model, the standard zoom lens supplied z for India...
Page 2: Table Of Contents
Contents Contents Read this first! Chapter 3 Basic Operations Switching on/off the projector Chapter 1 Preparation Connecting the power cord Power indicator Precautions for use Switching on the projector Cautions when transporting When the initial setting screen is displayed Cautions when installing Making adjustments and selections Security Switching off the projector...
Page 3 Contents [POSITION] menu [PROJECTOR SETUP] menu [SHIFT] [PROJECTOR ID] [ASPECT] [PROJECTION METHOD] [ZOOM] [OPERATION SETTING] [CLOCK PHASE] [LIGHT OUTPUT] [GEOMETRY] [BRIGHTNESS CONTROL] [ADVANCED MENU] menu [STANDBY MODE] [DIGITAL CINEMA REALITY] [QUICK STARTUP] [NO SIGNAL SHUT-OFF] [BLANKING] [NO SIGNAL LIGHTS-OUT] [INPUT RESOLUTION] [INITIAL STARTUP] [CLAMP POSITION] [STARTUP INPUT SELECT]...
Page 4 Contents [NETWORK] menu [DIGITAL LINK MODE] [DIGITAL LINK STATUS] [NETWORK SETUP] [NETWORK CONTROL] [NETWORK STATUS] [DIGITAL LINK MENU] [Art-Net SETUP] [Art-Net CHANNEL SETTING] [Art-Net STATUS] Chapter 5 Operations Network connection Connecting to the network Web control function Computer that can be used for setting Accessing from the web browser Chapter 6 Maintenance...
Page 5: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view.
Page 6 Read this first! Notice on laser (for USA and Canada) This projector is the Class 3R laser product that complies with IEC 60825-1:2007. For North America “Complies with 21 CFR Parts 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50 dated june 24.2007”...
Page 7 PT-RW730LB / PT-RW730LW / PT-RZ660B / PT-RZ660W / PT-RZ660LB / PT-RZ660LW / PT-RW620B / PT-RW620W / PT-RW620LB / PT-RW620LW Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: http://panasonic.net/avc/projector/...
Page 8 This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Customers can download a copy of the original DoC for this product from our DoC server: http://www.ptc.panasonic.de Contact in the EU: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany Importer’s name and address within the European Union...
Page 9 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock, or will cause visual impairment.
Page 10 If liquid enters inside of the projector, consult your dealer. f Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Using the ceiling mount bracket other than the specified one will result in falling accidents.
Page 11 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
Page 12 Read this first! To remove the battery Remote Control Battery 1. Press the guide and lift the cover. 2. Remove the batteries. (ii) 12 - ENGLISH...
Page 13 Read this first! Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento.
Page 14 SOLID SHINE is a trademark of Panasonic Corporation. f Windows and Internet Explorer are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. f Mac, Mac OS, and Safari are trademarks of Apple Inc., registered in the United States and other countries.
Page 15: Features Of The Projector
(x page 48) of 10 000:1 are achieved even with its compact size. *1 A value for PT-RZ770, PT-RW730. A value for PT-RZ660 and 3. Connect the power cord. PT-RW620 is 6 000 lm. (x page 55) Easy and highly flexible setup 4.
Page 16: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. 16 - ENGLISH...
Page 17: Precautions For Use
Chapter 1 Preparation — Precautions for use Precautions for use Cautions when transporting f If you purchased the projector with the standard zoom lens, remove the lens protection material before use, and store it for the future use. Move the lens position to the home position and attach the lens protection material when transporting.
Page 18 Chapter 1 Preparation — Precautions for use rBe sure to ask a specialized technician or your dealer when installing the projector on a ceiling. The optional Ceiling Mount Bracket is required. Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings), ET-PKD130H (for High Ceilings, 6-axis Adjustment), ET-PKD130B (Projector Mount Bracket) rAsk a qualified technician or your dealer to install the cable wiring for DIGITAL LINK connection.
Page 19 Chapter 1 Preparation — Precautions for use rCautions when setting up the projector f The projector can be used by installing its top placed on the floor. To prevent the top surface from getting scratched during use, it is recommended to attach about a 20 mm (25/32") square buffer material (such as rubber cushion) on the four corners of the top surface.
Page 20: Security
Change your password periodically. A password can be set in the [SECURITY] menu → [SECURITY PASSWORD CHANGE]. f Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in case you receive such inquiries.
Page 21: Art-Net
90 days after installation in a computer, it is possible to register up to 2048 units of displays free of charge. Download the software from the Panasonic website (http://panasonic.net/avc/projector/pass/). It is necessary to register and login to PASS to download.
Page 22 Chapter 1 Preparation — Precautions for use (The time is estimated when the [PICTURE] menu → [DYNAMIC CONTRAST] is set to [3].) g When [OPERATING MODE] is set to [NORMAL]: Approximately 20 000 hours g When [OPERATING MODE] is set to [ECO]: Approximately 24 000 hours g When [OPERATING MODE] is set to [LONG LIFE1]: Approximately 43 000 hours g When [OPERATING MODE] is set to [LONG LIFE2]: Approximately 61 000 hours g When [OPERATING MODE] is set to [LONG LIFE3]: Approximately 87 000 hours...
Page 23: Accessories
Chapter 1 Preparation — Precautions for use Accessories Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories. Wireless/wired remote control unit <1> Lens Mount Cover <1> (N2QAYA000060) (Black model: 1GE1RZ970BU) (White model: 1GE1RZ970WU) (The same color as the outer case will be supplied.) Lens cover <1>...
Page 24: Optional Accessories
Note f The “List of Compatible Device Models” for the flat panel display compatible with the “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (http://panasonic.net/prodisplays/). Optional accessories Optional accessories (product name) Model No.
Page 25: About Your Projector
Chapter 1 Preparation — About your projector About your projector Remote control Front Bottom Power standby <v> button Number (<0> - <9>) buttons Sets the projector to the state where the projector is turned Used for entering an ID number or a password in a multiple off (standby mode) when the <MAIN POWER>...
Page 26 Chapter 1 Preparation — About your projector g Be sure the batteries are inserted properly. For other instructions, read the instructions related to batteries that are described in “Read this first!”. Caution label at the back of the remote control Note f When operating the remote control by directly pointing at the remote control signal receiver of the projector, operate the remote control within a distance approximately 30 m (98'5") from the remote control signal receiver.
Page 27: Projector Body
Chapter 1 Preparation — About your projector Projector body Front Side Rear Light source indicator <LIGHT1> Bottom Indicates the status of light source 1. Light source indicator <LIGHT2> Indicates the status of light source 2. Temperature indicator <TEMP> Indicates the internal temperature status. (Not used with this projector) Adjustable feet Adjusts the projection angle.
Page 28: Control Panel
Chapter 1 Preparation — About your projector r Control panel Power on <b> button <MENU> button Sets the projector to projection mode when the <MAIN Displays or hides the main menu. (x page 74) POWER> switch on the projector is set to <ON> and the power Returns to the previous menu when a sub-menu is displayed.
Page 29: Connecting Terminals
Chapter 1 Preparation — About your projector r Connecting terminals <REMOTE 1 IN> terminal/<REMOTE 1 OUT> terminal <SDI IN> terminal These are terminals to connect the remote control for serial This is a terminal to input the SDI signal. control in a multiple projector environment. (Only for PT-RZ770, PT-RZ660) <REMOTE 2 IN>...
Page 30: Preparing The Remote Control
Chapter 1 Preparation — Preparing the remote control Preparing the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order.
Page 31: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. ENGLISH - 31...
Page 32: Setting Up
Chapter 2 Getting Started — Setting up Setting up Installation mode The installation modes of the projector are as follows. Set [FRONT/REAR]/[FLOOR/CEILING] in the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 117) depending on the installation mode. Setting on a desk/floor and projecting forward Setting on a desk/floor and projecting from rear (Using the translucent screen) Menu item...
Page 33: Parts For Installation (Optional)
Chapter 2 Getting Started — Setting up r Angle sensor The range of the installation attitude that is detected by the angle sensor built-in the projector is as follows. Floor standing installation 30° Ceiling mount installation 30° Floor standing installation Projection direction Parts for installation (optional) The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings), ET-PKD130H (for High Ceilings, 6-axis...
Page 34 (x page 35). f The geometric adjustment function cannot be used when projecting the input signal rotated by 90° while using PT-RW730 or PT-RW620. When installing the projector, follow the following instructions so that distortion does not occur in the projected image.
Page 35 Chapter 2 Getting Started — Setting up g Install the projector so that the front side of the projector is parallel to the screen. g Install the projector so that the image can be projected within the range of shift adjustment by moving the lens position. The 90°...
Page 36 Chapter 2 Getting Started — Setting up Standard status Only [CURVED Only [KEYSTONE] used [KEYSTONE] and [CURVED CORRECTION] used together CORRECTION] used Projection Vertical Horizontal Vertical Horizontal lens Model keystone keystone keystone keystone Min. value of Min. value of Min. value of Min.
Page 37 Chapter 2 Getting Started — Setting up Projection distance of each projection lens A ±5 % error in listed projection distances may occur. When [GEOMETRY] is used, distance is corrected to become smaller than the specified image size. For PT‑RZ770, PT‑RZ660 r When the screen aspect ratio is 16:10 (Unit: m) Optional lens...
Page 38 Chapter 2 Getting Started — Setting up r When the screen aspect ratio is 16:9 (Unit: m) Optional lens Standard zoom Lens type Ultra short focus Short focus zoom lens Fixed-focus Lens zoom lens lens Projection lens Model No. — ET-DLE030 ET-DLE055 ET-DLE085 ET-DLE150...
Page 39 Chapter 2 Getting Started — Setting up r When the screen aspect ratio is 4:3 (Unit: m) Optional lens Standard zoom Lens type Ultra short focus Short focus zoom lens Fixed-focus Lens zoom lens lens Projection lens Model No. — ET-DLE030 ET-DLE055 ET-DLE085 ET-DLE150...
Page 40 Chapter 2 Getting Started — Setting up For PT‑RW730, PT‑RW620 r When the screen aspect ratio is 16:10 (Unit: m) Optional lens Standard zoom Lens type Ultra short focus Short focus zoom Fixed-focus Lens lens zoom lens lens Projection lens Model No. —...
Page 41 Chapter 2 Getting Started — Setting up r When the screen aspect ratio is 16:9 (Unit: m) Optional lens Standard zoom Lens type Ultra short focus Short focus zoom lens Fixed-focus Lens zoom lens lens Projection lens Model No. — ET-DLE030 ET-DLE055 ET-DLE085 ET-DLE150...
Page 42 Chapter 2 Getting Started — Setting up r When the screen aspect ratio is 4:3 (Unit: m) Optional lens Standard zoom Lens type Ultra short focus Short focus zoom lens Fixed-focus Lens zoom lens lens Projection lens Model No. — ET-DLE030 ET-DLE055 ET-DLE085 ET-DLE150...
Page 43: Standard Zoom Lens
Chapter 2 Getting Started — Setting up Formula for calculating the projection distance per projection lens To use a projected image size not listed in this manual, check the projected image size SD (m) and use the respective formula to calculate projection distance. The unit of all the formulae is m.
Page 44 Chapter 2 Getting Started — Setting up For PT‑RW730, PT‑RW620 r Standard zoom lens Projection distance (L) formula Projection lens Model No. Throw ratio Aspect ratio Min. (LW) Max. (LT) 1.8 - 2.5:1 16:10 = 1.5651 x SD - 0.0746 = 2.1855 x SD - 0.0725 ―...
Page 45: Adjusting Adjustable Feet
Chapter 2 Getting Started — Setting up Adjusting adjustable feet Install the projector on a flat surface so that the front of the projector is parallel to the screen surface and the projection screen is rectangular. If the screen is tilted downward, extend the front adjustable feet so that the projected image becomes rectangular. The adjustable feet can also be used to adjust the projector to be level when it is tilted in the horizontal direction.
Page 46: Removing/Attaching The Projection Lens
Before attaching the projection lens, remove the lens cover attached to the projection lens. f Panasonic takes no responsibility for any damage or malfunction of the product resulting from the use of projection lenses which are not manufactured by Panasonic. Always use the standard zoom lens supplied with the projector or the specified projection lens.
Page 47: Attaching The Projection Lens
Chapter 2 Getting Started — Removing/attaching the projection lens Attaching the projection lens Attach the projection lens using the following procedure. Guide groove Guide (ii) Projection lens Lens Mount Cover Fig. 1 Fig. 2 Fig. 3 Remove the Lens Mount Cover, and align the projection lens guide to the guide groove of the projector and insert to the end.
Page 48: Connecting
Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
Page 49: Connecting Example: Av Equipment
Chapter 2 Getting Started — Connecting <DVI-D IN> terminal pin assignments and signal names Outside view Pin No. Signal name Pin No. Signal name T.M.D.S data 2- (13) ― T.M.D.S data 2+ (14) +5 V T.M.D.S data 2/4 shield (15) ― (16) Hot plug detection (24)
Page 50: Connecting Example: Computers
Chapter 2 Getting Started — Connecting For <SDI IN> terminal (Only for PT-RZ770, PT-RZ660) Digital VCR for commercial use SD-SDI signal, HD-SDI signal, or 3G-SDI signal Note f The input format can be switched using the [PICTURE] menu → [SYSTEM SELECTOR]. f Setting of the [DISPLAY OPTION] menu →...
Page 51: Connecting Example Using Digital Link
150 m (492'2") if the twisted-pair-cable transmitter supports the long-reach communication method. If this distance is exceeded, image may be disrupted or a malfunction may occur in LAN communication. Please note that Panasonic does not support the use of the projector outside the maximum transmission distance.
Page 52: Connecting Example When Using The Contrast Synchronization Function/Shutter Synchronization Function
(http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 53 Chapter 2 Getting Started — Connecting r Connecting example Connect all the projectors to be linked in a loop by daisy chain connection when using the contrast synchronization function/shutter synchronization function. The number of linked projectors is limited to the maximum of 64 projectors. Communication cable (straight all connected) Communication cable (straight all connected) Connecting terminals of the first projector...
Page 54: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. 54 - ENGLISH...
Page 55: Switching On/Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily. Confirm that the <MAIN POWER> switch is on the <OFF> side before connecting the power cord. Use the power cord matching with the power supply voltage and the shape of the outlet.
Page 56: Switching On The Projector
Chapter 3 Basic Operations — Switching on/off the projector Indicator status Projector status The power is switched off. (standby mode) Projection will start when the power on <b> button is pressed. f The setting of the projector is as follows. g The [PROJECTOR SETUP] menu → [QUICK STARTUP] is set to [OFF]. f The projector may not operate when the light source indicators <LIGHT1>/<LIGHT2>...
Page 57: When The Initial Setting Screen Is Displayed
Chapter 3 Basic Operations — Switching on/off the projector Note f A warm-up period of up to approximately five minutes may be necessary until an image is displayed when the projector is switched on at around 0 °C (32 °F). The temperature indicator <TEMP> lights in red during the warm-up period. When the warm-up is completed, the temperature indicator <TEMP>...
Page 58 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (operation setting) Set the items regarding the operating method depending on the duration of use and the usage of the projector. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP] menu.
Page 59 Chapter 3 Basic Operations — Switching on/off the projector Press qw to adjust. Adjustment Operation Range of adjustment Brightness Runtime (estimate) The screen becomes brighter. The runtime becomes shorter. Press w. 8.0 % - 100.0 % Press q. The screen becomes darker. The runtime becomes longer.
Page 60 Interrelation of luminance and runtime is as follows. Make the initial setting (operation setting) depending on your desired duration of use and brightness of the projected image. Values of the luminance and runtime are rough estimations. r PT-RZ770/PT-RW730 f To set the projector based on the duration of use When [CONSTANT MODE] is set to [OFF]...
Page 61 Chapter 3 Basic Operations — Switching on/off the projector f To set the projector based on luminance When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC] [MAX LIGHT [MAX LIGHT Luminance (lm) [LIGHT OUTPUT] [LIGHT OUTPUT] OUTPUT LEVEL] Runtime (hour)
Page 62 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (standby mode) Set the operation mode during standby. The factory default setting is [NORMAL], which allows you to use the network function during standby. To keep power consumption low during standby, set this item to [ECO]. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu →...
Page 63 Chapter 3 Basic Operations — Switching on/off the projector Press as to select [SCREEN POSITION]. f [SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMAT] is set to [16:10]. INITIAL SETTING SCREEN FORMAT 16:9 SCREEN POSITION Set as necessary for the screen in use. CHANGE MENU SELECT ENTER...
Page 64: Making Adjustments And Selections
Chapter 3 Basic Operations — Switching on/off the projector Initial setting (date and time) Set the local date and time. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE AND TIME]. To set the date and time automatically, refer to “Setting the date and time automatically” (x page 129). Press as to select an item.
Page 65: Switching Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Press the <ZOOM> button again to adjust the zoom to match the projected image size to the screen. Note f When the projector is switched on for the first time after purchase, as well as when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the focus adjustment screen is displayed after projection starts, and then the [INITIAL SETTING] screen is displayed.
Page 66: Projecting
Chapter 3 Basic Operations — Projecting Projecting Check the external device connection (x page 48) and the power cord connection (x page 55), and turn on the power (x page 56) to start projection. Select the image to project, and adjust appearance of the projected image.
Page 67: Adjusting The Focus, Zoom, And Shift
Chapter 3 Basic Operations — Projecting Adjusting the focus, zoom, and shift If the projected image or the position is not correct when the positioning of the projector and the screen is correctly installed, adjust the focus, zoom, and shift. This section describes the adjustment method when anything other than the Fixed-focus Lens (Model No.: ET-DLE030) is used.
Page 68: Setting The Lens Position
Chapter 3 Basic Operations — Projecting Turn the periphery focus adjustment ring by hand to adjust the focus in the periphery of the screen. Periphery focus adjustment ring Check the focus at the center of the image again and make fine adjustments. Note f The projected image size and scale shown on the periphery focus adjustment ring are an approximate guide.
Page 69: Adjustment Range By The Lens Position Shift (Optical Shift)
Projected image width H Projected image width H Standard projection position Standard projection position 0.3 H 0.28 H 0.1 H PT-RW730, PT-RW620 0.1 H 0.1 H Projected image width H Projected image width H Note f When the optional Fixed-focus Lens (Model No.: ET-DLE055) is attached, do not use the shift adjustment, and use the projector with the lens position at the home position.
Page 70: Operating With The Remote Control
Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the shutter function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image temporarily. button Press the <SHUTTER>...
Page 71: Using The Automatic Setup Function
Chapter 3 Basic Operations — Operating with the remote control Using the automatic setup function The image position when the DVI-D/HDMI signal is input, or the resolution, clock phase, and image position when the analog RGB signal is input can be adjusted automatically. (Analog RGB signal is a signal structured with dots just like the computer signal.) It is recommended to input an image with bright white borders at the edges and high-contrast black and white characters when the automatic adjustment is being performed.
Page 72: Using The Status Function
Chapter 3 Basic Operations — Operating with the remote control Using the status function Display the status of the projector. button Press the <STATUS> button. f The [STATUS] screen is displayed. STATUS PROJECTOR TYPE RZ770(123456789012) PROJECTOR RUNTIME 100000h LIGHT RUNTIME 100000h / 100000h MAIN/SUB VERSION 1.00 / 1.00 INTAKE AIR TEMP.
Page 73: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. ENGLISH - 73...
Page 74: Menu Navigation
Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed.
Page 75: Main Menu
Chapter 4 Settings — Menu navigation Press as to select a sub‑menu, and press qw or the <ENTER> button to change or adjust settings. f Some items will switch in order as follows each time you press qw. f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note...
Page 76: Sub-Menu
Chapter 4 Settings — Menu navigation Main menu item Page [DISPLAY OPTION] [PROJECTOR SETUP] [P IN P] [TEST PATTERN] [SIGNAL LIST] [SECURITY] [NETWORK] Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. [PICTURE] Sub-menu item Factory default...
Page 77: Display Language
Chapter 4 Settings — Menu navigation Sub-menu item Factory default Page [FRAME RESPONSE] [NORMAL] [RASTER POSITION] ― *1 Depends on the signal input. Note f The factory default setting varies depending on the selected input terminal. [DISPLAY LANGUAGE] Details (x page 97) [DISPLAY OPTION] Sub-menu item Factory default...
Page 78: Signal List
Chapter 4 Settings — Menu navigation Sub-menu item Factory default Page [REMOTE2 MODE] [DEFAULT] [FUNCTION BUTTON] ― [LENS CALIBRATION] [NORMAL] [STATUS] ― [SAVE ALL USER DATA] ― [LOAD ALL USER DATA] ― [INITIALIZE] ― [SERVICE PASSWORD] ― [P IN P] Details (x page 139) [TEST PATTERN] Details (x page 141) [SIGNAL LIST]...
Page 79: [Picture] Menu
Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub‑menu. Refer to “Navigating through the menu” (x page 74) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
Page 80: [Color]
Chapter 4 Settings — [PICTURE] menu Operation Adjustment Range of adjustment Press w. Increases the brightness of the dark (black) parts of the screen. -31 - +31 Press q. Reduces the brightness of the dark (black) parts of the screen. [COLOR] You can adjust the color saturation of the projected image.
Page 81 Chapter 4 Settings — [PICTURE] menu Press qw or the <ENTER> button. f The [COLOR TEMPERATURE] individual adjustment screen is displayed. Press qw to select [USER1] or [USER2]. Press the <ENTER> button. f The [COLOR TEMPERATURE] screen is displayed. Press as to select [WHITE BALANCE]. Press the <ENTER>...
Page 82: [White Gain]
Chapter 4 Settings — [PICTURE] menu Note f Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment does not look suitable, you can press the <DEFAULT> button on the remote control to return the setting for the selected item only to the factory default setting.
Page 83: [System Daylight View]
Chapter 4 Settings — [PICTURE] menu Note f When the edge blending adjustment is performed while [DEFAULT] is selected, it will be the same gamma mode as when [2.2] is selected. (Only for PT-RW730, PT-RW620) Changing the [USER] name Press as to select [GAMMA].
Page 84: [Noise Reduction]
Chapter 4 Settings — [PICTURE] menu [NOISE REDUCTION] You can reduce noises when the input image is degraded and noise is occurring in the image signal. Press as to select [NOISE REDUCTION]. Press qw or the <ENTER> button. f The [NOISE REDUCTION] individual adjustment screen is displayed. Press qw to switch the item.
Page 85: [System Selector]
Chapter 4 Settings — [PICTURE] menu Setting item Details Adjusts the light source when the brightness level of the video [BRIGHT SIGNAL LEVEL] signal being input gets lower than the set value. The higher the (Setting of the brightness [6%] - [50%] value, the larger the range to perform the light adjustment of the level of the signal to start the light source.
Page 86: Srgb-Compliant Video
Chapter 4 Settings — [PICTURE] menu Terminal System format Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL-M], [PAL-N], [SECAM], or [PAL60]. <R/P /VIDEO> terminal, <G/ Select [AUTO] normally. ([AUTO] will automatically determine from [NTSC], [NTSC4.43], [PAL], Y>/<B/P /C> terminal [PAL-M], [PAL-N], [SECAM], or [PAL60].) Switch the setting to the appropriate TV signal format.
Page 87: [Position] Menu
Chapter 4 Settings — [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub‑menu. Refer to “Navigating through the menu” (x page 74) for the operation of the menu screen. Note f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/ LAN>...
Page 88: [Zoom]
Chapter 4 Settings — [POSITION] menu The projector identifies the video ID (VID) embedded in the video signals and displays the image by [AUTO] automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480/60i and 480/60p signals. [THROUGH] Displays images without changing the resolution of the input signals.
Page 89: [Clock Phase]
Chapter 4 Settings — [POSITION] menu When [ASPECT] is set to [DEFAULT] Press as to select [ZOOM]. Press the <ENTER> button. f The [ZOOM] screen is displayed. Press as to select [MODE]. Press qw to switch the item. [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT]. [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT].
Page 90 Chapter 4 Settings — [POSITION] menu [CURVED CORRECTION] Adjusts any curved distortion in the projected image. [PC-1] [PC-2] Performs geometric adjustment using a computer. [PC-3] *1 Only for PT-RZ770, PT-RZ660 Advanced skills are necessary to use a computer to control geometric adjustment. Consult your dealer. Up to three geometric adjustments performed using the computer can be saved.
Page 91 The settings for [DEFAULT] and [USER] in the [PICTURE] menu → [GAMMA] become disabled when [GEOMETRY] is set to anything other than [OFF] while using PT-RW730 or PT-RW620. The gamma mode will be the same as when set to [2.2].
Page 92: [Advanced Menu] Menu
Top of the screen [UPPER] The blanking zone Press w. moves downward. PT-RZ770, PT-RZ660: Top and bottom 0 - 599 PT-RW730, PT-RW620: Top The blanking zone Press w. and bottom 0 - 399 moves upward. Bottom of the [LOWER] screen The blanking zone Press q.
Page 93: [Input Resolution]
The blanking zone Press q. moves to the left. PT-RZ770, PT-RZ660: Left and right 0 - 959 PT-RW730, PT-RW620: Left The blanking zone Press q. and right 0 - 639 moves to the right. Right side of the [RIGHT]...
Page 94 Chapter 4 Settings — [ADVANCED MENU] menu Use the user-setting value for the inclination of the edge blending area. (Configuration/registration [USER] requires separate software. Consult your dealer.) f Proceed to Step 3) when anything other than [OFF] is selected. Press the <ENTER> button. f The [EDGE BLENDING] screen is displayed.
Page 95: [Frame Response]
The settings for [DEFAULT] and [USER] in the [PICTURE] menu → [GAMMA] become disabled when [EDGE BLENDING] is set to anything other than [OFF] while using PT-RW730 or PT-RW620. The gamma mode will be the same as when set to [2.2].
Page 96: [Raster Position]
Chapter 4 Settings — [ADVANCED MENU] menu Note f When [FAST] is set, the picture quality deteriorates. The [ADVANCED MENU] menu → [DIGITAL CINEMA REALITY] cannot be set. f [FRAME RESPONSE] cannot be set while in the P IN P mode. [RASTER POSITION] This will allow the position of the image to move within the display area arbitrarily when the input image is not using the whole display area.
Page 97: [Display Language] Menu
Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub‑menu. Refer to “Navigating through the menu” (x page 74) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display.
Page 98: [Display Option] Menu
Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub‑ menu. Refer to “Navigating through the menu” (x page 74) for the operation of the menu screen. [COLOR MATCHING] Correct the color difference between projectors when using multiple projectors simultaneously.
Page 99: [Color Correction]
Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [MEASURED MODE] screen is displayed. Press as to select [MEASURED DATA]. Press the <ENTER> button. f The [MEASURED DATA] screen is displayed. Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter. Press as to select a color, and press qw to adjust the setting.
Page 100: [Auto Signal]
Chapter 4 Settings — [DISPLAY OPTION] menu Model No. [SCREEN FORMAT] Range when [SCREEN POSITION] is selected [16:10] Cannot be adjusted. PT‑RW730, PT‑RW620 [16:9] Adjusts the vertical position between -40 and 40. Press as to select [SCREEN POSITION]. f [SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMAT] is set to [16:10]. Press qw to adjust [SCREEN POSITION].
Page 101: [Backup Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Adjusting position automatically Press as to select [AUTO SETUP]. Press the <ENTER> button. f The [AUTO SETUP] screen is displayed. Press as to select [POSITION ADJUST]. Press qw to switch the item. [ON] Adjust the screen position and size when automatic setup is executed. [OFF] Does not perform automatic adjustment.
Page 102: [Rgb In]
Chapter 4 Settings — [DISPLAY OPTION] menu Note f Backup function is enabled only when the [BACKUP INPUT MODE] is set to [ON], and the same signal is input to the <DVI-D IN> and <HDMI IN> terminals. f To switch to the backup input signal using the backup function, make sure that the following three conditions are satisfied to be ready to use the function.
Page 103: [Dvi-D In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [RGB IN] screen is displayed. Press as to select [RGB2 EDID MODE]. Press the <ENTER> button. f The [RGB2 EDID MODE] screen is displayed. Press qw to switch [EDID MODE]. f The items will switch each time you press the button.
Page 104 Chapter 4 Settings — [DISPLAY OPTION] menu Note f The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device. Setting [EDID SELECT] in [DVI-D IN] Press as to select [DVI-D IN].
Page 105: [Hdmi In]
Chapter 4 Settings — [DISPLAY OPTION] menu 10) Press the <ENTER> button. f The confirmation screen is displayed. 11) Press qw to select [OK], and press the <ENTER> button. Note f Settings in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] are displayed in the [DVI-D IN] screen. f Setting of the resolution and the vertical scanning frequency may be necessary on the computer or video device in use.
Page 106: [Digital Link In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press asqw to select [RESOLUTION]. f Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p]. Press the <ENTER> button. f The [VERTICAL SCAN FREQUENCY] screen is displayed. Press qw to select [VERTICAL SCAN FREQUENCY].
Page 107: [Sdi In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT] Standard setting. [SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting. [USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID. f Proceed to Step 10) when [DEFAULT] or [SCREEN FIT] is selected.
Page 108: [On-Screen Display]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. [AUTO] Automatically selects [12-bit] or [10-bit]. [12-bit] Fixes to [12-bit]. [10-bit] Fixes to [10-bit]. Setting [3G-SDI MAPPING] Press as to select [SDI IN]. Press the <ENTER> button. f The [SDI IN] screen is displayed. Press as to select [3G-SDI MAPPING].
Page 109 Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. [OFF] Does not rotate the screen. [CLOCKWISE] Rotates the screen by 90° clockwise. [COUNTERCLOCKWISE] Rotates the screen by 90° counterclockwise. Setting [OSD DESIGN] Set the color of the menu screen (OSD).
Page 110: B C R Signal Is Input)
Chapter 4 Settings — [DISPLAY OPTION] menu [ON] Displays the input guide. [OFF] Hides the input guide. Setting [WARNING MESSAGE] Set the display/hide of the warning message. Press as to select [ON-SCREEN DISPLAY]. Press the <ENTER> button. f The [ON-SCREEN DISPLAY] screen is displayed. Press as to select [WARNING MESSAGE].
Page 111: [Image Rotation]
→ [ON-SCREEN DISPLAY] → [OSD ROTATION] as required. f The [GEOMETRY] setting becomes disabled when the [DISPLAY OPTION] menu → [IMAGE ROTATION] is set to anything other than [OFF] while using PT-RW730 or PT-RW620, disallowing the usage of the geometric adjustment function. [BACK COLOR] Set the display of the projected screen when there is no signal input.
Page 112: [Uniformity]
Chapter 4 Settings — [DISPLAY OPTION] menu f When the [PROJECTOR SETUP] menu → [QUICK STARTUP] is set to [ON], the startup logo is not displayed when the projection is started before the specified time has elapsed after going into the standby mode. The specified time is the time set in the [PROJECTOR SETUP] menu →...
Page 113: [Shutter Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu [SHUTTER SETTING] Set the operation of the shutter function. Setting [FADE-IN] or [FADE-OUT] Set the image fade-in and fade-out when the shutter function operates. Press as to select [SHUTTER SETTING]. Press the <ENTER> button. f The [SHUTTER SETTING] screen is displayed.
Page 114: [Freeze]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. Select this item when the contrast synchronization function and the shutter synchronization function [OFF] are not used. Select this item when the contrast synchronization function or the shutter synchronization function is used.
Page 115 Chapter 4 Settings — [DISPLAY OPTION] menu [ON] Displays the waveform monitor. Press the <MENU> button two times to clear. Press as to select any horizontal line. Press the <ENTER> button to switch the Select line to either luminance, red, green, or blue. f Line selection items switch each time the <ENTER>...
Page 116: [Cut Off]
Chapter 4 Settings — [DISPLAY OPTION] menu Note f Confirm that the [SIGNAL LEVEL] setting of the input signal is correct before adjusting the black level. Confirm the [SIGNAL LEVEL] setting in the [DISPLAY OPTION] menu → [DVI-D IN]/[HDMI IN]/[DIGITAL LINK IN]/[SDI IN] → [SIGNAL LEVEL].
Page 117: [Projector Setup] Menu
Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub‑ menu. Refer to “Navigating through the menu” (x page 74) for the operation of the menu screen. [PROJECTOR ID] The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control.
Page 118: [Operation Setting]
Chapter 4 Settings — [PROJECTOR SETUP] menu [OPERATION SETTING] Set the operation method of the projector. The settings are reflected when “Initial setting (operation setting)” (x page 58) in the [INITIAL SETTING] screen is already set. If you change the settings while using the projector, the duration until the luminance of light source decreases by half may shorten or the luminance may decrease.
Page 119 Interrelation of luminance and runtime is as follows. Make the settings depending on your desired duration of use and brightness of the projected image. Values of the luminance and runtime are rough estimations. r PT-RZ770/PT-RW730 f To set the projector based on the duration of use When [CONSTANT MODE] is set to [OFF]...
Page 120 Chapter 4 Settings — [PROJECTOR SETUP] menu f To set the projector based on luminance When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC] [MAX LIGHT [MAX LIGHT Luminance (lm) [LIGHT OUTPUT] [LIGHT OUTPUT] OUTPUT LEVEL] Runtime (hour) OUTPUT LEVEL]...
Page 121 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [OPERATION SETTING] screen is displayed. Press as to select [CONSTANT MODE]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Does not correct the brightness of the screen by the brightness sensor.
Page 122: [Light Output]
Chapter 4 Settings — [PROJECTOR SETUP] menu f If the <ENTER> button is pressed when [LINK] is set from [GROUP A] to [GROUP D], the group name is displayed on the screens of projectors that have been set in the same group. LINK GROUP A 15) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER>...
Page 123: [Brightness Control]
Chapter 4 Settings — [PROJECTOR SETUP] menu [BRIGHTNESS CONTROL] The projector is equipped with a brightness sensor to measure brightness and color of the light source, and corrects brightness and white balance of the projected image according to the changes in brightness and color of the light source.
Page 124 Chapter 4 Settings — [PROJECTOR SETUP] menu 12) Press the <ENTER> button. f [CALIBRATION TIME] is set. f Brightness and color are measured at the specified time. The dynamic contrast function does not operate during measurement. 13) Press as to select [CALIBRATION MESSAGE]. 14) Press qw to switch the item.
Page 125 Chapter 4 Settings — [PROJECTOR SETUP] menu [BRIGHTNESS CONTROL STATUS] screen display example When [CONSTANT MODE] is set to [OFF] The screen shows the status that the brightness control is disabled. BRIGHTNESS CONTROL STATUS CONSTANT MODE PROJECTOR RETURN MENU When [CONSTANT MODE] is set to [AUTO], and [LINK] is set to [OFF] The screen shows the status of the brightness control in one projector.
Page 126 Chapter 4 Settings — [PROJECTOR SETUP] menu Display the status by color. Green: There is an allowance for brightness correction. Yellow: There is little allowance for brightness correction. Red: There is a brightness control error. Display error detailed messages. Display error messages. When the message [Failed to apply BRIGHTNESS CONTROL to some projectors.] appears, it means that synchronization with the projector displayed in red has failed.
Page 127: [Standby Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu 12) Adjust [LIGHT OUTPUT] of each projector. f Adjust [LIGHT OUTPUT] of all the other projectors so that the brightness will be the same as the projector with the least brightness. 13) Set [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in all projectors.
Page 128: [No Signal Shut-Off]
Chapter 4 Settings — [PROJECTOR SETUP] menu f When [QUICK STARTUP] is set to [ON], the [QUICK STARTUP] function is disabled when the time set in [VALID PERIOD] elapses after the projector enters the standby mode. The startup time and power consumption will be the same as when [QUICK STARTUP] is set to [OFF]. f When [QUICK STARTUP] is set to [ON], the power indicator <ON (G)/STANDBY (R)>...
Page 129: [Date And Time]
[DIGITAL LINK] Sets the input to DIGITAL LINK. [SDI] Sets the input to SDI. Sets the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable [INPUT1] - [INPUT10] transmitter to the specified input. *1 Only for PT-RZ770, PT-RZ660 *2 When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the projector, its input...
Page 130: [Schedule]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [APPLY], and press the <ENTER> button. f The setting of the date and time will be completed. Note f To set the date and time automatically, the projector must be connected to the network. f If synchronization with the NTP server fails just after [NTP SYNCHRONIZATION] is set to [ON], [NTP SYNCHRONIZATION] will return to [OFF].
Page 131 Switches the input to SDI. Switches the input to DIGITAL LINK, and switches the input of the [INPUT1] - [INPUT10] Panasonic twisted-pair-cable transmitter to the specified input. [NORMAL] Prioritizes luminance. Controls the power to increase the life of the light source with higher [ECO] luminance.
Page 132: [Multi Projector Sync]
Chapter 4 Settings — [PROJECTOR SETUP] menu f If an operation is executed with the remote control or control panel of the projector or with a control command before the command set in [SCHEDULE] is executed, the command set with the schedule function may not be executed. [MULTI PROJECTOR SYNC] Set the contrast synchronization function and the shutter synchronization function.
Page 133: Rs-232C]
Chapter 4 Settings — [PROJECTOR SETUP] menu g All the projectors to be linked are connected in a loop with the daisy chain connection. (Maximum 64 projectors) g [MODE] on only one projector that is linked is set to [MASTER], and [MODE] on all other projectors are set to [SLAVE]. g [CONTRAST SYNC] on the projectors to perform the contrast synchronization is set to [ON].
Page 134 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [RS-232C] screen is displayed. Press as to select [INPUT SELECT]. Press qw to switch the item. Performs the RS-232C communication with the <SERIAL/MULTI PROJECTOR SYNC IN> terminal of [PROJECTOR] the projector.
Page 135: [Remote2 Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu [ON] Returns the response when an ID is designated as ALL. [OFF] Does not return the response when an ID is designated as ALL. Press as to select [GROUP]. Press qw to switch the item. Controls multiple projectors simultaneously by sending the ID of RS-232C.
Page 136: [Lens Calibration]
Chapter 4 Settings — [PROJECTOR SETUP] menu [LENS CALIBRATION] Detect the lens shift limit value of the projector and set the home position and the ET-DLE030 lens standard position automatically. Press as to select [LENS CALIBRATION]. Press qw to switch the item. f The items will switch each time you press the button.
Page 137: [Save All User Data]
Chapter 4 Settings — [PROJECTOR SETUP] menu Displays the activation status by the Upgrade Kit (Model No.: [ET-UK20] ET-UK20). [UPGRADE] Displays the activation status by the Auto Screen Adjustment [ET-CUK10] Upgrade Kit (Model No.: ET-CUK10). [INPUT] Displays the input terminal currently selected. [SIGNAL FORMAT] Displays the format of the input signal.
Page 138: [Initialize]
Chapter 4 Settings — [PROJECTOR SETUP] menu [INITIALIZE] Return various setting values to their factory default settings. Press as to select [INITIALIZE]. Press the <ENTER> button. f The [SECURITY PASSWORD] screen is displayed. Enter a security password and press the <ENTER> button. f The [INITIALIZE] screen is displayed.
Page 139: [P In P] Menu
Chapter 4 Settings — [P IN P] menu [P IN P] menu On the menu screen, select [P IN P] from the main menu, and select an item from the sub‑menu. Refer to “Navigating through the menu” (x page 74) for the operation of the menu screen. Using the P IN P function Locate a separate, small sub screen in the main screen to project two images simultaneously.
Page 140 Chapter 4 Settings — [P IN P] menu 15) Press as to select [TYPE]. 16) Press qw to switch the item. [MAIN WINDOW] The main window has display priority. [SUB WINDOW] The sub window has display priority. Note f The P IN P function may not be available for some signals being input or terminals being selected. Refer to “Two-window display combination list”...
Page 141: [Test Pattern] Menu
Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 74) for the operation of the menu screen. [TEST PATTERN] Display the test pattern built-in to the projector. Settings of position, size, and other factors will not be reflected in test patterns.
Page 142: [Signal List] Menu
Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 74) for the operation of the menu screen. r Registered signal details A1 (1-2) Memory number: Sub memory number...
Page 143: Protecting The Registered Signal
Chapter 4 Settings — [SIGNAL LIST] menu Note f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen. Protecting the registered signal Press asqw to select the signal to protect. Press the <ENTER> button. f The [REGISTERED SIGNAL STATUS] screen is displayed.
Page 144: Sub Memory
Chapter 4 Settings — [SIGNAL LIST] menu f In an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the setting is set to [WIDE]. Sub memory The projector has a sub memory function that can register the multiple image adjustment data, even if it is recognized as the same signal by the frequency or format of the synchronization signal source.
Page 145: [Security] Menu
Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub‑menu. Refer to “Navigating through the menu” (x page 74) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>...
Page 146: [Text Change]
Chapter 4 Settings — [SECURITY] menu Press qw to switch the item. f The items will switch each time you press the button. [OFF] Hides the security message. [TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE]. [USER LOGO] Displays the image registered by the user.
Page 147: [Control Device Password Change]
Chapter 4 Settings — [SECURITY] menu Press the <ENTER> button. Press as to select [CONTROL PANEL] or [REMOTE CONTROL]. Press qw to switch [USER]. Press as to select the button item to set. f When [INPUT SELECT BUTTON] is selected, press the <ENTER> button, and then press as to select the button to set.
Page 148 Chapter 4 Settings — [SECURITY] menu Press asqw to select [OK], and press the <ENTER> button. f To cancel, select [CANCEL]. Attention f The initial password is “AAAA” as the factory default or when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed.
Page 149: [Network] Menu
Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub‑menu. Refer to “Navigating through the menu” (x page 74) for the operation of the menu screen. [DIGITAL LINK MODE] Switch the communication method of the <DIGITAL LINK/LAN>...
Page 150: [Network Setup]
Chapter 4 Settings — [NETWORK] menu [NETWORK SETUP] Perform the initial setting of the network before using the network function. Press as to select [NETWORK SETUP]. Press the <ENTER> button. f The [NETWORK SETUP] screen is displayed. Press as to select an item, and change the settings according to the operation instructions of the menu.
Page 151: [Network Status]
Chapter 4 Settings — [NETWORK] menu [NETWORK STATUS] Display the status of the projector network. Press as to select [NETWORK STATUS]. Press the <ENTER> button. f The [NETWORK STATUS] screen is displayed. [DHCP] Displays the status of use of the DHCP server. [IP ADDRESS] Displays the [IP ADDRESS].
Page 152: [Art-Net Channel Setting]
Chapter 4 Settings — [NETWORK] menu [Art-Net CHANNEL SETTING] Set the assignment of the channel. For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net function” (x page 184). Press as to select [Art-Net CHANNEL SETTING]. Press qw to switch the item.
Page 153: Chapter 5 Operations
Operations Chapter 5 This chapter describes how to use each function. ENGLISH - 153...
Page 154: Network Connection
Visit the Panasonic website (http://panasonic.net/avc/projector/pass/) for details. f PJLink Operation or status query of the projector can be performed from a computer using the PJLink protocol.
Page 155: Setting The Projector
(http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 156 Chapter 5 Operations — Network connection [SUBNET MASK] 255.255.255.0 [DEFAULT GATEWAY] 192.168.0.1 [DNS1]/[DNS2] None Operating the computer Turn on the power of the computer. Perform the network setting following the instruction of your network administrator. f Operation from the computer is possible by configuring the network setting of the computer as follows if the projector is in the factory default setting.
Page 157: Web Control Function
Enter the IP address set on the projector into the URL entry field of the web browser. Enter the user name and the password. f The factory default setting of the user name is user1 (user rights)/admin1 (administrator rights) and the password is panasonic (lower case). ENGLISH - 157...
Page 158 Chapter 5 Operations — Web control function Click OK. f The [Projector status] page is displayed. Note f If you use a web browser to control the projector, set the [NETWORK] menu → [NETWORK CONTROL] → [WEB CONTROL] to [ON]. f Do not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple computers.
Page 159 Chapter 5 Operations — Web control function Descriptions of items Page tab [Detailed set up] Switches pages by clicking this item. The [Detailed set up] page is displayed by clicking this item. [Status] [Change password] The status of the projector is displayed by clicking this item. The [Change password] page is displayed by clicking this item.
Page 160: Error Information Page
Chapter 5 Operations — Web control function Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status] screen, click it to display the content of the error/warning. f The projector may go into the standby status to protect the projector depending on the contents of the error. Self-diagnosis result display Displays the item check results.
Page 161 Chapter 5 Operations — Web control function Item Description There is a problem with the phosphor wheel 2 or phosphor wheel 2 drive circuit. Consult [PHOSPHOR WHEEL2] your dealer. r [WARNING] items Item Description The temperature around the optics module inside the projector is low. Image cannot be [LOW-TEMPERATURE] projected until the optics module becomes warm.
Page 162 Chapter 5 Operations — Web control function [Access error log] page Click [Status] → [Access error log]. The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or passwords. [Mail error log] page Click [Status] →...
Page 163 Chapter 5 Operations — Web control function [Basic control] page Click [Projector control] → [Basic control]. [POWER] On-screen display of the projector Turns off/on the power. Displays the same items as shown on the on-screen display of the projector. You can check or change the settings of the [SHUTTER] menus.
Page 164 Chapter 5 Operations — Web control function [Network config] page Click [Detailed set up] → [Network config]. f Click [Network config] to display the [CAUTION!] screen. f Click the [Next] button to display the current settings. f Click the [Change] button to display the setting change screen. [PROJECTOR NAME] [DNS1] Enter the name of the projector.
Page 165 Chapter 5 Operations — Web control function [Adjust clock] page Click [Detailed set up] → [Adjust clock]. [Time Zone] [Date] Select the time zone. Enter the date to be changed. [Set time zone] [Time] Updates the time zone setting. Enter the time to be changed. [NTP SYNCHRONIZATION] [Submit] Set [ON] when adjusting the date and time automatically.
Page 166 Chapter 5 Operations — Web control function [E-mail set up] page E-mail can be sent to preset E-mail addresses (up to two addresses) periodically or when an error or problem has occurred. Click [Detailed set up] → [E-mail set up]. [ENABLE] [MINIMUM TIME] Select [ENABLE] to use the E-mail function.
Page 167 Chapter 5 Operations — Web control function [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Auth] [Password] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
Page 168 Chapter 5 Operations — Web control function Contents of E-mail sent Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : RZ770 Serial No...
Page 169 Chapter 5 Operations — Web control function Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : RZ770 Serial No : 123456789012 ----- check system -----...
Page 170 Chapter 5 Operations — Web control function [Change password] page Click [Change password]. [Administrator] [Next] Used to change the setting of the [Administrator]. Used to change the setting of the password. [User] Used to change the setting of the [User]. [Administrator] account [Account] [New] Displays the account to change.
Page 171 Chapter 5 Operations — Web control function [User] account [Account] [OK] Displays the account to change. Determines the change of password. [New] [User name]: Enter the desired new user name. (Up to 16 characters in single byte) [Password]: Enter the desired new password. (Up to 16 characters in single byte) [Password(Retype)]: Enter the desired new password again.
Page 172 Chapter 5 Operations — Web control function Operation page [Tools], [Info], [Help] [Input Select] Tabs for selecting the setting, information, or help page of the Controls input selection. projector. Not available when the power of the projector is turned off. [POWER] Menu screen control buttons Turns on/off the power.
Page 173 Chapter 5 Operations — Web control function [Info] page Click [Info] in the operation page. [Projector Name] [Source] Displays the projector name. Displays the selected input. [Mac Address] [Error Status] Displays the MAC address. Displays the error status. [Lamp1 Hours], [Lamp2 Hours] [Exit] Displays the runtime of the light source 1 and the light source 2.
Page 174: Chapter 6 Maintenance
Maintenance Chapter 6 This chapter describes inspection methods when there are problems, and maintenance methods. 174 - ENGLISH...
Page 175: Light Source/Temperature Indicators
Chapter 6 Maintenance — Light source/temperature indicators Light source/temperature indicators When an indicator lights up If a problem occurs inside the projector, the light source indicators <LIGHT1>/<LIGHT2> or temperature indicator <TEMP> will inform you by lighting or blinking. Check the status of the indicators and take following measures. Attention f When switching off the projector to deal with problems, make sure to follow the procedure in “Switching off the projector”...
Page 176 Chapter 6 Maintenance — Light source/temperature indicators Temperature indicator <TEMP> Blinking in red Blinking in red Indicator status Lighting in red (2 times) (3 times) Internal temperature is high Internal temperature is high The cooling fan has Status Warm-up status (warning). (standby status).
Page 177: Maintenance
Chapter 6 Maintenance — Maintenance Maintenance Before maintaining the projector f Make sure to turn off the power before performing the maintenance of the projector. (x pages 55, 65) f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 65).
Page 178: Troubleshooting
Chapter 6 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―...
Page 179 Chapter 6 Maintenance — Troubleshooting Problems Points to be checked Page Video from HDMI f Is the HDMI cable connected securely? compatible device does f Turn the power of the projector and the external device off and on. ― not appear or it appears f Is a signal which is not compatible with the projector being input? jumbled.
Page 180: [Self Test] Indications
Chapter 6 Maintenance — [SELF TEST] indications [SELF TEST] indications [SELF TEST] can be checked in the [PROJECTOR SETUP] menu → [STATUS] → [SELF TEST]. The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and its details.
Page 181 Chapter 6 Maintenance — [SELF TEST] indications Error/warning display Details Action number Radiator fan 2 error Radiator fan 1 error Phosphor wheel 1 error Phosphor wheel 2 error Liquid cooling pump 1 error Liquid cooling pump 2 error Light source 1 unit error Light source 2 unit error Note f The self-diagnosis display and the details of the malfunction may be different.
Page 182: Chapter 7 Appendix
Appendix Chapter 7 This chapter describes specifications and after-sales service for the projector. 182 - ENGLISH...
Page 183: Technical Information
4th number: 0 = Light source 2 off, 1 = Light source 2 on 11 12 31 32 33 34 Only for PT-RZ770, PT-RZ660 INST? Input selection list query 11 12 31 32 33 Only for PT-RW730, PT-RW620 Returns the name set in [PROJECTOR NAME] of [NETWORK NAME? Projector name query xxxxx SETUP].
Page 184: Using Art-Net Function
ENABLE/DISABLE GEOMETRY CHANNEL12 NONE NONE NONE *1 For PT-RZ770, PT-RZ660. The setting for PT-RW730 or PT-RW620 is “NONE”. Control details r LIGHT OUTPUT This can be set in 256 steps between 100 % and 0 %. Performance Parameter Default value 100 % …...
Page 185 Chapter 7 Appendix — Technical information r INPUT SELECT (when [Art-Net CHANNEL SETTING] is set to [1]) Performance Parameter Default value No operation RGB1 8-15 RGB2 16-23 No operation 24-31 DVI-D 32-39 HDMI 40-47 DIGITAL LINK 48-55 SDI (Only for PT-RZ770, PT-RZ660) 56-63 No operation 64-127...
Page 186 Chapter 7 Appendix — Technical information r LENS FUNCTION SELECT (when [Art-Net CHANNEL SETTING] is set to [1]) Operate together with LENS CONTROL. Performance Parameter Default value No operation 0-15 LENS H SHIFT 16-31 LENS V SHIFT 32-47 LENS FOCUS 48-63 LENS ZOOM 64-79 Move to the home position...
Page 187 Chapter 7 Appendix — Technical information r GEOMETRY Performance Parameter Default value 0-15 KEYSTONE 16-31 CURVED CORRECTION 32-47 PC-1 48-63 PC-2 64-79 PC-3 80-95 CORNER CORRECTION 96-111 No operation 112-255 *1 Only for PT-RZ770, PT-RZ660 r CUSTOM MASKING (Only for PT‑RZ770, PT‑RZ660) To use PC-1, PC-2, or PC-3, the optional Upgrade Kit (Model No.: ET-UK20) is required.
Page 188: Control Commands Via Lan
Generate a 32-byte hash value from the following data using MD5 algorithm. f “xxxxxx:yyyyy:zzzzzzzz” xxxxxx Administrator rights user name for the web control (default user name is “admin1”) yyyyy Password of above administrator rights user (default password is “panasonic”) zzzzzzzz 8-byte random number obtained in Step 2) 188 - ENGLISH...
Page 189: Error Response
Chapter 7 Appendix — Technical information Command transmission method Transmit using the following command formats. r Transmitted data Termination Header Data section symbol Command Hash value ‘0’ ‘0’ Control command (CR) example “Connecting” (x page 188) 0x30 0x30 (ASCII string) 0x0d Data length 32 bytes 1 byte...
Page 190 Chapter 7 Appendix — Technical information Command transmission method Transmit using the following command formats. r Transmitted data Termination Header Data section symbol Command ‘0’ ‘0’ Control command (CR) example 0x30 0x30 (ASCII string) 0x0d Data length 1 byte 1 byte Undefined length 1 byte f Example: Transmission of power supply status acquisition command...
Page 191: Serial/Multi Projector Sync In>/ Terminals
Chapter 7 Appendix — Technical information <SERIAL/MULTI PROJECTOR SYNC IN>/<SERIAL/MULTI PROJECTOR SYNC OUT> terminals The <SERIAL/MULTI PROJECTOR SYNC IN>/<SERIAL/MULTI PROJECTOR SYNC OUT> terminals of the projector conform with RS-232C so that the projector can be connected to and controlled from a computer. A combined screen with a balanced contrast can be displayed by linking multiple projectors using the <SERIAL/ MULTI PROJECTOR SYNC IN>...
Page 192: Pin Assignments And Signal Names
Chapter 7 Appendix — Technical information Pin assignments and signal names D-Sub 9-pin (female) Pin No. Signal name Details Outside view ― Transmitted data Received data MULTI PROJECTOR For contrast synchronization function/for SYNC shutter synchronization function Earth ― Connected internally ― D-Sub 9-pin (male) Pin No.
Page 193 Chapter 7 Appendix — Technical information Basic format (has subcommands) Same as the basic format Sub command (5 bytes) Parameter (6 bytes) Symbol “+” or “–” (1 byte) and setting or adjustment value (5 bytes) Operation (1 byte) “=” (Set the value specified using parameter) *1 When transmitting a command which does not need a parameter, an operation (E) and parameter are not necessary.
Page 194: Control Command
Chapter 7 Appendix — Technical information Cable specification When connected to a computer When multiple projectors are connected NC NC NC NC Projector Computer Projector 1 Projector 2 (<SERIAL/MULTI PROJECTOR (DTE specifications) (<SERIAL/MULTI PROJECTOR (<SERIAL/MULTI PROJECTOR SYNC IN> terminal) SYNC OUT> terminal) SYNC IN>...
Page 195: Remote 2 In> Terminal
Chapter 7 Appendix — Technical information r Lens control command Command Sub command Details Remark LNSI2 Lens H shift +00000 = Fine adjustment 1+, +00001 = Fine adjustment 1-, +00100 LNSI3 Lens V shift = Fine adjustment 2+, +00101 = Fine adjustment 2-, +00200 = Coarse LNSI4 Lens focus adjustment+, +00201 = Coarse adjustment-...
Page 196: Two-Window Display Combination List
Chapter 7 Appendix — Technical information Two-window display combination list l: P IN P (picture in picture) combination is possible a: P IN P (picture in picture) combination is possible through the same frequency signal ―: P IN P (picture in picture) combination is not possible Sub window RGB1 RGB2...
Page 197: Upgrade Kit
Chapter 7 Appendix — Technical information Upgrade Kit (Only for PT-RZ770, PT-RZ660) If the optional Upgrade Kit (Model No.: ET-UK20) is applied, the following functions are extended. Function Standard status When the Upgrade Kit is applied Adjustment range of Maximum of ±40° Maximum of ±45°...
Page 198: List Of Compatible Signals
Chapter 7 Appendix — Technical information List of compatible signals The following table specifies the video signals compatible with the projector. For details of SDI signal, refer to “List of SDI compatible signals” (x page 200). f Symbols that indicate formats are as follows. g V: VIDEO, Y/C g R: RGB (analog) g Y: YC...
Page 199 *2 Pixel-Repetition signal (dot clock frequency 27.0 MHz) only *3 Only for PT-RW730, PT-RW620 *4 VESA CVT-RB (Reduced Blanking)-compliant *5 Samples the pixels in the image processing circuit and projects the image.
Page 200 A signal with a different resolution is converted to the number of display dots. The number of display dots is as follows. g PT-RZ770, PT-RZ660: 1 920 x 1 200 g PT-RW730, PT-RW620: 1 280 x 800 f The “i” at the end of the resolution indicates an interlaced signal.
Page 201 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color space Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) (MHz) (kHz) (Hz) 2 048 x 1 080 28.1 25.0 74.3 3G-SDI Level-A 4:4:4 10bit 2 048 x 1 080 28.1 25.0 74.3...
Page 202: Specifications
Chapter 7 Appendix — Specifications Specifications The specifications of the projector are as follows. PT‑RZ770B, PT‑RZ770W, PT‑RZ770LB, PT‑RZ770LW, PT‑RZ770BD, PT‑RZ770WD, PT‑RZ770LBD, PT‑RZ770LWD, PT‑RZ770BA, PT‑RZ770WA, PT‑RZ770LBA, PT‑RZ770LWA, PT‑RW730B, PT‑RW730W, PT‑RW730LB, PT‑RW730LW, PT‑RW730BD, PT‑RW730WD, PT‑RW730LBD, PT‑RW730LWD, PT‑RW730BA, PT‑RW730WA, PT‑RW730LBA, 100 V - 240 V ~ (100 V - 240 V alternating current), PT‑RW730LWA, PT‑RZ660B, PT‑RZ660W, 50 Hz/60 Hz PT‑RZ660LB, PT‑RZ660LW, PT‑RZ660BD,...
Page 203 Chapter 7 Appendix — Specifications PT‑RZ770, PT‑RZ660 1.7 to 2.4:1 Electric zoom PT‑RW730, PT‑RW620 1.8 to 2.5:1 Lens F = 1.7 to 1.9 Electric focus f = 25.6 mm to 35.7 mm Light source Laser light source, 2 sets 7 000 lm , 7 200 lm (center) PT‑RZ770, PT‑RW730 (Both values are measured when [OPERATING MODE]...
Page 204 Chapter 7 Appendix — Specifications r Connecting terminal 1 set (BNC x 5 (RGB/YP /YC/VIDEO x 1)) RGB signal 0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω) SYNC/HD TTL high impedance, automatic positive/negative polarity compatible <RGB 1 IN> terminal TTL high impedance, automatic positive/negative polarity compatible signal...
Page 205: Compatible Signal
RGB input f Resolution: 640 x 400 to 1 920 x 1 200 f Dot clock frequency: 162 MHz or less f PIAS (Panasonic Intelligent Auto Scanning) system input f Resolution: 480i/576i to 1 920 x 1 080 f Dot clock frequency: 148.5 MHz or less f The HD/SYNC and VD terminals do not support 3 value SYNC.
Page 206: Dimensions
Chapter 7 Appendix — Dimensions Dimensions Unit: mm 249 (9-13/16) 221 (8-11/16) 457 (18) 442 (17-13/32) 498 (19-19/32) * The above dimensions are obtained when the standard zoom lens is attached. * Actual dimensions may differ depending on the product. 206 - ENGLISH...
Page 207: Precautions For Attaching The Ceiling Mount Bracket
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of the Ceiling Mount Bracket not manufactured by Panasonic or the inappropriate choice of location for installing the Ceiling Mount Bracket, even if the warranty period of the projector has not expired.
